ERKUL 5.2" Running Boards for Toyota RAV4 2013-2018

1. Увод

This manual provides comprehensive instructions for the installation, operation, and maintenance of your ERKUL 5.2" Running Boards, specifically designed for Toyota RAV4 models manufactured between 2013 and 2018. Please read this manual thoroughly before beginning installation or use to ensure proper fitment, safe operation, and long-term durability of your product.

These running boards are engineered to provide a secure and convenient step for vehicle entry and exit, while also enhancing the vehicle's aesthetic. They feature a robust aluminum construction with an anodized coating for superior durability and resistance to environmental factors.

2. Безбедносне информације

• Увек носите одговарајућу личну заштитну опрему (ЛЗО) као што су рукавице и заштита за очи током инсталације.
• Ensure the vehicle is parked on a level surface, the engine is off, and the parking brake is engaged before starting any work.
• If using a car lift, ensure it is properly rated for your vehicle's weight and operated by trained personnel.
• Do not exceed the maximum weight capacity of 350 lbs per step.
• Regularly inspect all mounting hardware for tightness and signs of wear or damage. Loose hardware can lead to product failure and injury.
• Држите децу и кућне љубимце даље од радног простора током инсталације.

3. Садржај пакета

Verify that all components listed below are present and undamaged before proceeding with installation. If any parts are missing or damaged, please contact customer support.

• Pair of Running Boards (Left and Right)
• Pair of Mounting Brackets (Vehicle-specific)
• All Necessary Mounting Hardware (Bolts, Washers, Nuts, etc.)
• Installation Instructions (This Manual)

4. Спецификације

Image: Key features of ERKUL Running Boards, highlighting load capacity, no-drill installation, material quality, and anti-slip design.

5. Упутства за инсталацију

The ERKUL 5.2" Running Boards are designed for a straightforward, no-drill installation on your Toyota RAV4 (2013-2018). The custom-designed brackets ensure a precise fit.

Потребни алати (нису укључени):

• Кључ насадних кључева
• Торкуе Вренцх
• Меасуринг Тапе
• Marker or Grease Pencil

Општи кораци инсталације:

1. Припремите возило: Park the vehicle on a flat, stable surface. Engage the parking brake and turn off the engine. For easier access, especially if your vehicle is lower to the ground, using a car lift is recommended. Professional assistance may be beneficial.
2. Идентификујте тачке монтаже: Locate the factory mounting points on the vehicle's chassis along the rocker panel. These points are typically pre-drilled and threaded.
3. Приложите заграде: Secure the vehicle-specific mounting brackets to the identified factory mounting points using the provided hardware. Do not fully tighten the bolts at this stagе да би се омогућило подешавање.
4. Position Running Boards: Carefully lift each running board and align it with the attached brackets. Secure the running board to the brackets using the remaining hardware. Again, do not fully tighten.
5. Прилагоди и поравнај: Adjust the position of the running boards to ensure they are level and evenly spaced from the vehicle body. Once satisfied with the alignment, progressively tighten all bolts to the manufacturer's specified torque settings.
6. Коначна провера: Double-check all connections to ensure they are secure. Test the stability of the running boards by applying moderate weight.

Image: No-drill installation is achieved through vehicle-specific bracket designs, simplifying the setup process.

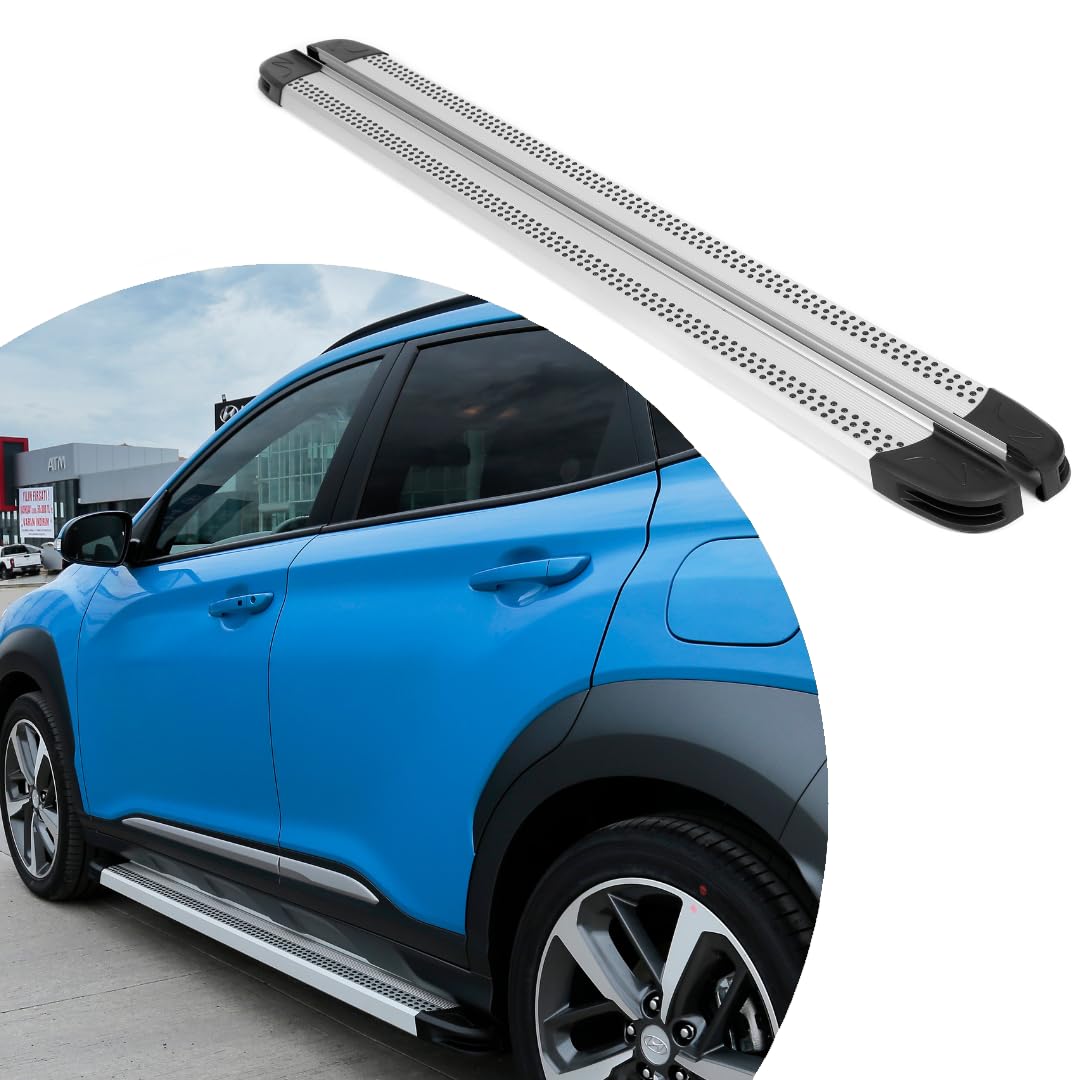

Image: A silver running board seamlessly integrated onto the side of a vehicle, demonstrating its installed appearance.

6. Рад и употреба

Your ERKUL Running Boards are designed for safe and convenient use. The anti-slip surface provides secure footing in various weather conditions.

• Use the running boards as a stable step when entering or exiting your Toyota RAV4.
• Ensure your footwear has good grip, especially in wet or icy conditions, despite the anti-slip design.
• Do not use the running boards as a jacking point for the vehicle.
• Avoid standing or placing excessive weight on the running boards while the vehicle is in motion.

Слика: Детаљна view of the running board's textured surface, designed to provide enhanced grip and prevent slipping.

7. Одржавање и њега

To ensure the longevity and appearance of your ERKUL Running Boards, follow these maintenance guidelines:

• Редовно чишћење: Wash the running boards regularly with mild automotive soap and water. Rinse thoroughly to remove all soap residue. Avoid harsh chemicals or abrasive cleaners, which can damage the anodized finish.
• Проверите хардвер: Periodically (e.g., every 3-6 months or after off-road use) inspect all mounting bolts and brackets. Tighten any loose hardware to prevent rattling or detachment.
• Проверите оштећења: Examine the running boards for any signs of impact damage, cracks, or corrosion. Address any issues promptly to prevent further deterioration.
• Зимска нега: In areas with road salt or de-icing chemicals, clean the running boards more frequently to prevent corrosion.

Image: The anodized coating on the running boards provides excellent resistance against rust and corrosion, ensuring durability in various conditions.

КСНУМКС. Решавање проблема

If you encounter any issues with your ERKUL Running Boards, refer to the following common troubleshooting steps:

• Rattling or Looseness: This is typically caused by loose mounting hardware. Re-check and tighten all bolts and nuts according to the installation instructions.
• Difficulty Stepping: Ensure the running boards are installed level and at the correct height. Re-adjust if necessary.
• Необични звуци: Inspect for any contact between the running boards or brackets and other vehicle components. Adjust positioning or tighten hardware as needed.
• Corrosion or Finish Issues: Ensure proper cleaning and maintenance as outlined in Section 7. If corrosion persists despite proper care, contact customer support.

For issues not covered here, or if troubleshooting steps do not resolve the problem, please contact ERKUL customer support.

9. Подршка и ресурси

ERKUL is committed to providing high-quality products and excellent customer service. If you require assistance with installation, have questions about your product, or need support, please utilize the resources below.

Званични производ је претходанview видео:

Корисничка подршка:

For direct assistance, including installation support, please contact ERKUL AUTO customer service. Refer to the contact information provided with your product packaging or visit the official ERKUL webсајту.

Image: ERKUL provides dedicated after-sales support for all its products, ensuring customer satisfaction and assistance with any queries.
