1. Увод
Thank you for choosing the DELIPOP 36W Dimmable LED Ceiling Light. This modern ceiling lamp is designed to provide versatile and energy-efficient lighting for various indoor spaces. With its adjustable color temperature and brightness, controlled via a remote, it offers a customizable lighting experience. Please read this manual carefully before installation and use to ensure proper operation and safety.
The DELIPOP 36W Dimmable LED Ceiling Light features a modern chrome finish and a unique floral design, providing ambient lighting suitable for various living spaces.
2. Безбедносне информације
- електрична безбедност: Always turn off the main power supply at the circuit breaker before attempting any installation, maintenance, or cleaning.
- Професионална инсталација: For your safety, it is recommended that installation be performed by a qualified electrician.
- Волtage: Уверите се да је напајање волtagе одговара захтевима производа (220V).
- Само за унутрашњу употребу: This product is designed for indoor use and is not water-resistant. Do not install in damp окружења.
- Руковање: Handle the light fixture with care to avoid damage to the acrylic lampshade or LED components.
3. Садржај пакета
Молимо вас да проверите пакет да бисте били сигурни да су све компоненте присутне:
- DELIPOP 36W LED Ceiling Light Fixture
- Ремоте Цонтрол
- Прибор за монтажу (шрафови, зидни типлови)
- Упутство за употребу (овај документ)
4. Спецификације
| Феатуре | Спецификација |
|---|---|
| Бранд | ДЕЛИПОП |
| Број модела | DELIPOP-36W-LED-01 |
| Боја | Цхроме |
| Материјал | Акрил, Алуминијум |
| Стиле | Модерна |
| Димензије производа (Д к Ш к В) | 40L x 40W x 12H cm (15.75 x 15.75 x 4.72 inches) |
| Повер | 36 Ваттс |
| Луминоус Флук | 3240 лм |
| Температура боје | 3000K-6500K (Warm White, Natural Light, Cool White) |
| Подешавање осветљености | 10%-100% (Stepless Dimming) |
| Волtage | 220 Волтс |
| Контролни метод | Remote Control, Wall Switch, APP (if supported by specific model) |
| Тип извора светлости | Built-in LED Chips |
| Класа енергетске ефикасности | E |
| Врста инсталације | Полу-уградни носач |
| Тежина | 1100 грама |

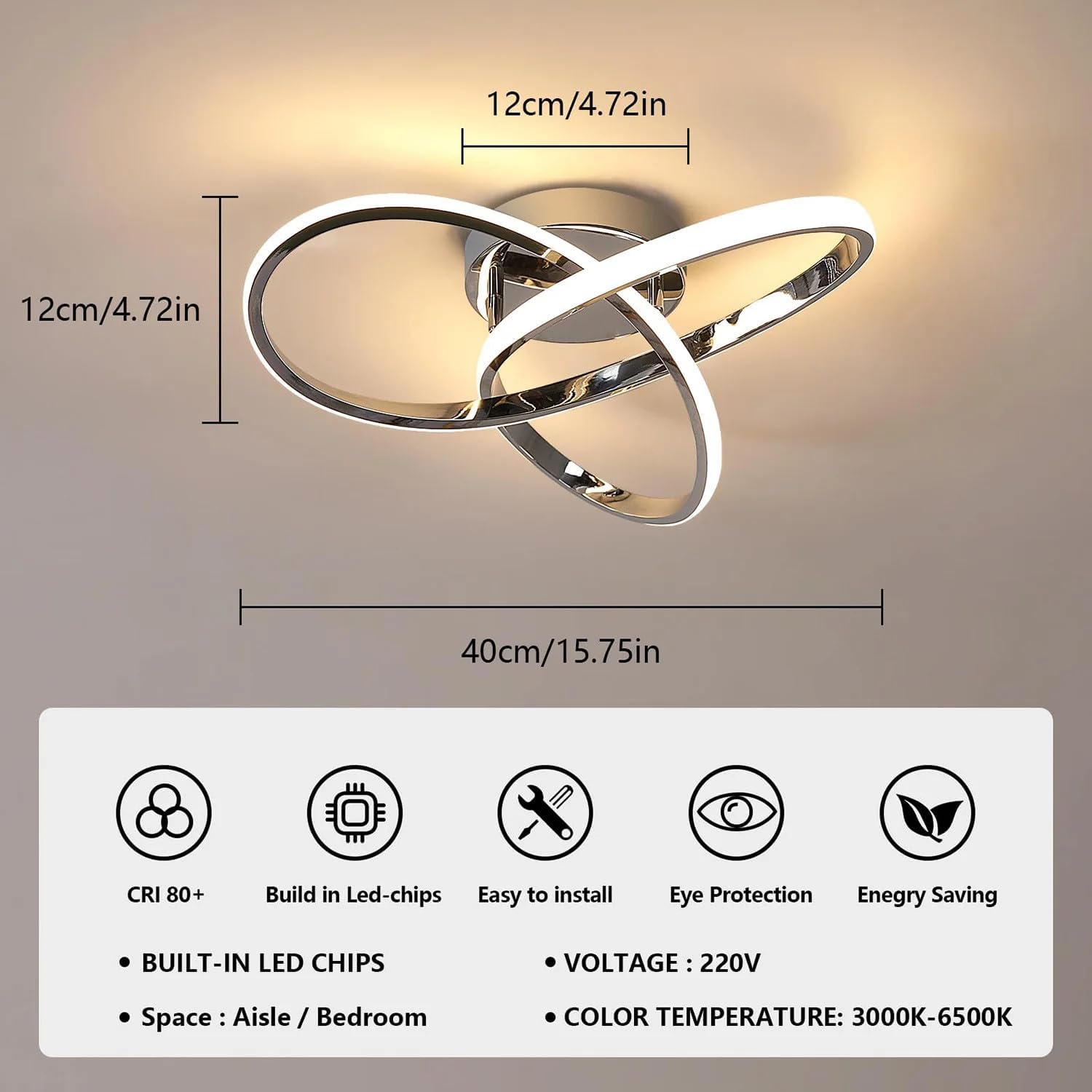

Детаљно view of the ceiling light's dimensions (40L x 40W x 12H cm) and key specifications, including its 220V voltage, 3000K-6500K color temperature range, and energy-efficient built-in LED chips.
The product's energy efficiency rating is E, with an energy consumption of 36 kWh per 1000 hours of operation. For more details, refer to the ЕУ ЕПРЕЛ база података.
5. Подешавање (инсталација)
The DELIPOP LED Ceiling Light is designed for straightforward installation. However, if you are unsure, please consult a qualified electrician.
Кораци инсталације:
- Припремите се за инсталацију: Искључите главно напајање на прекидачу да бисте спречили струјни удар.
- Означите тачке монтаже: Use the mounting bracket as a template to mark the drilling points on the ceiling.
- Избушене рупе: Drill holes at the marked positions and insert the wall anchors (if necessary).
- Причврстите носач за монтажу: Причврстите монтажни држач за плафон користећи приложене завртње.
- Повежите ожичење: Carefully connect the household electrical wires to the light fixture's wires. Ensure correct polarity (Live to Live, Neutral to Neutral, Ground to Ground). Use appropriate wire connectors.
- Монтирајте уређај: Align the light fixture with the mounting bracket and secure it in place with the provided screws or locking mechanism.
- Врати снагу: Once the fixture is securely mounted and wired, turn the main power supply back on.
This image shows the internal structure and materials of the light, including the high-quality metal body, durable acrylic lampshade, and integrated LED chip for stable and glare-free illumination.
6. Упутство за употребу
The DELIPOP LED Ceiling Light can be controlled using the included remote control or a standard wall switch.
Функције даљинског управљача:
The included remote control allows for convenient adjustment of brightness, color temperature, and activation of the night light mode. It also features a 60-second delay-off function.
- УКЉУЧЕНО/ИСКЉУЧЕНО: Притисните да бисте укључили или искључили светло.
- Подешавање осветљености: Use the '+' and '-' buttons to increase or decrease brightness from 10% to 100%.
- Подешавање температуре боје: Use the 'Warm' and 'Cool' buttons to cycle through 3000K (Warm White), 4000K (Natural Light), and 6000K (Cool White).
- Режим ноћног светла: Press the 'Moon' icon button to activate a low-brightness, warm light setting, ideal for nighttime use.
- 60s Delay Off: Press this button to set a 60-second timer before the light turns off automatically.

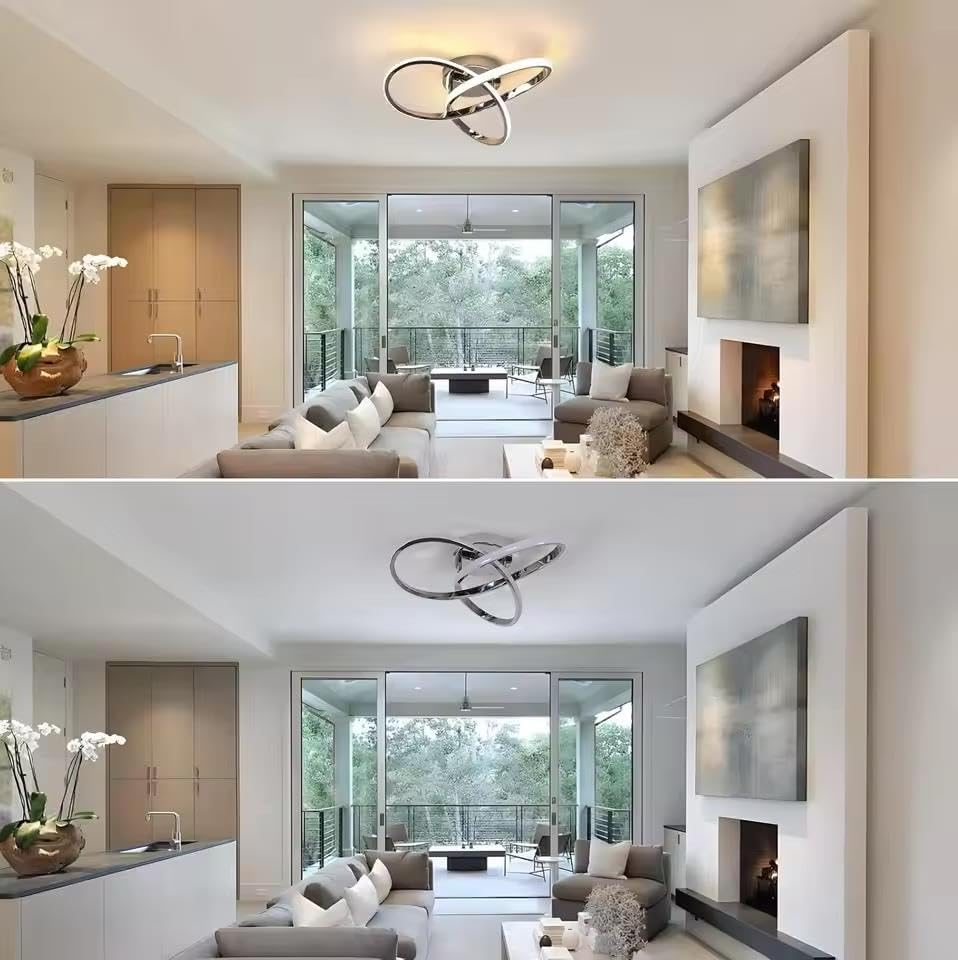

This image illustrates the light's versatility, allowing adjustment from warm white (3000K) to natural light (4000K) and cool white (6000K), along with brightness control from 10% to 100%.
Контрола зидног прекидача:
If controlled by a standard wall switch, the light will cycle through different color temperatures (Warm, Natural, Cool) each time it is turned off and on quickly. The light does not retain its last setting (brightness or color temperature) when turned off via a wall switch; it will reset to a default setting upon next power-on.
The night light mode provides a soft, low-intensity illumination, ideal for children's rooms, nurseries, or as a subtle ambient light in any bedroom.
7. Одржавање
- Чишћење: Пре чишћења проверите да ли је напајање искључено. Обришите уређај меком, сувом или благо длаком.amp cloth. Do not use abrasive cleaners or solvents, as they may damage the finish or acrylic.
- Замена сијалице: This fixture uses integrated LED chips and does not require bulb replacement. If the LEDs fail, the entire fixture may need servicing or replacement.
- инспекција: Periodically check the wiring connections and mounting hardware to ensure they remain secure.
КСНУМКС. Решавање проблема
| Проблем | Могући узрок | Решење |
|---|---|---|
| Светлост се не пали. | No power supply, loose wiring, faulty remote control, integrated LED failure. | Check circuit breaker. Ensure wiring connections are secure. Replace remote batteries. Contact customer support if LEDs are faulty. |
| Даљински управљач не ради. | Празне батерије, даљински управљач ван домета, препрека. | Replace batteries. Ensure remote is within effective range and pointed towards the light. Remove any obstructions. |
| Светло неочекивано трепери или се гаси. | Unstable power supply, loose connection, incompatible dimmer switch (if not using remote). | Check power supply stability. Verify wiring connections. Ensure you are using the provided remote for dimming. |
| Light resets to default settings after turning off with wall switch. | This is a normal function; the light does not have a memory function when controlled by a wall switch. | Use the remote control to set desired brightness and color temperature for consistent settings. |
9. Гаранција и подршка
DELIPOP products are manufactured to high-quality standards. For warranty information, technical support, or if you encounter any issues not covered in this manual, please contact DELIPOP customer service through the retailer where you purchased the product or visit the official DELIPOP webсајт за контакт детаље.
Молимо вас да сачувате рачун као доказ о куповини за потребе гаранције.
