ANJANK KX213 Extra Loud Alarm Clock with Wireless Vibration Manual

1. Увод

Thank you for choosing the ANJANK KX213 Extra Loud Alarm Clock. This device is designed to provide a reliable and customizable wake-up experience, especially for deep sleepers, teenagers, and individuals with hearing difficulties. It features a wireless vibration shaker, multiple alarm modes, a customizable time display, and a multi-color night light. Please read this manual thoroughly to understand the product's functions and ensure proper use.

2. Садржај пакета

• Alarm Clock x 1
• Wireless Bed Shaker x 1
• Power Adapter with Cable x 1
• Упутство за употребу к 1
• Tip Card x 1

3. Производ је готовview

The ANJANK KX213 alarm clock combines several features to ensure an effective wake-up. Key components include the main alarm clock unit with a digital display, a wireless vibration shaker, and various control buttons for settings.

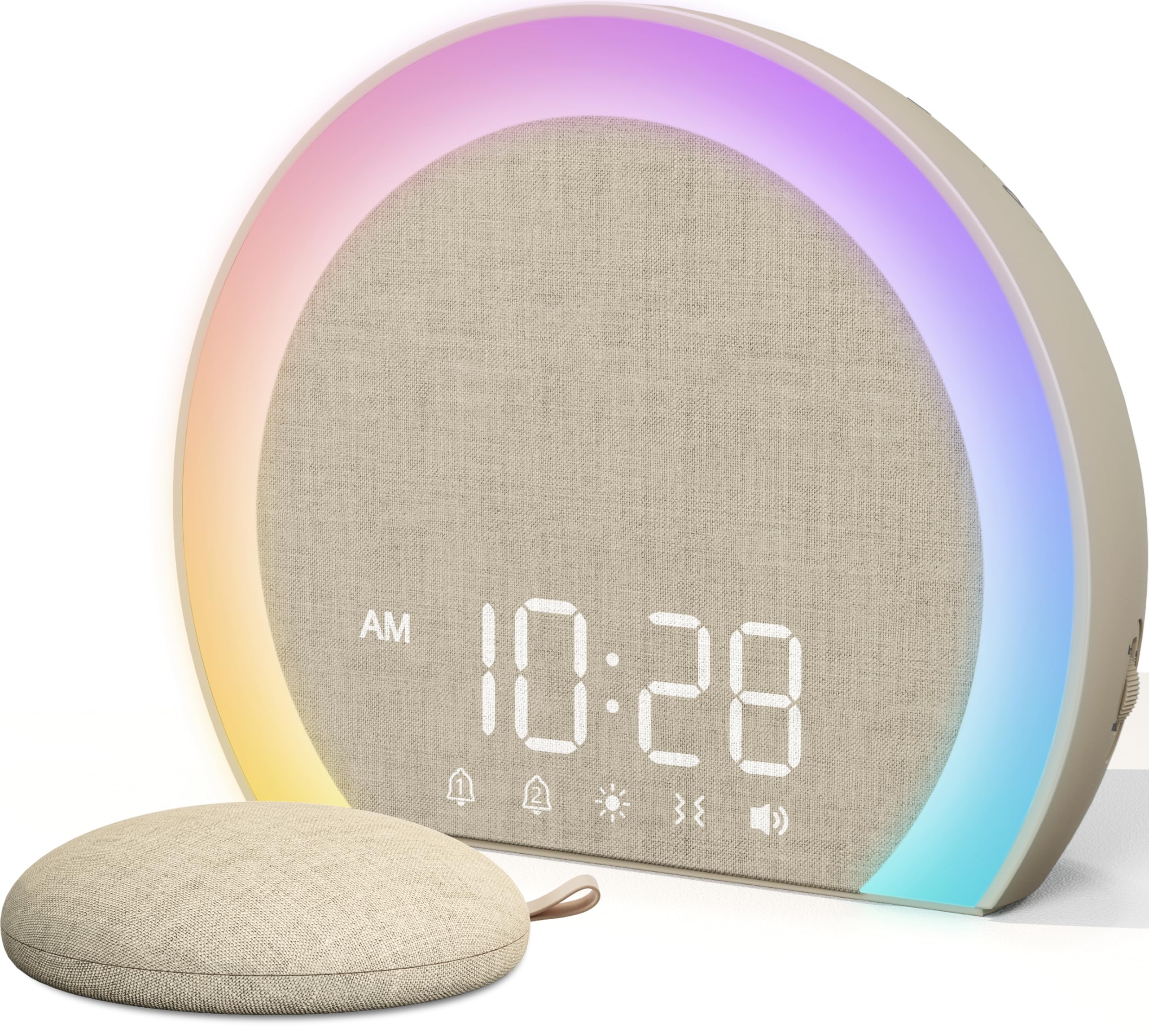

Image: The ANJANK KX213 alarm clock and its wireless bed shaker, illustrating the product's design and components.

4. Подешавање

1. Прикључак за напајање: Connect the provided power adapter to the alarm clock and plug it into a standard AC 100-240V outlet. The alarm clock requires continuous power to operate.
2. Bed Shaker Charging: The wireless bed shaker has a built-in 1500mAh battery. Charge it using the magnetic or Type-C port. A full charge typically lasts 2-3 months.
3. Почетно подешавање времена: Upon first power-up, the display will show a default time. Refer to the "Setting Time" section for instructions on adjusting the time.

Image: The wireless bed shaker being charged, highlighting its magnetic and Type-C charging options.

5. Упутство за употребу

5.1 Подешавање времена

Detailed instructions for setting the current time will be provided in the full manual. Generally, a "Time Set" button or a combination of buttons is used to enter time setting mode, followed by adjustment buttons (e.g., +/-, Up/Down) to set hours and minutes.

5.2 Подешавање аларма

The clock supports two separate alarms. To set an alarm:

1. Press the "Alarm 1" or "Alarm 2" button to enter alarm setting mode.
2. Use the adjustment buttons to set the desired alarm time.
3. Select the alarm tone from the 8 available options.
4. Adjust the alarm volume (10 levels available).
5. Choose the desired alarm mode (S01, S02, S03).
6. Confirm settings by pressing the alarm button again or waiting for it to exit setting mode automatically.

Image: Illustration of the alarm clock's speaker and various alarm tone options, including chime, birdsong, buzzer, and two loud sharp sounds.

5.3 Adjusting Display Brightness and Color

The time display brightness can be adjusted from 0% to 100%. Use the dedicated dimmer button or a combination of buttons to cycle through brightness levels. The display color can also be customized to white, red, blue, or an RGB gradient.

Image: The alarm clock display at different brightness levels (0-100% dimmer), showing visibility in various lighting conditions.

5.4 Using the Night Light

Press the "Light" button to activate the night light. Cycle through the 9 available colors (orange, yellow, red, green, cyan, blue, purple, white, rainbow) and 6 brightness levels. The lowest setting can turn off the screen completely for complete darkness.

Image: Three alarm clocks displaying different vibrant mood lighting colors, illustrating the 9-color night light feature.

6. Карактеристике

6.1 Wireless Vibration Shaker

The wireless bed shaker provides powerful vibrations to wake deep sleepers without disturbing others. Place it under your pillow. It has a 1500mAh battery lasting 2-3 months on a full charge and a reliable wireless range of 10 meters (32.8 ft). Adjust the vibration strength to high, medium, or low.

Image: The ANJANK alarm clock on a bedside table with the wireless vibration shaker placed under a pillow, demonstrating its use for effective waking.

6.2 Режими аларма

Choose from three distinct alarm modes:

• С01 режим: Alarm tone + Bed shaker + Orange light for a comprehensive sensory wake-up.
• С02 режим: Alarm sound + Bed shaker for a more intense wake-up.
• С03 режим: Only alarm sound for a traditional alarm experience.

Image: A visual representation of the three alarm modes: Vibration, light, and sound; Vibration and sound; and Sound alone.

6.3 Dual Alarm Functionality

Set two independent alarms. Select from 8 progressive alarm sounds, including 2 shrill tones for hearing-impaired users, a bell, birdsong, or a buzzer. The volume is adjustable across 10 levels, with a maximum of 112 dB.

6.4 УСБ-Ц прикључак за пуњење

The alarm clock includes a built-in Type-C output port, allowing you to conveniently charge your smartphone or other devices overnight.

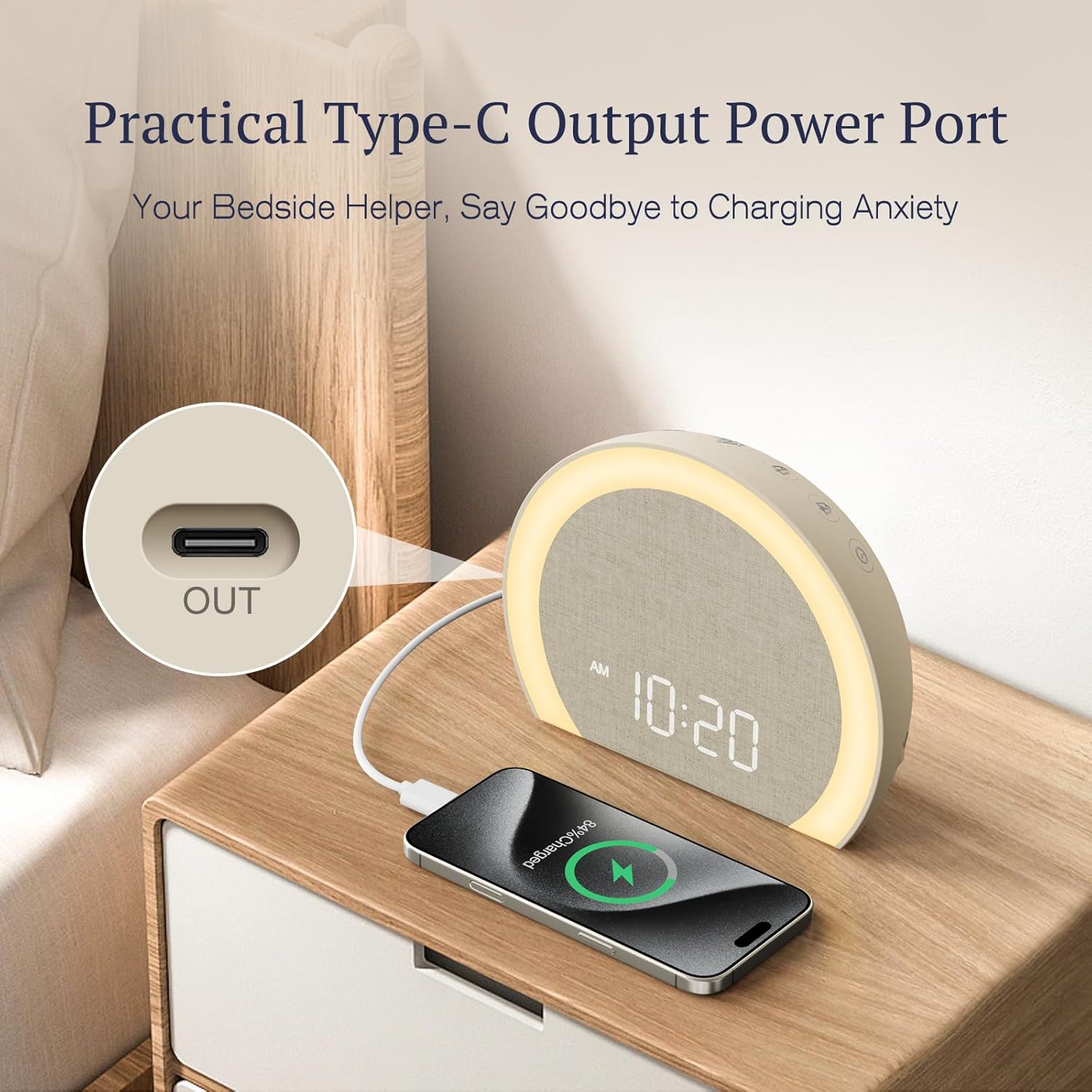

Image: The ANJANK alarm clock with a smartphone connected to its Type-C output port, demonstrating its charging capability.

6.5 Меморијска функција

A built-in CR2023 battery ensures that your settings (time, alarms, etc.) are saved during a power outagе, елиминишући потребу за реконфигурацијом.

7. Одржавање

• Clean the alarm clock and shaker with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
• Држите уређај даље од воде и високе влажности.
• Осигурајте одговарајућу вентилацију око јединице.

КСНУМКС. Решавање проблема

9. Спецификације

• Модел: ККС213
• Димензије: 17.5 цм (Д) к 8.5 цм (Ш) к 14.5 цм (В)
• Weight (with shaker): 531.5г
• Напајање: AC 100-240V, 5V/2A
• Bed Shaker Battery: 1500mAh (lasts 2-3 months on full charge)
• Порт за пуњење: USB-C (for clock and bed shaker)
• Јачина звука аларма: Up to 112 dB (10 levels)
• Боје ноћног светла: 9 colors (Orange, Yellow, Red, Green, Cyan, Blue, Purple, White, Rainbow)
• Затамњивање екрана: 0-100%
• Резервна копија меморије: ЦР2023 батерија

10. Гаранција и подршка

ANJANK products are manufactured to high-quality standards. For warranty information or technical support, please refer to the contact details provided on the tip card included in your package or visit the official ANJANK webсајту. Сачувајте рачун о куповини за гаранције.
