Увод
This manual provides comprehensive instructions for the setup, operation, and maintenance of your Technoline WS8135 Digital Radio-Controlled Wall Clock. This device offers precise timekeeping, displays indoor temperature and humidity, and includes date and weekday functions. Please read this manual thoroughly before using the product to ensure correct operation and to maximize its lifespan.
Производ је завршенview

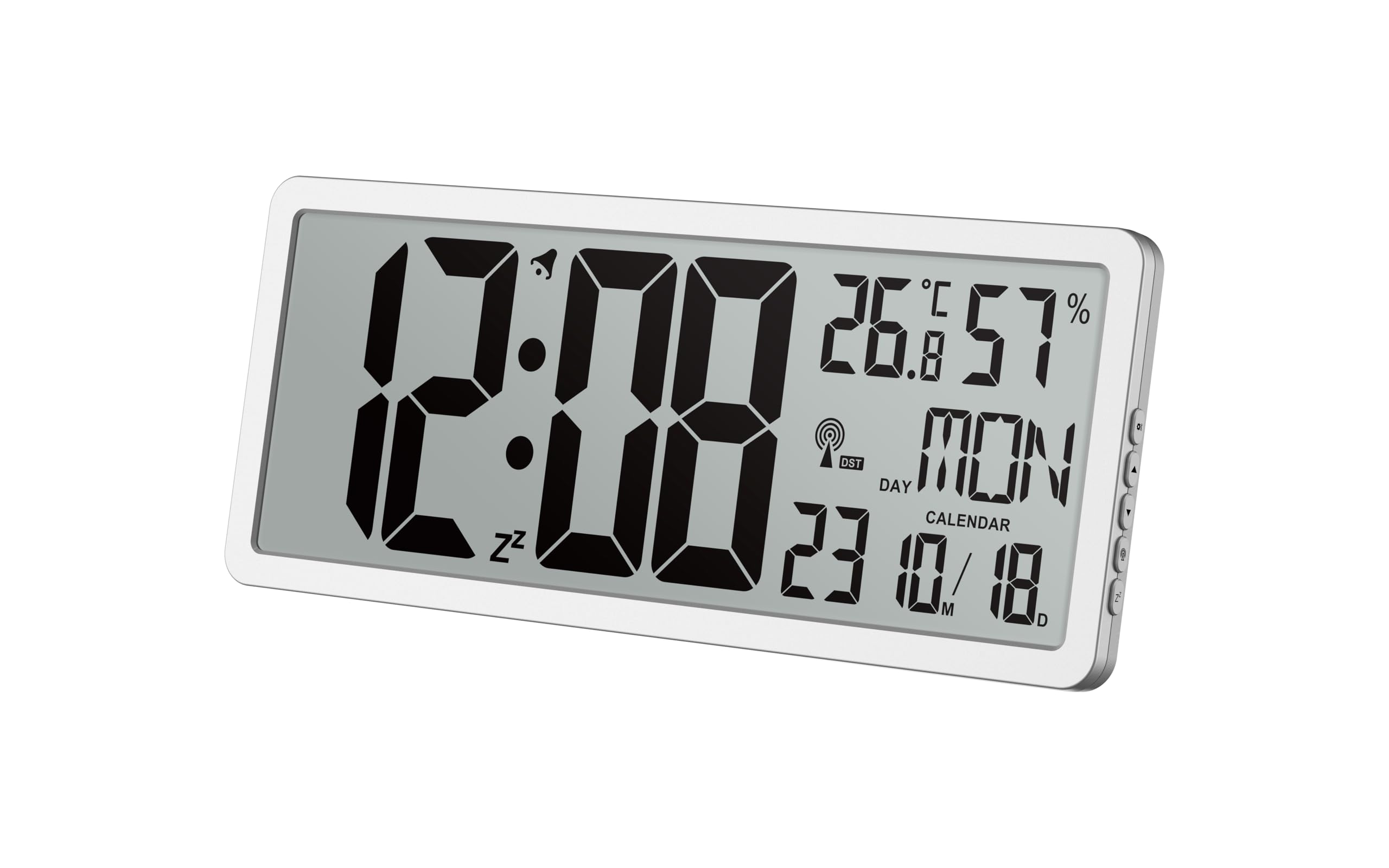

Слика 1: Предња страна view of the Technoline WS8135 Digital Wall Clock. The large LCD screen clearly displays the current time, indoor temperature in Celsius, relative humidity percentage, the current day of the week, and the date. A small radio signal icon indicates successful DCF-77 reception.
The Technoline WS8135 is a modern digital wall clock designed for indoor use. Key features include:
- DCF-77 Radio-Controlled Time with manual setting option.
- 12/24 hour time display format.
- Date and weekday display (available in 7 languages).
- Indoor temperature measurement (0.0 °C to 50.0 °C).
- Indoor humidity measurement (20% to 95%).
- Large, clear LCD display.
- Versatile placement: wall mount or table stand.
Сетуп
1. Инсталација батерије
- Пронађите одељак за батерије на полеђини сата.
- Отворите поклопац одељка за батерије.
- Insert 4 x AA Mignon LR06 batteries (not included) according to the polarity markings (+ and -) inside the compartment.
- Добро затворите поклопац одељка за батерије.
Слика 2: Страна view of the Technoline WS8135 Digital Wall Clock. This view highlights the slim design and the location of control buttons, typically used for manual settings and mode adjustments, on the right edge of the device.
2. Initial Power-On and Radio Signal Reception
Upon battery installation, the clock will automatically power on and begin searching for the DCF-77 radio signal. This process may take several minutes. During this time, a radio signal icon will typically flash on the display. Once the signal is successfully received, the clock will automatically set the correct time, date, and weekday.
- Place the clock near a window or in an open area for optimal signal reception.
- Avoid placing the clock near electronic devices that may cause interference (e.g., TVs, computers, microwaves).
3. Manual Time Setting (Optional)
If the radio signal cannot be received or if you prefer to set the time manually, follow these steps:
- Press and hold the "SET" button (refer to Figure 2 for button location) for a few seconds to enter manual setting mode.
- Use the "+" or "-" buttons to adjust the flashing value (e.g., hour, minute, year, month, day).
- Press "SET" again to confirm the setting and move to the next parameter.
- Repeat until all desired settings are configured. The clock will exit setting mode automatically after a period of inactivity or by pressing a specific "MODE" button if available.
Упутство за употребу
1. Time Display (12/24 Hour Format)
The clock supports both 12-hour (with AM/PM indicator) and 24-hour time formats. To switch between these formats, press the "12/24" button (or a similar button, refer to Figure 2 for button identification). The display will update accordingly.
2. Date and Weekday Display
The current date (month/day) and weekday are continuously displayed. The weekday can be shown in one of seven selectable languages. To change the weekday language, enter the manual setting mode (as described in Setup, Section 3) and navigate to the language setting, then use the adjustment buttons to select your preferred language.
3. Приказ температуре и влажности
The clock continuously monitors and displays the indoor temperature in Celsius (°C) and relative humidity in percentage (%). These readings provide useful information about your indoor climate.
4. Опције пласмана
The Technoline WS8135 can be placed on a flat surface using its integrated stand or mounted on a wall. Ensure the chosen location is stable and provides good visibility.
- За зидну монтажу: Use a screw (not included) suitable for your wall type and hang the clock using the keyhole slot on the back.
- For Table Stand: Extend the integrated stand on the back of the clock to place it on a desk or shelf.
Одржавање
1. Чишћење
To clean the clock, use a soft, dry cloth. Do not use abrasive cleaners, solvents, or chemical agents, as these may damage the display or casing.
2. Замена батерије
When the display becomes dim or the clock stops functioning, it is time to replace the batteries. Follow the battery installation steps outlined in the Setup section. Always replace all 4 AA batteries at the same time with new ones. Dispose of old batteries responsibly according to local regulations.
Решавање проблема
| Проблем | Могући узрок | Решење |
|---|---|---|
| Clock does not display anything or display is dim. | Батерије су празне или су неправилно постављене. | Replace all batteries with new ones, ensuring correct polarity. |
| Сат не подешава време аутоматски. | Poor DCF-77 radio signal reception or interference. | Move the clock to a different location, preferably near a window and away from electronic devices. Allow several minutes for signal acquisition. If unsuccessful, set the time manually. |
| Приказано је погрешно време. | Manual setting error or temporary signal loss. | Allow the clock to attempt automatic synchronization. If the issue persists, perform a manual time setting. |
| Temperature or humidity readings seem inaccurate. | Clock is exposed to direct sunlight, drafts, or extreme conditions. | Relocate the clock to a stable indoor environment, away from direct heat sources, cold drafts, or high humidity areas. Allow time for readings to stabilize. |
Спецификације
- Модел: ВС8135
- Тип приказа: ЛЦД
- Формат времена: Могућност одабира 12/24 сата
- Радио контрола: DCF-77 (automatic synchronization)
- Опсег унутрашње температуре: 0.0 °Ц до 50.0 °Ц (32.0 °Ф до 122.0 °Ф)
- Опсег влажности у затвореном простору: 20% до 95% РХ
- Напајање: 4 x AA Mignon LR06 batteries (not included)
- Димензије (Ш к В к Д): 369 к 229 к 24 мм (14.5 к 9.0 к 0.9 инча)
- Материјал: акрилонитрил бутадиен стирен (АБС)
- Боја: Сребрни оквир
- Пласман: Зидни носач или стони сталак
Гаранција и подршка
For warranty information or technical support, please refer to the documentation provided with your purchase or contact Technoline customer service directly. Keep your proof of purchase for any warranty claims.
