Outsunny Gas BBQ 3+1 Burner Grill Instruction Manual

1. Увод

Thank you for choosing the Outsunny Gas BBQ 3+1 Burner Grill. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new gas grill. Please read all instructions carefully before use and retain this manual for future reference.

Image 1.1: The Outsunny Gas BBQ 3+1 Burner Grill in use at an outdoor gathering.

2. Безбедносне информације

УПОЗОРЕЊЕ: Непоштовање ових упутстава може довести до пожара, експлозије или опекотина, што може проузроковати материјалну штету, телесне повреде или смрт.

• Овај уређај је намењен само за употребу на отвореном. Не користите га у затвореном простору.
• Read all instructions before assembling and using the appliance.
• Држите децу и кућне љубимце даље од роштиља све време.
• Уверите се да је роштиљ постављен на стабилну, равну површину.
• Немојте складиштити нити користити бензин или друге запаљиве течности или паре у близини овог или било ког другог уређаја.
• Always check for gas leaks before each use. Refer to the "Gas Leak Test" section.
• Не ометајте проток ваздуха за сагоревање и вентилацију.
• Увек носите заштитне рукавице када рукујете врућим компонентама.
• Disconnect the gas cylinder when the grill is not in use.

3. Садржај пакета

Before assembly, ensure all parts are present and undamaged. If any parts are missing or damaged, do not attempt to assemble or operate the grill. Contact customer support immediately.

• Gas BBQ Unit
• Црево
• Решетка за роштиљ
• Грејање Рацк
• Регулатор
• Опрема за монтажу (шрафови, навртке итд.)

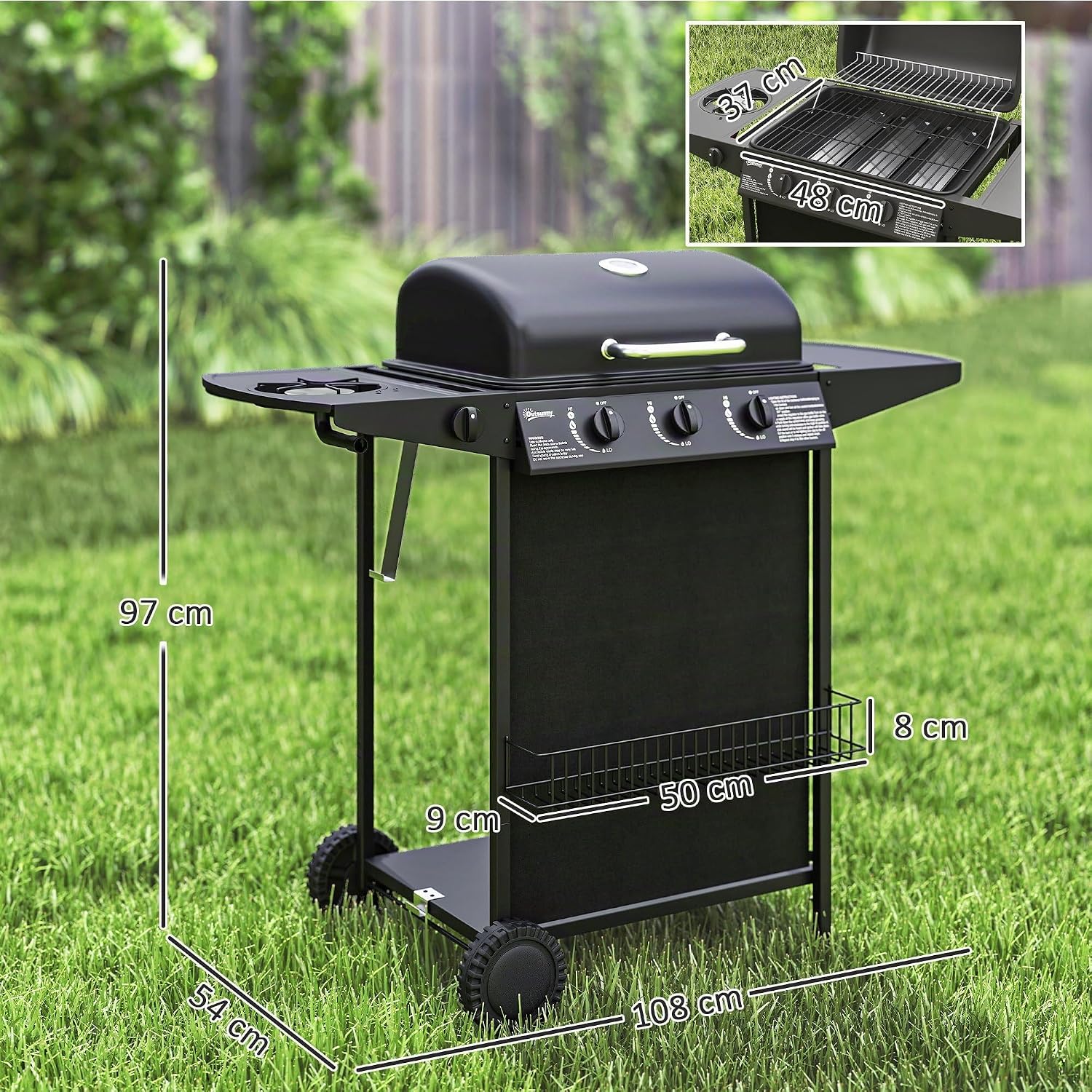

Image 3.1: Diagram illustrating the dimensions of the gas BBQ unit.

4. Монтажа и подешавање

За овај производ је потребна монтажа. Пажљиво пратите кораке у наставку. Препоручује се да монтажу обављају две особе.

1. Распакујте компоненте: Пажљиво извадите све делове из паковања. Положите их на чисту, равну површину.
2. Саставите оквир: Attach the legs and bottom shelf to the main body of the grill using the provided hardware. Ensure all connections are secure.
3. Инсталирајте точкове: Secure the two wheels to the designated side of the frame for portability.
4. Attach Side Tables: Mount the side tables to the main grill body. The side burner will be integrated into one of these tables.
5. Connect Burners and Gas Lines: Carefully connect the main burners and the side burner to the gas manifold. Ensure all connections are tight. Note: Some users have reported issues with side burner connection. Double-check for secure fit and no gas leaks.
6. Place Grill Grates and Warming Rack: Position the main grill grates and the warming rack inside the cooking chamber.
7. Install Grease Collector: Slide the removable grease collector into its designated slot beneath the cooking chamber.
8. Повежите црево и регулатор: Attach the gas hose to the grill's gas inlet and the regulator to the gas cylinder. Ensure all connections are hand-tight, then use a wrench for a final snug fit. Do not overtighten.
9. Тест цурења гаса:
   • Prepare a soap and water solution (50% soap, 50% water).
   • Уверите се да су сва дугмад за контролу горионика у положају „ИСКЉУЧЕНО“.
   • Connect the gas cylinder and open the gas supply valve.
   • Apply the soap solution to all gas connections (hose, regulator, manifold, burner connections).
   • If bubbles appear, there is a gas leak. Immediately close the gas supply, tighten the connection, and retest. If the leak persists, do not use the grill and contact customer support.

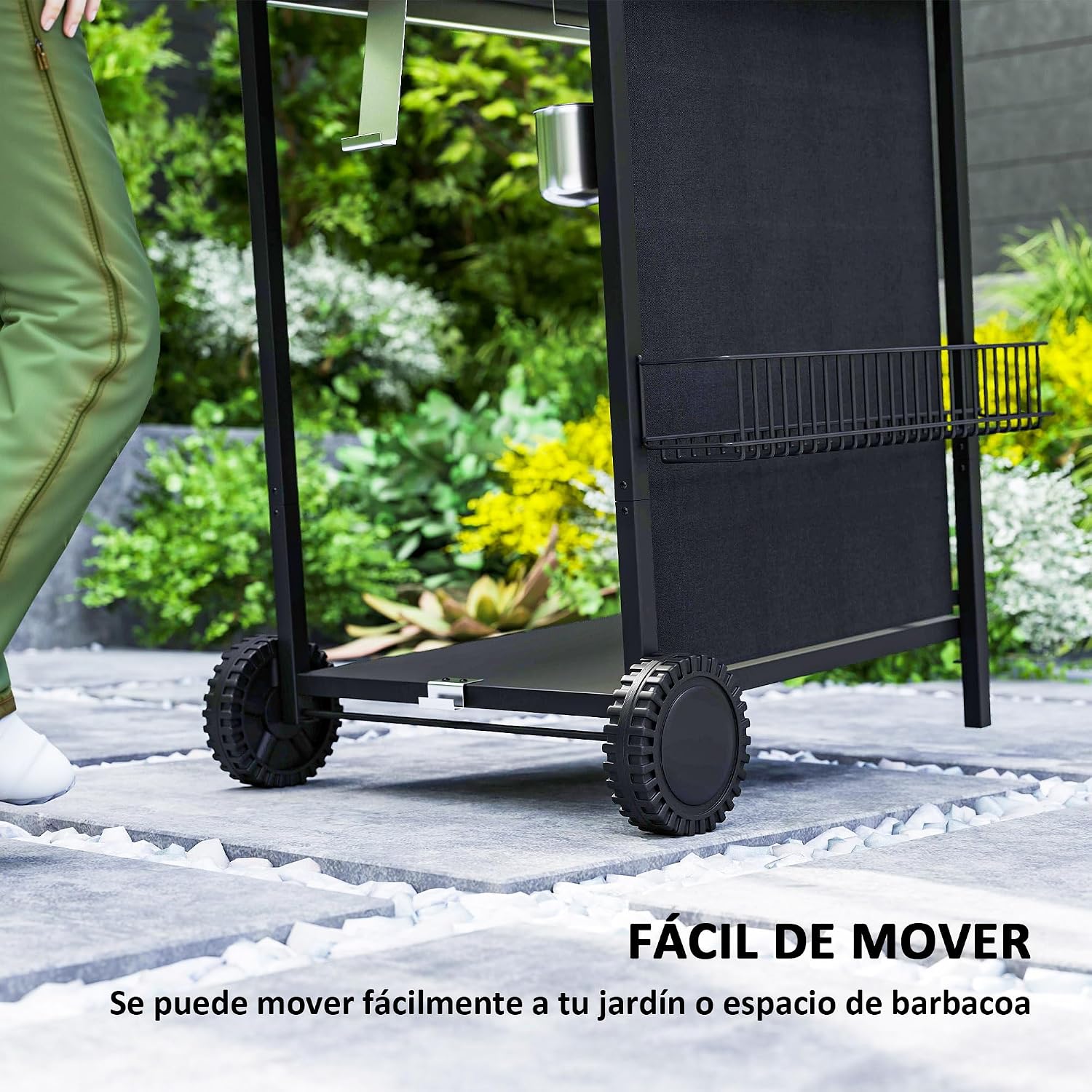

Image 4.1: The robust wheels allow for easy movement of the grill.

5. Упутство за употребу

5.1. Lighting the Grill

1. Ensure the gas cylinder is connected and the gas supply valve is open.
2. Отворите поклопац роштиља.
3. Turn one main burner control knob to the "HIGH" position.
4. Press and hold the electronic ignition button (if applicable) or use a long lighter to ignite the burner.
5. Once the first burner is lit, you can turn on other burners by rotating their control knobs to the desired setting.
6. To light the side burner, turn its control knob to "HIGH" and use the electronic ignition or a long lighter.

5.2. Кување

• The grill features a large cooking surface of 1776 cm² suitable for cooking multiple items simultaneously, such as up to 6 hamburgers and 10 sausages.
• The side burner is ideal for preparing side dishes or sauces while grilling.
• The lid helps to concentrate heat and infuse a smoky flavor into your food.
• Use the integrated thermometer on the lid to monitor the internal temperature for precise cooking control.
• Each burner can be adjusted independently, allowing for different cooking zones and precise temperature control for various foods.

Image 5.1: The spacious cooking area of 1776 cm² accommodates various foods.

Image 5.2: The lid features an integrated thermometer for temperature monitoring, and burners have independent controls.

6. Одржавање

6.1. Чишћење

• После сваке употребе: Allow the grill to cool completely. Scrape off any food residue from the grill grates using a grill brush.
• Сакупљач масти: The removable grease collector should be emptied and cleaned regularly to prevent grease fires. Pull out the tray, dispose of grease, and wash with warm soapy water.
• Спољашње површине: Обришите спољашње површине огласомamp крпом и благим детерџентом. Избегавајте абразивна средства за чишћење.
• Горионици: Периодично проверавајте отворе горионика да ли има зачепљења (нпр. паукасти вентил). webs, food debris). Use a wire brush or paperclip to clear any obstructions.

6.2. Складиштење

• When not in use, disconnect the gas cylinder and store it in a well-ventilated area, away from direct sunlight or heat sources.
• Store the grill in a dry, protected area. Using a grill cover is recommended to protect it from weather elements.

Image 6.1: The practical design includes a removable grease tray for easy cleaning and an Oxford 600D fabric cover for the lower shelf.

КСНУМКС. Решавање проблема

8. Спецификације

Image 8.1: The grill features a side table, spice rack, and lower shelf for efficient storage.

Image 8.2: Detail of the integrated spice rack for convenient access to seasonings.

9. Гаранција и подршка

• Гаранција на производ: This Outsunny Gas BBQ comes with a 2-year product warranty. Please retain your proof of purchase for warranty claims.
• Доступност резервних делова: Spare parts for this product are available in the EU for a duration of 3 years from the date of purchase.
• Корисничка подршка: For any questions, missing parts, or warranty claims, please contact Outsunny customer support or the retailer from whom you purchased the product. Refer to your purchase documentation for specific contact details.
