FASDUNT 6 Inch Inline Duct Fan User Manual

1. Увод

This manual provides essential information for the safe and efficient operation of your FASDUNT 6 Inch Inline Duct Fan, Model EF4-6IN-B. Please read these instructions thoroughly before installation and use, and retain them for future reference. This inline duct fan is designed for optimal ventilation in various indoor environments, including bathrooms, kitchens, grow tents, and other areas requiring air circulation.

Image 1.1: The FASDUNT Inline Duct Fan is suitable for various applications such as kitchen, bathroom, garage ventilation, grow tents, and use with laser engravers/cutters.

2. Безбедносна упутства

• Always disconnect power before installing, servicing, or cleaning the fan.
• Инсталацију мора да изврши квалификовани електричар у складу са свим локалним и националним електричним прописима.
• Уверите се да је напајање волtage matches the fan's specifications (120V/60Hz).
• Немојте користити вентилатор са оштећеним каблом или утикачем.
• Avoid installing the fan in areas with excessive moisture or direct water exposure unless specifically rated for such conditions.
• Држите прсте и стране предмете даље од лопатица вентилатора током рада.
• Овај вентилатор је дизајниран само за унутрашњу употребу.

3. Садржај пакета

Проверите да ли су све компоненте присутне и неоштећене након отварања паковања:

• 1 x FASDUNT 6 Inch Inline Duct Fan
• 1 x Упутство за употребу

4. Карактеристике производа

The FASDUNT 6 Inch Inline Duct Fan incorporates advanced design elements for superior performance:

• EC Motor Efficiency: Equipped with an advanced EC motor, this fan offers up to 30% more energy efficiency compared to traditional motors, ensuring powerful airflow with reduced power consumption.
• Оптимизован проток ваздуха: Built with hydro-mechanical blades, the fan ensures maximum and smooth airflow delivery.
• Низак ниво буке: Engineered for quiet operation, the fan produces a noise level of approximately 35 dB, comparable to a quiet room, minimizing disturbance.
• Removable Duct Ends: Features locking tabs for quick removal and easy access, simplifying installation and maintenance.
• Издржљива конструкција: Utilizes a strong, long-lasting motor and robust fan blades for reliable performance.

Image 4.1: The fan's EC motor and hydro-mechanical blades contribute to energy efficiency and quiet operation, reducing energy consumption by up to 40%.

Image 4.2: The fan operates at a low noise level of 35 dB, which is quieter than normal speech and comparable to a quiet countryside environment.

Слика 4.3: Детаљно view of the fan's internal structure, highlighting the easy-to-install intake valve, strong airflow fan blades, and the durable motor.

5. Спецификације

За детаљније спецификације производа погледајте табелу испод:

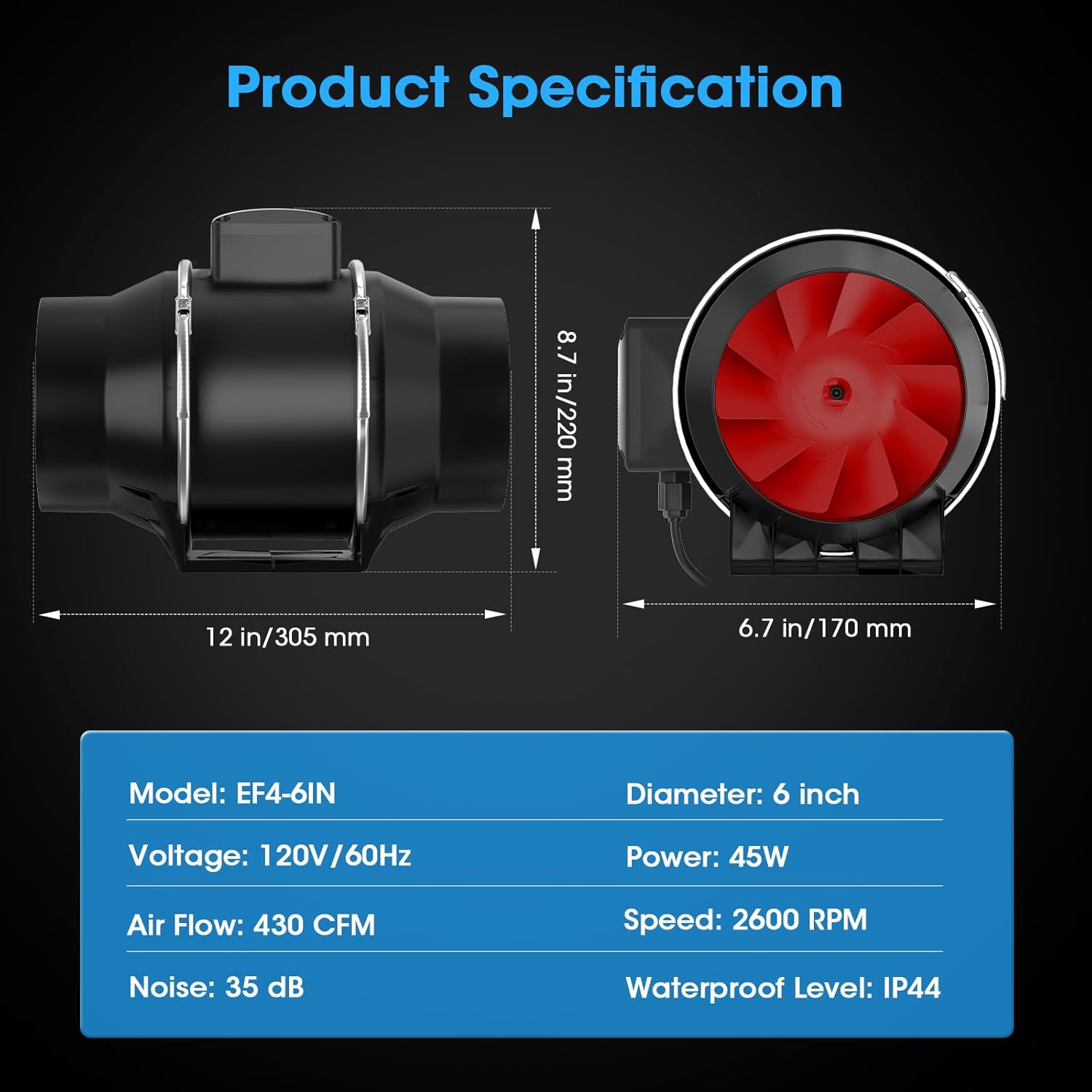

Image 5.1: Visual representation of the fan's dimensions and key specifications, including model, diameter, voltage, power, airflow, speed, noise, and waterproof level.

6. Подешавање и инсталација

The FASDUNT Inline Duct Fan is designed for DIY installation. Follow these general guidelines:

1. Изаберите локацију: Select a suitable location for the fan, considering ducting runs and accessibility for maintenance. The fan can be mounted above the ceiling, hanging from the ceiling, on a wall, or on the floor.
2. Прикључак канала: Connect appropriate 6-inch ducting to both the intake and exhaust ports of the fan. Ensure connections are secure and airtight to prevent air leakage and maximize efficiency. Use duct clamps or tape as needed.
3. Монтажа: Secure the fan using appropriate mounting hardware (not included unless specified) for your chosen installation method. Ensure the fan is firmly supported to prevent vibration and noise.
4. Електрични прикључак: Connect the fan to a 120V/60Hz power source. Ensure all electrical connections are made safely and according to local electrical codes.
5. Проверите проток ваздуха: Ensure the fan is oriented correctly for the desired airflow direction (indicated by arrows on the fan housing).

Image 6.1: The fan offers versatile mounting options, including installation above the ceiling, hanging from the ceiling, mounting on a wall, or placing on the floor, adapting to various ventilation setups.

7. Упутство за употребу

The FASDUNT Inline Duct Fan is operated via a simple push-button control:

• Укључивање/искључивање: Press the designated push button to turn the fan on or off.
• Проток ваздуха: Once powered on, the fan will begin to move air through the ducting system. Ensure the fan is installed with the correct airflow direction for your application.

8. Одржавање

Regular maintenance ensures optimal performance and longevity of your fan:

• Искључите напајање: Always turn off and disconnect the fan from the power supply before performing any maintenance.
• Очистите лопатице вентилатора: Periodically inspect and clean the fan blades to remove dust and debris buildup. Use a soft cloth or brush. Avoid using harsh chemicals or abrasive materials.
• Inspect Ducting: Check ducting for any blockages, leaks, or damage that could impede airflow.
• Преглед мотора: The EC motor is designed for long-lasting operation and typically requires no lubrication. If unusual noises or performance issues occur, contact support.

КСНУМКС. Решавање проблема

If you encounter issues with your FASDUNT Inline Duct Fan, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact FASDUNT customer support.

10. Гаранција и подршка

For warranty information, technical support, or service inquiries regarding your FASDUNT 6 Inch Inline Duct Fan, please refer to the warranty card included with your purchase or contact FASDUNT customer service directly. Keep your purchase receipt as proof of purchase.
