Outsunny 19.5' x 10' x 7.5' Walk-in Greenhouse Instruction Manual

Увод

Thank you for choosing the Outsunny Walk-in Greenhouse. This manual provides essential information for the safe assembly, operation, and maintenance of your greenhouse. Please read these instructions thoroughly before beginning assembly and retain them for future reference.

This greenhouse is designed to provide a protected environment for plant growth, featuring a durable galvanized steel frame, a UV-resistant PE cover, multiple roll-up doors, and mesh windows for optimal ventilation.

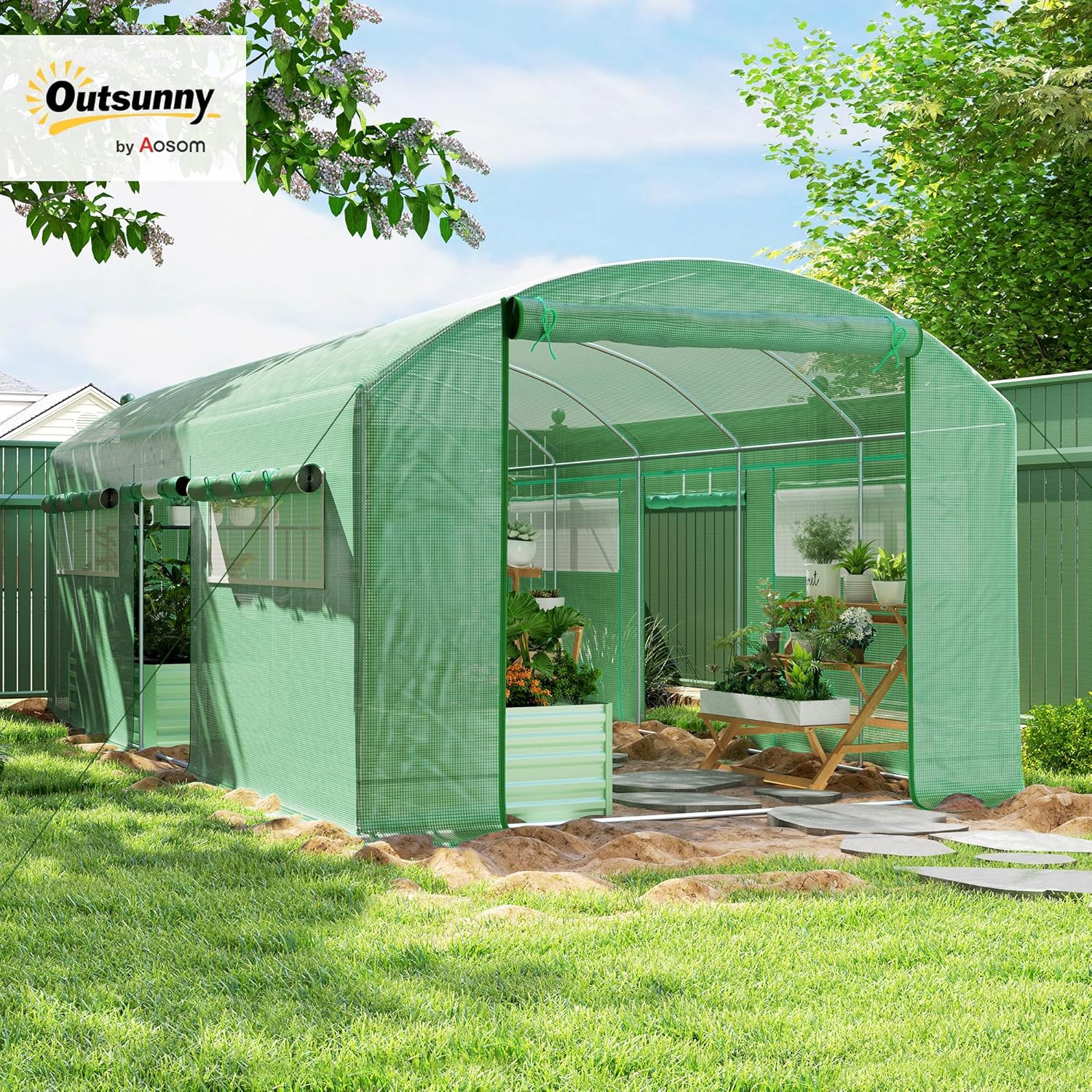

Image: The Outsunny Walk-in Greenhouse installed in a garden, showcasing its overall structure and green cover.

Безбедносне информације

• Скупштина: Always assemble with at least 3-4 people. Ensure all components are correctly installed and secured.
• Локација: Choose a level, well-drained site. Avoid areas prone to strong winds or heavy snow accumulation.
• Сидрење: Securely anchor the greenhouse to the ground using the provided ground stakes and guy ropes. Proper anchoring is crucial for stability, especially in windy conditions.
• вентилација: Ensure adequate ventilation to prevent overheating and humidity buildup, which can harm plants. Utilize the roll-up doors and mesh windows.
• Дистрибуција тежине: Do not hang heavy objects from the frame. Distribute plant weight evenly.
• Временски услови: In anticipation of severe weather (e.g., strong winds, heavy snow), take additional precautions to secure the greenhouse or temporarily remove the cover if necessary.
• Деца и кућни љубимци: Keep children and pets away from the assembly area. Do not allow them to play inside the greenhouse unsupervised.

Садржај пакета

Пре почетка монтаже, проверите да ли су сви делови наведени у наставку присутни и да ли су неоштећени. Ако неки делови недостају или су оштећени, обратите се корисничкој подршци.

• 1 x Greenhouse Frame and Cover Set
• 4 x Guy Ropes
• 4 к приземни кочићи
• 1 к Упутство за употребу

Подешавање и монтажа

Assembly of this greenhouse requires 3-4 people. Follow the step-by-step diagrams provided in the included manual for detailed instructions. Ensure all connections are tight and secure.

Конструкција оквира

The greenhouse features a 0.9" (2.4 cm) galvanized steel frame with slant bracing tubes for enhanced stability. Assemble the frame components according to the manual, ensuring all poles are correctly inserted and secured with connectors.

Слика: Детаљна view of the reinforced galvanized steel frame, highlighting the 0.95" (24 mm) diameter and 0.02" (0.5 mm) thickness of the tubes, along with slant bracing tubes for structural integrity.

Инсталација поклопца

Carefully drape the 140 gsm PE cover over the assembled frame. Ensure the cover is centered and evenly distributed. The cover features an extended edging of 5.9" (15 cm) which should be buried in the soil to boost warmth and prevent weeds, as well as enhance stability.

Image: Illustration demonstrating the 5.9" (15 cm) extended edges of the cover to be buried in soil and the method for pulling guy ropes tightly from ground stakes for stable standing.

Сидрење

Once the cover is in place, use the provided ground stakes and guy ropes to firmly anchor the greenhouse to the ground. This is critical for wind resistance. Ensure the ropes are taut and stakes are fully driven into the soil.

Упутство за употребу

Ventilation and Access

The greenhouse is equipped with three roll-up doors and six mesh windows to manage internal temperature and humidity. Utilize these features for optimal plant health.

• Roll-Up Doors: The front door (63" W x 82.7" H) and two side doors (46.1" W x 70.9" H) can be rolled up and secured to allow easy access and significant airflow.
• Мрежасти прозори: Six mesh windows (Big Window: 62.6" W x 15.7" H; Small Window: 18.5" W x 15.7" H) are designed to increase airflow while keeping unwanted pests out. Roll up the outer cover flaps to expose the mesh windows for ventilation.

Image: An illustration detailing the three roll-up doors (one front, two side) with their respective dimensions, providing versatile entry and ventilation options.

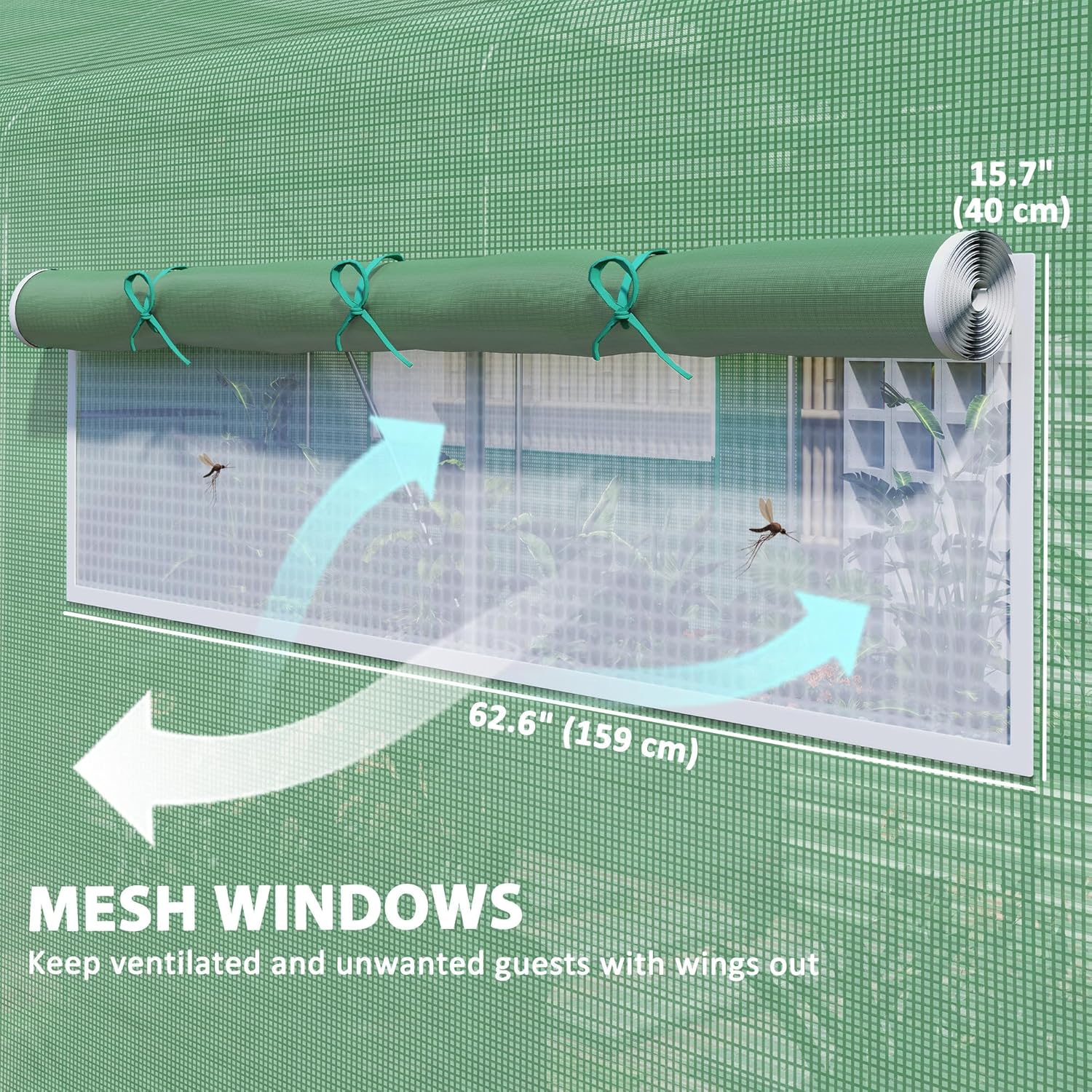

Слика: Крупни план view of the mesh windows, demonstrating how they facilitate airflow and prevent insects from entering the greenhouse.

Sunlight and UV Protection

The 140 gsm PE cover allows approximately 85% sunlight penetration, essential for plant photosynthesis, while also providing UV resistance to protect plants from harmful rays.

Image: Visual representation of the UV-resistant PE cover's benefits, including bird-proof, tear-proof, UV protection, and heat preservation qualities.

Одржавање

• Нега покривача: Regularly inspect the PE cover for any signs of damage or tearing. The reinforcement grid helps prevent tearing, but prompt repair of small tears can extend the cover's life. Clean the cover periodically with mild soap and water to ensure maximum light transmission.
• Преглед оквира: Periodically check all frame connections and anchoring points to ensure they remain secure. Tighten any loose bolts or ropes.
• Уклањање снега: In areas with snowfall, gently remove accumulated snow from the greenhouse roof to prevent structural damage due to excessive weight.
• Сезонско складиштење: If disassembling for seasonal storage, clean and dry all components thoroughly before storing them in a cool, dry place to prevent rust and mildew.

Решавање проблема

• Greenhouse Instability: Ensure all ground stakes and guy ropes are properly installed and taut. Verify that the extended cover edges are buried in the soil. Check all frame connections for tightness.
• Poor Ventilation/Overheating: Open all roll-up doors and mesh windows to increase airflow. Consider adding additional ventilation if temperatures remain too high.
• Накупљање воде на крову: Ensure the cover is taut and properly installed to allow water runoff. Gently push up from the inside to clear any pooling water.
• Cover Damage: Small tears can be repaired with greenhouse repair tape. For significant damage, contact customer support for replacement options.

Спецификације

Image: A comprehensive diagram illustrating the overall dimensions of the greenhouse, including length, width, height, and specific measurements for doors and windows.

Информације о гаранцији

For specific warranty terms and conditions, please refer to the documentation included with your purchase or contact Outsunny customer support directly. Warranty coverage typically applies to manufacturing defects and does not cover damage resulting from improper assembly, misuse, or extreme weather conditions.

Подршка и контакт информације

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact Outsunny customer support:

Произвођач: Аосом Канада

Контакт број: 1-416-792-6088

Локација: Маркам, Онтарио, Калифорнија
