LKTOP AD1-100FCP

LKTOP 100W USB-C Power Adapter User Manual

Model: AD1-100FCP

1. Увод

This manual provides essential information for the safe and efficient use of your LKTOP 100W USB-C Power Adapter. Please read this manual thoroughly before operating the device and retain it for future reference. This power adapter is designed for fast charging of various devices, including DJI drones, charging hubs, remote controllers, and cameras.

2. Безбедносне информације

  • Не излажите адаптер води, влази или екстремним температурама.
  • Избегавајте испуштање или излагање адаптера јаким ударцима.
  • Do not disassemble or attempt to repair the adapter. Contact customer support if service is required.
  • Уверите се да је јачина звука у утичнициtage is compatible with the adapter's input voltagе (100В-240В).
  • Use only the provided or certified USB-C cables to prevent damage to the adapter or connected devices.
  • Искључите адаптер из утичнице када га не користите или током грмљавине.
  • Чувати ван домашаја деце.

3. Садржај пакета

Проверите да ли су све ставке присутне у вашем пакету:

  • LKTOP 100W USB-C Power Adapter (x1)
  • 100W USB-C to USB-C Cable (x1)
  • AC Power Cord (x1)
  • Упутство за употребу (к1)
Package contents of LKTOP 100W USB-C Power Adapter, showing the adapter, USB-C cable, and manual.
Figure 3.1: Included items in the LKTOP 100W USB-C Power Adapter package.

4. Производ је готовview

The LKTOP 100W USB-C Power Adapter features a compact design with dual USB-C ports for versatile charging. It supports PD/QC/PPS protocols for super-fast charging and includes intelligent temperature control for safety.

LKTOP 100W USB-C Power Adapter highlighting its features: single-port 100W charging, two-port intelligent power distribution (82W + 18W), foldable plug, efficient heat dissipation, and 100V-240V airline-friendly support.
Figure 4.1: Key features of the LKTOP 100W USB-C Power Adapter.
Diagram illustrating intelligent power allocation for the LKTOP 100W USB-C Power Adapter, showing how power is distributed between two ports when charging simultaneously.
Figure 4.2: Intelligent Power Allocation for dual-port charging.

5. Подешавање

  1. Расклопите утикач: Gently pull out the foldable AC plug from the adapter body.
  2. Повежите се са напајањем: Insert the AC plug into a standard wall outlet (100V-240V).
  3. Повежите USB-C кабл: Plug one end of the USB-C to USB-C cable into either USB-C port (C1 or C2) on the adapter.
  4. Повежите се са уређајем: Plug the other end of the USB-C cable into your device or charging hub.

6. Упутство за употребу

The LKTOP 100W USB-C Power Adapter can charge a variety of devices. When using both USB-C ports simultaneously, the adapter intelligently distributes power. USB-C1 can provide up to 82W, and USB-C2 can provide up to 18W, with a total maximum output of 100W.

6.1. Charging Drones

Connect your drone directly to the adapter using a USB-C cable. Charging times vary by drone model.

Image showing various DJI drones and their approximate charging times with the LKTOP 100W USB-C Power Adapter, including Mini Series, Mini 4K, Mavic 3 Series, Mavic 4 Pro, Air 3, Avata Series, Neo, and Flip.
Figure 6.1: Approximate charging times for various DJI drones.

Video 6.1: Demonstrates charging a DJI Mavic 4 Pro drone with the LKTOP 100W USB-C Power Adapter (2C), showing 62W output and 115 minutes charging time for a single body.

6.2. Charging Hubs

Connect your charging hub to the adapter. The adapter supports various LKTOP and DJI charging hubs.

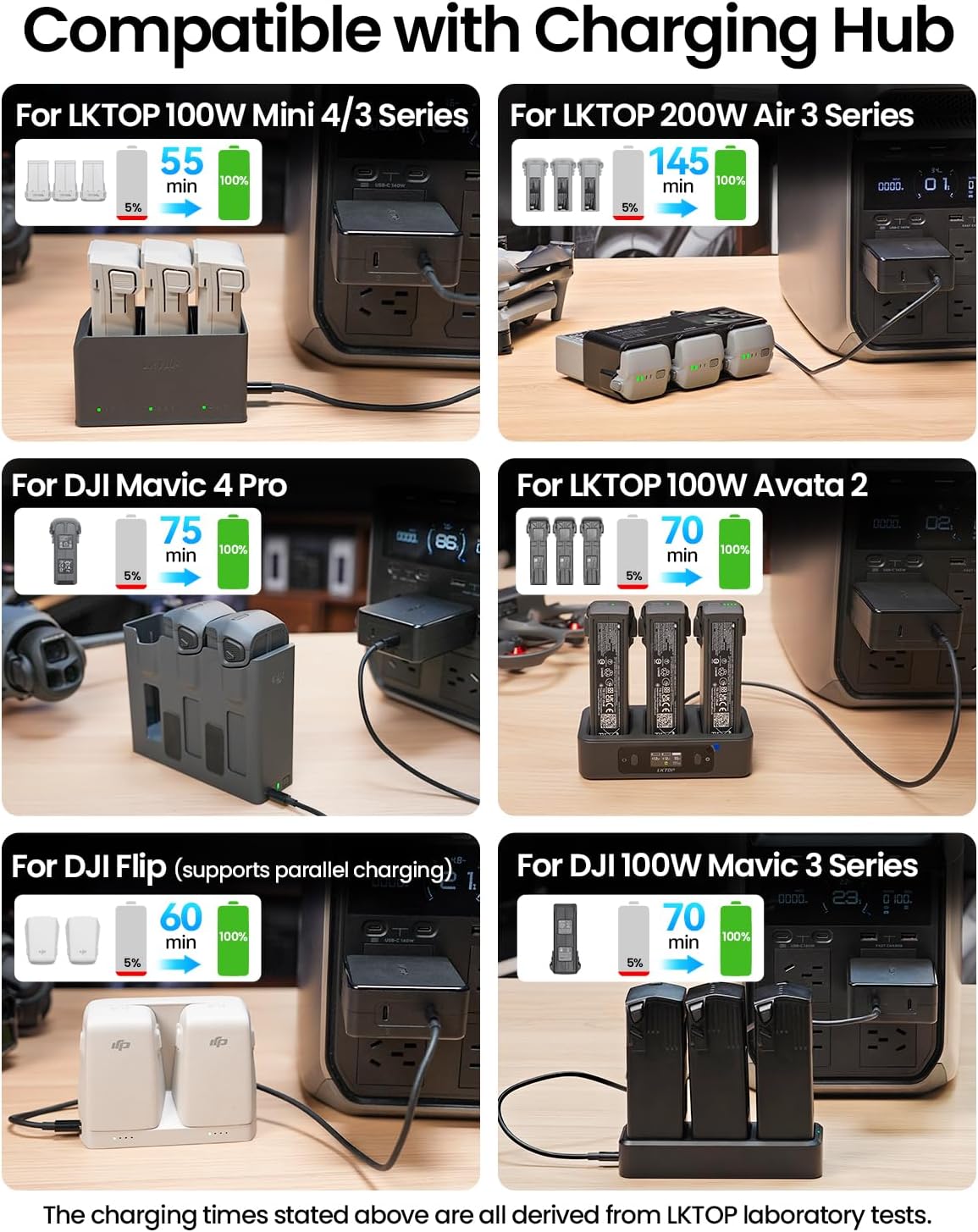

Image showing various charging hubs and their approximate charging times with the LKTOP 100W USB-C Power Adapter, including LKTOP Mini 4/3 Series, LKTOP Air 3 Series, DJI Mavic 4 Pro, LKTOP Avata 2, DJI Flip, and DJI Mavic 3 Series.
Figure 6.2: Approximate charging times for various charging hubs.

Video 6.2: Demonstrates charging an LKTOP 65W Neo Charging Hub with the LKTOP 100W USB-C Power Adapter (3C1A), showing 64W output and 45 minutes charging time for 3 batteries.

Video 6.3: Demonstrates charging an LKTOP Mini 4/3 Series Charging Hub with the LKTOP 100W USB-C Power Adapter (3C1A), showing 100W output and 47 minutes charging time for 3 batteries.

Video 6.4: Demonstrates charging a DJI Neo Charging Hub with the LKTOP 100W USB-C Power Adapter (2C), showing 57W output and 60 minutes charging time for 3 batteries.

Video 6.5: Demonstrates charging an LKTOP Air 3 Series Charging Hub with the LKTOP 100W USB-C Power Adapter (3C1A), showing 185W output and 70-80 minutes charging time for 3 batteries.

Video 6.6: Demonstrates charging an LKTOP Avata 2 Charging Hub with the LKTOP 100W USB-C Power Adapter (2C), showing 97W output and 70 minutes charging time for 3 batteries.

6.3. Charging Remote Controllers

Connect your DJI remote controller to the adapter using a USB-C cable.

Image showing various DJI remote controllers and their approximate charging times with the LKTOP 100W USB-C Power Adapter, including DJI RC-N1, DJI RC-N2/N3, DJI RC, DJI RC 2, DJI RC Pro, and DJI RC Pro Plus.
Figure 6.3: Approximate charging times for various DJI remote controllers.

6.4. Charging Cameras

Connect your compatible camera to the adapter using a USB-C cable.

Image showing various cameras and their approximate charging times with the LKTOP 100W USB-C Power Adapter, including Osmo Pocket 3, Osmo Action 5 Pro/4/3, and Insta 360 Series.
Figure 6.4: Approximate charging times for various cameras.

Video 6.7: Demonstrates charging an Insta 360 X3 with the LKTOP 100W USB-C Power Adapter (3C1A), showing 13W output and 90 minutes charging time for a single body.

Video 6.8: Demonstrates charging a DJI Pocket 3 with the LKTOP 100W USB-C Power Adapter (3C1A), showing 35W output and 32 minutes charging time for a single body.

Video 6.9: Demonstrates charging a DJI Pocket 3 with the LKTOP 100W USB-C Power Adapter (2C), showing 34W output and 32 minutes charging time for a single body.

7. Компатибилност

The LKTOP 100W USB-C Power Adapter is compatible with a wide range of devices, including:

  • DJI Drones: Mini 5 Pro, Mini 4 Pro, Mini 3 Pro, Mini 3, Mini 4K, Mini 2 SE, Mini 2, Mini SE, Mavic Mini, Air 3, Air 3S, Mavic 3 Pro, Mavic 3 Cine, Mavic 3 Classic, Mavic 3, Mavic 3 Enterprise Series, Mavic 4 Pro, Avata/Avata 2, Neo/Neo 2, Flip.
  • DJI/LKTOP Charging Hubs: Mini 5/4/3 Series Charging Hub, Air 3 Series Charging Hub, Mavic 3 Series Charging Hub, Avata 2 Charging Hub, Neo Charging Hub, Flip Charging Hub.
  • DJI Remote Controllers: All USB-C compatible models.
  • DJI Action Cameras: All USB-C compatible models.
  • Other USB-C Port Devices: Any device compatible with PD/QC/PPS protocols.

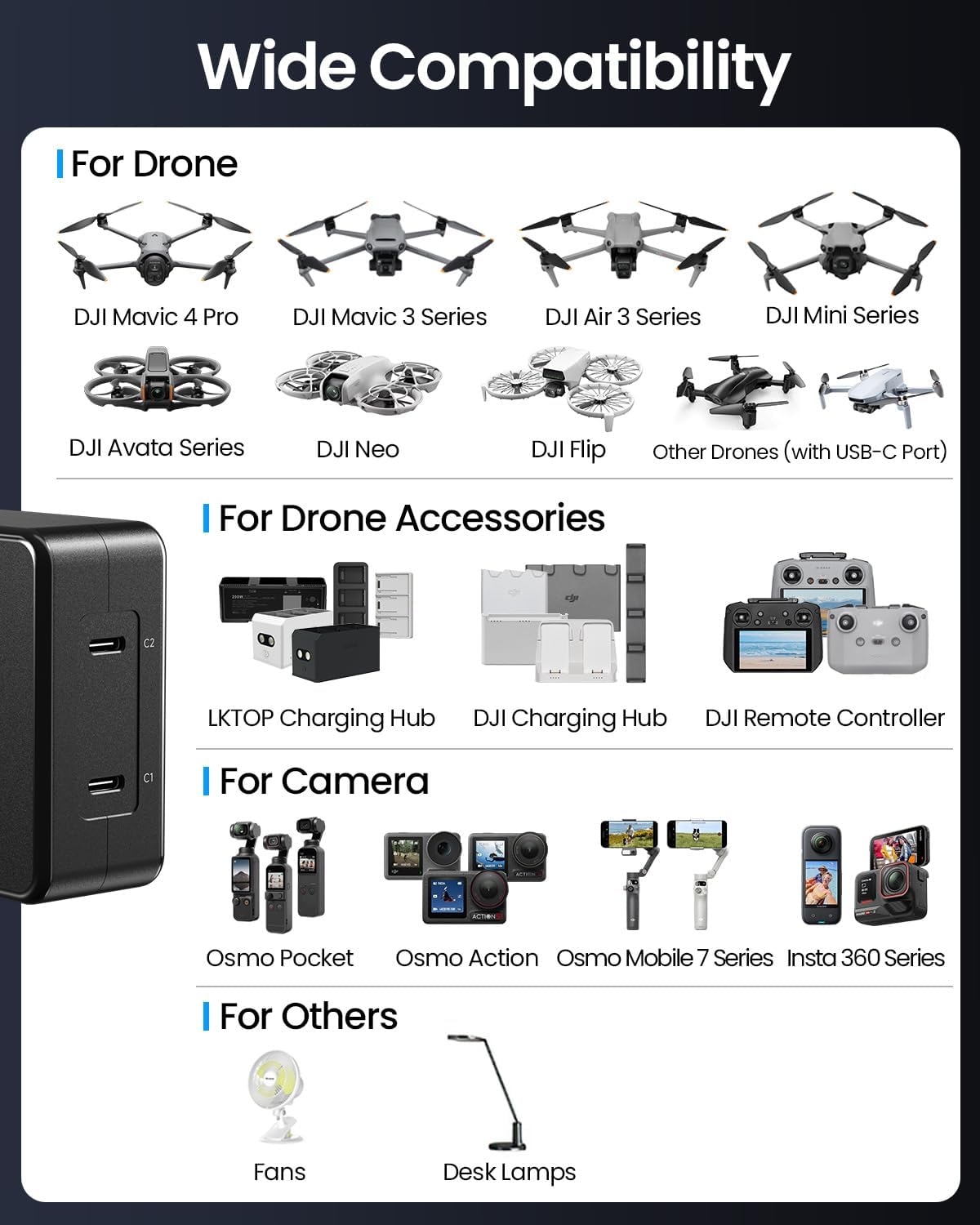

Image illustrating wide compatibility of the LKTOP 100W USB-C Power Adapter with various drones, drone accessories (charging hubs, remote controllers), cameras (Osmo Pocket, Osmo Action, Osmo Mobile, Insta 360 Series), and other USB-C devices like fans and desk lamps.
Figure 7.1: Wide compatibility of the LKTOP 100W USB-C Power Adapter.

8. Спецификације

ФеатуреДетаљ
БрандЛКТОП
Назив производаLKTOP 100W USB-C Power Adapter
Модел производаAD1-100FCP
Улазни волtage100-240В АЦ, 50-60Хз, 2.5А
Излаз са једним портомUSB-C1: 100W (Max), USB-C2: 100W (Max)
Двоструки излазUSB-C1 + USB-C2: Single port 82W (Max), Total power 100W (Max)
Оутпут Волtage20 Волтс
Цуррент Ратинг5 Amps
Број портова2 (USB тип C)
Димензије производа73.5 x 70 x 32 мм (2.89" Д x 1.26" Ш x 2.76" В)
Тежина производа286 ± 5g (excluding cable weight)
Радна температура0° до 40°Ц (32° до 104°Ф)
ЦертификатиCCC, FCC, RoHS
Image displaying the product dimensions of the LKTOP 100W USB-C Power Adapter and a detailed table of product specifications.
Слика 8.1: Димензије производа и детаљне спецификације.

КСНУМКС. Решавање проблема

  • Уређај се не пуни: Ensure the adapter is securely plugged into a working power outlet. Check that the USB-C cable is properly connected to both the adapter and the device. Verify device compatibility.
  • Споро пуњење: Ensure you are using a 100W compatible USB-C cable. If charging two devices, power distribution may reduce individual port output. Disconnect one device to maximize power to the other.
  • Adapter overheating: The adapter features intelligent temperature control. If it feels excessively hot, disconnect it immediately and allow it to cool down. Ensure adequate ventilation around the adapter during use.
  • No power indicator: Some devices or cables may not have a visible power indicator. Refer to your device's manual for charging status.

10. Одржавање

  • Clean the adapter with a soft, dry cloth. Do not use liquid cleaners or aerosols.
  • Адаптер чувајте на хладном и сувом месту када га не користите.
  • Avoid bending or stressing the USB-C cables excessively to prevent internal damage.

11. Гаранција и подршка

The LKTOP 100W USB-C Power Adapter comes with a 1-year warranty. For warranty claims, technical support, or any inquiries, please contact LKTOP customer service through the retailer where you purchased the product or visit the official LKTOP webсајту.

Молимо вас да сачувате доказ о куповини ради потврде гаранције.
