Увод и безбедносне информације
Thank you for choosing the CREATE WIND CALM SLIM LIGHT Ceiling Fan with Light. This manual provides essential information for the safe installation, operation, and maintenance of your new ceiling fan. Please read these instructions carefully before installation and use, and retain them for future reference.
Важна безбедносна упутства:
- Always disconnect power at the main circuit breaker before installation, maintenance, or cleaning.
- Installation must be performed by a qualified electrician and in accordance with all local electrical codes.
- Ensure the mounting structure can support the fan's weight.
- Не убацујте предмете у лопатице вентилатора док вентилатор ради.
- Држите децу и кућне љубимце даље од вентилатора током рада.
- Овај вентилатор је дизајниран само за унутрашњу употребу.
- The light intensity is not adjustable.
Подешавање и инсталација
Carefully unpack all components and ensure all parts are present before beginning installation. Refer to the diagrams below for visual guidance.
Садржај пакета:
- Ceiling Fan Unit (Motor, Blades, Integrated Light)
- Носач
- Ремоте Цонтрол
- Опрема за монтажу (вијци, анкери)
Кораци инсталације:
- Искључивање струје: Искључите напајање на главном прекидачу да бисте спречили струјни удар.
- Инсталација носача за монтажу: Secure the mounting bracket to the ceiling joist or a suitable electrical junction box. Ensure the bracket is firmly attached and can support the fan's weight.
Напомена: Some ceiling installations, particularly those with a DCL box or existing porthole-style light openings, may require additional modifications or drilling new holes in the mounting plate to ensure secure attachment. The provided mounting holes may not align with all existing ceiling setups. Consult a qualified electrician if you encounter difficulties.
- Ожичење: Повежите електричне жице вентилатора са кућним инсталацијама у складу са локалним електричним прописима. Уверите се да су сви прикључци безбедни.
- Склоп вентилатора: Attach the fan motor assembly to the mounting bracket. Follow the specific instructions provided in the detailed manual (if available) for blade attachment and securing the main unit.
- Инсталација светла: The LED light is integrated into the fan's body. Ensure it is properly seated and connected.
- Коначна провера: Verify all connections are secure and the fan is properly mounted before restoring power.

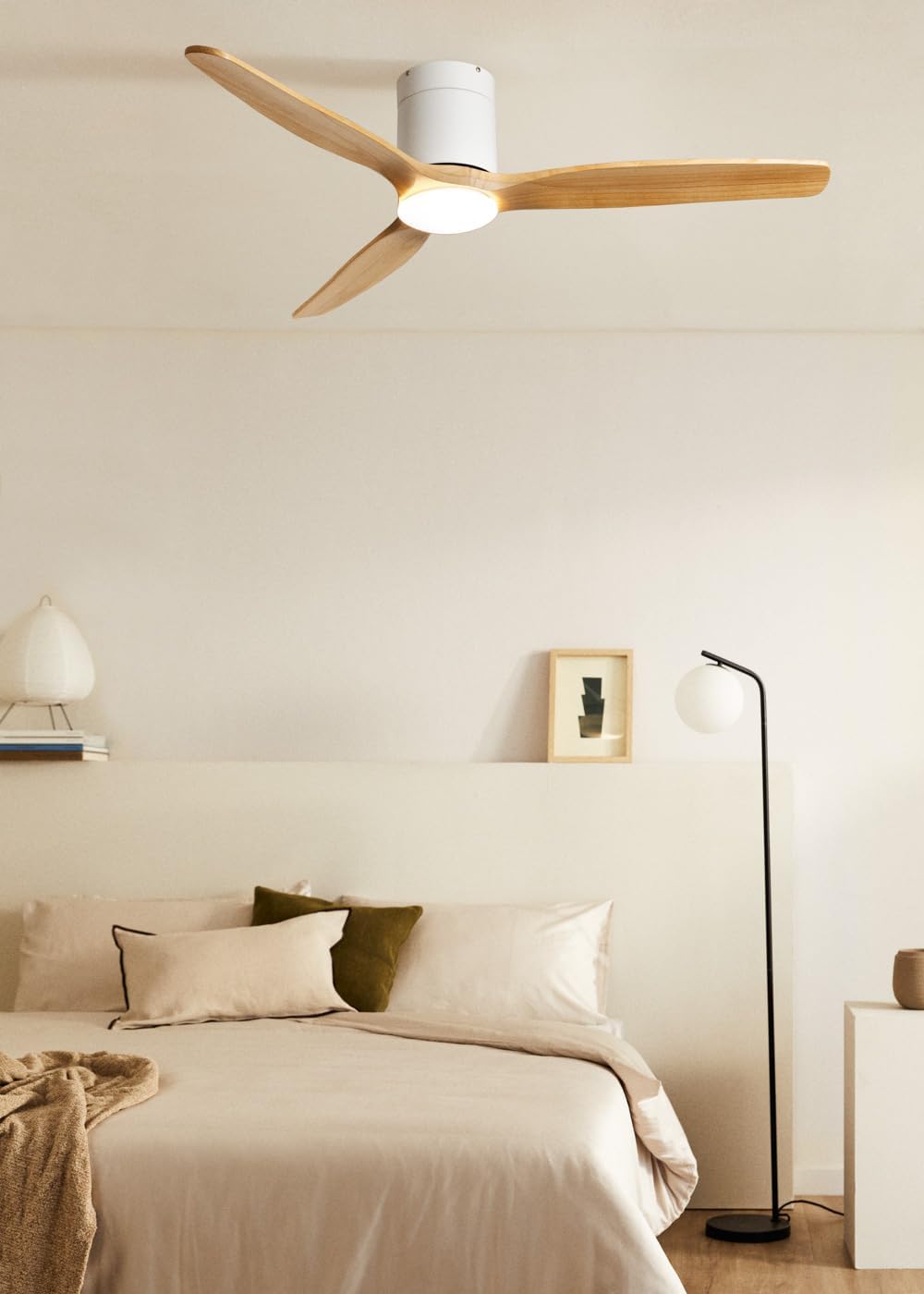

Image: The CREATE WIND CALM SLIM LIGHT ceiling fan with light wood blades and a white body, installed in a modern bedroom setting.
Image: Technical diagram illustrating the top-down dimensions of the fan, showing a total diameter of 132 cm.
Image: Technical diagram illustrating the side dimensions of the fan, showing a height of 27 cm from ceiling to blade tip.
Упутство за употребу
Your CREATE WIND CALM SLIM LIGHT ceiling fan is controlled via the included remote control. Ensure the remote has working batteries.
Функције даљинског управљача:
- Укључивање/искључивање: Укључује или искључује вентилатор и светло.
- Контрола брзине вентилатора: Adjusts the fan speed through 6 available settings.
- Укључено/искључено светло: Controls the integrated LED light independently.
- Light Temperature Adjustment: Cycles through 3 color temperatures: warm (2700K), neutral (3300K), and cool (4000K). Note: Light intensity is not adjustable.
- Функција тајмера: Sets the fan to automatically turn off after 1, 2, 3, or 4 hours.
- Летњи/зимски режим: Мења смер ротације лопатице.
Summer/Winter Function:
This feature optimizes air circulation for different seasons:
- Летњи режим (ротација у смеру супротном од казаљке на сату): Creates a downward airflow, generating a cooling breeze.
- Зимски режим (ротација у смеру казаљке на сату): Creates an upward airflow, circulating warm air accumulated near the ceiling throughout the room, improving heating efficiency.
Image: Diagram illustrating the airflow patterns for Winter mode (upward circulation of warm air) and Summer mode (downward cooling breeze).
LED Light Features:
The integrated LED light offers three distinct color temperatures to suit your preference:
- Топла бела (2700К): For a cozy and relaxing ambiance.
- Неутрално бела (3300К): За опште осветљење.
- Хладна бела (4000К): For bright, task-oriented lighting.
Слика: Крупни план view of the integrated LED light module at the center of the fan, emitting a bright white light.
Image: Diagram illustrating the three available LED light temperatures: warm (2700K), neutral (3300K), and cool (4000K).
Audible Feedback (Beep):
The fan emits an audible "beep" sound with each command from the remote control or when power is restored. This beep can be muted via the remote control settings. However, if the main power supply to the fan is cut (e.g., by a wall switch), the mute setting may reset, and the beep will return upon power restoration.
Одржавање
Редовно одржавање осигурава оптималне перформансе и дуготрајност вашег плафонског вентилатора.
- Чишћење: Да бисте очистили вентилатор, обришите лопатице и кућиште мотора меком,amp крпа. Не користите абразивна средства за чишћење или раствараче, јер могу оштетити завршну обраду.
- Уклањање прашине: Periodically dust the fan blades and light fixture to prevent dust buildup, which can affect performance and light output.
- Баланс сечива: If the fan wobbles, check that all blade screws are tight. Minor wobbling can sometimes be corrected using a blade balancing kit (not included).
- Искључивање струје: Always ensure the power is disconnected at the circuit breaker before performing any cleaning or maintenance.
Решавање проблема
| Проблем | Могући узрок | Решење |
|---|---|---|
| Вентилатор не ради. | No power supply; Remote control batteries are dead; Incorrect wiring. | Check circuit breaker and wall switch. Replace remote control batteries. Verify wiring connections are secure (consult an electrician if unsure). |
| Светлост се не пали. | No power supply; Light function not activated on remote; LED module fault. | Check power. Ensure light button on remote is pressed. If problem persists, contact support. |
| Вентилатор се претерано клати. | Loose mounting screws; Unbalanced blades; Improper installation. | Ensure mounting bracket and fan screws are tight. Check for bent blades. Use a blade balancing kit if necessary. Re-check installation steps. |
| Вентилатор производи необичну буку. | Лабави шрафови; Опструкција; Проблем са мотором. | Check all screws. Ensure nothing is touching the blades or motor housing. If noise persists, contact support. |
| Даљински управљач не реагује. | Dead batteries; Remote not paired (unlikely for this model but general); Obstruction. | Replace batteries. Ensure clear line of sight to the fan's receiver. |
| Audible "beep" sound persists after muting. | Main power supply was cut. | The mute setting may reset if the fan's main power is disconnected. Re-apply the mute setting using the remote control. |
Техничке спецификације
| Бранд | ЦРЕАТЕ |
| Назив модела | WIND CALM SLIM LIGHT |
| Број модела | 198506_515822 |
| Боја | Лигхт Воод |
| Фан Десигн | Плафонски вентилатор |
| Извор напајања | Електрични кабл |
| Стиле | Плафон |
| Димензије (пречник к висина) | 132 цм к 29 цм |
| Специјалне функције | LED Light, Timer, Summer-Winter Function, Remote Control |
| Тип монтаже | Плафонски носач |
| Тип контролера | Ремоте Цонтрол |
| Број брзина | 6 |
| Ниво буке | 40 децибела |
| Повер | 40 Ваттс |
| Број оштрица | 3 |
| Капацитет протока ваздуха | 180 кубна метра у минути |
| Волtage | 240 Волтс |
| Усаге Енвиронмент | Индоор |
| Тип мотора | DC Motor with Brushes |
| Бладе Материал | Дрво |
Информације о гаранцији
Specific warranty details for the CREATE WIND CALM SLIM LIGHT Ceiling Fan are not provided in this manual. For information regarding warranty coverage, terms, and conditions, please refer to the documentation included with your purchase or contact CREATE customer support directly.
Корисничка подршка
If you have any questions, require technical assistance, or need to report an issue with your CREATE WIND CALM SLIM LIGHT Ceiling Fan, please contact CREATE customer support. Contact information can typically be found on the manufacturer's webсајту или на паковању производа.
Manufacturer: CREATE
