1. Увод
Thank you for choosing the Generic Cordless Ankle Massager, Model XBL-8688. This device is designed to provide relaxation and comfort to your ankles and feet through a combination of vibration massage and heat therapy. Its portable and rechargeable design allows for convenient use at home, in the office, or while traveling. Please read this manual thoroughly before use to ensure safe and effective operation.
2. Безбедносне информације
- Не користите масажер док се пуни.
- Keep the massager away from water and liquids to prevent damage and electrical hazards.
- Ensure the device is fully charged before initial use if it does not power on.
- The massager features an intelligent 30-minute timer to prevent excessive usage. Do not attempt to bypass this safety feature.
- Consult a healthcare professional before use if you have any pre-existing medical conditions, especially those affecting circulation, sensation, or skin integrity.
- Discontinue use immediately if you experience pain, discomfort, or any adverse reactions.
- This device is not intended for medical diagnosis, treatment, or prevention of any disease or health condition.
3. Производ је готовview
3.1 Садржај пакета
- 1 x Cordless Ankle Massager Brace
- 1 x Упутство за употребу (овај документ)
- 1 к Типе-Ц кабл за пуњење
3.2 Кључне карактеристике

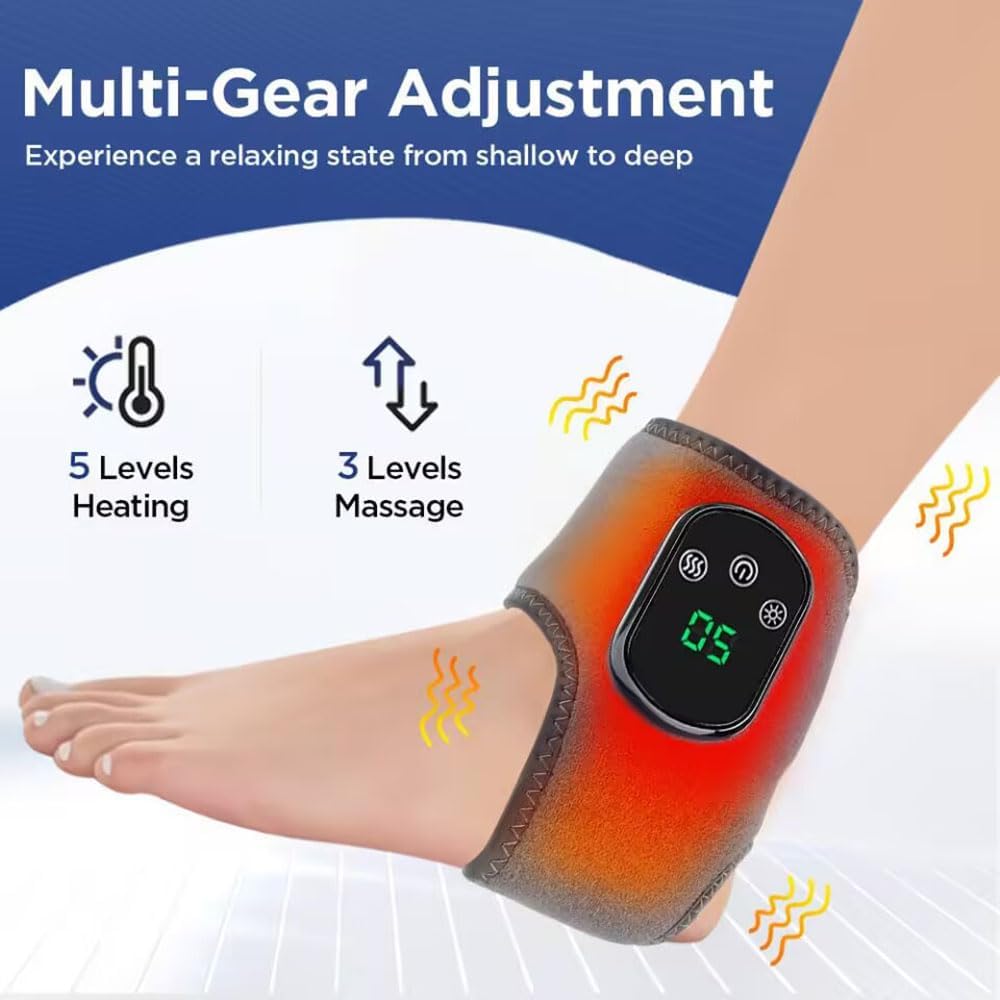

- Контрола температуре: 5 adjustable heat settings from 40°C to 60°C (104°F to 140°F).
- Режими масаже: 3-level vibration massage intensity settings.
- Дигитални екран: LED screen for temperature and settings, with an easy-to-use control interface.
- Пуњива и преносива: Built-in 1800mAh battery with USB Type-C charging.
- Ергономски дизајн: Adjustable ankle brace for a secure and targeted fit.
- Аутоматско искључивање: Intelligent 30-minute timing for safety.
3.3 Спецификације
| Феатуре | Детаљ |
|---|---|
| Назив производа | Електрична грејна ортоза за скочни зглоб |
| Број модела | XBL-8688 |
| Материјал | ABS + Advanced Diving Fabric, Cotton |
| Боја | Греи |
| Ратед Волtage | 3.7В |
| Називна снага | 7W |
| Улазни волtage | 5V |
| Инпут Цуррент | 1A |
| Инпут Повер | 5W |
| Капацитет батерије | 1800мАх литијум-јонски |
| Време пуњења | Отприлике 3 сата |
| Usage Time per Charge | Approximately 3 sessions (30 minutes per session) |
| Начин напајања | Тип-Ц пуњење |
| Ankle Size Suitability | Smaller than 14.76 inches circumference |
| Димензије производа (Д к Ш к В) | 14.76 к 3.54 к 1.18 инча |
| Тежина артикла | 180 грама (6.35 унци) |
| Ниво отпорности на воду | Није водоотпоран |
4. Подешавање и пуњење
4.1 Почетна наплата
Before first use, or if the device does not power on, fully charge the ankle massager. Connect the provided Type-C charging cable to the massager's charging port and plug the other end into a compatible USB power source (e.g., wall adapter, computer USB port). The charging indicator will display "LL" while charging and "HH" when fully charged. A full charge takes approximately 3 hours.
Important: The massager cannot be turned on or used while it is charging.
4.2 Ношење масажера
Place the ankle massager brace around your ankle. Adjust the strap to ensure a snug yet comfortable fit. The device is designed to fit ankle sizes smaller than 14.76 inches in circumference.
5. Операција
The ankle massager combines heat therapy and vibration massage. It is equipped with an intelligent 30-minute timer for each session.
5.1 Укључивање/искључивање
- За укључивање: Притисните и држите дугме за напајање (Ⓘ) for 2 seconds. The controller will beep twice, and the default starting temperature is 50°C.
- За искључивање: In the startup state, press and hold the power button (Ⓘ) for 2 seconds. The product will shut down, and all indicator lights will turn off.
5.2 Подешавање нивоа топлоте
Once the product is powered on, press the heat button (☼) to cycle through the 5 adjustable heat settings. The temperature range is 40°C, 45°C, 50°C, 55°C, and 60°C. The current temperature will be displayed on the LED screen.
5.3 Adjusting Vibration Modes
While the product is powered on, press the vibration button (☽) to cycle through the 3 vibration intensity levels. The vibration mode is cyclic. Pressing it once will activate the first gear, pressing it again will increase it to the third gear, and pressing it once more will turn off the vibration function.
5.4 Usage Recommendations
For optimal results, use the massager on the affected area for 15-30 minutes, 2-3 times a day. The intelligent timer will automatically shut off the device after 30 minutes to prevent overuse.
6. Одржавање
- Чишћење: Wipe the surface of the massager with a soft, damp тканина. Не користите абразивна средства за чишћење нити урањајте уређај у воду.
- Складиштење: Чувајте масажер на хладном и сувом месту, даље од директне сунчеве светлости и екстремних температура.
- Одржавање батерије: Да бисте продужили век трајања батерије, избегавајте често потпуно пражњење батерије. Редовно пуните уређај, чак и ако га не користите дуже време.
КСНУМКС. Решавање проблема
| Проблем | Могући узрок | Решење |
|---|---|---|
| Уређај се не укључује. | Батерија је празна. | Charge the device fully (approx. 3 hours) using the provided Type-C cable. |
| Device stops working during operation. | Connected to power supply during use. | Ensure the device is disconnected from the charging cable before use. The device cannot operate while charging. |
| Уређај се аутоматски искључује. | Intelligent 30-minute timer activated. | This is a normal safety feature. You can restart the device for another session if desired, ensuring not to overuse. |
| Heat or vibration not felt. | Incorrect settings or device not properly positioned. | Ensure heat and vibration modes are activated and set to desired levels. Adjust the massager's position on the ankle for optimal contact. |
8. Гаранција и подршка
This product is manufactured by YUSHAO. For any questions, concerns, or support needs regarding your Generic Cordless Ankle Massager (Model XBL-8688), please refer to the contact information provided with your purchase or reach out to the retailer. Please retain your proof of purchase for warranty claims.
