1. Увод
This manual provides detailed instructions for the installation, operation, and maintenance of your WALI Quad Monitor Mount, model M004S-P. This mount is designed to support one ultrawide monitor (up to 49 inches) on the top bracket and three standard monitors (up to 27 inches) on the lower arm brackets. It features a robust design for enhanced stability and ergonomic adjustability.
Image 1.1: WALI Quad Monitor Mount M004S-P in a multi-monitor setup.
2. Карактеристике производа
- Компатибилност монитора: Supports one ultrawide monitor up to 49 inches (max 44 lbs) on the top bracket and three standard monitors up to 27 inches (max 19.8 lbs each) on the lower brackets. Compatible with VESA 75x75mm and 100x100mm mounting patterns.
- Флексибилно подешавање:
- Top bracket: +20° to -20° tilt, 180° swivel, 360° rotation.
- Side brackets: +45° to -45° tilt, 180° swivel, 360° rotation.
- Height adjustable along the central pole.
- Издржљива конструкција: Constructed from steel for strength, scratch resistance, and long-term stability.
- Једноставна инсталација: Offers C-clamp mounting for desks 0.39" to 3.15" thick, and grommet mounting for desks 0.39" to 1.57" thick. All necessary tools and hardware are included.
- Управљање кабловима: Integrated cable management system helps organize and conceal monitor cables for a tidy workspace.
Image 2.1: Monitor compatibility and VESA patterns.
Image 2.2: Adjustment ranges for tilt, swivel, and rotation.
3. Садржај пакета
Молимо вас да проверите да ли су све компоненте присутне пре почетка инсталације:
- 1 x WALI Quad Monitor Desk Mount (Black)
- 1 x Mounting Hardware Kit (includes screws, spacers, and Allen keys)
- 1 к Упутство за употребу
4. Безбедносне информације
Read all instructions carefully before installation. If you do not understand these instructions or have doubts about the safety of the installation, please contact a qualified installer or customer support.
- Капацитет тежине: Do not exceed the maximum weight capacity of 44 lbs for the top bracket and 19.8 lbs per lower bracket. Exceeding this limit may result in serious injury or product damage.
- Величина монитора: Ensure your monitors fit within the specified size ranges (up to 49" ultrawide for top, up to 27" for lower).
- ВЕСА компатибилност: Confirm your monitors have VESA 75x75mm or 100x100mm mounting holes.
- Desk Stability: Ensure your desk surface is stable and strong enough to support the combined weight of the mount and all attached monitors.
- Правилна инсталација: Install the mount strictly according to the instructions provided. Improper installation can lead to equipment damage or personal injury.
- Покретних делова: Be cautious of pinch points when adjusting the monitor arms.
5. Подешавање и инсталација
The WALI Quad Monitor Mount offers two installation options: C-clamp и монтажу са ушицама. Изаберите метод који одговара вашем столу.
5.1 Ц-Цлamp Инсталација
This method is suitable for desks with a thickness between 0.39 inches and 3.15 inches.
- Причврстите Ц-цлamp base to the edge of your desk. Ensure the clamp is securely tightened to prevent movement.
- Insert the main pole into the C-clamp base and secure it with the provided screws.
- Slide the monitor arm assemblies onto the main pole at your desired heights. Tighten the adjustment screws to hold them in place.
- Attach the VESA plates to the back of your monitors using the appropriate screws and spacers from the hardware kit.
- Slide the monitors (with VESA plates attached) onto the monitor arms. Secure them with the locking mechanisms.
5.2 Инсталација монтаже ушне шкољке
This method is suitable for desks with a grommet hole and a thickness between 0.39 inches and 1.57 inches.
- If your desk has an existing grommet hole, remove the plastic cover.
- Place the grommet base plate over the hole.
- Insert the main pole through the grommet base plate and the desk hole.
- From underneath the desk, attach the grommet mounting plate and tighten the bolt to secure the pole firmly to the desk.
- Follow steps 3-5 from the C-clamp installation to attach the monitor arms and monitors.

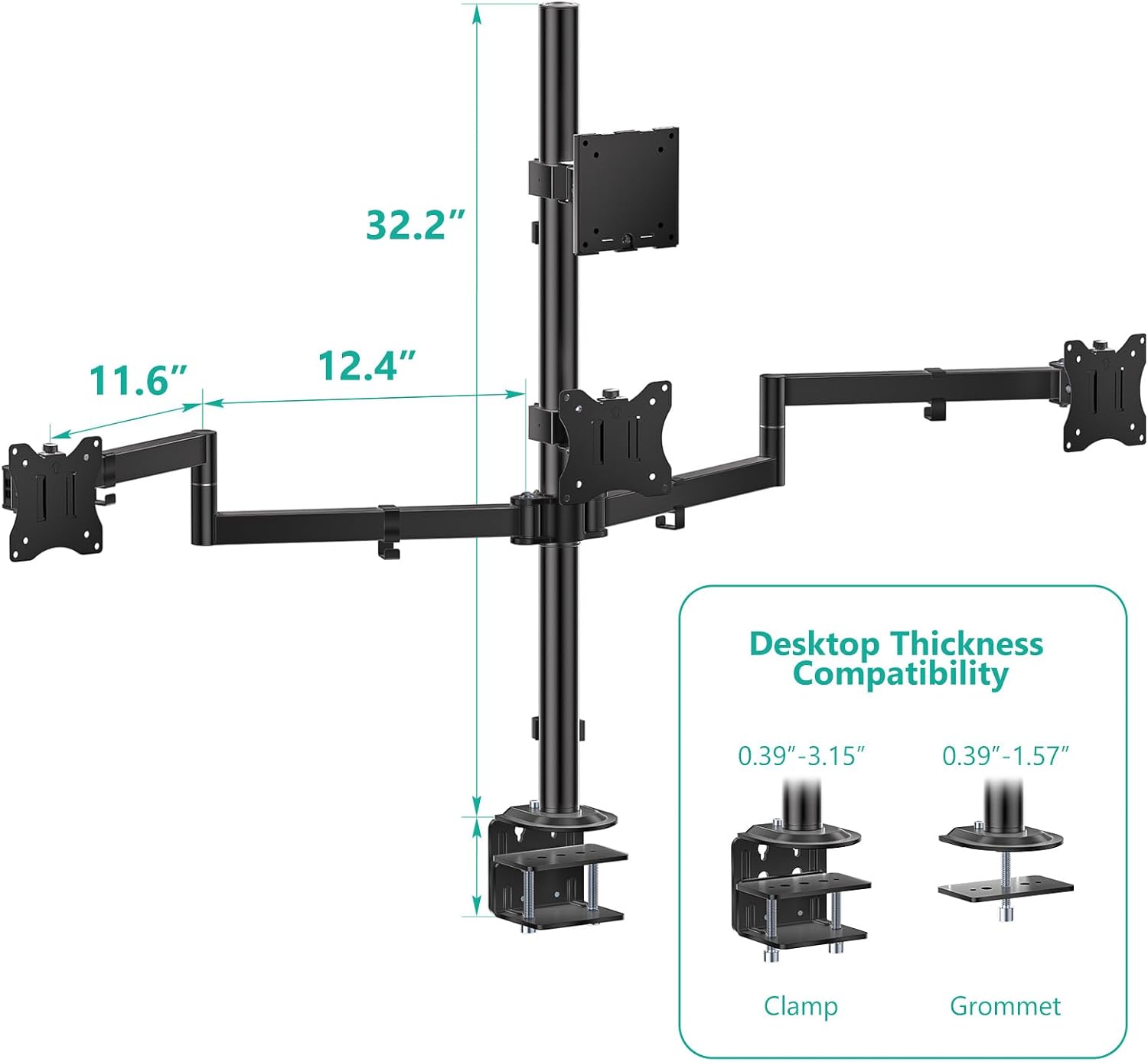

Image 5.1: C-clamp and Grommet mount installation details.
Слика 5.2: Детаљно view of mounting options.
5.3 Управљање кабловима
Utilize the integrated cable clips along the main pole and monitor arms to route and organize your monitor cables. This helps maintain a clean and organized workspace.
Image 5.3: Cable management system.
6. Упутство за употребу
The WALI Quad Monitor Mount allows for various adjustments to achieve an optimal ergonomic viewинг искуство.
- Подешавање висине: Loosen the collar on the main pole to slide the monitor arm assemblies up or down. Retighten the collar once the desired height is reached.
- Подешавање нагиба: The top bracket can tilt +20° to -20°, and side brackets can tilt +45° to -45°. Use the provided Allen key to adjust the tilt tension if monitors are too loose or too stiff.
- Подешавање окретања: All brackets offer 180° swivel. Gently rotate the monitor to the desired angle.
- Подешавање ротације: All brackets allow for full 360° rotation, enabling portrait or landscape orientation.
Image 6.1: Ergonomic height adjustment.
Image 6.2: Monitor mount used in sitting and standing positions.
7. Одржавање
Редовно одржавање осигурава дуготрајност и безбедан рад вашег носача монитора.
- Чишћење: Обришите носач меком крпомamp крпу. Избегавајте абразивна средства за чишћење или раствараче.
- Периодични преглед: Периодично проверавајте све завртње и спојеве како бисте били сигурни да су чврсто затегнути. По потреби поново затегните.
- Подешавање напетости: If monitors begin to sag or become difficult to adjust, use the provided Allen keys to adjust the tension screws on the tilt and swivel mechanisms.
КСНУМКС. Решавање проблема
| Проблем | Могући узрок | Решење |
|---|---|---|
| Monitor sags or tilts downward. | Tilt mechanism tension is too loose. | Tighten the tilt adjustment screw on the back of the VESA plate using the appropriate Allen key. |
| Monitors are difficult to move or adjust. | Adjustment screws are too tight. | Slightly loosen the tension screws on the relevant joints (tilt, swivel) until movement is smooth. |
| Mount feels unstable or wobbles. | Ц-цлamp or grommet mount is not securely tightened; desk surface is not stable. | Уверите се да је C-clamp or grommet bolt is fully tightened. Verify your desk is stable and can support the weight. |
| Monitors do not align perfectly. | Individual arm adjustments needed. | Utilize the tilt, swivel, and height adjustments on each arm to fine-tune monitor alignment. |
9. Спецификације
- Модел: M004S-P
- Бренд: ВАЛИ
- Тип монтаже: Tabletop Mount (C-clamp или ушушка)
- Материјал: Метал
- Боја: Црно
- Компатибилни уређаји: Монитори
- Maximum Supported Screen Size (Top Bracket): 49 inches (Ultrawide)
- Maximum Supported Screen Size (Lower Brackets): 27 inches (Standard)
- Minimum Supported Screen Size: 13 инча
- Max Weight Capacity (Top Bracket): 44 лбс
- Max Weight Capacity (Lower Brackets): 19.8 lbs per arm
- ВЕСА компатибилност: 75к75мм, 100к100мм
- Тип покрета: Нагињање, окретање, ротирање
- Tilt Angle (Top Bracket): +20° до -20°
- Tilt Angle (Side Brackets): +45° до -45°
- Угао окретања: 180°
- ротација: 360°
- Ц-Цлamp Дебљина стола: 0.39" до 3.15"
- Grommet Mount Desk Thickness: 0.39" до 1.57"
- УПЦ: 811278027374
Image 9.1: VESA compatibility and weight limits.
10. Гаранција и подршка
гаранција: This WALI product is covered by a 1-Year Manufacturer Warranty.
Корисничка подршка: For any questions, assistance with installation, or troubleshooting, please contact WALI customer support. Experienced and friendly US-based customer support is available to assist 7 days a week. Refer to the product packaging or the official WALI webсајт за контакт детаље.
