LiTime 12V 100Ah LiFePO4 Battery User Manual

1. Производ је готовview

The LiTime 12V 100Ah LiFePO4 Group 31 Battery is an advanced power solution designed for various applications including RVs, marine vessels, trolling motors, and off-grid systems. It features a robust 100A Battery Management System (BMS) with integrated Bluetooth connectivity for real-time monitoring. The battery supports CAN and RS485 communication protocols, allowing seamless integration with external systems like Victron. Its durable design includes low-temperature protection and an IP65 waterproof rating, ensuring reliable performance in challenging environments.

Image: The LiTime 12V 100Ah LiFePO4 Group 31 Battery, showcasinг његовим компактним дизајном и интегрисаном ручком.

2. Кључне карактеристике

• Smart & Open System Compatibility: Features CAN communication for seamless integration with external systems like Victron. Supports OTA customization for additional protocols such as Xantrex, AIMS, and Go Power.
• LiTime's One-Stop Power System: Connects to LiTime RS485 display for comprehensive battery system data monitoring and remote power control.
• Smart Lifespan Optimization: Automatically reports ideal charging values based on State of Charge (SOC) and temperature, enhancing battery health and extending its operational life.
• One-Touch System Control: Enables powering on/off the entire battery bank via any single button when in communication mode.
• System-Wide Visibility: Plug-and-play compatibility with Victron systems to access complete system data via VRM, VictronConnect app, or dedicated display.
• Scalable System Support: Supports up to 16 batteries in parallel (20.48kW) in communication mode, and 4P4S without communication.
• High-Precision Bluetooth: Allows checking real-time battery system data and controlling discharge or shutdown directly from your smartphone.
• IP65 Waterproof & Secure-Locking Port: Designed with IP65 waterproof rating and an anti-loose communication port, making it suitable for wet and high-vibration environments like marine and RV applications.
• All-New LiTime 5.0 BMS: Provides over 20 protection features, including low-temperature cut-off, salt-spray resistance, moisture proofing, and overload protection with auto-recovery (30s). Utilizes EV-Grade LiFePO4 Cells, offering 4000+ cycles at 100% Depth of Discharge (DOD), 6000+ cycles at 80% DOD, and 15000 cycles at 60% DOD.
• Свестране апликације: Suitable for powering smart systems in RVs, boats, off-grid homes, and solar farms.

Image: Diagram illustrating LiTime's T5.0 technology, showing integration with Victron and LiTime RS485 display for smart system management.

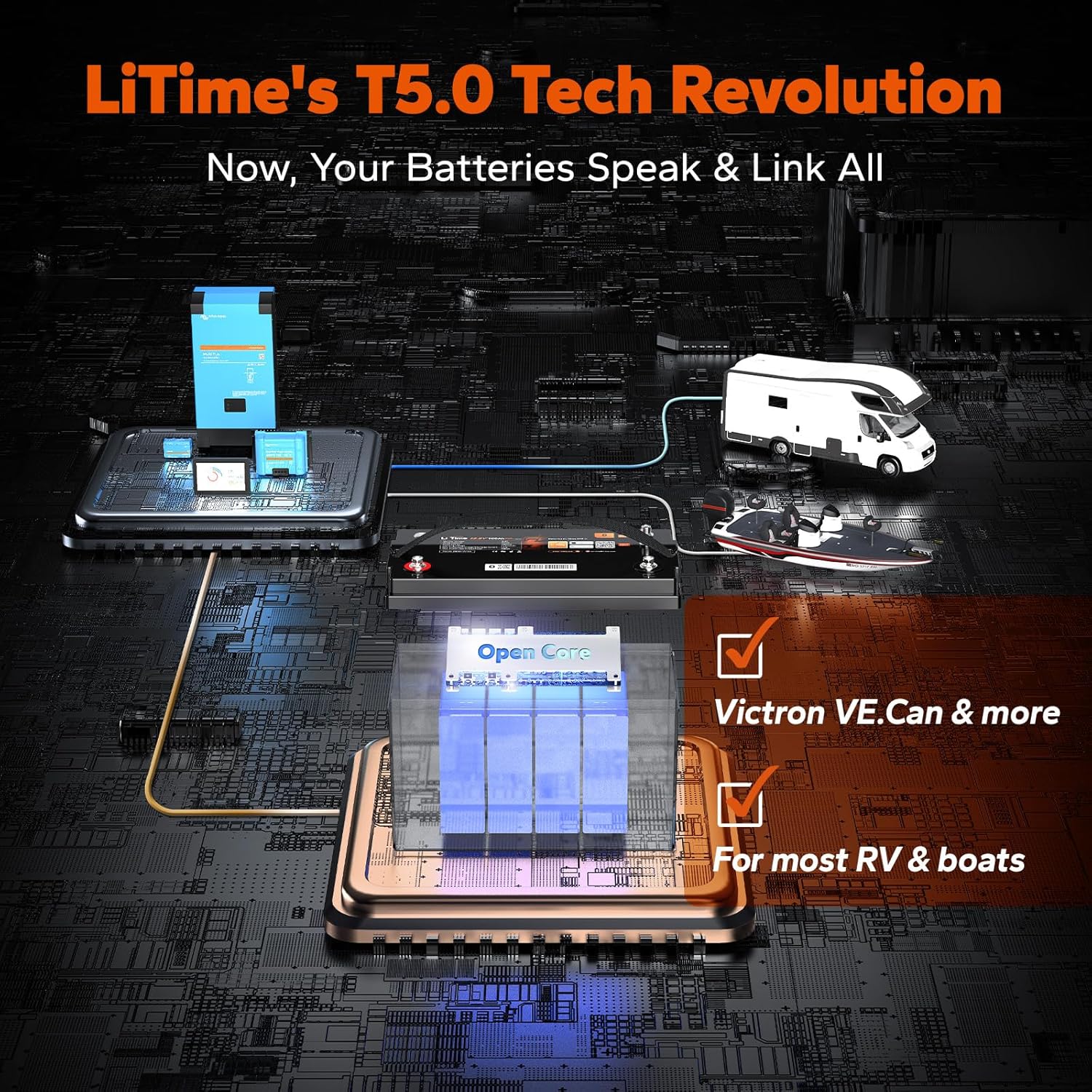

Image: Visual representation of the LiTime T5.0 Tech Revolution, demonstrating how batteries communicate and link within an RV and boat setup.

Слика: Корисник viewing battery system data on a smartphone via Bluetooth 5.0, showing high-precision data, whole system monitoring, remote discharge control, and multi-bank diagnostics.

Слика: Крупни план view of the battery highlighting its IP65 waterproof rating and anti-loose communication port with threaded lock, suitable for humid and bumpy environments.

3. Подешавање

Before setting up your LiTime 12V 100Ah LiFePO4 battery, ensure you have all necessary components, including appropriate cables, chargers, and any communication devices (e.g., Victron components, LiTime RS485 display). Always follow local electrical codes and safety guidelines. For parallel or series connections, refer to the detailed wiring diagrams provided in the full product manual or consult a qualified electrician.

3.1 Почетни преглед

Upon receiving your battery, inspect it for any physical damage. Verify that all terminals are secure and clean. Ensure the battery's voltage is within the acceptable range before connecting it to any system.

3.2 Connection Guidelines

Connect the battery to your system using appropriately sized cables and fuses. For systems requiring multiple batteries, utilize the CAN or RS485 communication ports for synchronized operation and enhanced monitoring. The battery's one-touch control feature simplifies managing multiple units in parallel.

Image: A visual guide demonstrating the integration of the LiTime battery with Victron energy components, including a MultiPlus inverter/charger and an MPPT solar charge controller, for a comprehensive power system setup.

Image: Illustration showing how a single button can control an entire battery bank of up to 16 parallel LiTime batteries, simplifying system management.

4. Упутство за употребу

The LiTime 12V 100Ah LiFePO4 battery is designed for intuitive operation, especially when integrated into a smart power system. Its advanced features allow for efficient power management and monitoring.

4.1 Надгледање Bluetooth-а

Download the LiTime app to your smartphone to access real-time data from your battery. This includes State of Charge (SOC), voltage, current, temperature, and individual cell information. The app also allows for remote discharge control and system shutdown.

Image: A smartphone screen displaying the LiTime app interface, showing real-time battery data such as SOC, voltage, and current, along with options for smart Bluetooth monitoring and discharge control.

4.2 Communication Protocols (CAN/RS485)

For advanced system integration, utilize the CAN or RS485 ports. These allow the battery to communicate with compatible inverters, chargers, and displays (like Victron or LiTime's RS485 display) for synchronized operation, data logging, and optimized charging/discharging cycles. This enables a truly integrated and intelligent power ecosystem.

Image: The LiTime 12V 100Ah battery connected to a LiTime RS485 display, illustrating how users can monitor and control their battery system directly from the display unit.

5. Одржавање

Proper maintenance ensures the longevity and optimal performance of your LiTime LiFePO4 battery. These batteries are designed for minimal maintenance, but adherence to these guidelines is recommended.

5.1 Пуњење

Always use a LiFePO4 compatible charger. The battery's smart lifespan optimization feature automatically reports ideal charging values based on SOC and temperature to connected charging devices, ensuring efficient and safe charging. Avoid overcharging or deep discharging to maximize cycle life.

Image: Diagram illustrating how the T5.0 technology continuously analyzes battery voltage, current, power, and real-time cell temperatures to command charging devices for optimal charging current.

Image: Visual guide showing various compatible charging methods for the LiTime battery, including AC-DC battery charger, solar panel with MPPT, alternator with DC-DC charger, and generator with AC-DC charger.

5.2 Управљање температуром

The battery features low-temperature cut-off protection, preventing charging below 32°F (0°C) and discharging below -4°F (-20°C) to protect its health and extend lifespan. Charging recovery begins at 41°F (5°C). Ensure the battery operates within its specified temperature range for optimal performance.

Image: An illustration demonstrating the battery's low-temperature cut-off protection, showing temperature thresholds for stopping discharge, stopping charge, and charging recovery.

Image: Depiction of the battery's wide discharge temperature range (-4°F to 140°F), highlighting its ability to perform in extreme low or high temperatures, suitable for various climates and applications.

5.3 Складиштење

For long-term storage, charge the battery to approximately 50% State of Charge (SOC) and store it in a cool, dry place away from direct sunlight and extreme temperatures. Periodically check the voltage during storage.

КСНУМКС. Решавање проблема

This section provides general guidance for common issues. For detailed troubleshooting or persistent problems, refer to the full product manual or contact LiTime customer support.

6.1 Батерија се не пуни

• Проверите везе: Ensure all charging cables are securely connected and not damaged.
• Компатибилност пуњача: Verify that your charger is specifically designed for LiFePO4 batteries and meets the correct voltagе и тренутне спецификације.
• температура: The BMS will prevent charging if the battery temperature is below 32°F (0°C). Move the battery to a warmer environment if necessary.
• BMS Protection: The BMS may have activated a protection mode (e.g., over-discharge, over-current). Disconnect the load and charger, wait a few minutes, and then attempt to reconnect.

6.2 Лов Волtagе Излаз

• Check SOC: The battery may be at a low State of Charge. Recharge the battery.
• Преоптерећење: The load connected to the battery might be exceeding its continuous discharge current. Reduce the load. The BMS has overload protection with auto-recovery.
• Димензионисање кабла: Ensure that the cables used are adequately sized for the current draw to prevent voltagе дроп.

Image: An illustration of the predictive ecosystem safeguard, showing how the system provides visible fault diagnostics and alerts for quick troubleshooting, and can order inverters/chargers to cut current via CAN in milliseconds.

7. Спецификације

Image: Comparison showing the LiTime 12.8V 100Ah LiFePO4 battery's dimensions (6.77 x 13 x 8.5 inches) and weight (21.6 lbs) relative to a traditional lead-acid battery, highlighting its lighter weight and higher energy density.

Слика: Рендгенски снимак view of the battery's internal components, emphasizing the LiTime T5.0 BMS with 20+ upgrade protections and EV-Grade LiFePO4 cells that undergo 80+ rigorous tests.

8. Шта је у кутији

• LiTime 12V 100Ah ComFlex Battery

9. Информације о гаранцији

For specific warranty terms and conditions, please refer to the official warranty documentation provided with your product or visit the LiTime official website. Protection plans may be available for purchase separately, offering extended coverage beyond the standard manufacturer's warranty.

10. Подршка

Should you require technical assistance, have questions about installation, or need to troubleshoot an issue not covered in this manual, please contact LiTime customer support. Contact information can typically be found on the product packaging, the official LiTime webсајту или преко вашег места куповине.
