SunSun CTM-2800 SuperECO Pond Pump Instruction Manual

1. Увод

The SunSun CTM-2800 SuperECO Pond Pump is designed for efficient water circulation in various pond environments. This pump offers optimized energy consumption, making it suitable for continuous operation in filtration systems, watercourses, and fountains. Its versatile design allows for use in koi ponds, natural ponds, water gardens, and natural pools, contributing to optimal filter operation and maintaining the biological balance of the aquatic ecosystem.

This manual provides essential information for the safe and effective installation, operation, and maintenance of your SunSun CTM-2800 pond pump. Please read all instructions carefully before use.

2. Безбедносна упутства

Увек искључите пумпу из напајања пре него што извршите било какво одржавање или чишћење.
Уверите се да је утичница заштићена уређајем за заштиту од преостале струје (RCD) са струјом окидања која не прелази 30 mA.
Не користите пумпу ако је кабл за напајање или кућиште оштећено.
The pump is designed for water use only. Do not use it for other liquids.
Ensure the pump is fully submerged when used underwater, or properly installed for external use, to prevent dry running.
Keep children and pets away from the pond area during pump operation and maintenance.
The pump must be installed in a stable position to prevent movement.

3. Садржај пакета

Молимо вас да проверите да ли су све компоненте присутне и неоштећене приликом распакивања:

SunSun CTM-2800 Pond Pump with integrated cable
Hose adapters (various sizes: 25mm, 32mm, 38mm)
Sealing rings and screw rings

Diagram showing the dimensions of the SunSun CTM-2800 pump and its components, including cable length and hose adapters. — Figure 1: Product dimensions and included accessories. The diagram shows the pump's front and side views with measurements (e.g., 114mm height, 134mm length), a 10m cable, and various hose adapter sizes (25mm, 32mm, 38mm) along with sealing rings.

4. Спецификације

Феатуре	Спецификација
Бранд	СунцеСунце
Број модела	51024
Боја	Црно
Материјал	АБС, ПЦ
Димензије производа (Д к Ш к В)	30Д к 20В к 13Х центиметара
Извор напајања	Цордед Елецтриц
Тежина артикла	2.04 килограма
Максимални проток	3000 литара на сат
Максимална висина подизања	2 метара
Волtage	230 Волтс

Graph illustrating the flow rate and head performance of the SunSun CTM-2800 pump and other CTM models. — Figure 2: Flow rate and head performance chart. This graph shows the relationship between output (L/h) and head (H(m)) for various CTM pump models, including the CTM-2800.

5. Подешавање

The SunSun CTM-2800 pump can be used either submerged in water or externally. Choose the installation method that best suits your pond setup.

5.1. Одабир локације за инсталацију

Diagram showing the SunSun CTM-2800 pump installed both externally and submerged in a pond. — Figure 3: Installation options: underwater or external use. The image depicts the pump connected to hoses, with one scenario showing it submerged in a pond and another showing it placed outside the pond for external operation.

5.2. Повезивање црева

Select the appropriate hose adapter size (25mm, 32mm, or 38mm) for your pond hose.
Attach the chosen adapter to the pump's inlet and outlet ports. Ensure a secure fit using the provided screw rings and O-rings to prevent leaks.
Connect your pond hoses to the adapters. For filter systems, connect the inlet hose to the skimmer or pre-filter and the outlet hose to your filter or water feature.

Illustration of the pump's rotatable outlet for easy installation and adjustment. — Figure 4: Rotatable outlet for flexible installation. This image highlights the pump's outlet, which can be rotated to simplify hose connection and positioning.

5.3. Прикључак за напајање

Once hoses are securely connected and the pump is positioned, plug the power cord into a suitable, RCD-protected electrical outlet. Ensure the cable is routed safely to avoid damage.

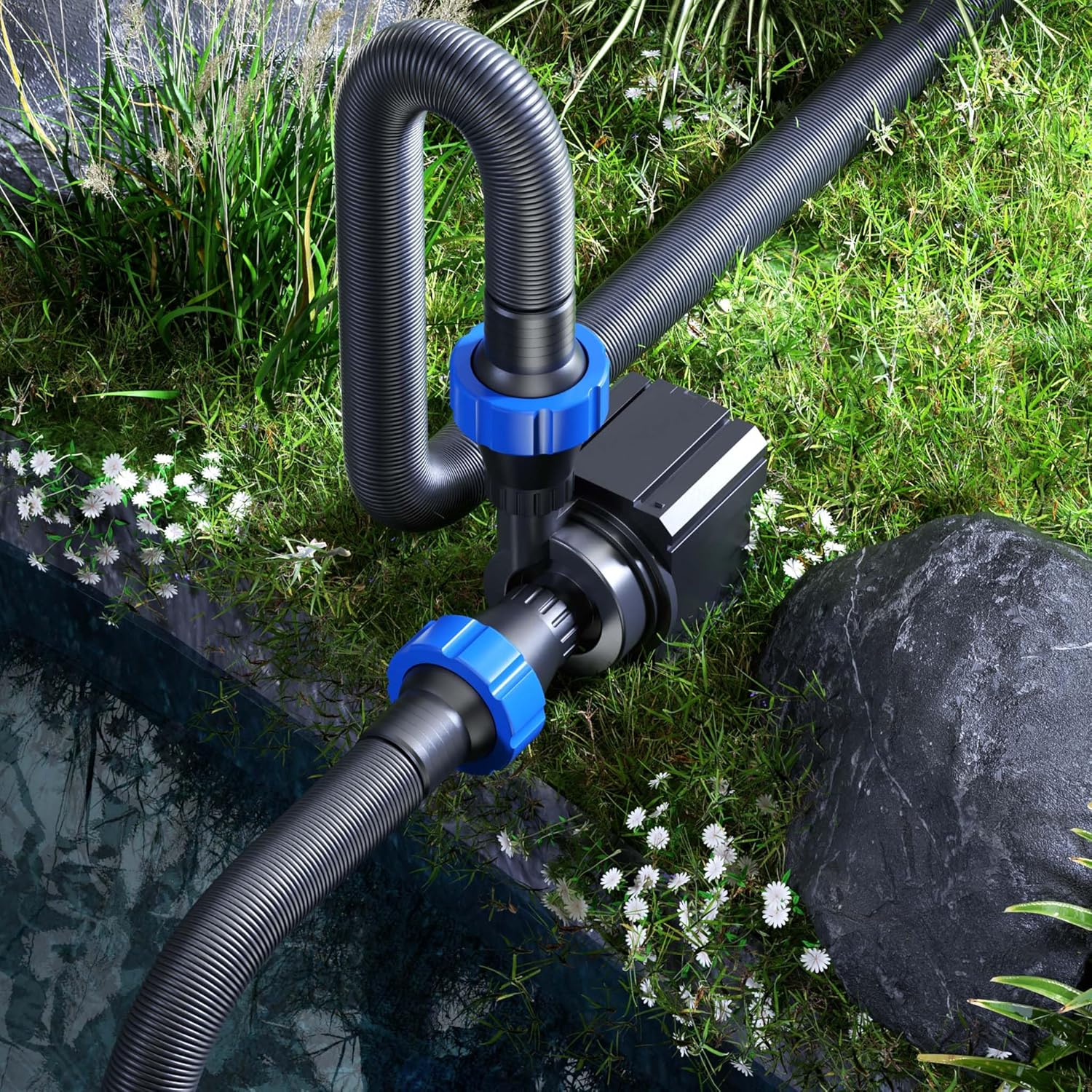

SunSun CTM-2800 pond pump installed in a garden pond, connected to hoses. — Слика 5: Прample of pump installation in a pond. The pump is shown submerged near the edge of a pond, with black corrugated hoses connected and leading away through the surrounding greenery.

6. Операција

The SunSun CTM-2800 pump is designed for continuous operation. Once connected to power, it will begin pumping water. Monitor the initial operation to ensure proper water flow and check for any leaks.

Подешавање брзине протока: If using a Y-connector (not included) for multiple outlets (e.g., filter and waterfall), you can adjust the flow distribution as needed.
Енергетска ефикасност: This pump is highly energy-efficient (10W for 3000 L/h), reducing operational costs over time.

7. Одржавање

Regular cleaning is crucial for maintaining the pump's efficiency and extending its lifespan. The pump features a screwless system for easy disassembly.

7.1. Поступак чишћења

Искључите напајање: Always unplug the pump from the power supply before cleaning.
Disassemble Housing: The pump's housing can be easily disassembled without tools. Gently separate the components.
Clean Impeller and Shaft: Remove any debris, algae, or mineral deposits from the impeller and the ceramic shaft. Use a soft brush and clean water.
Прегледајте компоненте: Check O-rings and seals for wear or damage. Replace if necessary.
Поново саставите: Carefully reassemble all components, ensuring they are correctly seated and sealed.

Exploded diagram of the SunSun CTM-2800 pump showing all components with numbered labels and a corresponding parts list. — Слика 6: Експлодирао view of the pump components. This diagram illustrates the individual parts of the pump, including the screw ring, O-rings, outlet, adapter, pump housing, rotor, ceramic bearings, and motor housing, facilitating disassembly and reassembly for maintenance.

Цлосе-уп view of the pump's internal ceramic shaft, highlighting features like overheat protection, clog protection, rust resistance, and wear resistance. — Figure 7: Copper-free ceramic shaft. A detailed view of the pump's internal ceramic shaft, emphasizing its features such as overheat protection, clog protection, rust resistance, and wear resistance, which contribute to its durability and low maintenance.

КСНУМКС. Решавање проблема

Ако наиђете на проблеме са пумпом, погледајте следеће уобичајене проблеме и решења:

Пумпа се не покреће:
- Проверите да ли је пумпа правилно прикључена на исправну утичницу.
- Verify that the RCD has not tripped.
- Проверите да ли кабл за напајање има видљивих оштећења.
Смањен проток воде:
- The impeller or inlet may be clogged with debris. Disconnect power and clean the pump as described in Section 7.
- Check hoses for kinks or blockages.
- Ensure the water level is sufficient if the pump is submerged.
Необична бука:
- Disconnect power and check the impeller for foreign objects or damage.
- Ensure the pump is stable and not vibrating against any surfaces.

Ако проблеми и даље постоје након покушаја ових решења, обратите се корисничкој подршци.

9. Гаранција и подршка

Your SunSun CTM-2800 SuperECO Pond Pump comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.

For technical assistance, spare parts, or warranty claims, please contact SunSun customer support through their official website or the retailer from whom you purchased the product. When contacting support, please have your model number (CTM-2800) and purchase information readily available.
