Qubo X-247 4G Mobile Phone User Manual

1. Увод

The Qubo X-247 4G is a user-friendly mobile phone designed for ease of use, particularly suitable for seniors. It features a dual-screen design, large buttons, and essential functions like an SOS button and quick dial keys. This manual provides detailed instructions for setting up, operating, and maintaining your device.

2. Садржај пакета

Молимо вас да означите поље за следеће ставке:

• Qubo X-247 4G Mobile Phone
• Упутство за употребу
• Кабл за пуњење (USB-C)

3. Изглед уређаја

Familiarize yourself with the key components and buttons of your Qubo X-247 4G phone.

Слика 3.1: Предња страна View of Qubo X-247 4G. This image displays the phone in its open position, revealing the internal display and the large, clearly labeled keypad. Key features include the call and end call buttons, navigation keys, and dedicated M1, M2, M3 quick dial buttons.

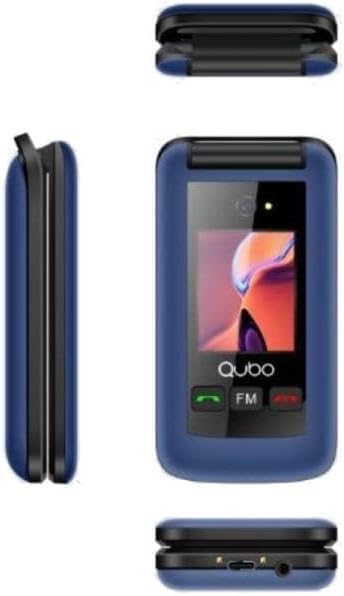

Image 3.2: Multi-angle View of Qubo X-247 4G. This composite image shows the phone from various angles. The top-left shows the phone closed, highlighting the external screen. The middle-left shows the side profile, while the bottom-right provides a view of the phone's base, indicating the USB-C charging port and the 3.5mm audio jack.

Кључне компоненте:

• Internal Display: Main screen for menus, contacts, and messages.
• Спољашњи екран: Shows time, date, and incoming call information when the phone is closed.
• Тастатура: Large, backlit buttons for dialing and navigation.
• M1, M2, M3 Buttons: Dedicated quick dial keys for important contacts.
• СОС дугме: Located on the back, for emergency calls.
• УСБ-Ц порт: За пуњење уређаја.
• 3.5 мм аудио прикључак: За повезивање слушалица.

4. Подешавање

4.1. Инсталирање SIM картице(а) и батерије

1. Пажљиво отворите задњи поклопац телефона.
2. Ако је присутна, извадите батерију.
3. Insert your SIM card(s) into the designated slot(s). The Qubo X-247 4G supports Dual SIM. Ensure the gold contacts face downwards and the card is correctly oriented.
4. Уметните батерију, водећи рачуна да контакти буду правилно поравнати.
5. Вратите задњи поклопац док не кликне чврсто на своје место.

4.2. Пуњење телефона

1. Connect the USB-C charging cable to the port at the bottom of the phone.
2. Укључите други крај кабла у компатибилни USB адаптер за напајање (није укључен) или USB порт рачунара.
3. The phone will indicate that it is charging. A full charge typically takes approximately 3 hours.

5. Упутство за употребу

5.1. Укључивање/искључивање

• За укључивање: Press and hold the red 'End Call' button until the screen lights up.
• За искључивање: Press and hold the red 'End Call' button until the 'Power Off' option appears on the screen, then confirm.

5.2. Упућивање и примање позива

• Да бисте упутили позив: Dial the number using the keypad and press the green 'Call' button.
• Да бисте примили позив: When the phone rings, press the green 'Call' button to answer.
• Да бисте прекинули позив: Притисните црвено дугме „Заврши позив“.

5.3. Using the SOS Button

The dedicated SOS button on the back of the phone is for emergencies. When pressed and held, it will automatically dial pre-set emergency contacts and can send emergency messages.

• Подешавање SOS контаката: Navigate to the 'SOS Settings' in the phone's menu to add up to 5 emergency numbers.
• Активирање СОС-а: Press and hold the SOS button for a few seconds. The phone will initiate calls to the emergency contacts in sequence until one answers.

5.4. Quick Dial Keys (M1, M2)

The M1 and M2 buttons allow for quick dialing of frequently used contacts.

• Setting up Quick Dial: Go to 'Contacts' or 'Settings' and assign a number to M1 and M2.
• Using Quick Dial: Simply press and hold the M1 or M2 button to dial the assigned contact.

6. Карактеристике

• Dual Screen: Enjoy a 2.4-inch internal display for detailed viewing and a 1.77-inch external display for quick information at a glance.
• камера: Capture moments with the integrated 0.3MP digital camera.
• Блуетоотх: Connect wirelessly to compatible headsets or other devices.
• ФМ радио: Listen to your favorite radio stations on the go.
• Лампа: A convenient built-in flashlight for illumination.
• Organizer Tools: Includes a calendar, calculator, and alarm functions for daily utility.

7. Одржавање

To ensure the longevity and optimal performance of your Qubo X-247 4G phone, follow these maintenance guidelines:

• Одржавајте суво: Avoid exposing the phone to moisture or liquids. Although it has some water resistance, it is not fully waterproof.
• Очистите нежно: Use a soft, dry cloth to clean the screen and body. Avoid harsh chemicals.
• Избегавајте екстремне температуре: Не излажите телефон веома високим или веома ниским температурама, јер то може утицати на трајање батерије и унутрашње компоненте.
• Заштитите од капи: Handle the phone with care to prevent physical damage from drops or impacts.

КСНУМКС. Решавање проблема

Ако имате проблема са телефоном, погледајте следеће уобичајене проблеме и решења:

9. Спецификације

10. Гаранција и подршка

Your Qubo X-247 4G mobile phone comes with a трогодишња гаранција against manufacturing defects from the date of purchase. Please retain your proof of purchase for warranty claims.

For technical support or warranty inquiries, please refer to the contact information provided with your purchase documentation or visit the official Qubo webсајту.
