Eureka Forbes Cyclo Vac GFCDFCNSVVE230 Vacuum Cleaner User Manual

1. Увод

Thank you for choosing the Eureka Forbes Cyclo Vac GFCDFCNSVVE230 Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.

2. Безбедносна упутства

To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions when using an electrical appliance.

2.1 Општа безбедност

• Прочитајте сва упутства пре употребе уређаја.
• Не остављајте уређај без надзора када је укључен. Искључите утикач из утичнице када га не користите и пре сервисирања.
• Не користите на отвореном или на мокрим површинама.
• Не дозволити да се користи као играчка. Посебна пажња је неопходна када се користи од стране деце или у близини.
• Користите само онако како је описано у овом упутству. Користите само додатке које препоручује произвођач.
• Не узимајте ништа што гори или дими, као што су цигарете, шибице или врући пепео.
• Do not use without dust tank and filters in place.
• Чувајте уређај у затвореном простору на хладном и сувом месту.

2.2 Електрична сигурност

• Немојте руковати утикачем или уређајем мокрим рукама.
• Немојте вући нити носити за кабл, користити кабл као ручку, затварати врата на каблу или вући кабл око оштрих ивица или углова. Не стављајте уређај преко кабла. Држите кабл даље од загрејаних површина.
• Не искључујте утикач повлачењем за кабл. Да бисте искључили утикач, ухватите утикач, а не кабл.
• Ако је кабл за напајање оштећен, мора га заменити произвођач, његов сервисер или слично квалификовано лице како би се избегла опасност.

3. Производ је готовview

The Eureka Forbes Cyclo Vac is a powerful and efficient bagless vacuum cleaner designed for various cleaning tasks.

3.1 Главна јединица и компоненте

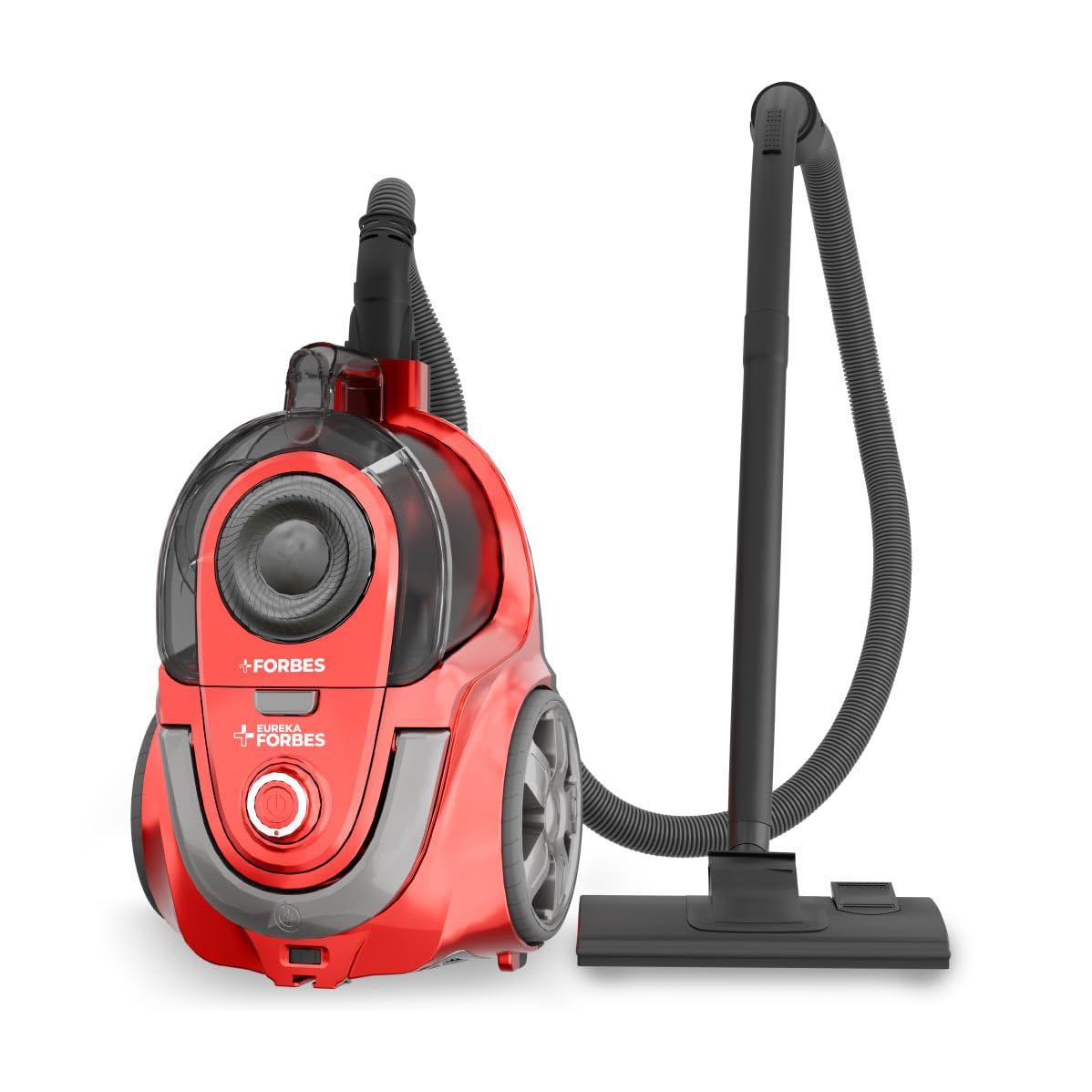

The Eureka Forbes Cyclo Vac main unit with its various cleaning accessories.

All components of the Cyclo Vac, including the main unit, hose, extension tubes, and various nozzles.

Your Cyclo Vac comes with the main vacuum unit, a flexible hose, two extension tubes, and six versatile accessories:

• Четка за под: For general cleaning of various floor types.
• Мрезна пукотина: Ideal for narrow gaps and tight corners.
• Четка за тапацирање: Designed for cleaning fabric surfaces like sofas and curtains.
• Combination Tool cum Round Brush: A versatile tool for delicate surfaces and electronics.
• Продужна цев: For reaching high or distant areas.
• Флексибилна црева: Connects accessories to the main unit for maneuverability.

A visual representation of the six versatile accessories included with your vacuum cleaner.

3.2 Кључне карактеристике

• Циклонска технологија: Enhances airflow, maintains strong suction, and efficiently separates dust from the air.


Illustration of the cyclonic technology at work inside the dust tank, separating dust particles.

• 24 kPa High Suction Power: Delivers deep cleaning performance, effectively lifting stubborn dust and debris.

The vacuum cleaner in action, showcasing its powerful 24 kPa suction on a floor surface.
• 2.5L Bagless Dust Tank: Large capacity for extended cleaning sessions with hygienic one-touch emptying.

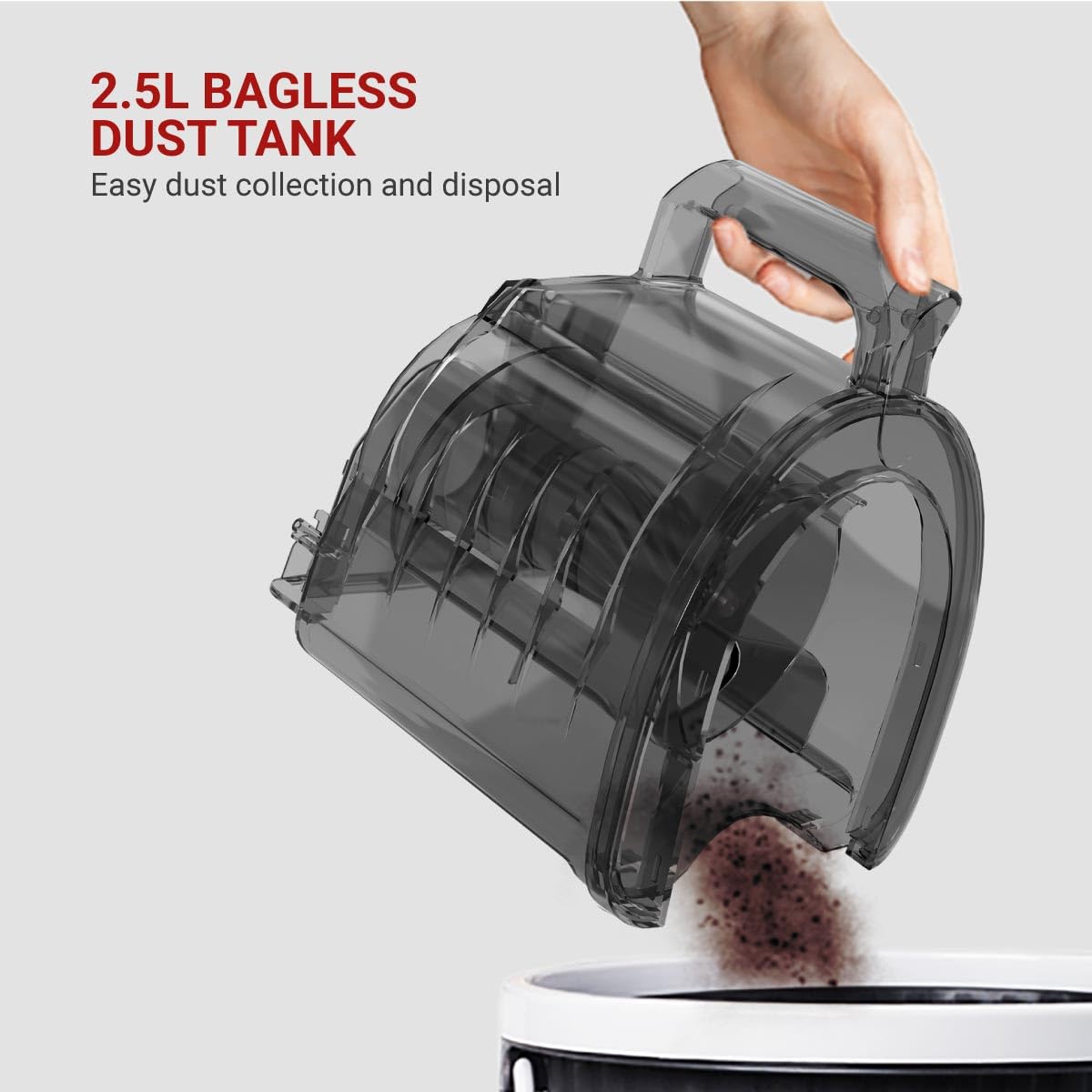

A hand demonstrating the easy, one-touch emptying of the 2.5L bagless dust tank.

• ХЕПА филтрација: Фоур-сtage filtration system captures dust and dirt, protecting the motor and ensuring dust-free air.
• Vario Power Adjustable Suction: Customize suction levels from low to high for different cleaning needs.
• Auto Cord Winder: Retracts the power cord neatly into the unit with a press of a button.
• Заштита од прегревања: Automatic shut-off feature to safeguard the motor from damage.
• Компактан и мобилни: Designed for easy portability with large wheels and a generous ~16-foot cord.

4. Подешавање

Follow these steps to set up your Eureka Forbes Cyclo Vac:

1. Raspakujte: Carefully remove all components from the packaging. Ensure all accessories listed in Section 3.1 are present.
2. Склопите црево: Уметните флексибилно црево у усисни отвор на главној јединици док не кликне чврсто на своје место.
3. Attach Extension Tubes: Connect the two extension tubes together, then attach them to the handle end of the flexible hose.
4. Select and Attach Accessory: Choose the appropriate cleaning accessory (e.g., Floor Brush) for your task and firmly attach it to the end of the extension tubes.
5. Повежите се са напајањем: Extend the power cord and plug it into a suitable 220V electrical outlet.

5. Упутство за употребу

Operating your Cyclo Vac is straightforward:

1. Укључено: Press the ON/OFF button located on the main unit to start the vacuum cleaner.
2. Adjust Suction (Vario Power): Use the Vario Power control knob to adjust the suction strength. Turn it to a lower setting for delicate surfaces like upholstery or curtains, and to a higher setting for deep cleaning carpets or hard floors.
3. Започните чишћење: Move the chosen accessory over the surface to be cleaned. For optimal results, use slow, overlapping strokes.
4. Промена додатне опреме: To change an accessory, turn off the vacuum cleaner, unplug it, and then detach the current accessory by pressing any release buttons and pulling it off. Attach the new accessory firmly.
5. Искључивање: Once cleaning is complete, press the ON/OFF button to turn off the appliance.
6. Retract Cord: Press the auto cord winder button to automatically retract the power cord into the unit.

6. Одржавање

Редовно одржавање обезбеђује оптималне перформансе и продужава век трајања вашег усисивача.

6.1 Пражњење резервоара за прашину

The 2.5L bagless dust tank should be emptied regularly, especially when the dust level reaches the 'MAX' indicator.

1. Уверите се да је усисивач искључен и искључен.
2. Press the dust tank release button and lift the dust tank from the main unit.
3. Position the dust tank over a waste bin.
4. Press the one-touch emptying button to open the bottom flap and release the collected dirt.
5. Close the flap securely and re-insert the dust tank into the main unit until it clicks.

6.2 Чишћење ХЕПА филтера

The HEPA filter should be cleaned periodically to maintain suction power and air quality. Do not wet clean the HEPA filter.

1. Искључите и искључите усисивач.
2. Уклоните резервоар за прашину као што је горе описано.
3. Locate and remove the HEPA filter from the dust tank assembly.
4. Gently tap the filter over a waste bin to dislodge accumulated dust. You may also use a soft brush to remove stubborn debris.
5. Re-insert the clean HEPA filter and re-attach the dust tank.

6.3 Прибор за чишћење

Wipe accessories with a damp cloth as needed. Ensure they are completely dry before re-attaching them to the vacuum cleaner.

КСНУМКС. Решавање проблема

If you encounter issues with your Cyclo Vac, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact Eureka Forbes customer support.

8. Спецификације

Visual representation of the vacuum cleaner's dimensions.

9. Гаранција и подршка

Eureka Forbes is committed to providing excellent customer service.

9.1 Информације о гаранцији

Your Eureka Forbes Cyclo Vac comes with a standard manufacturer's warranty. For details regarding the warranty period and terms, please refer to the warranty card included with your product or visit the official Eureka Forbes webсајту.

Extended warranty plans are also available:

• 1 Year Extended Warranty Plan by Onsitego
• 2 Year Extended Warranty Plan by Onsitego

9.2 Корисничка подршка

For any queries, assistance, or to book a demo, please contact Eureka Forbes customer support:

• Бесплатни позив: 02262277488 (Customer service support available from 8 AM to 8 PM).
• Online Demo: Free online demo for setup & installation available in 6 languages.
• Сервисна мрежа: Widest service network covering over 19,000 Pincodes.

Eureka Forbes' extensive service network and support options.
