1. Увод
The SINOTIMER SVP719-1-40A is a versatile 3-in-1 adjustable voltage surge protector designed to safeguard electrical equipment from over-voltagе, под-волtage, and over-current conditions. It also features an integrated consumption kWh meter for monitoring energy usage. This device provides automatic recovery, ensuring continuous protection and minimizing downtime. Its compact design and DIN rail mount make it suitable for various applications.
2. Безбедносне информације
- Инсталацију мора обавити квалификовано особље у складу са локалним електричним прописима и прописима.
- Ensure the power supply is disconnected before installation, wiring, or maintenance to prevent electric shock.
- Проверите тачан обимtage and current settings for your application to avoid damage to the device or connected equipment.
- Do not operate the device if it appears damaged or malfunctions.
- The device housing is made of flame-retardant PC material; however, proper ventilation should be maintained.
3. Карактеристике производа
- 3-у-1 заштита: Combines over-voltagе, под-волtage, and over-current protection in a single unit.
- Integrated kWh Meter: Приказује волtage, current, and energy consumption (kWh).
- Аутоматски опоравак: Automatically restores power when voltage returns to normal after a fault.
- Подесиви параметри: Оверволtage value, undervoltage value, overcurrent protection, and fault recovery delay time are user-adjustable.
- Издржљива конструкција: Made from flame-retardant and high-quality PC material for impact resistance and long operational life.
- Једноставна инсталација: Equipped with a universal DIN 35mm standard guide rail for quick and secure mounting.
- Clear Status Display: Three digital displays provide clear visibility of circuit status.
Figure 1: SINOTIMER SVP719-1-40A highlighting its core features.

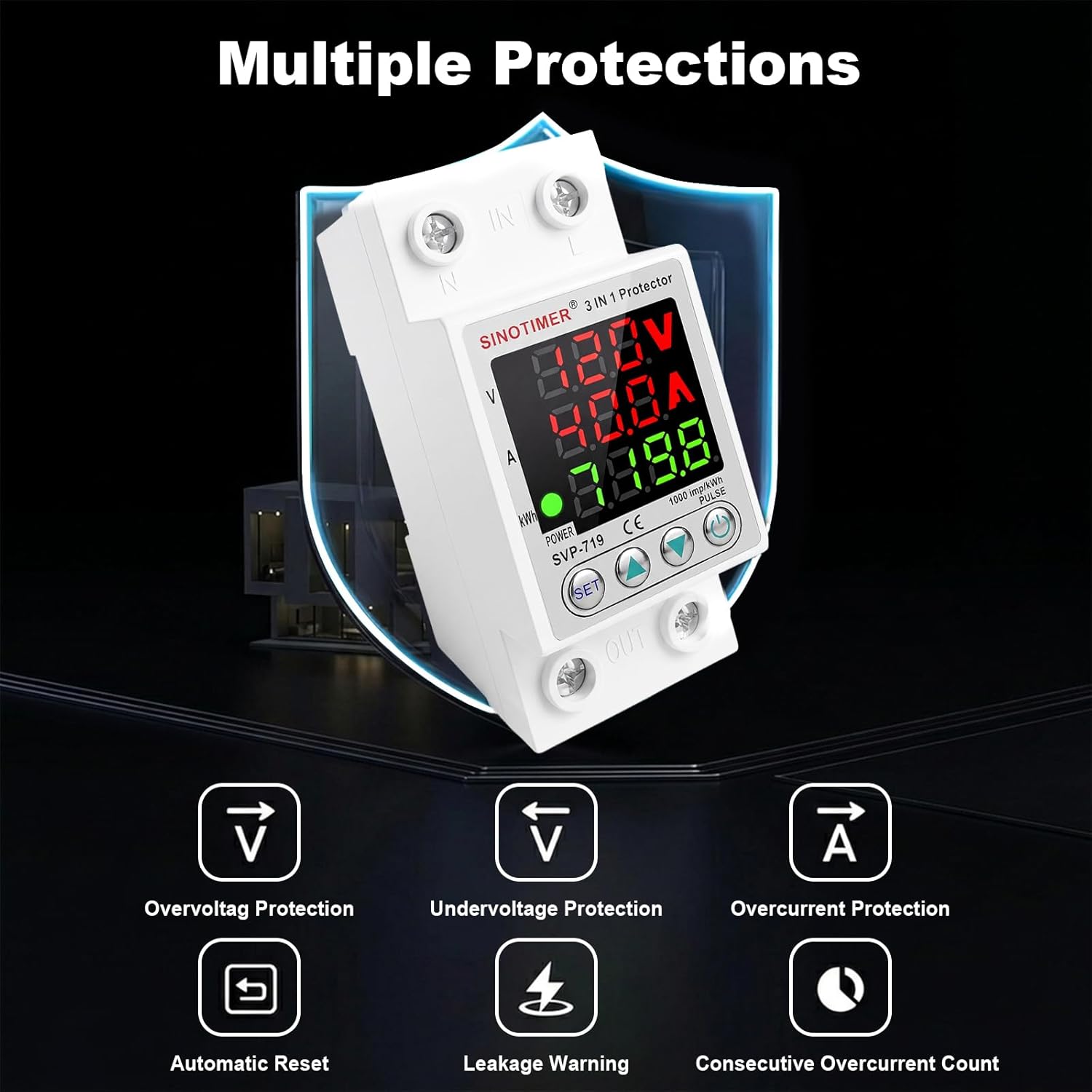

Слика 2: Завршеноview of the multiple protection functions provided by the device.
4. Спецификације
| Параметар | Валуе |
|---|---|
| Модел | SVP719-1-40A |
| Називна фреквенција | 50/60 Хз |
| електрична струја (А) | 1-40А |
| Оверволtagе Заштитни опсег | 130-300В |
| Ундерволtagе Заштитни опсег | 80-210В |
| Reset/Start Delay | 1-600-е |
| Цуррент Ратинг | 40 Amps |
| Цоил Волtage | 110 волти (АЦ) |
| Тип монтаже | Монтажа на ДИН шину |
| Контакт материјал | Сребро |
| Оперативни режим | Аутоматски |
Figure 3: Device dimensions and key electrical parameters.
5. Инсталација
The SVP719-1-40A is designed for easy installation on a standard 35mm DIN rail. Follow these general guidelines:
- Искључивање струје: Always ensure the main power supply is completely disconnected before beginning any installation work.
- Монтажа: Snap the device onto a 35mm DIN rail securely. The rail-type buckle ensures a firm fit.
- Ожичење: Connect the input (IN) and output (OUT) terminals according to the wiring diagram. The terminal posts are made of copper for good conductivity. Applicable wire sizes are 16-25mm² / 6AWG-4AWG. Ensure all connections are tight and secure.
- Верификација: After wiring, double-check all connections for correctness and ensure no loose wires.
Figure 4: Product wiring diagram. De-energize circuit before wiring. Follow diagram exactly. Verify voltage/current settings. Use proper wire size and torque terminals.
Figure 5: Close-up of easy wiring terminals and DIN rail buckle.
6. Операција
6.1 Приказ прекоview
The device features three digital displays for real-time monitoring:
- Волtagе (В): Shows the current line voltage.
- Струја (А): Displays the current load.
- Energy (kWh): Indicates accumulated energy consumption.

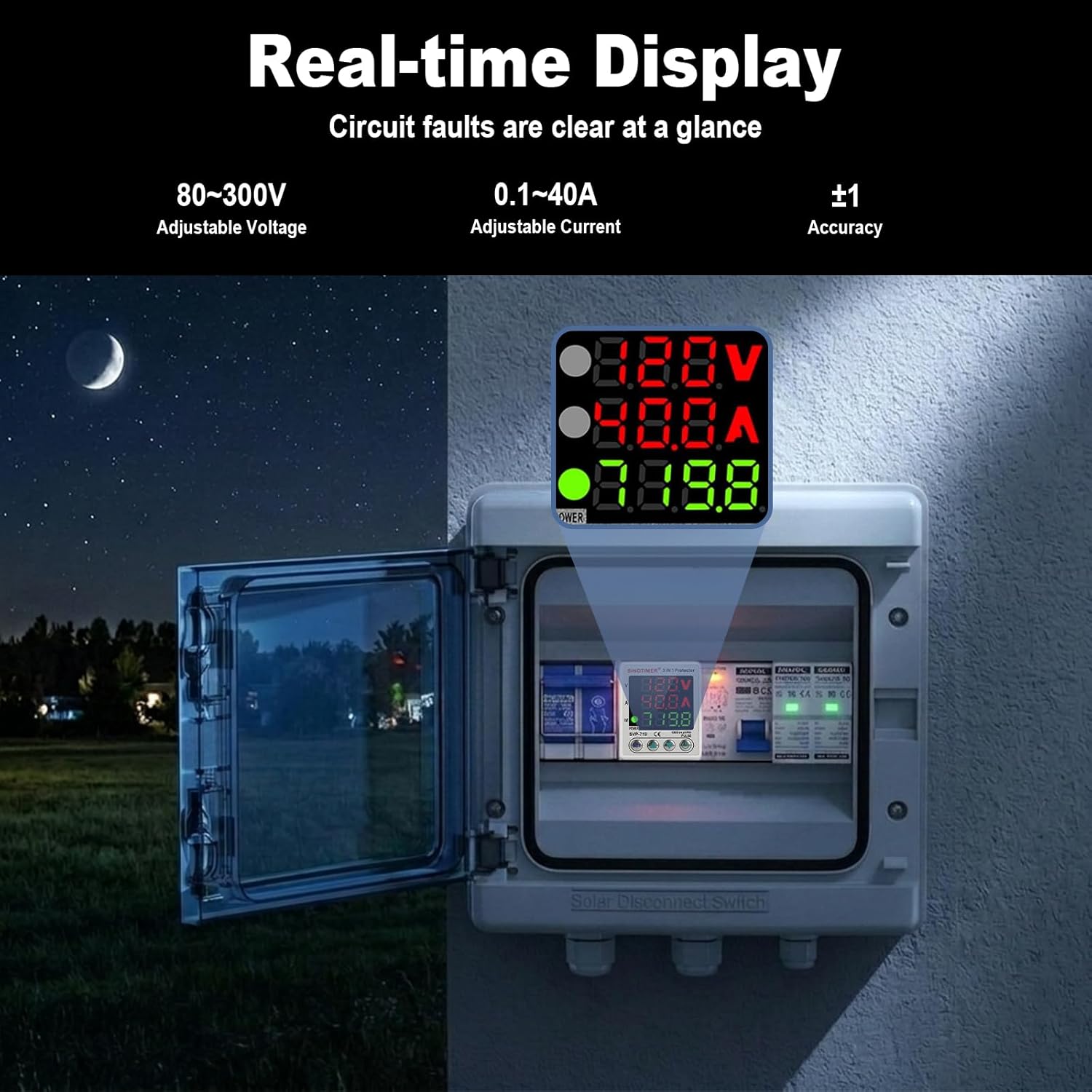

Figure 6: Real-time display of voltage, current, and kWh.
6.2 Подешавање параметара
Use the 'SET' button and arrow keys to adjust protection parameters. Press 'SET' to cycle through parameters. Use the up/down arrow keys to change values. The device will automatically save settings after a few seconds of inactivity.
Video 1: This video demonstrates how to navigate and adjust the various protection parameters on the SINOTIMER SVP719-1-40A device, including power-on delay, protection recovery delay, over-voltagе/ундер-волtage settings, current protection, and reset options.
Figure 7: Button controls for menu navigation and value adjustment.
6.3 Општи рад
Once installed and configured, the device operates automatically. It continuously monitors voltage and current. If a parameter exceeds or falls below the set limits, the protector will instantaneously cut off the power supply to protect connected equipment. When conditions return to normal, the device will automatically re-engage the power supply after the set recovery delay time.
Видео 2: Овај видео пружа општи прегледview of the SINOTIMER Adjustable Voltage Surge Protector Relay, showing its real-time display of voltage and current during operation.
КСНУМКС. Решавање проблема
| Проблем | Могући узрок | Решење |
|---|---|---|
| Уређај се не укључује. | No input power; incorrect wiring. | Check main power supply. Verify wiring connections according to the diagram. |
| Power cuts off frequently. | Волtage/current outside set limits; sensitive protection settings. | Check actual voltage/current. Adjust over/under voltage or overcurrent protection values if necessary, ensuring they are appropriate for your system. |
| Уређај се не ресетује аутоматски. | Fault condition persists; recovery delay set too long. | Уверите се да је стање квара (прекомерни/недовољни напонtage, overcurrent) has cleared. Check the protection recovery delay setting. |
| Нетачна волtage/current readings. | Грешка при калибрацији. | Refer to the operation section for calibration procedures. |
8. Одржавање
The SINOTIMER SVP719-1-40A requires minimal maintenance. Periodically inspect the device and its connections:
- Ensure all wiring connections remain tight and free from corrosion.
- Одржавајте уређај чистим и без прашине и остатака.
- Verify that the digital displays are functioning correctly and showing accurate readings.
- Do not attempt to open or repair the device yourself. Refer to qualified service personnel for any issues beyond basic troubleshooting.
9. Гаранција и подршка
This SINOTIMER product is covered by a 1-годишња гаранција произвођача од дана куповине. Ова гаранција покрива недостатке у материјалу и изради при нормалној употреби.
For warranty claims, technical support, or further assistance, please contact SINOTIMER customer service through your purchase platform or the official SINOTIMER website. Please have your model number (SVP719-1-40A) and proof of purchase ready when contacting support.
