FOSSIBOT F113 Упутство за употребу робусног телефона

1. Увод

The FOSSIBOT F113 is a rugged smartphone designed for demanding environments and extensive use. It features robust construction, advanced camera capabilities, and a long-lasting battery, making it suitable for outdoor adventures, professional operations, and daily tasks where durability and performance are essential.

Key features include 5G connectivity, a large 6.78-inch FHD+ 120Hz display, a powerful 50MP main camera with Super Night Vision, a 20000mAh battery, and an IP68/IP69K rating for water and dust resistance, along with MIL-STD-810H drop protection.

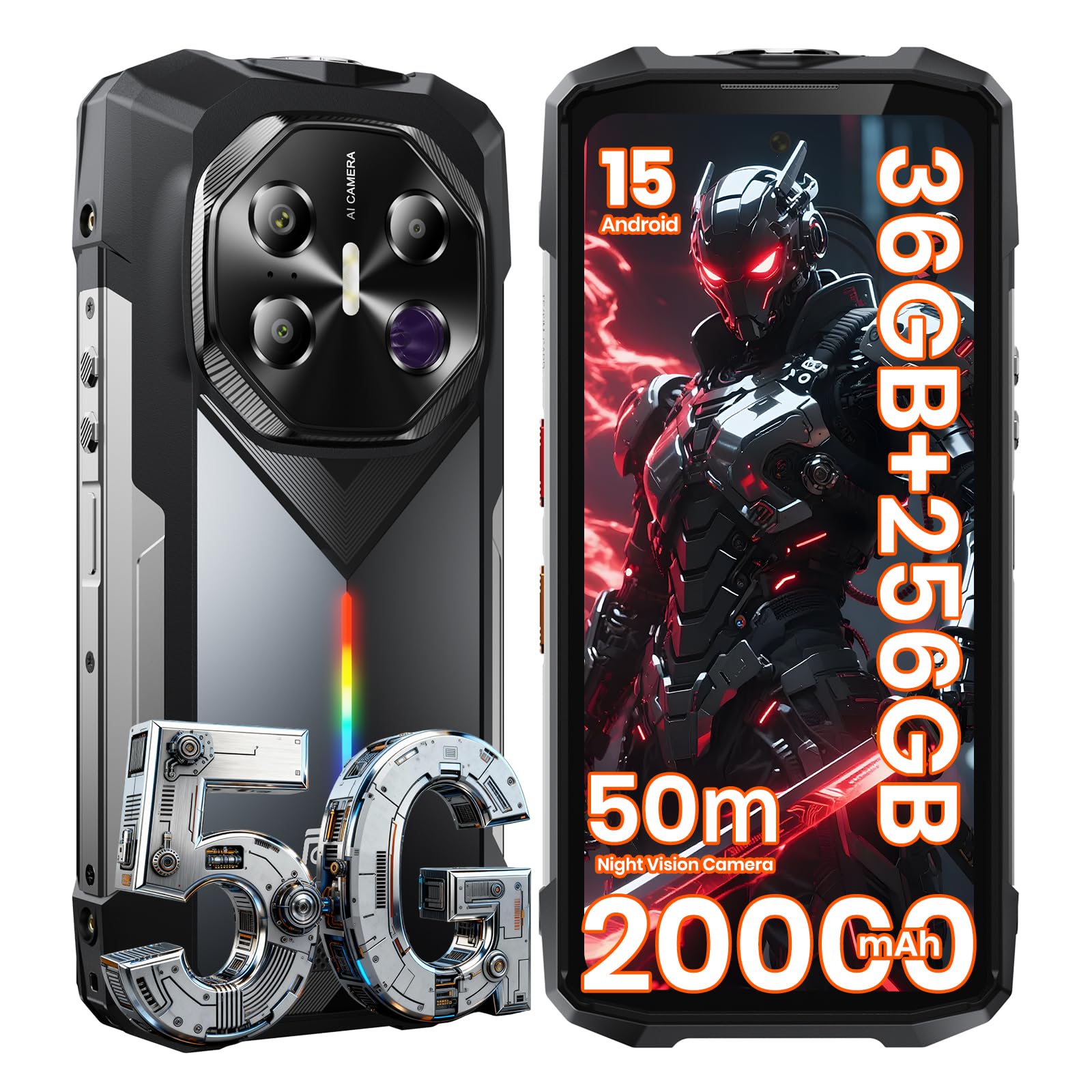

Figure 1.1: FOSSIBOT F113 Rugged Phone overview.

Figure 1.2: The FOSSIBOT F113 is designed for diverse scenarios, including construction, diving, hunting, and hiking.

2. Подешавање

2.1 Садржај пакета

Проверите да ли су све ставке присутне у пакету:

• FOSSIBOT F113 Smartphone
• Hand Strap Holder (optional add-on)
• Упутство за употребу
• Пин СИМ картице
• Шрафцигер
• Сцревс
• Кабл типа Ц
• 33В брзи пуњач

Figure 2.1: Contents of the FOSSIBOT F113 retail package.

2.2 Инсталација СИМ картице

Да бисте инсталирали СИМ картицу:

1. Пронађите лежиште за СИМ картицу са стране уређаја.
2. Користите приложени алат за избацивање СИМ картице да бисте отворили лежиште.
3. Place your Nano-SIM card(s) into the tray, ensuring correct orientation.
4. Пажљиво гурните лежиште назад у уређај док не кликне на своје место.

2.3 Прво укључивање и пуњење

Press and hold the power button until the FOSSIBOT logo appears to power on the device. For first-time use, it is recommended to fully charge the device.

• Connect the USB Type-C cable to the phone and the 33W fast charger.
• Укључите пуњач у утичницу.
• The phone supports 33W fast charging and 18W reverse fast charging, allowing it to act as a power bank for other devices.

Figure 2.2: The F113 features a 20000mAh battery with fast and reverse charging.

Figure 2.3: Extended battery life and reverse charging functionality.

3. Упутство за употребу

3.1 Дисплеј

The F113 features a 6.78-inch FHD+ display with a 120Hz refresh rate for smooth visuals and responsive interaction. It is protected by Corning Gorilla Glass.

• Double Tap to Wake: Tap the screen twice to wake the device.
• Режим рукавице: Enable Glove Mode in settings for improved touch sensitivity when wearing gloves.

Figure 3.1: High-refresh-rate display with enhanced durability.

Figure 3.2: Display features for enhanced user experience.

Систем камера 3.2

The F113 is equipped with a versatile camera system:

• Главна камера од 50 МП: За фотографије високе резолуције.
• 64MP IR Night Vision Camera: Captures clear images in near-total darkness up to 50 meters.
• 5MP макро камера: За детаљне снимке изблиза.
• Предња камера од 32 МП: За селфије и видео позиве.

Figure 3.3: Multi-camera system for various photography needs.

Figure 3.4: Camera system capabilities for diverse shooting conditions.

3.2.1 Night Vision Camera Usage

The 64MP IR Night Vision camera allows you to see in complete darkness. Activate it through the camera app. It features a 3W high-power IR illuminator for a 50m super IR reach.

Figure 3.5: Night Vision camera in action, showing extended range.

Video 3.1: This video demonstrates the FOSSIBOT F113's 64MP IR Night Vision camera, showcasing its ability to capture clear images up to 50 meters in dark environments, its ruggedness, camera features, battery life, and customizable RGB lighting.

3.2.2 AI Camera Features

Utilize AI features within the camera app for enhanced photo editing:

• AI Removal: One-click removal of unwanted objects or people.
• AI Background Swap: Instantly change photo backgrounds.
• AI Face Swap: Generate avatars from your portrait.
• AI Digital Person: Create custom virtual avatars.

Figure 3.6: AI-powered photo editing tools.

3.3 Performance and Operating System

The F113 is powered by the Dimensity 7050 5G processor, ensuring smooth performance for demanding applications and gaming. It runs on Android 15, offering enhanced privacy, smoother operation, and better personalization.

Figure 3.7: Dimensity 7050 5G Processor for high performance.

Figure 3.8: Detailed specifications of the MediaTek Dimensity 7050 processor.

Figure 3.9: Android 15 operating system interface.

3.4 Повезивање и навигација

The F113 supports 5G cellular technology for fast data speeds. It also includes comprehensive navigation systems and other wireless technologies.

• 5G мрежа: Supports GSM, GPRS, EDGE, WCDMA, LTE, and 5G bands for global connectivity.
• Бежичне технологије: Bluetooth, NFC, Wi-Fi.
• Навигација: Built-in GPS, Galileo, BeiDou, and Glonass for accurate positioning.

Figure 3.10: 5G network support and global compatibility.

3.5 Audio and RGB Lighting

Experience clear audio and customizable visual alerts.

• 110dB Loudspeaker: A powerful K-class amplifier delivers rich, clear audio even in noisy environments.
• Customizable RGB Light: The side RGB lighting provides notification alerts (calls, messages, low battery, charging) and can pulse to music with various rhythm effects.

Figure 3.11: Smart Speaker K-Box Dual-Channel Edition for enhanced audio.

Figure 3.12: Dynamic RGB lighting for notifications and atmosphere.

Figure 3.13: RGB light customization options.

3.6 Додатне функције

• 50m High-Power Flashlight: An ultra-bright flashlight for illumination in dark conditions.
• Биометријска безбедност: Face Recognition and Fingerprint Unlock for secure access.
• барометар: Built-in barometer to measure atmospheric pressure and altitude.
• НФЦ: За бесконтактна плаћања и пренос података.

Слика 3.14: Завршеноview of additional practical features.

4. Одржавање

4.1 Издржљивост и заштита

The FOSSIBOT F113 is built to withstand harsh conditions:

• IP68/IP69K Waterproof: Resistant to dust, sand, and prolonged water immersion.
• MIL-STD-810H Drop Protection: Designed to endure drops and impacts.
• Корнинг Горила Гласс: Provides enhanced scratch and drop protection for the display.

Figure 4.1: Durability features of the F113.

КСНУМКС. Решавање проблема

If you encounter issues with your FOSSIBOT F113, consider the following general troubleshooting steps:

• Поново покрените уређај: Једноставно поновно покретање може решити многе мање софтверске грешке.
• Проверите ажурирања софтвера: Ensure your device is running the latest Android version. Go to Settings > System > System update.
• Обриши кеш апликације: If a specific app is causing issues, try clearing its cache in Settings > Apps > [App Name] > Storage > Clear cache.
• Фацтори Ресет: As a last resort, you may perform a factory reset. Упозорење: Овим ћете обрисати све податке на вашем уређају. Направите резервну копију важних информација пре него што наставите. Идите на Подешавања > Систем > Опције ресетовања > Обриши све податке (ресетовање на фабричка подешавања).
• Контактирајте подршку: If problems persist, refer to the support section for further assistance.

6. Спецификације

7. Гаранција и подршка

7.1 Информације о гаранцији

The FOSSIBOT F113 comes with a 2 година гаранцијеМолимо вас да сачувате доказ о куповини за потребе гаранције.

7.2 Корисничка подршка

For technical assistance, troubleshooting, or warranty inquiries, please contact FOSSIBOT customer support through their official website or the retailer where the product was purchased. Ensure you have your product model number (F113) and proof of purchase ready.
