Увод
Thank you for choosing the Yemao M52 Emergency EDC Flashlight. This compact and powerful flashlight is designed for everyday carry and various outdoor and home uses. Please read this manual carefully before using the product to ensure proper operation and maintenance.
Кључне карактеристике:
- 1500 Lumens maximum brightness
- 6 lighting modes (Low, Medium, High, Super High, Strobe, Red-Blue SOS)
- Пуњива батерија са USB-C портом и капацитетом 1200mAh
- Магнетна основа за употребу без руку
- Integrated clip for versatile attachment
- Издржљива конструкција од легуре алуминијума
- ИПКС4 водоотпорна оцена
Садржај пакета
Уверите се да су све ставке присутне у пакету:
- Yemao M52 EDC Flashlight (with rechargeable battery included)
- Кабл за пуњење типа Ц
- Belt Clip (pre-installed or separate)
Сетуп
1. Инсталација батерије
The Yemao M52 flashlight comes with a rechargeable battery pre-installed. If you need to access or replace the battery:
- Одврните задњи поклопац лампе.
- Insert the battery with the positive (+) end facing towards the flashlight head (LED).
- Чврсто зашрафите задњи поклопац.
Image: Step-by-step guide for battery installation. Unscrew the tail cap, insert the battery with the positive end towards the head, and re-secure the tail cap.
2. Пуњење лампе
Before first use, fully charge the flashlight. The Yemao M52 features a USB-C charging port.
- Пронађите USB-C порт за пуњење на кућишту батеријске лампе.
- Connect the provided Type-C charging cable to the flashlight and a compatible USB power source (e.g., computer, power bank, wall adapter).
- The charging indicator light will show red when charging and turn green when fully charged.
Image: The Yemao M52 flashlight being charged via USB-C. The image highlights the charging port and the battery indicator, which glows red during charging and green when fully charged.
Image: Illustration of different power sources compatible with the USB-C rechargeable Yemao M52 flashlight, such as computers, car adapters, wall plugs, and power banks.
Упутство за употребу
Укључивање/искључивање и избор режима
The flashlight features a single button for all operations.
- Један клик: Turns the flashlight ON. Subsequent single clicks cycle through Low, Medium, and High brightness modes.
- Дупли клик: Activates the Super High (Ultra Bright) mode from any state (ON or OFF).
- Long Press (from ON): Activates the Strobe mode.
- Long Press (from Strobe): Cycles to the Red-Blue SOS mode.
- Да искључите: Long press the button for approximately 1 second in any mode (except when cycling through normal brightness). Alternatively, if in Low, Medium, or High mode, wait a few seconds after the last click, then single click to turn off.

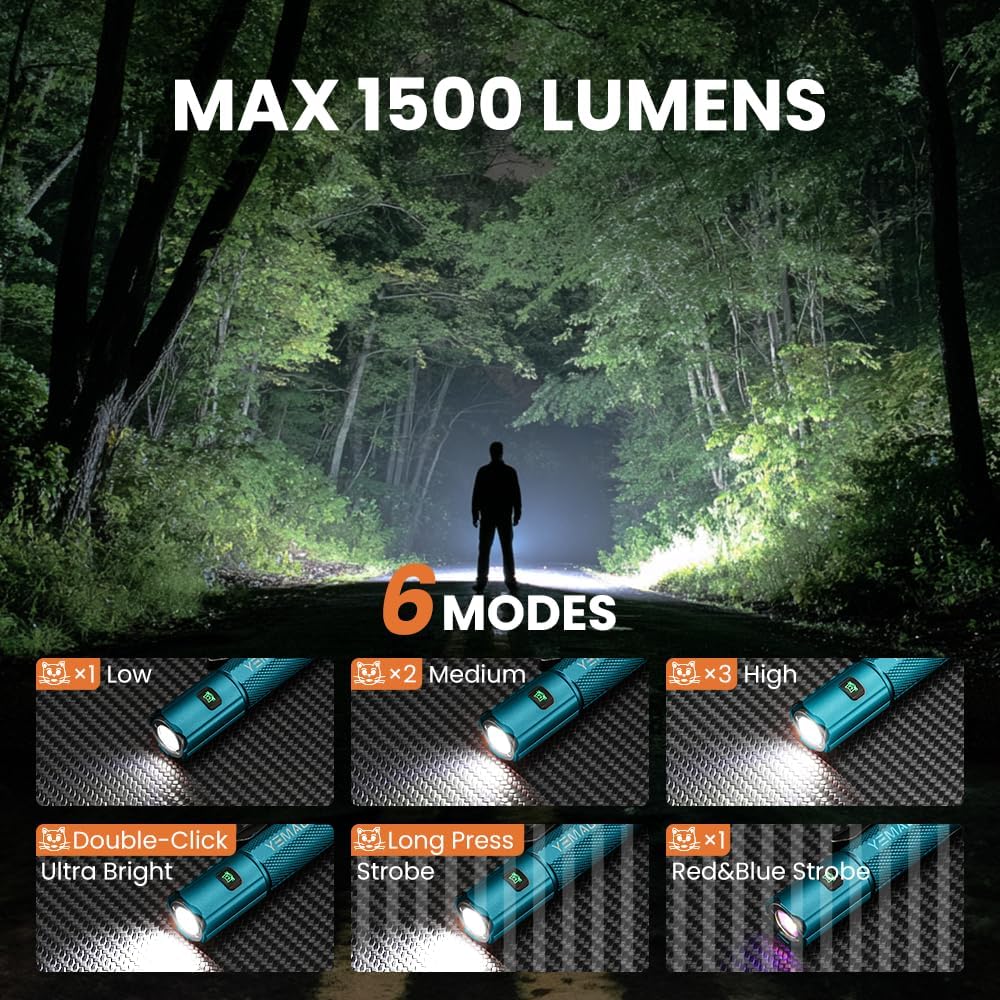

Image: Visual representation of the Yemao M52 flashlight's six modes: Low, Medium, High, Ultra Bright (double click), Strobe (long press), and Red & Blue Strobe. Each mode shows the corresponding light intensity.
Image: Explains the easy operation of the flashlight: single click to cycle through normal brightness (Low, Medium, High), double click for Ultra Bright (Turbo), and long press for Strobe. A single click after a few seconds in normal modes will turn it off.
Using the Magnetic Base and Clip
The Yemao M52 is equipped with a magnetic tail cap and a versatile clip for hands-free operation.
- Магнетна база: Attach the flashlight to any ferrous metal surface for stationary lighting, ideal for car maintenance or working in dark spaces.
- клип: Use the clip to attach the flashlight to your hat brim, pocket, belt, or backpack strap for convenient, hands-free illumination.
Image: The Yemao M52 flashlight demonstrating its strong magnetic base by attaching to a car's hood, providing hands-free illumination for engine maintenance.
Image: A user demonstrating the hands-free cap clip design of the Yemao M52 flashlight, worn on a baseball cap to illuminate a work area.
Image: The Yemao M52 flashlight's compact size is illustrated by showing it fitting into a pocket, a purse, and clipped onto a hat, emphasizing its portability for everyday carry.
Image: Demonstrates the versatility of the Yemao M52 flashlight's dual-way clip, showing it attached to a pocket, a backpack, and a hat for various hands-free uses.
Одржавање
- Чишћење: Обришите кућиште батеријске лампе меком крпомamp тканина. Немојте користити абразивна средства за чишћење или раствараче.
- Одржавање батерије: Recharge the battery regularly, especially if the flashlight will not be used for an extended period, to maintain battery health.
- Отпорност на воду: The flashlight is IPX4 waterproof, meaning it is resistant to splashing water from any direction. Do not submerge the flashlight in water. Ensure the USB-C port cover is properly sealed when not charging to maintain water resistance.
Image: The Yemao M52 flashlight operating in rainy conditions, highlighting its IPX4 waterproof capability, suitable for use in light rain.
Решавање проблема
| Проблем | Могући узрок | Решење |
|---|---|---|
| Лампа се не укључује. | Слаба или испражњена батерија. Battery incorrectly installed. Опуштена репна капа. | Напуните батерију до краја. Проверите поларитет батерије и поново је поставите исправно. Чврсто затегните поклопац задњег дела. |
| Светло је слабо или трепери. | Ниска батерија. Лош контакт између батерије и терминала. | Напуните батерију. Clean battery contacts and ensure secure installation. |
| Батеријска лампа се не пуни. | Неисправан кабл или адаптер за пуњење. Блокада порта за пуњење. | Пробајте други USB-C кабл и адаптер за напајање. Проверите да ли на порту за пуњење има прљавштине и очистите га ако је потребно. |
| Magnetic base is not strong. | Површина није од црног метала. Surface is too thin or uneven. | Ensure attachment to a suitable metal surface. Find a thicker, flat metal surface for better adhesion. |
Спецификације
| Феатуре | Детаљ |
|---|---|
| Број модела | М52 |
| Осветљеност | До КСНУМКС Лумена |
| Светлосни режими | Low, Medium, High, Super High (Double Click), Strobe (Long Press), Red-Blue SOS (Long Press from Strobe) |
| Извор напајања | Пуњива литијум-јонска батерија (1200 mAh) |
| Порт за пуњење | УСБ-Ц |
| Рунтиме | Up to 5 hours (on low mode) |
| Материјал | Алуминијумска легура |
| Отпорност на воду | IPX4 (Resistant to splashing water) |
| Димензије | Approximately 3.4" (L) x 0.7" (D) |
| Тежина | Approximately 1.1 oz (31g) without battery |
Image: The Yemao M52 flashlight, illustrating its small and lightweight design with dimensions of 3.4 inches in length and 0.7 inches in diameter, weighing 1.02 oz without the battery.
Image: Technical specifications table for the M52 flashlight, showing brightness levels (100lm, 450lm, 1050lm, 1500lm), corresponding runtimes (300min, 180min, 135min, 90min), and beam distances (20m, 45m, 70m, 80m) for Low, Medium, High, and Ultra modes, respectively. Also notes 1.5m impact resistance and IPX4 water resistance.
Гаранција и подршка
Yemao offers a 1-year replacement policy for this product. If you encounter any issues such as the flashlight being inoperative, missing accessories, or damaged packaging, please contact Yemao customer service through Amazon. We are committed to providing high-quality products and 7*24 hours customer service.
За додатну помоћ, посетите Yemao Lighting Store on Amazon.
Безбедносне информације
- Не сијајте батеријску лампу директно у очи.
- Чувати ван домашаја деце.
- Do not disassemble the flashlight head or modify the internal components.
- Батерије одложите у складу са локалним прописима.
