Radioddity FS-T8 FRS Two-Way Radio Instruction Manual

Увод

This manual provides essential information for the safe and effective operation of your Radioddity FS-T8 FRS Two-Way Radio. Please read this manual thoroughly before using the device and retain it for future reference. The Radioddity FS-T8 is a Family Radio Service (FRS) device designed for clear, long-range communication, suitable for various outdoor activities and family use.

Садржај пакета

Upon unpacking, please ensure all items listed below are present and in good condition. If any items are missing or damaged, please contact Radioddity customer support.

• 4 x Radioddity FS-T8 Two-Way Radios
• 4 x Rechargeable Batteries (2000mAh)
• 4 к УСБ-Ц кабла за пуњење
• 4 к копче за појас
• 4 к Ланиардс
• 4 x Compasses
• 4 x Badges
• Sticker Sheets
• Упутство за употребу

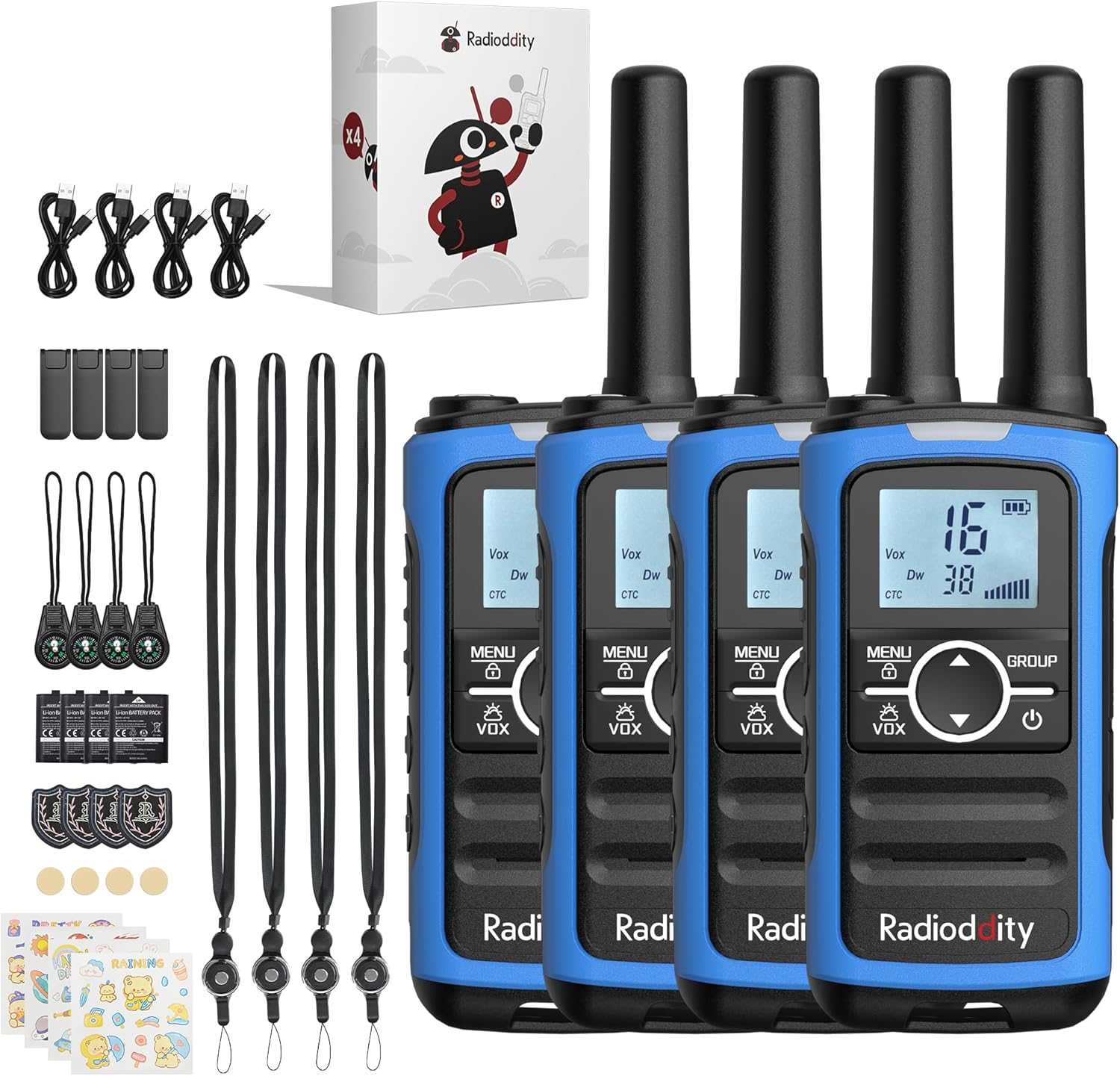

Image: A complete set of Radioddity FS-T8 walkie talkies and their accessories, laid out on a surface.

Производ је завршенview

The Radioddity FS-T8 features a compact design with an easy-to-read backlit digital display. It includes essential functions for reliable communication and safety.

Image: A close-up of the Radioddity FS-T8 walkie talkie, highlighting its digital display and main control buttons.

Сетуп

Инсталација и пуњење батерије

The FS-T8 radios come with 2000mAh rechargeable batteries. They are also compatible with 3xAA batteries (not included) for backup power.

1. To install the rechargeable battery, remove the battery compartment cover on the back of the radio.
2. Insert the 2000mAh rechargeable battery pack, ensuring correct polarity.
3. Вратите поклопац одељка за батерије.
4. To charge, connect the USB-C charging cable to the radio's USB-C port and a compatible 5V USB power adapter (not included). A full charge takes approximately 2 hours and provides up to 48 hours of continuous talk time.
5. For AA battery use, open the compartment and insert 3xAA batteries, observing polarity.

Image: An illustration showing the USB-C charging port on the Radioddity FS-T8 and the option for both rechargeable and AA batteries.

Причвршћивање додатне опреме

Each radio includes a belt clip and a lanyard for convenient carrying. The lanyard can be attached to either the top or bottom loop on the radio.

• Копча на каишу: Увуците копчу за каиш у отвор на задњој страни радија док не кликне на своје место.
• Ремен: Thread the lanyard loop through the desired attachment point (top or bottom) on the radio and secure it.
• компас: The included compass can be attached to the lanyard. Avoid attaching the compass directly to the radio's magnetic areas, as this may affect its accuracy.

Упутство за употребу

Укључивање/искључивање

To power on or off the radio, press and hold the Повер button (usually marked with a power symbol) until the display lights up or turns off.

Избор канала

The FS-T8 features 22 FRS channels. To select a channel:

1. Притисните тастер МЕНУ дугме једном. Број канала ће трептати.
2. Користите Up or Доле дугмади са стрелицама да бисте изабрали жељени канал.
3. Притисните тастер МЕНУ button again to confirm your selection, or wait a few seconds for it to auto-confirm.

Group Call Function

The One-Key Group Call feature allows instant communication with all other FS-T8 radios within range, regardless of their current channel setting. This is ideal for ensuring everyone hears important messages.

• To initiate a group call, press and hold the ГРОУП дугме.
• Говорите јасно у микрофон.
• Отпустите ГРОУП дугме за слушање.

Image: A visual representation of the group call feature, demonstrating its ease of use in an outdoor family setting.

ВОКС (пренос којим се управља гласом)

The VOX function allows for hands-free communication. When activated, the radio will transmit automatically when it detects your voice.

• To activate/deactivate VOX, press the МЕНУ button multiple times until the VOX icon flashes.
• Користите Up or Доле arrow buttons to select a VOX sensitivity level (1-3, with 3 being most sensitive) or 'OFF'.
• Притисните МЕНУ потврдити.

Закључавање тастатуре

To prevent accidental changes to settings, you can lock the keypad.

• Да закључате тастатуру, притисните и држите МЕНУ дугме док се на екрану не појави икона катанца.
• Да бисте откључали, притисните и држите МЕНУ поново притисните дугме док икона катанца не нестане.

НОАА Веатхер Цханнелс

Stay informed about hazardous weather conditions with the integrated NOAA weather channels.

• To access NOAA weather channels, press the МЕНУ button until the NOAA icon appears.
• Користите Up or Доле arrow buttons to scan through the 11 available NOAA channels. The radio will automatically select the strongest signal.
• Притисните МЕНУ to exit NOAA mode.

Image: The Radioddity FS-T8 showing its NOAA weather channel feature, providing critical weather alerts.

Flashlight and SOS Alert

The FS-T8 includes a built-in flashlight and an SOS alert function for emergencies.

• To turn on/off the flashlight, press the dedicated Лампица button on the side of the radio.
• To activate the SOS alert, press and hold the СОС button (often combined with the flashlight button or a separate dedicated button). The flashlight will flash in an SOS pattern, and an audible alert may sound.

Ранге Перформанце

The effective communication range varies based on terrain and obstructions:

• Up to 3 miles in open areas with minimal obstructions.
• Approximately 1 mile in semi-obstructed zones (e.g., light foliage, scattered buildings).
• Up to 547 yards in heavily obstructed urban environments.

Image: A graphic illustrating the varying communication ranges of the FS-T8 in different types of terrain.

Одржавање

Чишћење

To maintain your radio's performance and appearance:

• Обришите радио меком, дamp тканина.
• Не користите јаке хемикалије или абразивна средства за чишћење.
• Уверите се да су сви портови суви пре пуњења.

Баттери Царе

• Пре прве употребе потпуно напуните батерије.
• Avoid overcharging or completely draining the rechargeable batteries.
• If using AA batteries, remove them if the radio will not be used for an extended period to prevent leakage.

Решавање проблема

Спецификације

Гаранција

The Radioddity FS-T8 FRS Two-Way Radio comes with a 19-month warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, please visit the official Radioddity webсајту или контактирајте корисничку подршку.

Подршка

For further assistance, technical support, or to inquire about replacement parts, please contact Radioddity customer service through the following channels:

• Онлине: Visit the official Radioddity webсајт за често постављана питања, чланке подршке и контакт форме.
• Емаил: Погледајте паковање производа или званична упутства webсајт за адресу е-поште за корисничку подршку.

Please have your model number (FS-T8) and purchase information ready when contacting support.
