MCombo PR646M1 56-inch Zero Wall Power Recliner Loveseat

Увод

Thank you for choosing the MCombo PR646M1 Zero Wall Power Recliner Loveseat. This manual provides essential information for the safe assembly, operation, and maintenance of your new loveseat. Please read it thoroughly before use and retain it for future reference.

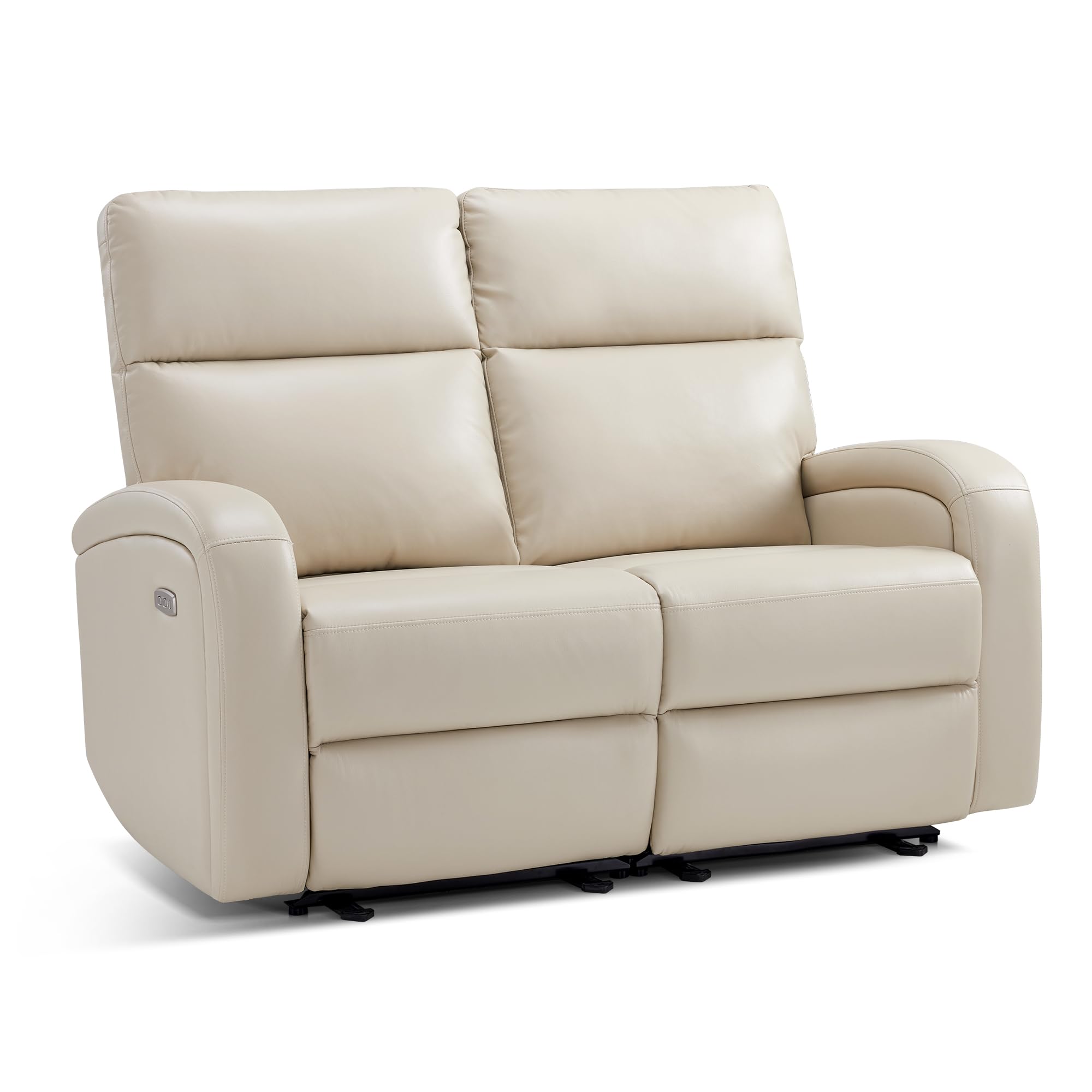

Image: The MCombo PR646M1 56-inch Zero Wall Power Recliner Loveseat in beige.

Безбедносне информације

Молимо вас да се придржавате следећих мера безбедности како бисте спречили повреде или оштећење производа:

• Држите децу и кућне љубимце даље од механизма за нагињање.
• Ensure no obstructions are present around the loveseat when reclining.
• Не стојте на ослонцу за ноге или наслонима за руке.
• Avoid placing heavy objects on the loveseat when it is reclined.
• Искључите напајање пре чишћења или обављања одржавања.
• Maximum weight capacity: 700 pounds (350 pounds per seat).

Листа делова

Before assembly, verify that all parts are present and undamaged. The loveseat is delivered in 3 boxes.

• Лева база
• Десна база
• Леви наслон за руке
• Десни наслон за руке
• Леви наслон
• Десни наслон
• Повер Адаптер
• Упутство за употребу
• Assembly Tools (included)

Image: Dimensions of the MCombo PR646M1 Loveseat, showing overall width, depth, and height, as well as seat and backrest measurements.

Упутство за монтажу

Assembly is tool-free and can be completed by one person, though two people may find it easier. Follow these steps:

1. Prepare the Bases: Place the left and right bases on a flat, stable surface. Ensure the metal brackets on each armrest are correctly aligned with both corresponding brackets on the base. It is crucial to engage both brackets to ensure stability and prevent the armrest from detaching.
2. Причврстите наслоне за руке: Carefully slide the left and right armrests onto their respective bases, ensuring they click securely into place.
3. Инсталирајте наслоне: Slide the left and right backrests onto the metal posts at the rear of the bases. Pull up on the backrests to confirm they are locked in place.
4. Повежите жице: Locate the wiring for the power recline and USB/Type-C ports. Connect all wires tightly. Ensure no wires are positioned where they could be pinched or damaged by the frame during operation.
5. Прикључак за напајање: Connect the power adapter to the loveseat's power input and then plug it into a wall outlet. Turn on the power switch, usually located near the power input.

Упутство за употребу

Your MCombo loveseat features dual power recline and convenient charging ports.

Функција нагињања

• Each seat has an independent control panel located on the side of the armrest.
• Press and hold the recline button to extend the footrest and recline the backrest.
• Release the button at your desired position. The loveseat offers infinite reclining positions up to 140 degrees.
• To return to the upright position, press and hold the opposite button until the loveseat is fully closed.

Image: Close-up of the control panel on the MCombo PR646M1 Loveseat, featuring buttons for recline and integrated USB and Type-C charging ports.

USB и Type-C портови за пуњење

• Each control panel includes dual USB and Type-C charging ports.
• Simply plug your device's charging cable into the appropriate port to charge.

Zero-Wall Feature

This loveseat is designed to be placed directly against a wall. As you recline, the seats glide forward, ensuring the backrest never touches the wall, maximizing space in smaller rooms or RVs.

Image: A visual comparison highlighting the space-saving "Zero Wall" feature of the MCombo recliner, showing it can be placed directly against a wall unlike traditional recliners.

Нега и одржавање

Правилна нега ће продужити век трајања и изглед ваше двоседе.

• Чишћење: Очистите место са огласомamp cloth. Avoid harsh chemicals or abrasive cleaners, as they may damage the faux leather upholstery.
• Просипање: Просуту течност одмах обришите чистом, сувом крпом. Не трљајте.
• Општа нега: Regularly dust the surface. Keep the loveseat away from direct sunlight and heat sources to prevent fading and material degradation.
• механизам: Periodically check all connections and moving parts to ensure they are secure. Do not lubricate the reclining mechanism unless specifically instructed by MCombo support.

Image: A hand pressing into the cushion of the MCombo PR646M1 Loveseat, illustrating the medium-firmness of the seating.

Решавање проблема

Ако наиђете на проблеме са двоседом, погледајте следећа уобичајена решења:

• Armrest feels loose or detaches: Ensure both metal brackets on each armrest are fully mounted onto the base. If only one bracket is engaged, it can lead to instability.
• Backrest is not secure: Verify that the backrest inserts are fully locked into the base. Gently pull up on the backrest to confirm it is firmly in place.
• Reclining function or charging ports not working:
  1. Check that all electrical wires are connected tightly.
  2. Ensure the power adapter is securely plugged into both the loveseat and a working wall outlet.
  3. Confirm the power switch (usually near the power input) is in the "ON" position.
  4. Inspect all wires to ensure they are not pinched or pressed by the frame, which can cause damage and prevent operation.
• General instability: Double-check that all assembly screws are tightened.

Спецификације

Цертификати

This product is manufactured with attention to quality and sustainability:

• OEKO-TEX certified fabrics: Free from harmful substances.
• CertiPUR-US certified foam: Low VOC emissions.
• FSC-Certified wood frame: Sourced from sustainably managed forests.

CertiPUR-US сертификована пена

OEKO-TEX Certified Fabric

FSC Certified Wood

Гаранција и подршка

Информације о гаранцији

Your MCombo PR646M1 Loveseat is backed by a 2-годишња ограничена гаранција. This warranty covers free replacements for:

• Reclining Mechanisms
• Елецтрицал Системс
• Тапацирунг и јастуци
• Дрвене/металне рамске конструкције

Сачувајте доказ о куповини за гаранцијске захтеве.

Корисничка подршка

For any questions, assistance, or warranty claims, please contact MCombo customer support. You can visit the official MCombo store for more information and contact details:

Visit the MCombo Store on Amazon
