PEMENOL DIY Solder Kit Power Supply Module Instruction Manual

Увод

This instruction manual provides detailed guidance for assembling and operating the PEMENOL DIY Solder Kit Power Supply Module. This kit is designed for individuals interested in practicing soldering techniques and gaining knowledge about electronic components and voltage conversion. Upon completion, you will have a functional power supply module with adjustable output voltage for various electronic experiments and tests.

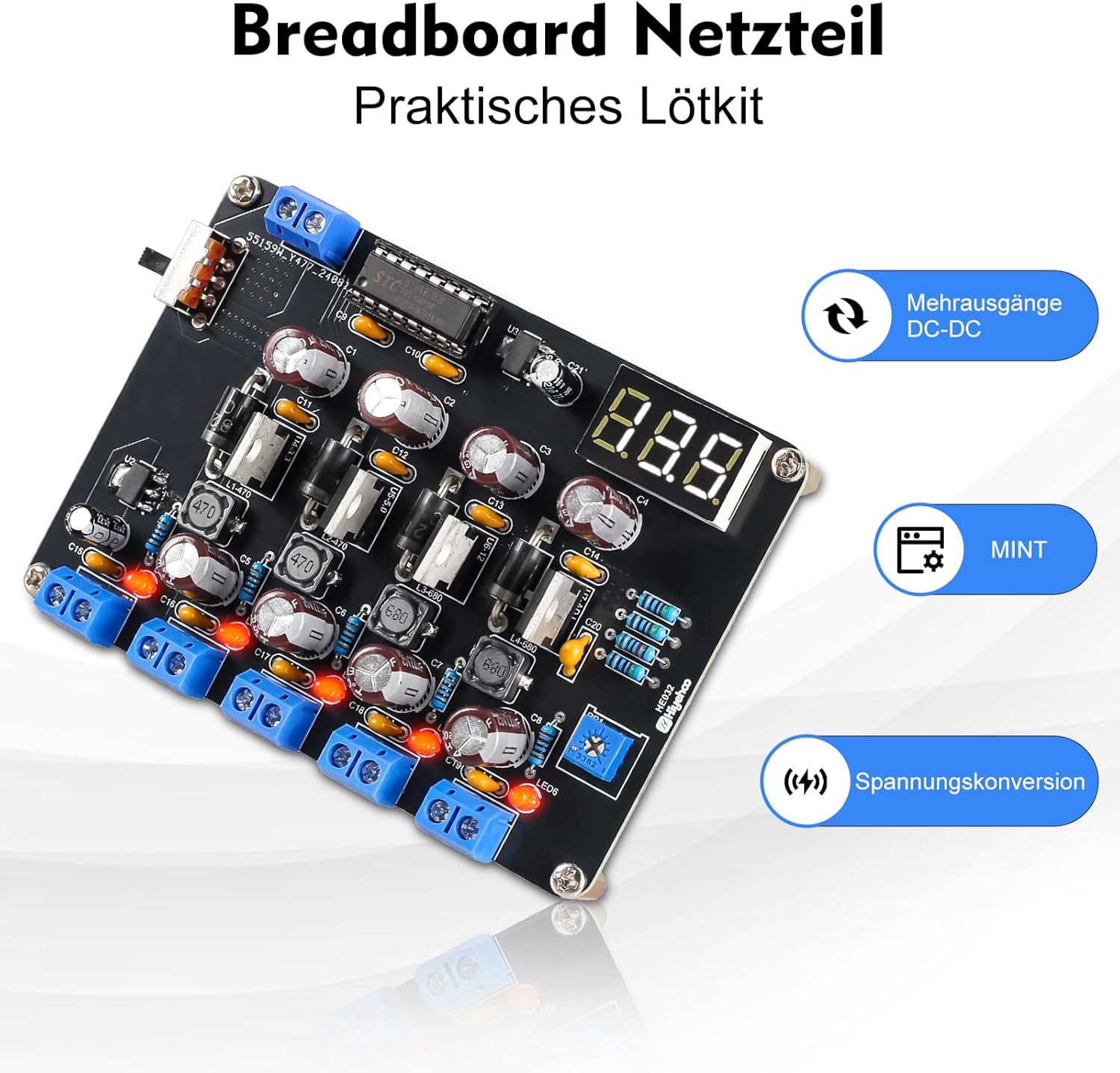

Image 1: The PEMENOL DIY Solder Kit Power Supply Module, showcasing its components and design. This image highlights the practical nature of the solder kit.

Безбедносне информације

Please read and understand all safety instructions before beginning assembly or operation. Failure to follow these instructions may result in injury or damage to the product.

• Always work in a well-ventilated area when soldering.
• Wear appropriate personal protective equipment, including safety glasses, to protect against solder splashes and fumes.
• Use a soldering iron with proper temperature control and ensure it is placed in a safe holder when not in use.
• Avoid touching hot components or the tip of the soldering iron.
• Ensure the power supply is disconnected before making any adjustments or modifications to the circuit.
• Keep the module away from moisture and extreme temperatures.
• This kit contains small parts and is not suitable for children without adult supervision.

Садржај пакета

Verify that all components listed below are present in your kit before starting assembly:

• штампана плоча (ПЦБ)
• Various electronic components (resistors, capacitors, diodes, ICs, potentiometers, LED, etc.)
• Digital LED display module
• Улазно/излазни терминали
• Detailed instruction manual (this document serves as a guide)

This kit contains a variety of electronic components and a detailed guide to assist you step-by-step through the soldering process.

Подешавање и монтажа

This is a DIY solder kit that requires assembly. Follow the instructions carefully to ensure proper functionality. The kit is designed for beginners and enthusiasts interested in electronics.

1. Идентификација компоненте: Before soldering, identify all components using the provided component list and the markings on the PCB.
2. Soldering Order: It is generally recommended to solder smaller components (resistors, diodes) first, followed by larger components (capacitors, IC sockets, terminals). This prevents larger components from obstructing access to smaller pads.
3. Поларитет: Pay close attention to the polarity of components such as diodes, electrolytic capacitors, and integrated circuits (ICs). Incorrect polarity can damage the components or the entire module.
4. Лемљени спојеви: Ensure each solder joint is shiny, smooth, and forms a good connection without bridging to adjacent pads.
5. Дигитални екран: Carefully solder the digital LED display module to its designated position.
6. Улазно/излазни терминали: Solder the input and output terminals securely.

Image 2: Wiring Diagram. This diagram illustrates the input voltage connection (DC 15V-20V) and the various output terminals including 1.5V, 3.3V, 5.0V, 12V, and an adjustable output from 2.2V to Vin. The 1.5V socket provides a maximum current of 1A, while all other sockets can output a maximum current of 4A.

Упутство за употребу

Once assembled, the power supply module is ready for operation. It features an adjustable output voltage and a digital display.

• Улазна снага: Connect a DC power source (15V-20V) to the input terminals (Vin and GND). The maximum input power is 36W.
• ЛЕД индикатор: A red LED indicator light will illuminate when the board is powered, confirming the module is receiving power.
• Оутпут Волtagес: The module provides fixed output voltages of 1.5V, 3.3V, 5V, and 12V.
• Подесиви излаз: The integrated potentiometer allows you to adjust the output voltage on the ADJ terminal. Use a "+" screwdriver to turn the potentiometer and change the output voltage. The adjustable range is typically 2.2V to Vin (input voltagи).
• Дигитални екран: The three-digit LED digital display shows the current output voltage, allowing for precise adjustment.
• Тренутни излаз: The 1.5V output socket provides a maximum current of 1A. All other output sockets (3.3V, 5V, 12V, and ADJ) can output a maximum current of 4A.

Image 3: Product Details. This image highlights key features such as the regulated output current, LED indicator, power switch, and output voltage display. Dimensions are approximately 10cm x 7cm x 3cm.

Одржавање

The PEMENOL Power Supply Module is designed for durability. Regular maintenance is minimal but important for longevity.

• Чишћење: Keep the module clean and free from dust and debris. Use a soft, dry cloth for cleaning. Avoid using liquids or solvents.
• Складиштење: Модул чувајте на сувом и хладном месту када се не користи.
• инспекција: Periodically inspect solder joints and components for any signs of damage or loose connections. Re-solder if necessary.

Решавање проблема

Refer to the following points if you encounter issues with your power supply module:

1. Оутпут Волtage Lower Than Input: The module functions as a voltage reducer. The output voltage will always be lower than the input voltage, with a minimum voltage difference of 0.3V.
2. Волtagе разлика: The lower the input voltage, the greater the voltage difference between input and output, typically ranging from 0.1V to 0.3V.
3. Dim/Off Display: Ако је улазна волtage drops below 4V, the brightness of the digital display will significantly decrease. It will turn off completely at 3.8V. Ensure adequate input voltage.
4. ADJ Output Voltagе Ограничења:
   • Ако унесете волtage drops below 6.5V, the highest ADJ output voltagе достиже 6.5В.
   • Ако унесете волtage drops below 6.5V, the lowest ADJ output voltagе је изнад 2.2 В.
   • Ако је улазна волtage is 15V, the ADJ output voltagОпсег је од 2.2В до 14.8В.
   • Ако је улазна волtage exceeds 15.2V, the maximum ADJ output voltagе је 15.2В.
5. Dim Red Indicator Light: Ако је излазна волtage is below the normal expected value, the brightness of the red indicator light will be dim. Check connections and input voltage.
6. Макимум Инпут Волtage: To prevent damage, the maximum recommended test input voltage is 20V. Do not exceed this limit.

Image 4: Detailed information regarding voltage reduction function, display brightness behavior at low input voltages, and ADJ output voltage limits under various input conditions. This is crucial for understanding the module's operational characteristics and troubleshooting.

Спецификације

Image 5: Application Scenarios. This image illustrates various uses for the power supply module, including education and training, electronics development, testing, and DIY soldering projects.

Информације о гаранцији

This product comes with a standard manufacturer's warranty. Please refer to the packaging or contact the seller for specific warranty terms and conditions. Keep your proof of purchase for any warranty claims.

Корисничка подршка

For technical assistance, troubleshooting, or inquiries regarding your PEMENOL DIY Solder Kit Power Supply Module, please contact PEMENOL customer support through the retailer's platform or visit the official PEMENOL webсајт за контакт информације.
