1. Увод
Thank you for choosing the INFANS Jogging Stroller. This manual provides essential information for the safe assembly, operation, and maintenance of your stroller. Please read these instructions carefully before use and retain them for future reference. This stroller is designed for children aged 6 to 36 months, with a maximum weight capacity of 15 kg (33 lbs).
Image 1.1: INFANS Jogging Stroller in use.
2. Безбедносне информације
Always prioritize your child's safety. Follow these guidelines:
- Ensure the 5-point safety harness is always securely fastened when the child is in the stroller.
- Никада не остављајте дете без надзора у колицима.
- Увек активирајте кочнице када колица мирују.
- Do not overload the storage basket or cup holders.
- This stroller is suitable for children aged 6-36 months and weighing no more than 15 kg (33 lbs).
- Ensure all locking mechanisms are engaged before placing a child in the stroller.
- Avoid placing hot liquids in cup holders to prevent burns.
Image 2.1: Details of the 5-point harness and peek-a-boo window.
3. Подешавање и монтажа
The INFANS Jogging Stroller is designed for quick and easy assembly. Most components are pre-assembled. Follow these steps:
- Расклапање колица: Release the folding lock (if engaged) and gently pull the handle upwards until the frame clicks into its fully open position. Ensure all frame locks are securely engaged.
- Причвршћивање точкова: Insert the front and rear wheels into their respective slots until they click into place. Pull on the wheels to ensure they are securely attached.
- Attaching the Child Tray: Align the child tray with the attachment points on the stroller frame and press firmly until it locks.
Image 3.1: Stroller folding mechanism.
4. Упутство за употребу
4.1 Adjustable Backrest
The backrest can be adjusted to multiple positions, ranging from 100° (upright) to 166° (reclined), to accommodate your child's comfort for sitting or lying down. Locate the adjustment mechanism behind the seat and follow the instructions to set the desired angle.
4.2 Цанопи
The stroller features a zip-extend canopy with UPF 50+ protection to shield your child from the sun. A peek-a-boo window on top allows you to check on your child without disturbing them.
Image 4.1: Adjustable backrest and canopy.
4.3 Кочиони систем
The stroller is equipped with a one-step brake system on the rear wheels. Press the red pedal down to engage both rear wheel brakes simultaneously. Lift the pedal to release the brakes. Always ensure the brakes are fully engaged when the stroller is stationary.
4.4 Вхеелс
The front wheel offers dual functionality: it can swivel 360° for maneuverability or be locked into a fixed forward position for stability during jogging or on uneven terrain. The stroller features extra-large inflatable rubber tires (12-inch front, 16-inch rear) designed for a smooth ride across various surfaces, including concrete, lawns, gravel, and soil.
Image 4.2: One-step brake and 360° rotating front wheel.

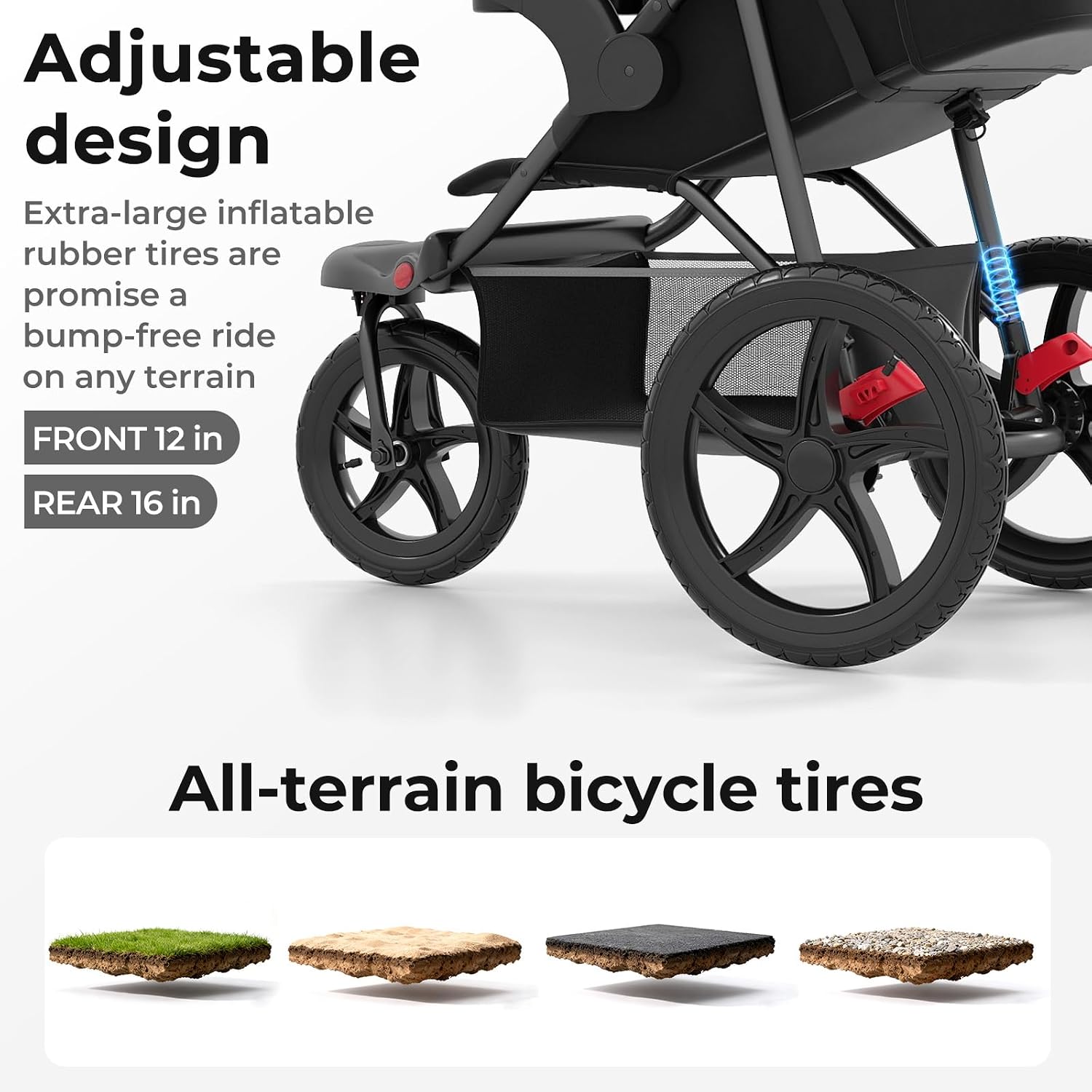

Image 4.3: All-terrain bicycle tires.
4.5 Систем појасева
The 5-point safety harness provides secure restraint for your child. Adjust the straps to ensure a snug fit without being too tight. Always ensure the harness is properly buckled before moving the stroller.
4.6 Trays and Storage
The stroller includes a detachable child snack tray for convenience, which can be removed by pressing a side button. A parent tray is located at the handlebar, featuring two cup holders and a hidden compartment for small items. A large storage basket beneath the seat provides ampпростор за неопходне ствари.
Image 4.4: Child snack tray, parent tray, and storage basket.
4.7 Склапање колица
To fold the stroller for compact storage or transport, locate the folding button and mechanism on the frame. Follow the specific instructions to collapse the stroller until the folding lock engages. This allows it to fit easily into a car trunk.
5. Одржавање
Regular maintenance ensures the longevity and safe operation of your stroller.
- Чишћење: Обришите оквир огласомamp cloth and mild soap. Fabric parts can be spot cleaned with a gentle detergent. Do not use abrasive cleaners.
- Точкови: Periodically check tire pressure and inflate as needed. Ensure wheels are free of debris.
- Покретних делова: Lubricate moving parts (e.g., wheel axles, folding mechanisms) with a silicone-based lubricant if they become stiff.
- Складиштење: Чувајте колица на сувом и хладном месту, заштићено од директне сунчеве светлости када се не користе.
КСНУМКС. Решавање проблема
If you encounter issues with your stroller, refer to the following common solutions:
- Stroller does not fold/unfold smoothly: Check for any obstructions in the folding mechanism. Ensure all locks are disengaged before folding.
- Точкови су крути или шкрипе: Clean any debris from the wheel axles. Apply a small amount of silicone lubricant to the moving parts of the wheels.
- Brakes are not engaging: Ensure the brake pedal is fully depressed. Check for any obstructions preventing the brake mechanism from engaging the wheels.
- Појас је тешко подесити: Ensure the straps are not twisted. Refer to the harness adjustment instructions for proper use.
If problems persist, please contact INFANS customer support.
7. Спецификације
| Феатуре | Спецификација |
|---|---|
| Број модела | БЦ10294 |
| Одговарајуће године | 6-36 месеца |
| Максимални капацитет тежине | 15 кг (33 лбс) |
| Димензије производа (отклопљено) | 60Д к 105В к 95Х центиметара |
| Тежина артикла | 11.3 килограма |
| Харнесс Типе | 5-Поинт |
| Величина предњег точка | 12 инча |
| Величина задњег точка | 16 инча |
| Подешавање наслона | 100°-166° |
| Карактеристике надстрешнице | Zip-extend, UPF 50+, Peek-a-boo window |
| Браке Систем | Rear-wheel, One-step |
| Земља порекла | Кина |
Image 7.1: Product dimensions and specifications.
8. Гаранција и подршка
For warranty information, product support, or to inquire about replacement parts, please contact INFANS customer service. Keep your purchase receipt and model number (BC10294) handy when contacting support.
Contact information can typically be found on the INFANS official webсајту или на паковању вашег производа.
