1. Увод
Thank you for choosing the Lepro 1000LM Battery Powered LED Camping Lantern. This manual provides essential information for the safe and efficient operation of your new lantern. Designed for versatility, this lantern offers powerful illumination for various outdoor activities, emergency situations, and general home use. Its robust design and multiple lighting modes ensure reliable performance when you need it most.
Image: Lepro 1000LM Battery Powered LED Campинг Лантерн.
2. Карактеристике производа
- High Brightness & Dimmable: Long press the button to adjust brightness up to 1000 lumen, suitable for reading or illuminating an entire space.
- 4 режима осветљења: Short press the button to switch between Daylight White, Warm White, Full Brightness, and Flashing modes.
- Дуг век трајања батерије: Powered by 3 D alkaline batteries (not included), it can last up to 12 hours under 1000 lumen brightness setting. This model is not rechargeable.
- ИПКС4 водоотпоран: Protected against splashing water from all angles, making it suitable for outdoor activities in rainy or snowy conditions.
- Hanging Hook & Removable Cover: Features a hook on the bottom and a metal handle on top for easy hanging or carrying.
Image: Key features of the Lepro 1000LM Lantern.
3. Шта је у кутији
- 1 x Lepro 1000LM Battery Powered LED Campинг Лантерн

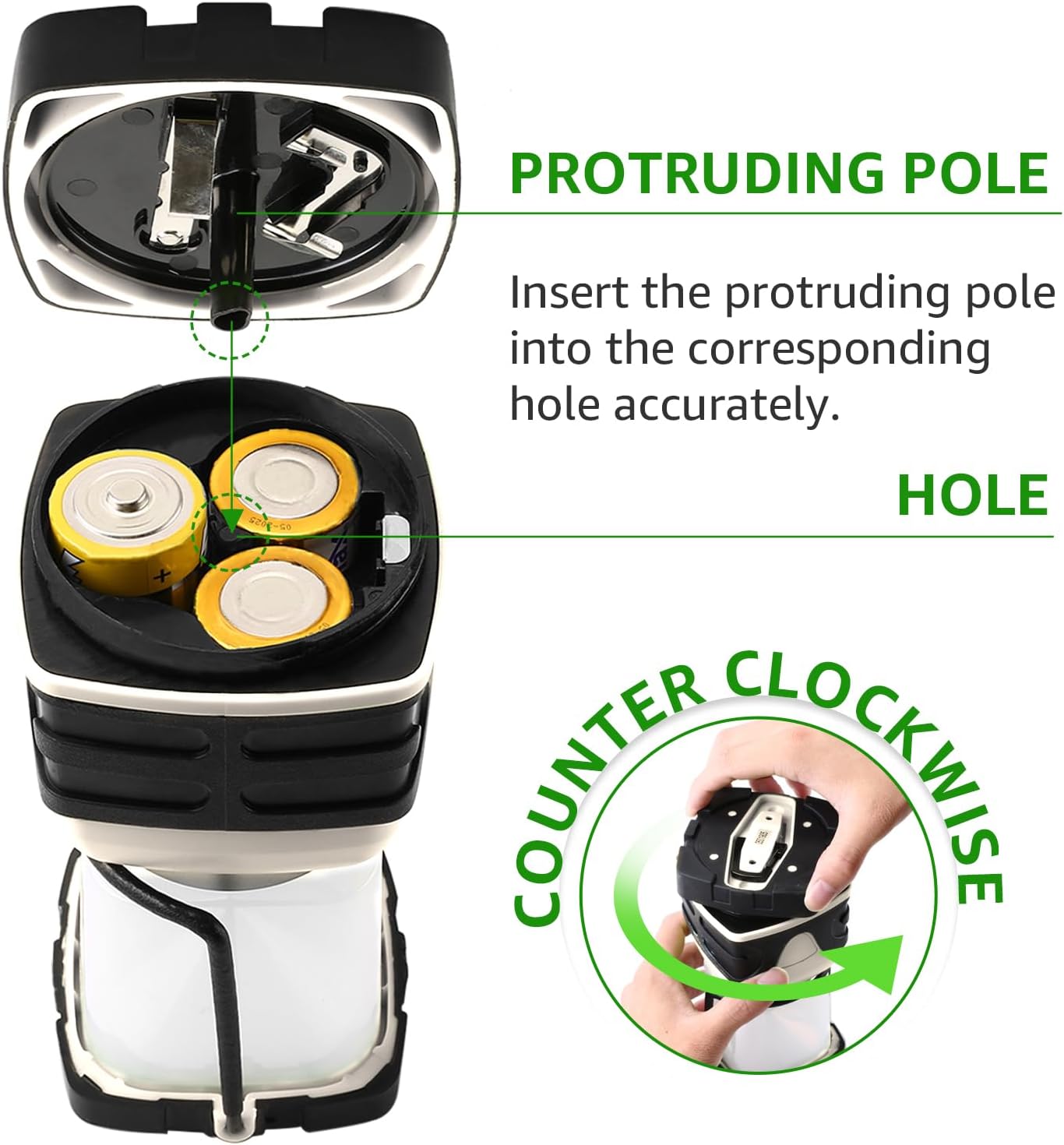

4. Подешавање: Инсталација батерије
- Ensure the lantern is turned off before installing batteries.
- Locate the battery compartment at the bottom of the lantern.
- Окрените доњи поклопац у смеру супротном од казаљке на сату да бисте га откључали и уклонили.
- Insert three (3) D-size alkaline batteries into the compartment, ensuring correct polarity (+/-) as indicated inside.
- Align the protruding pole on the bottom cover with the corresponding hole in the battery compartment.
- Place the cover back on and twist clockwise to secure it tightly.
Note: Batteries are NOT included with the lantern. Use only D-size alkaline batteries.
Image: Battery installation guide.
5. Упутство за употребу
Укључивање/искључивање
- Press the power button once to turn the lantern ON.
- Press and hold the power button for approximately 2 seconds to turn the lantern OFF from any mode.
Промена светлосних режима
- With the lantern ON, short press the power button repeatedly to cycle through the 4 available lighting modes:
- Даилигхт Вхите
- Топла бела
- Full Brightness (combination of Daylight and Warm White)
- Flashing (Emergency Signal)
Степлесс Димминг
- While the lantern is ON in any non-flashing mode, press and hold the power button to continuously adjust the brightness level. Release the button when the desired brightness is reached.
Image: Operating the lantern's light modes and dimming function.
6. Опције монтаже
- Горња ручка: Use the sturdy metal handle at the top to carry the lantern or hang it from a hook or branch.
- Bottom Hook: The lantern features a retractable hook on its base, allowing it to be hung upside down for broader illumination, such as inside a tent.
- Употреба стола: The flat base ensures stable placement on any flat surface.
Image: Versatile hanging and carrying options.
7. Одржавање
- Чишћење: Обришите фењер меком, дamp тканина. Немојте користити абразивна средства за чишћење или раствараче.
- Замена батерије: Replace all three D-size batteries simultaneously when the light output diminishes. Do not mix old and new batteries or different battery types.
- Складиштење: If storing the lantern for an extended period, remove the batteries to prevent leakage and damage. Store in a cool, dry place.
Image: The lantern is IPX4 water resistant.
КСНУМКС. Решавање проблема
| Проблем | Могући узрок | Решење |
|---|---|---|
| Лантерна се не пали. | Батерије су истрошене или неправилно постављене. | Replace batteries with new D-size alkaline batteries, ensuring correct polarity. |
| Излаз светлости је слаб. | Батерије су слабе. | Replace all three D-size batteries. |
| Не могу се мењати режими осветљења. | Button not pressed correctly or rapidly enough. | Ensure a quick, firm short press to cycle modes. |
9. Спецификације
| Број модела | 3300002-ВХ |
| Тип извора светлости | Диода која емитује светлост (ЛЕД) |
| Максимални светлосни излаз | 1000 лумена |
| Извор напајања | Баттери Поверед |
| Тип батерије | 3 x D батерије (нису укључене) |
| Волtage | 4.5 Волтс |
| Ватtage | 10 вати |
| Материјал | Пластика |
| Димензије артикла (Д к Ш к В) | 3.46 cm D x 3.46 cm Š x 7.24 cm V |
| Тежина артикла | 0.51 килограма |
| Отпорност на воду | ИПКС4 |
Image: Lantern dimensions and battery requirements.
10. Гаранција и подршка
This Lepro 1000LM Battery Powered LED Camping Lantern comes with a 1-year manufacturer's warranty. For warranty claims, technical support, or any inquiries, please visit the official Lepro webсајт или директно контактирајте њихову корисничку службу.
Official Lepro Webсајт: ввв.лепро.цом
