MAGIC-REFINER X68 HE Wired 60% Hall Effect Gaming Keyboard User Manual

Увод

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your MAGIC-REFINER X68 HE Wired 60% Hall Effect Rapid Trigger Mechanical RGB Gaming Keyboard. Please read this manual thoroughly to ensure proper use and to maximize your keyboard's performance.

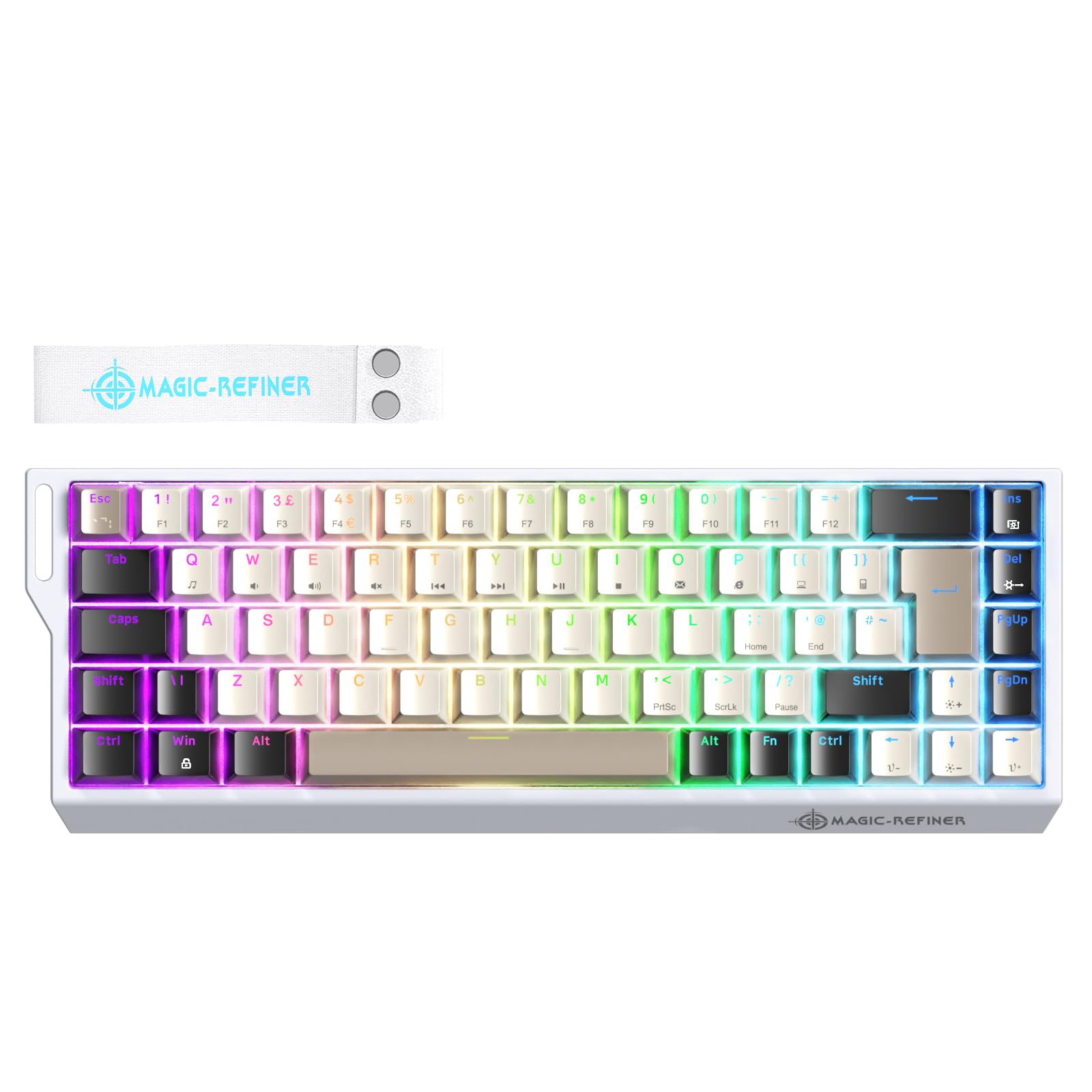

Image: The MAGIC-REFINER X68 HE keyboard, showcasing its compact 60% design and RGB lighting.

Шта је у кутији

• MAGIC-REFINER X68 HE Keyboard (x1)
• Keycap and Switch Puller (x1)
• Кориснички приручник (овај документ)

Сетуп

1. Повезивање тастатуре

Connect the provided USB-C cable to the port on the keyboard and the other end to an available USB port on your computer (PC or Mac). The keyboard is plug-and-play and should be recognized automatically by your operating system.

2. Web Driver Installation and Calibration

For full customization and optimal performance, it is recommended to use the dedicated web driver. The web driver allows you to adjust actuation points, remap keys, customize RGB lighting, and perform calibration.

• Приступ Web Возач: Отвори свој web browser and navigate to the official web driver link: bit.ly/X68HEKeyboard.
• Кораци калибрације:
  1. Отворите web driver and select 'X68HE'.
  2. On the driver page, click 'Actuation' then 'Calibration' and 'Start Calibration'.
  3. Once 'Key calibration success' appears, calibration is complete.

Слика: Оверview of the X68 HE's features, highlighting the web driver for customization and magnetic switches.

Упутство за употребу

1. Hall Effect Magnetic Switches and Adjustable Actuation

The X68 HE features Hall Effect magnetic switches, allowing for precise and customizable actuation. The actuation point can be adjusted from 0.1mm to 3.4mm in 0.04mm increments using the web driver. This enables fine-tuning for different tasks, from light touches for gaming to deeper presses for typing.

Image: A close-up of a magnetic switch with a diagram illustrating the adjustable actuation range.

2. Rapid Trigger Functionality

The rapid trigger feature allows keys to reset instantly upon upward movement, enabling faster repeated inputs. With an RT sensitivity of up to 0.04mm and zero dead zones, this function is particularly beneficial for competitive gaming, ensuring every keystroke is registered with extreme precision.

Image: Visual representation of the rapid trigger mechanism, highlighting ultra-low latency and high polling rate.

Image: The keyboard emphasizing its 'Zero Dead Zone' and precise adjustability for key actuation.

3. 8000Hz Polling Rate

The X68 HE keyboard features an 8000Hz polling rate, providing a response speed up to 8 times faster than standard mechanical keyboards. This, combined with a 128K scan sampling rate, results in an ultra-low latency of 0.125ms, ensuring immediate command execution.

4. RGB светлосни ефекти

The keyboard offers 14 preset RGB lighting effects. You can cycle through these effects and adjust brightness and speed using the function (Fn) key combinations:

• Фн + Инс: Switch between lighting modes.
• Фн + Дел: Switch between lighting colors.
• Fn + ↑ (стрелица нагоре): Повећајте осветљеност позадинског осветљења.
• Fn + ↓ (стрелица надоле): Смањите осветљеност позадинског осветљења.
• Fn + ← (стрелица улево): Смањите брзину позадинског осветљења.
• Fn + → (стрелица удесно): Повећајте брзину позадинског осветљења.

Further customization of RGB lighting is available through the web возач.

Image: The keyboard displaying its vibrant RGB lighting and key combinations for adjusting effects.

5. 68-Key UK Layout

The X68 HE features a compact 60% layout with 68 keys, adhering to the UK QWERTY standard. This design saves desk space while retaining essential functionality through function layer access.

Image: The keyboard highlighting its 60% UK QWERTY layout, designed for space efficiency.

Одржавање

1. Чишћење

• Искључите тастатуру из рачунара пре чишћења.
• Користите меку крпу која не оставља длачицеampводом или благим раствором за чишћење да бисте обрисали капице тастера и кућиште.
• За прашину и остатке између тастера користите компримовани ваздух.
• Избегавајте употребу јаких хемикалија, абразива или растварача.

2. Switch and Keycap Care

The X68 HE features hot-swappable switches, allowing for easy replacement without soldering. Use the included keycap and switch puller for safe removal and installation.

• To remove a keycap, gently pull it straight up using the keycap puller.
• To remove a switch, use the switch puller to grasp the top and bottom clips of the switch and pull it straight up.
• When installing, ensure the switch pins align correctly with the PCB sockets before pressing down firmly.

Решавање проблема

Спецификације

• Модел: Кс68 ХЕ
• Изглед: 60% (68-key) UK QWERTY
• Тип прекидача: Магнетни прекидачи са Холовим ефектом
• Тачка активирања: Adjustable from 0.1mm to 3.4mm (0.04mm increments)
• Rapid Trigger (RT) Accuracy: 0.04мм
• Стопа гласања: 8000Хз
• Латенција: 0.125мс
• Брзина скенирања: 128КХз
• Повезивање: Wired (USB-C detachable cable)
• Позадинско осветљење: RGB (14+ effects)
• Компатибилни уређаји: ПЦ, Мац
• Димензије производа: 15.74 к 6.02 к 1.89 инча (39.98 к 15.29 к 4.80 цм)
• Тежина артикла: 1.57 фунте (0.71 кг)

Информације о гаранцији

Молимо погледајте документацију о куповини или упутства продавца website for specific warranty terms and conditions. Standard warranty typically covers manufacturing defects for a limited period from the date of purchase.

Подршка

For further assistance, technical support, or inquiries not covered in this manual, please visit the MAGIC-REFINER official website or contact your retailer's customer service. Ensure you have your product model (X68 HE) and purchase details available when seeking support.
