This 5V 1A DC power supply adapter is designed for wide application across multiple electronic devices. It provides a stable 5V 1A output, suitable for security cameras, monitors, TV boxes, speakers, audio/video equipment, and digital picture frames. The adapter includes 8 interchangeable tips, ensuring compatibility with various devices without the need for soldering. Its universal input range supports global voltage standards (AC 100-240V), making it ideal for home, office, or travel use. Built-in safety protections and durable fireproof materials ensure reliable and safe performance.
Садржај пакета
Проверите да ли су све ставке наведене у наставку укључене у ваш пакет:
- 1 x AC/DC 5V 1A Power Adapter
- 8 x Interchangeable Tips
The package includes the main power adapter and a set of 8 interchangeable tips for various devices.
Спецификације
| Феатуре | Детаљ |
|---|---|
| Улазни волtage | АЦ 100–240В, 50/60Хз |
| Оутпут Волtagе/Струја | DC 5V 1A (Max 5W) |
| Поларитет | Center Positive (+) |
| Тип конектора | Barrel type with 8 interchangeable tips |
| Укључени савети | I:2.5*0.7mm, L:3.0*1.1mm, H:3.5*1.35mm, G:4.0*1.7mm, C:5.5*2.5mm, F:4.8*1.7mm, S:Micro USB, Green: LED Terminal Connector |
| Сафети Протецтион | Овер-волtage, short circuit, internal overheating |
| Материјал | High-quality fireproof shell with copper wire core |
| Компатибилни уређаји | Security cameras, baby monitors, TV boxes, speakers, audio/video devices, digital picture frames |

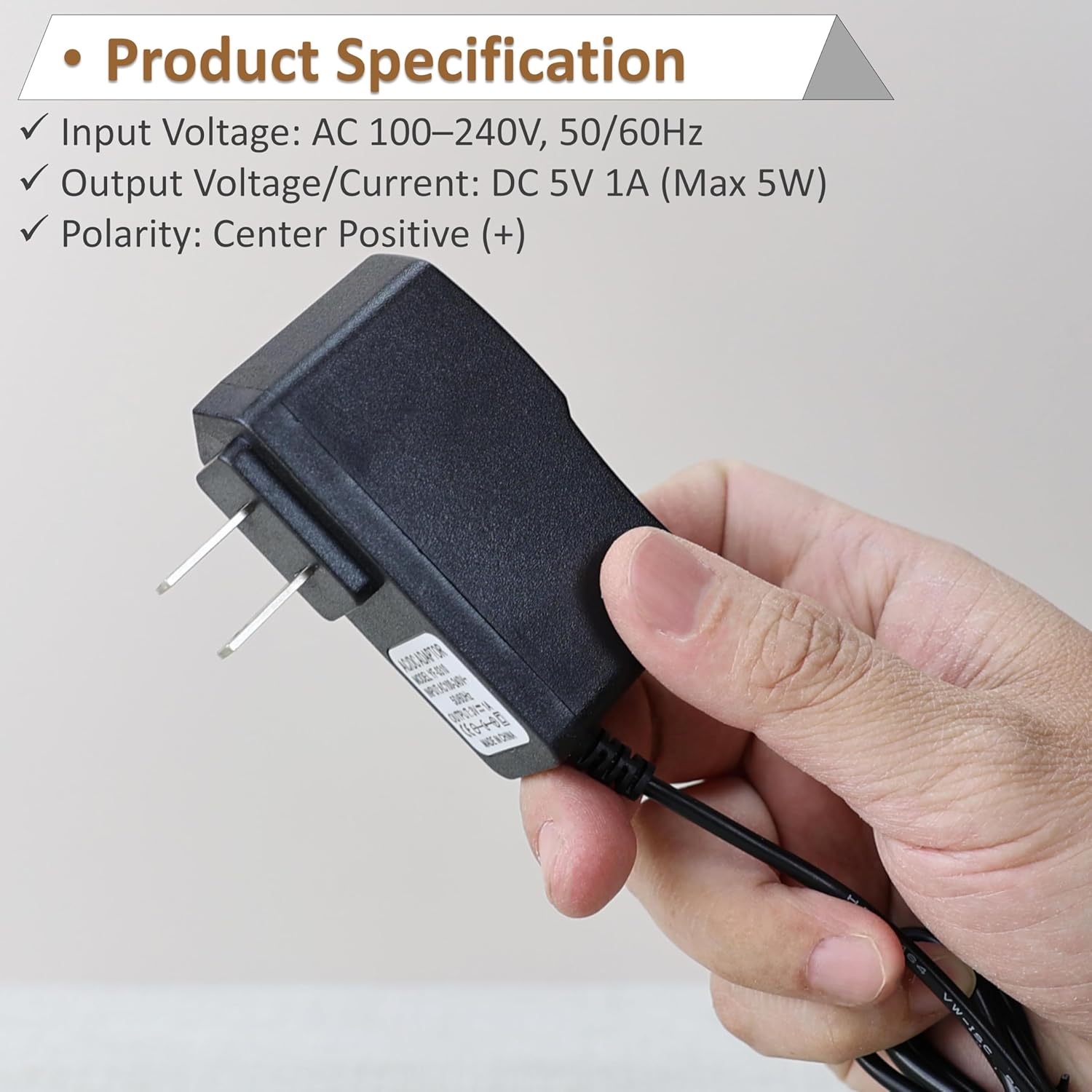

Detailed product specifications including input, output, and polarity are shown.
Подешавање и повезивање
Follow these steps to connect your power adapter to your device:
- Identify Device Requirements: Одредите тачну волtage (5V) and current (1A or less) required by your device. Ensure your device uses a center positive polarity.
- Select the Correct Tip: Choose one of the 8 interchangeable tips that matches the power input port of your device. Refer to the tip codes provided in the specifications section and the visual guide below.
A visual guide to the multi-tip versatility, showing each tip and its corresponding size/type.
- Приложите савет: Firmly connect the selected tip to the output cable of the 5V 1A power adapter.
Demonstration of how to attach an interchangeable tip to the adapter cable.
- Повежите се са уређајем: Insert the attached tip into your device's power input port.
- Укључите у утичницу: Plug the AC/DC power adapter into a standard AC 100-240V wall outlet.
Visual guide for connector size and center positive polarity marking.
Упутство за употребу
Once connected, the power adapter will supply stable 5V DC power to your device. Ensure the adapter is securely plugged into both the wall outlet and your device. The adapter is designed for continuous operation within its specified voltagе и ограничења струје.
Safety Information and Protection Features
This power adapter incorporates multiple safety features to protect your devices and ensure safe operation:
- Овер-волtagе Заштита: Спречава оштећења од прекомерне запреминеtage.
- Заштита од кратког споја: Аутоматски искључује напајање у случају кратког споја.
- Internal Overheating Protection: Guards against overheating to maintain stable performance.
Always use the adapter in a well-ventilated area and avoid covering it during operation. Do not expose the adapter to water or extreme temperatures.

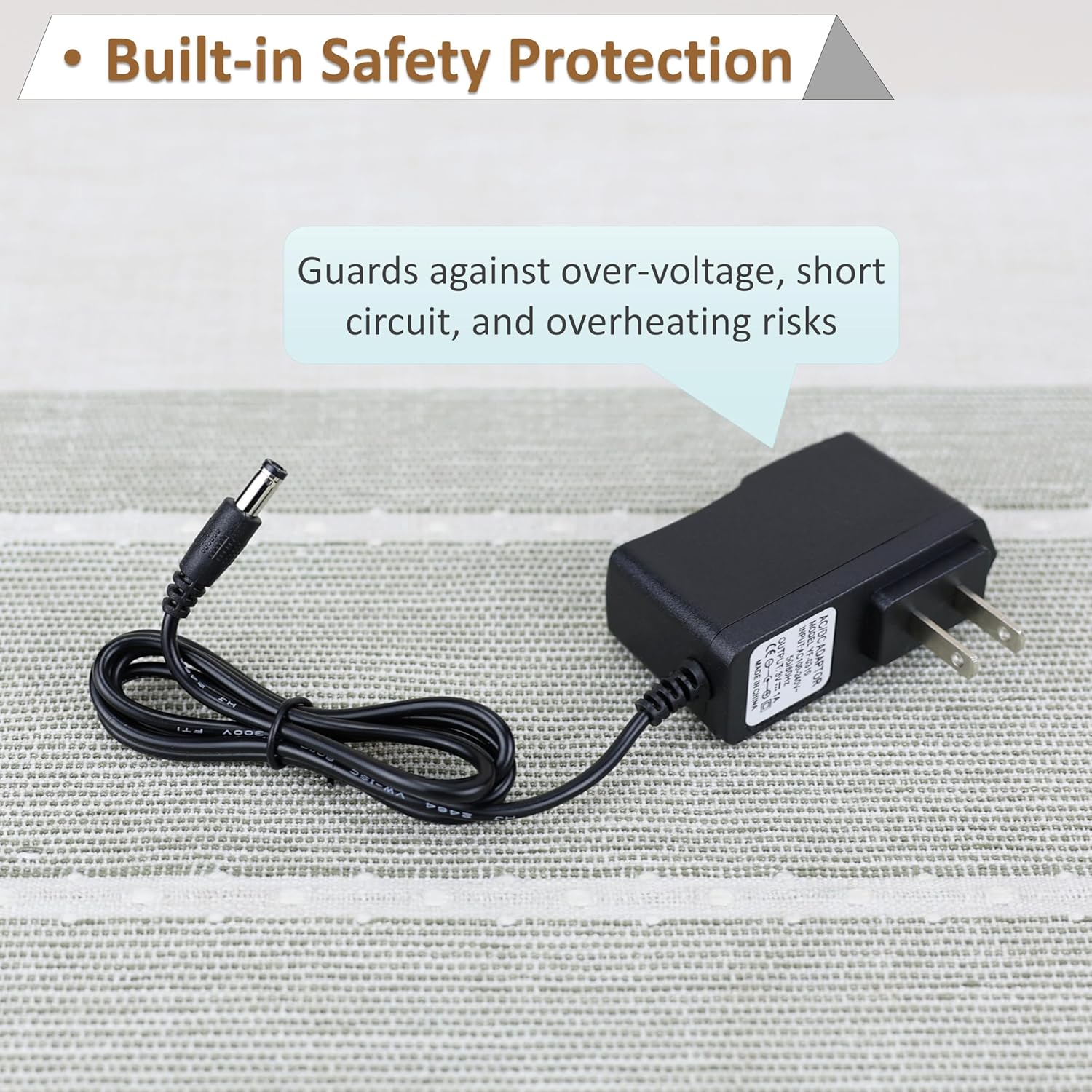

The adapter includes built-in safety protections against common electrical hazards.
Одржавање
Да бисте осигурали дуготрајност и оптималне перформансе вашег адаптера за напајање:
- Адаптер одржавајте чистим и без прашине. За чишћење користите суву, меку крпу.
- Avoid bending or crimping the power cord excessively.
- Адаптер чувајте на хладном и сувом месту када га не користите.
- Regularly check the tips and cable for any signs of wear or damage.
Решавање проблема
- Нема излазне снаге:
- Ensure the adapter is firmly plugged into a working wall outlet.
- Verify that the correct tip is securely attached to the adapter cable and fully inserted into your device's power port.
- Check if your device requires 5V 1A power and center positive polarity.
- Device Not Charging/Working Properly:
- Confirm that the selected tip is the correct size and type for your device.
- Уверите се да су захтеви за напајање вашег уређаја (вол.tage and current) do not exceed the adapter's specifications (5V 1A).
- Try using the adapter with another compatible device to rule out an issue with the adapter itself.
- Прегревање адаптера:
- Одмах искључите адаптер.
- Ensure the adapter is not covered and is in a well-ventilated area.
- Verify that the connected device's power consumption does not exceed 5W (5V 1A).
Димензије производа
The physical dimensions of the power adapter are as follows:
- Фронт View: Approximately 3.0 inches (height) x 1.1 inches (width)
- Сиде View: Approximately 3.0 inches (height) x 2.6 inches (depth)

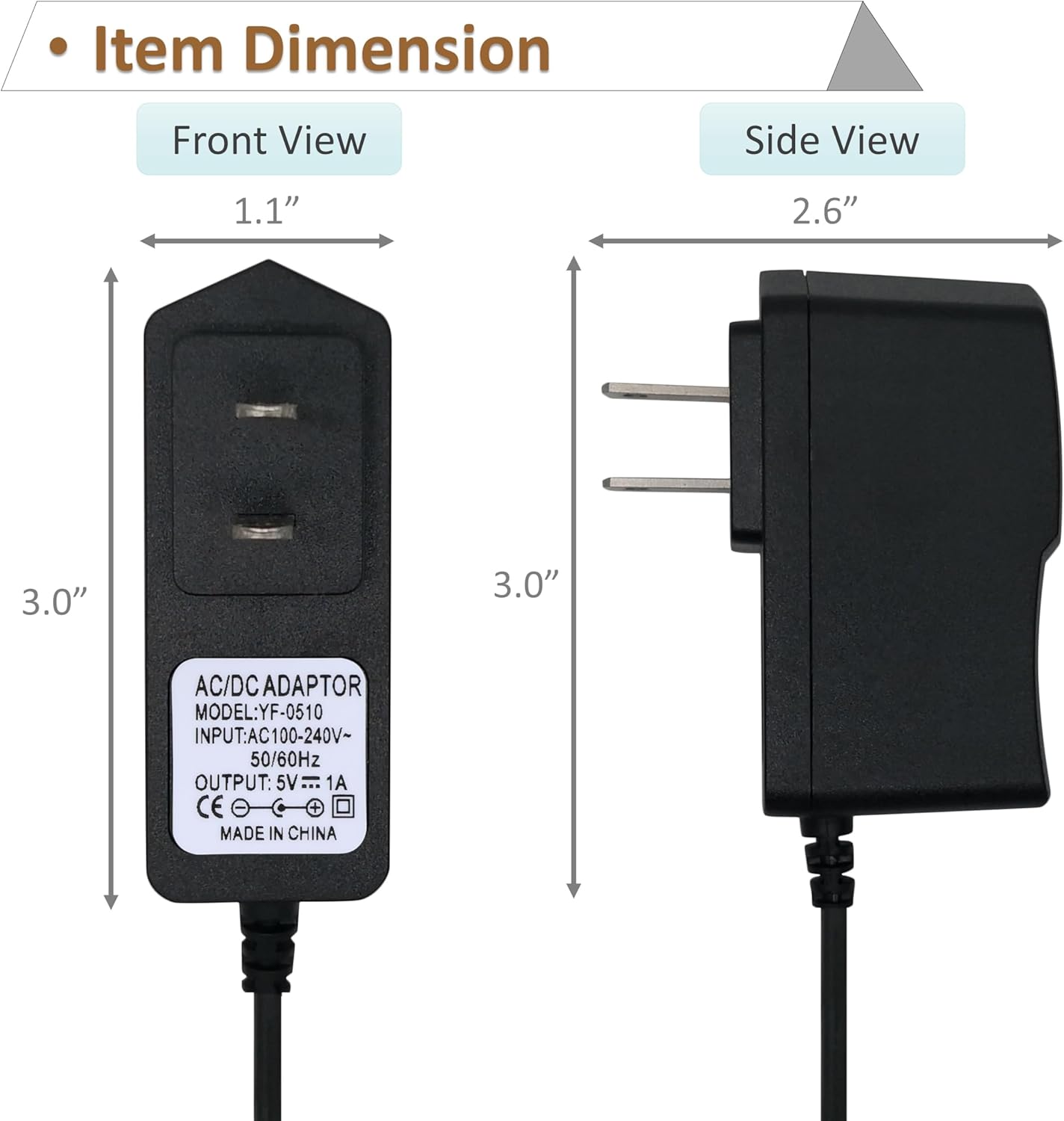

Front and side dimensions of the power adapter.
Информације о гаранцији
Овај производ долази са а 1 године гаранције произвођача. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or external causes.
Корисничка подршка
For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please contact the manufacturer or your retailer. Refer to your purchase documentation for specific contact details.
