Увод
The Marshall Heston 60 Soundbar is designed to enhance your home audio experience with immersive cinematic sound. Featuring Dolby Atmos, it delivers three-dimensional audio for movies, music, and TV. Its design is inspired by classic Marshall amplifiers, offering both versatility and convenience for various setups.
Кључне карактеристике укључују:
- Immersive Dolby Atmos Sound: Experience clear, detailed, three-dimensional audio.
- Multi-Wireless Connectivity: Connect via Bluetooth, Wi-Fi (AirPlay, Google Cast, Spotify Connect, TIDAL Connect).

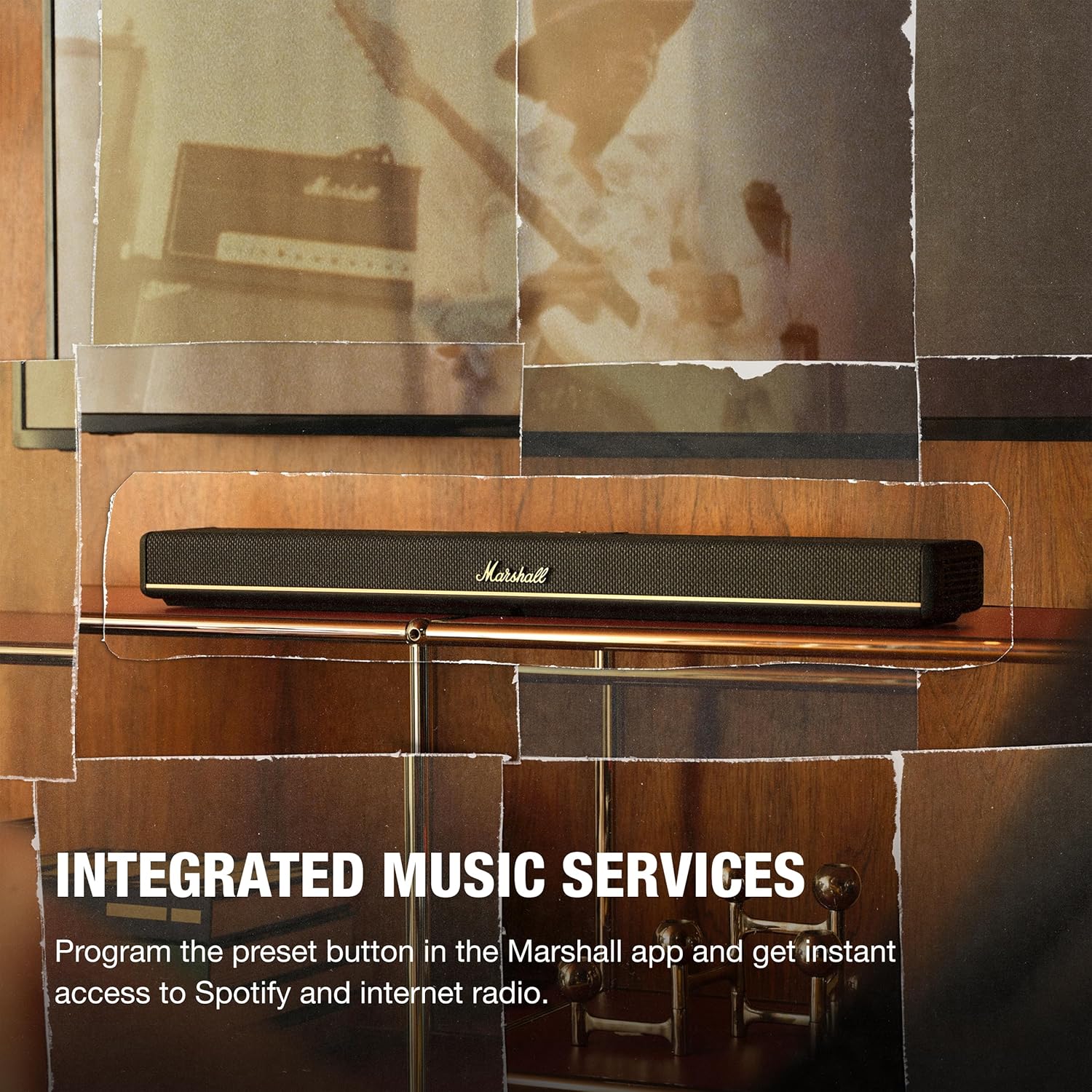

- Интегрисане музичке услуге: Program preset buttons in the Marshall app for instant access to Spotify or internet radio.
- Вишеструки режими звука: Choose from Movie, Voice, Music, or Night Mode to optimize your listening experience.
- Флексибилно постављање: Designed for TV shelf placement or wall mounting, with a reversible control panel and removable magnetic logo for aesthetic alignment.
- Marshall App Control: Access advanced audio settings, customize presets, calibrate sound, and fine-tune EQ settings.
Шта је у кутији
Carefully unpack the following items:
- Heston 60 Soundbar
- Повер Цабле
- ХДМИ кабл
- 2 Pcs Wall Mount Grommets
- Водич за брзи почетак
Сетуп
- Пласман: Place the Heston 60 Soundbar on a flat surface, centered under your TV, or mount it to the wall. Ensure at least 15 cm clearance above and on each side for optimal sound. If wall mounting, follow the included wall mount instructions.
- ХДМИ веза: Connect one end of the HDMI cable to the HDMI 1 (TV) port on the Heston 60 and the other end to an HDMI port supporting eARC/ARC on your TV.
- Прикључак за напајање: Connect the mains lead to the soundbar, then to the mains plug on the wall socket, and close the back panel hatch. Ensure the mains lead, plug, and soundbar are compatible with your mains supply and wall socket. Caution: Always unplug the mains lead from the wall socket before disconnecting it from the soundbar.
- Aesthetic Setup: Place the magnetic Marshall script logo on the front center of the Heston 60. Then, position the magnetic user panel with the text oriented correctly.
- App Download & Setup: Download the Marshall app to complete the setup. The app guides you through Wi-Fi setup, audio adjustments, customizing playlists, and selecting sound modes. The app also functions as a remote control for the Heston 60.
Упутство за употребу
Цонтролс Оверview
The Heston 60 features intuitive controls located on the top panel for easy access to various functions.
- Бирач извора: Switch between input sources (HDMI, Aux, Bluetooth, Wi-Fi).
- Контрола јачине звука: Adjust the overall sound level.
- Контроле баса/високих тонова: Fine-tune the bass and treble frequencies to your preference.
- Контрола медија: Play, pause, skip tracks when using connected music services.
- Дугме за режим звука: Cycle through available sound modes (Music, Movie, Night, Voice).
- Програмабилно дугме: Customize this button via the Marshall app for quick access to favorite features or internet radio stations.
Режими звука
The Heston 60 offers specialized sound modes to optimize audio for different content:
- Режим филма: Enhances drama and intensifies effects for a cinematic experience.
- Музички режим: Delivers rich, balanced sound for your playlists.
- Гласовни режим: Keeps dialogue clear and prominent, ideal for news or podcasts.
- Ноћни режим: Reduces loud effects and maintains speech clarity for late-night listening without disturbing others.
Повезивање
Жичане везе
The Heston 60 offers several wired input options:
- ХДМИ еАРЦ/АРЦ: For high-quality audio connection to your TV.
- 3.5 mm Aux Input: Connect external audio devices using a standard auxiliary cable.
- Суб Оут: Connect an external subwoofer for enhanced bass.
- USB-C Power Output: Provides 5V 1A power output for charging small devices.
Бежично повезивање
Enjoy seamless audio streaming with multiple wireless options:
- Блуетоотх: Pair your smartphone, tablet, or other Bluetooth-enabled devices.
- Ви-Фи: Connect to your home network for streaming via AirPlay, Google Cast, Spotify Connect, or TIDAL Connect.
Валл Моунтинг
The Heston 60 Soundbar is designed for flexible placement, including wall mounting. Use the provided wall mount grommets and follow the detailed instructions in the Quick Start Guide for secure installation. The reversible control panel and removable magnetic logo ensure optimal appearance regardless of mounting orientation.
Спецификације
| Феатуре | Детаљ |
|---|---|
| Бранд | Марсхалл |
| Назив модела | Heston 60 |
| Број модела | 1008949 |
| Максимална излазна снага звучника | 56 Ваттс |
| Фреквенцијски одзив | 45 Хз |
| Технологија повезивања | Auxiliary, Bluetooth, HDMI, Wi-Fi |
| Режим аудио излаза | Стерео |
| Тип монтаже | Валл Моунт |
| Додатне карактеристике | Dolby Enabled, Hi Res Audio |
| Контролни метод | Додирните |
| Број аудио канала | 5.1 |
| Димензије артикла (Д к Ш к В) | 4.88"Д к 28.74"Ш к 2.68"В |
| Тежина артикла | 6.1 фунти |
| Извор напајања | Цордед Елецтриц |
Одржавање
To ensure the longevity and optimal performance of your Marshall Heston 60 Soundbar, follow these maintenance guidelines:
- Чишћење: Use a soft, dry cloth to clean the exterior surfaces. Avoid abrasive cleaners, solvents, or sprays that could damage the finish.
- вентилација: Ensure the soundbar has adequate ventilation and that no vents are blocked.
- Складиштење: Ако складиштите саундбар дуже време, искључите га из струје и чувајте га на хладном и сувом месту.
- Избегавајте влагу: Keep the soundbar away from water, high humidity, and extreme temperatures.
Решавање проблема
If you encounter issues with your Heston 60 Soundbar, refer to the following common troubleshooting steps:
- Нема напајања: Check that the power cable is securely connected to both the soundbar and a working wall outlet.
- Нема звука: Verify the correct input source is selected on the soundbar and your TV. Ensure the volume is not muted or set too low on both devices. Check all cable connections (HDMI, Aux).
- Проблеми са Блуетоотх упаривањем: Ensure the soundbar is in Bluetooth pairing mode. Disable and re-enable Bluetooth on your device, then try pairing again. Move your device closer to the soundbar.
- Изобличен звук: Reduce the volume on both the soundbar and your connected device. Check for loose cable connections. Try a different audio source to isolate the problem.
- Проблеми са Ви-Фи везом: Ensure your Wi-Fi network is active and the soundbar is within range. Restart your router and the soundbar. Use the Marshall app to reconfigure Wi-Fi settings.
For more detailed troubleshooting or persistent issues, consult the full user manual or contact Marshall customer support.
Гаранција и подршка
The Marshall Heston 60 Soundbar comes with a 1 године гаранције произвођачаОва гаранција покрива недостатке у материјалу и изради при нормалној употреби.
For warranty claims, technical support, or service inquiries, please refer to the contact information provided in your Quick Start Guide or visit the official Marshall webсајту.
