Craftsman Spindle Replacement Instruction Manual

Увод

This manual provides essential information for the safe and effective installation, operation, and maintenance of your new replacement spindle. Please read these instructions thoroughly before proceeding with any installation or maintenance to ensure proper function and longevity of the part.

This replacement spindle is designed for specific Craftsman lawn mower models. Verify compatibility with your equipment before installation.

Безбедносне информације

WARNING: Always disconnect the spark plug wire or remove the battery before performing any maintenance or installation on your lawn mower to prevent accidental starting and serious injury.

• Носите одговарајућу личну заштитну опрему (ЛЗО), укључујући заштитне наочаре и рукавице.
• Ensure the mower is on a flat, stable surface and the parking brake is engaged.
• Refer to your original equipment manufacturer's manual for specific safety procedures related to your lawn mower model.

Садржај пакета

Проверите да ли су све компоненте присутне и неоштећене приликом отварања паковања.

• 1 x Replacement Spindle (AHC1306)
• (Note: Additional hardware such as mounting bolts or pulley nuts may not be included and should be reused from the original part or purchased separately if needed.)

Подешавање и инсталација

This section outlines the general steps for replacing a spindle. Specific procedures may vary slightly depending on your Craftsman mower model. Always consult your mower's service manual for detailed instructions.

Потребни алати:

• Кључ насадни кључ
• Момент кључ
• Pry bar or wood block (for blade removal)
• Рукавице и заштитне наочаре

Кораци инсталације:

1. Припремите косилицу:

   Park the mower on a level surface. Disengage the PTO (Power Take-Off) and set the parking brake. Remove the ignition key and disconnect the spark plug wire or battery cable to prevent accidental starting.
2. Remove Mower Deck (if necessary):

   For easier access, it may be beneficial to remove the mower deck from the tractor. Refer to your mower's manual for deck removal instructions.

3. Remove Mower Blades:

   Carefully remove the mower blades from the underside of the deck. Use a block of wood to prevent the blade from turning while loosening the blade bolt. Note the orientation of the blades for correct reinstallation.

4. Remove Pulley:

   Remove the nut securing the pulley to the top of the spindle shaft. A pulley puller may be required if the pulley is seized.
5. Уклоните старо вретено:

   Unbolt the old spindle assembly from the mower deck. There are typically 3 or 4 mounting bolts. Keep these bolts for reuse if they are in good condition.

6. Инсталирајте ново вретено:

   Position the new spindle (AHC1306) onto the mower deck, aligning the mounting holes. Secure it with the mounting bolts. Tighten bolts evenly and to the torque specifications recommended by your mower's manufacturer.

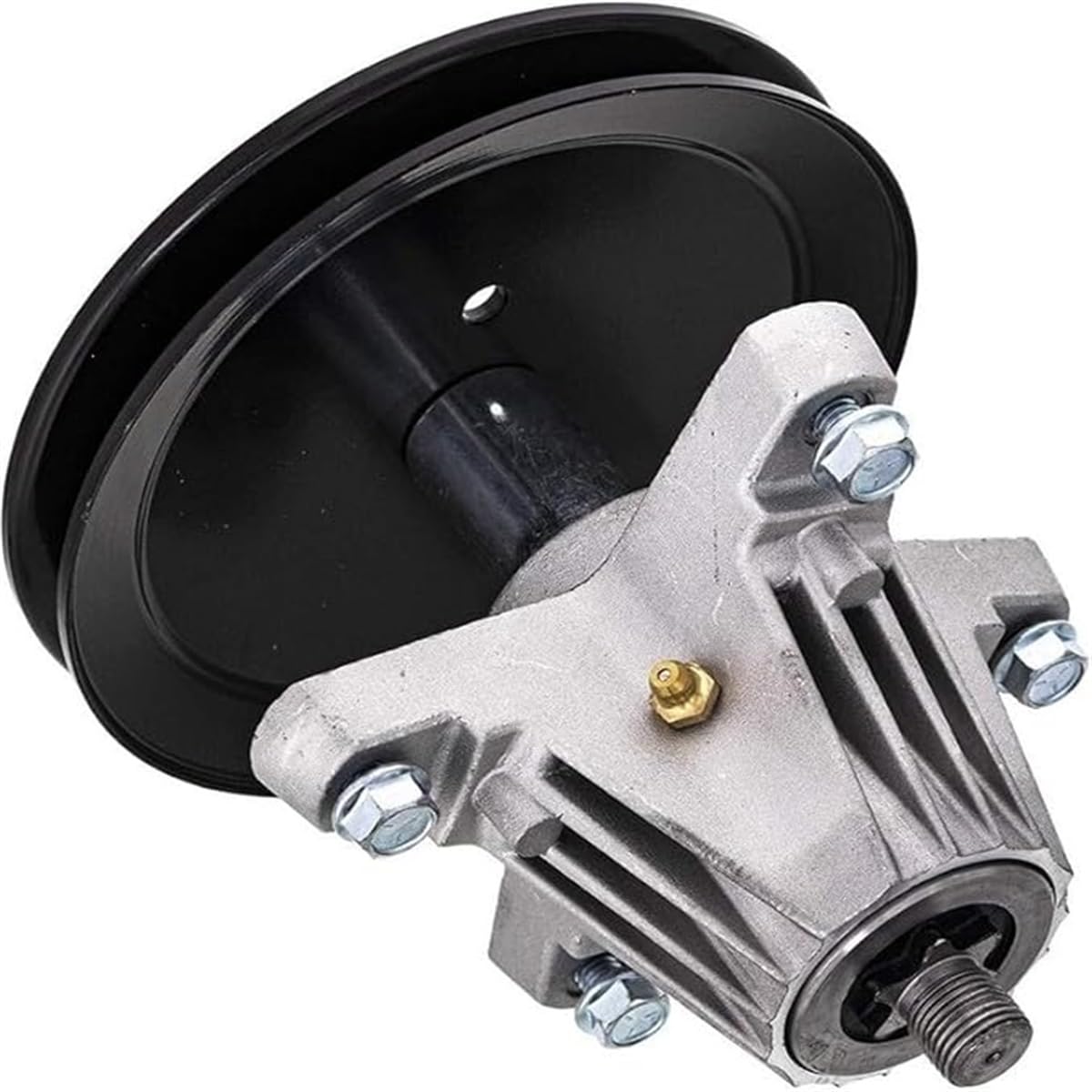

   Слика 1: The replacement spindle with key dimensions. The overall height is approximately 6-7/8 inches (174.62 mm) and the pulley diameter is approximately 6-1/4 inches (158.75 mm). This image helps confirm the physical size of the part.
7. Reinstall Pulley:

   Place the pulley back onto the new spindle shaft and secure it with the nut. Tighten to manufacturer specifications.

8. Reinstall Mower Blades:

   Reattach the mower blades, ensuring they are oriented correctly. Tighten blade bolts to the specified torque. Incorrectly installed or loose blades can cause vibration and damage.

9. Reattach Mower Deck (if removed):

   If the deck was removed, reattach it to the tractor according to your mower's manual.
10. Коначна провера:

    Reconnect the spark plug wire or battery cable. Test the mower in a safe, open area to ensure proper operation and no unusual noises or vibrations.

Оперативна разматрања

After spindle replacement, observe the mower's performance during operation.

• Вибрација: Excessive vibration may indicate an improperly installed blade or spindle, or an unbalanced blade. Stop operation immediately and inspect.
• бука: Unusual grinding or squealing noises could suggest issues with the spindle bearings or pulley alignment.
• Cut Quality: A poor cut quality might be due to dull blades or incorrect blade installation.

Одржавање

Proper maintenance extends the life of your spindle and ensures optimal mower performance.

• Редовна инспекција: Periodically inspect the spindle for signs of wear, damage, or looseness. Check for excessive play in the shaft.
• Чишћење: Keep the area around the spindle free of grass clippings and debris, which can cause overheating or interfere with operation.
• подмазивање: This spindle is typically sealed and does not require lubrication. Do not attempt to grease sealed bearings unless specifically instructed by the manufacturer.
• Одржавање сечива: Ensure blades are sharp and balanced. Dull or unbalanced blades put extra strain on the spindle bearings.

Решавање проблема

Спецификације

• Број дела: РИВ1306
• Број модела ставке: АХЦ1306
• Произвођач: АХЦ
• Материјал: Plastic (Note: Product image suggests metal housing, this might be a discrepancy in provided data. Assume the primary structural material is metal as per typical spindle construction, with some plastic components possible.)
• Боја: Black (Pulley) / Silver (Housing)
• Тежина артикла: 1 фунти
• Димензије производа: 1 x 1 x 1 inches (Note: This appears to be a placeholder. Refer to Image 1 for actual dimensions.)
• Укупна висина: Approximately 6-7/8 inches (174.62 mm)
• Пречник ременице: Approximately 6-1/4 inches (158.75 mm)

Note: Dimensions provided are approximate and for reference only. Always verify compatibility with your specific mower model.

Информације о гаранцији

Овај производ долази са а 1 година гаранције from the manufacturer. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, misuse, neglect, accidents, or unauthorized modifications.

For warranty claims or further details, please contact the seller or manufacturer directly.

Корисничка подршка

If you encounter any issues or have questions regarding the installation or operation of this replacement spindle, please contact your retailer or the manufacturer for assistance.

When contacting support, please have your product model number (AHC1306) and purchase information readily available.
