1. Увод
Thank you for choosing the JOROTO JH30PRO Recumbent Exercise Bike. This manual provides essential information for the safe and effective assembly, operation, and maintenance of your new fitness equipment. Please read all instructions carefully before use and retain this manual for future reference.
Важне информације о безбедности
- Консултујте се са својим лекаром пре него што започнете било који програм вежбања.
- Држите децу и кућне љубимце подаље од опреме током употребе.
- Поставите бицикл за вежбање на равну, стабилну површину.
- Пре сваке употребе уверите се да су сви вијци и навртке чврсто затегнути.
- Носите одговарајућу одећу и обућу за вежбање.
- Одмах престаните са вежбањем ако осетите слабост, вртоглавицу или бол.
- Максимална носивост корисника: 136 кг (300 лбс).
Image: The JOROTO JH30PRO Recumbent Exercise Bike in a home environment, highlighting its design for comfort and spinal support.
2. Карактеристике производа
- Ергономски дизајн: Supports spinal alignment, minimizes ankle and knee strain.
- Magnetic Resistance System: 16 levels of smooth, quiet resistance.
- Тиха операција: Belt drive mechanism ensures operation below 15dB.
- Конструкција за тешке услове рада: Reinforced steel frame supports up to 136 kg (300 lbs).
- Подесиво седиште: 7-position, tool-free height adjustment (18 cm range) for users 150-195 cm (59-77 inches).
- Блуетоотх повезивање: Compatible with Kinomap app for interactive training.
- ЛЦД екран: Backlit screen shows speed, distance, time, calories, and more.
- Погодне карактеристике: iPad holder, adjustable pedals, bottle holder, transport wheels.

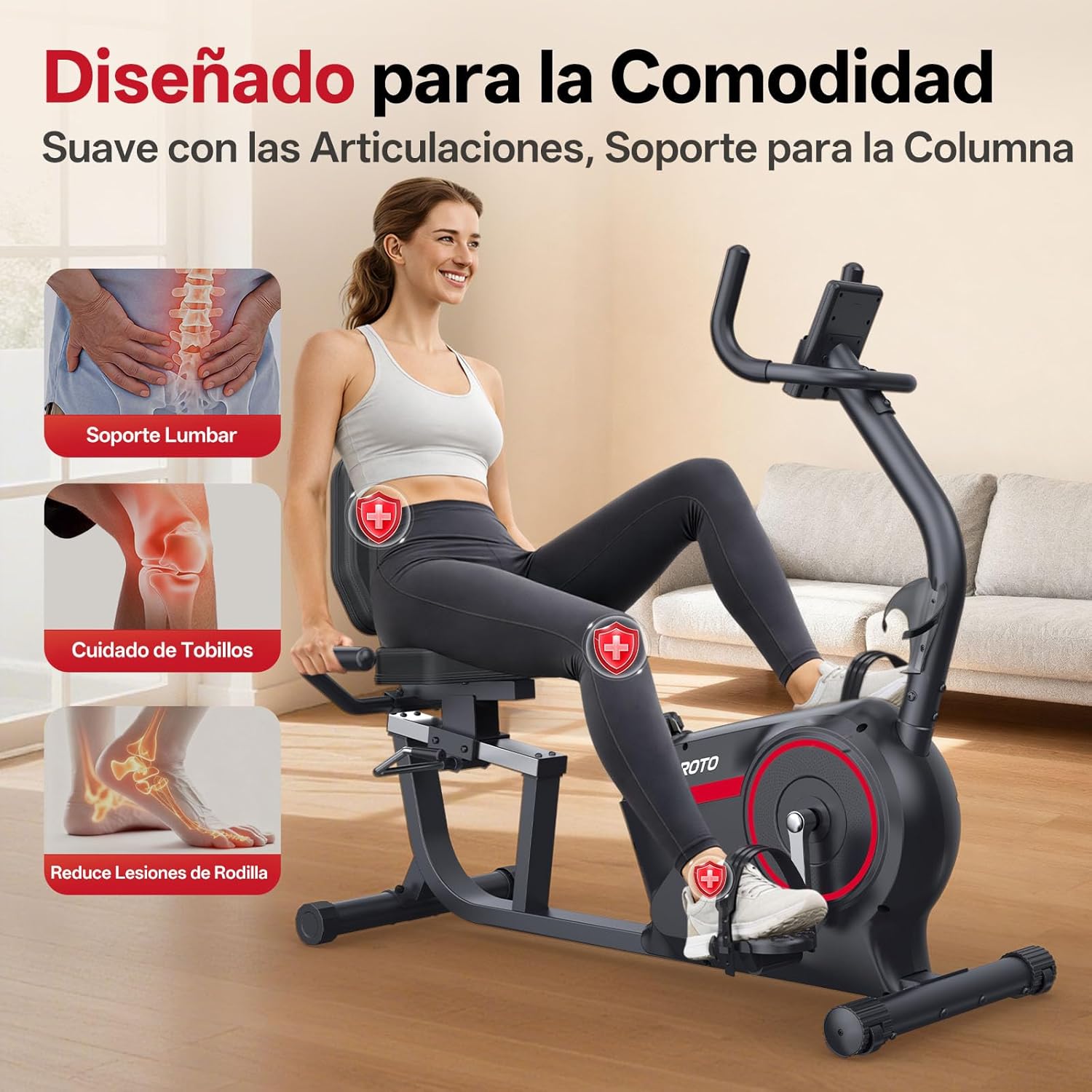

Image: Visual representation of the ergonomic design, showing lumbar support, ankle care, and knee injury reduction features.
Image: Diagram illustrating the magnetic belt drive system, highlighting constant power, smooth operation, and silent performance with a 3.3 kg (7.3 lbs) flywheel.
Image: Close-up of the resistance control knob, showing 16 levels of magnetic resistance suitable for various fitness levels, from gentle pedaling to intense training.

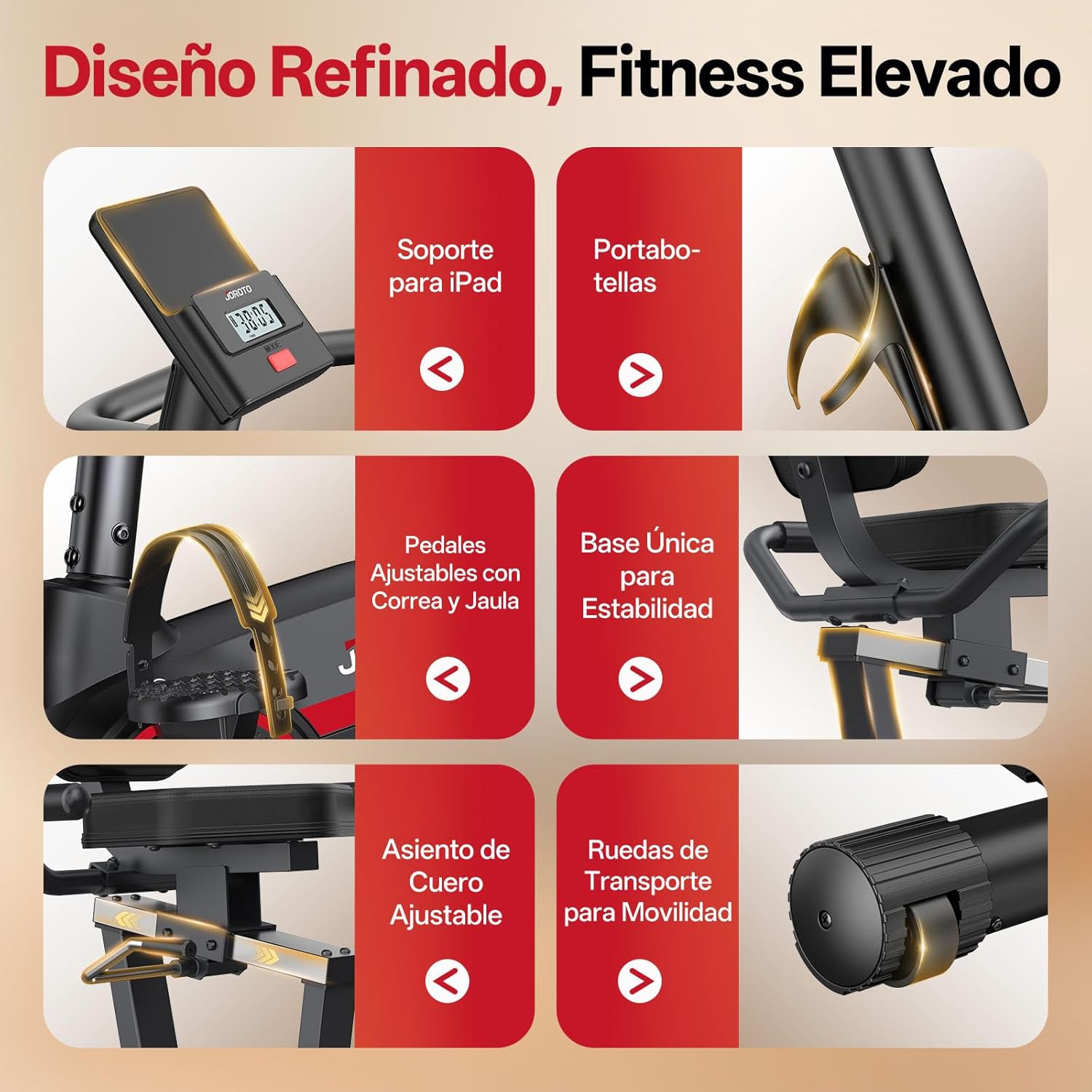

Слика: Прекоview of refined features including iPad holder, bottle holder, adjustable pedals, stable base, adjustable leather seat, and transport wheels.
3. Упутство за монтажу
Follow these steps to assemble your JOROTO JH30PRO Recumbent Exercise Bike. It is recommended to have two people for assembly.
- Распакујте компоненте: Carefully remove all parts from the packaging. Check against the parts list (not provided in this manual, refer to your product box) to ensure all components are present.
- Причврстите стабилизаторе: Причврстите предње и задње стабилизаторе за главни оквир помоћу приложених вијака и подлошки. Уверите се да су чврсто затегнути.
- Инсталирајте педале: Note that the left pedal (L) screws counter-clockwise and the right pedal (R) screws clockwise. Attach them firmly to the crank arms.
- Састављање седишта и наслона: Attach the backrest to the seat frame, then secure the assembled seat to the main frame's adjustable rail.
- Mount Handlebars and Console: Attach the handlebars to the upright post. Connect the console wires and then mount the console onto the handlebar post.
- Завршне провере: Before first use, double-check all connections, bolts, and nuts to ensure they are secure.
Image: Visual guide showing various stages of assembly and key components of the exercise bike.
Image: Depiction of the bike's transport wheels and a partially assembled unit, illustrating ease of movement and quick setup.
4. Упутство за употребу
Подешавање седишта
To adjust the seat position, locate the adjustment knob beneath the seat. Pull the knob outwards, slide the seat to your desired position, and release the knob to lock it in place. Ensure the seat is securely locked before use. The bike offers 7 levels of adjustment, accommodating users from 150 cm to 195 cm (59 to 77 inches).
Image: Diagram showing product dimensions and the 7-position seat adjustment mechanism, indicating an 18 cm (7 inches) adjustable height range.
Image: Close-up of the seat adjustment mechanism, highlighting precision adjustment, secure locking, and ergonomic support.
Подешавање отпора
The JOROTO JH30PRO features 16 levels of magnetic resistance. Turn the tension control knob located on the main frame clockwise to increase resistance and counter-clockwise to decrease it. Start with a lower resistance level and gradually increase as your fitness improves.
Using the LCD Console
The backlit LCD console displays key workout metrics:
- СКЕНИРАЈ: Cycles through all metrics.
- ВРЕМЕ: Трајање вашег тренинга.
- БРЗИНА: Тренутна брзина.
- ДИСТ: Distance covered.
- ОДО: Укупна акумулирана удаљеност.
- ЦАЛ: Calories burned.
Press the "MODE" button to select a specific display mode or to reset values (hold for a few seconds).

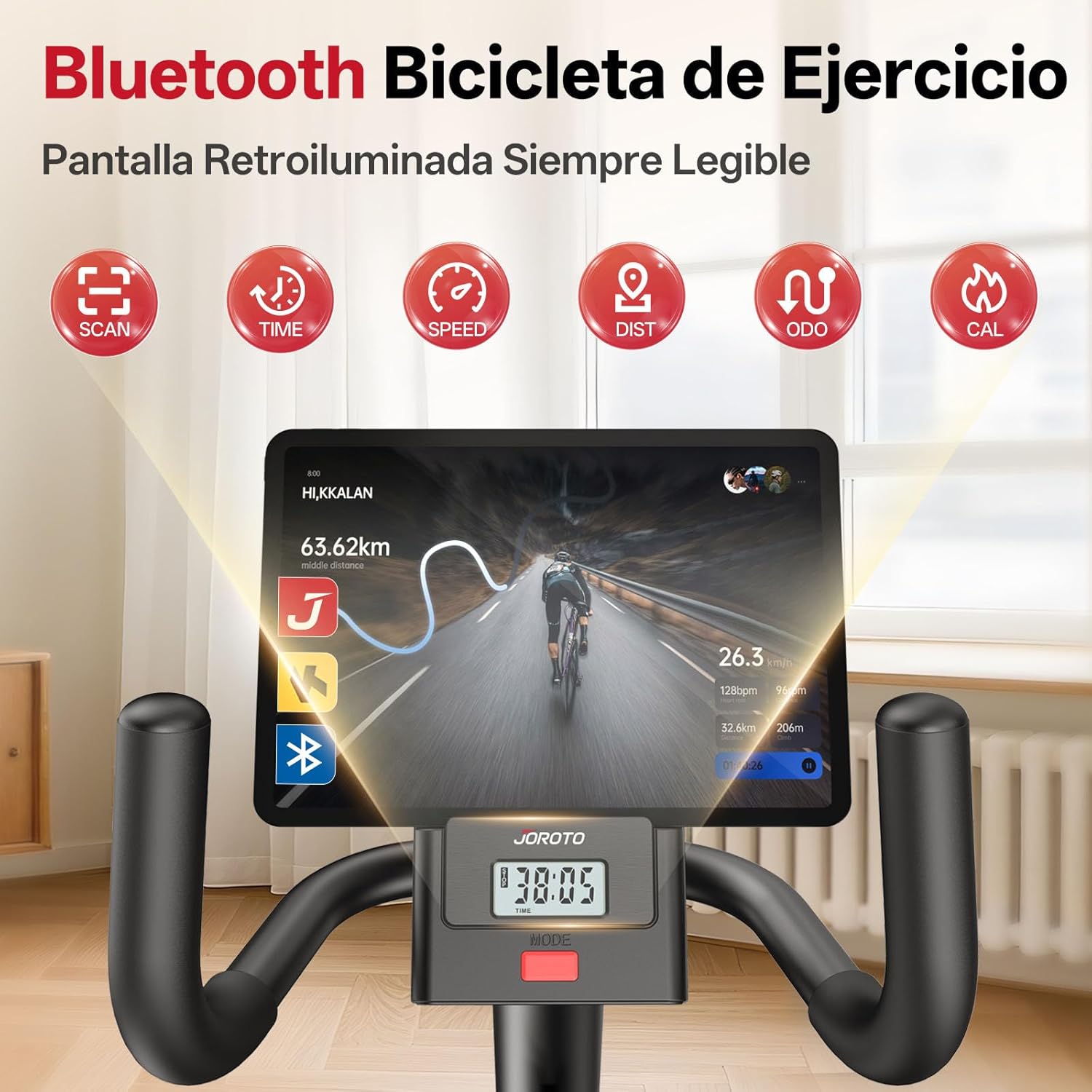

Image: The exercise bike's console showing a backlit display with various metrics and icons for Bluetooth connectivity, indicating compatibility with fitness apps like Kinomap.
Bluetooth Connectivity (Kinomap App)
Your JOROTO JH30PRO bike is equipped with Bluetooth for interactive training. Download the Kinomap app on your smartphone or tablet. Enable Bluetooth on your device and within the Kinomap app, search for and connect to your exercise bike. This allows for real-time data tracking and immersive workout experiences.
Image: A user exercising on the JOROTO JH30PRO bike while viewing the Kinomap app on a large screen, demonstrating Bluetooth integration for interactive workouts.
5. Одржавање
Редовно одржавање осигурава дуготрајност и оптималне перформансе вашег собног бицикла.
- Чишћење: Обришите бицикл огласомamp крпом након сваке употребе да бисте уклонили зној и прашину. Избегавајте абразивна средства за чишћење или раствараче.
- инспекција: Периодично проверавајте све вијке, навртке и покретне делове да ли су затегнути и истрошени. Затегните све лабаве причвршћиваче.
- подмазивање: The magnetic resistance system is generally maintenance-free. If you notice any squeaking from moving parts, apply a small amount of silicone-based lubricant.
- Складиштење: Чувајте бицикл на сувом и хладном месту, даље од директне сунчеве светлости и екстремних температура.
КСНУМКС. Решавање проблема
| Проблем | Могући узрок | Решење |
|---|---|---|
| Бицикл је нестабилан или се клима. | Uneven surface; loose stabilizers. | Ensure the bike is on a flat surface. Check and tighten all bolts on the front and rear stabilizers. |
| Pedals are difficult to turn or make noise. | Resistance set too high; loose pedals; internal mechanism issue. | Decrease resistance. Check if pedals are securely tightened (remember left pedal is reverse thread). If noise persists, contact customer support. |
| LCD console not displaying. | Batteries are dead or incorrectly installed; loose cable connection. | Replace batteries (usually AA). Check all cable connections to the console. |
| Блутут се не повезује. | Bluetooth not enabled on device; app issues; bike not discoverable. | Ensure Bluetooth is active on your device. Restart the Kinomap app. Try restarting the bike (remove/reinsert console batteries). Ensure no other devices are connected to the bike. |
7. Спецификације
- Модел: JH30PRO
- Димензије (Д к Ш к В): 134 цм к 62.6 цм к 103 цм (52.8 ин к 24.6 ин к 40.6 ин)
- Тежина производа: 26.5 кг (58.4 лбс)
- Максимална тежина корисника: 136 кг (300 лбс)
- Систем отпора: Магнетиц
- Нивои отпора: 16
- Систем погона: Појас
- Тежина замајца: 3.3 кг (7.3 лбс)
- Подешавање седишта: 7 positions, 18 cm (7 inches) height adjustable
- Повезивање: Блутут (компатибилан са Киномапом)
- Извор напајања: Pedal-powered (non-electric for main function, console uses batteries)
- Материјал: Reinforced Steel, Metal
Image: The robust JOROTO JH30PRO Recumbent Exercise Bike, emphasizing its 136 kg (300 lbs) maximum weight capacity.
8. Гаранција и подршка
JOROTO stands by the quality of its products. Your JH30PRO Recumbent Exercise Bike comes with a manufacturer's warranty and lifetime customer support.
- Гаранција произвођача: 2 године.
- Корисничка подршка: Lifetime assistance for any questions or issues.
For warranty claims, technical assistance, or any inquiries, please contact JOROTO customer service. Refer to the contact information provided with your purchase or visit the official JOROTO webсајту.
JOROTO Sport & Fitness
(Specific contact details like email or phone number are typically found on the product packaging or official webсајт.)
