SPORTNOW Seated Arm and Leg Pedal Exerciser

1. Увод и крајview

The SPORTNOW Seated Arm and Leg Pedal Exerciser (Model A90-396V00WT) is designed to provide a low-impact workout for both upper and lower body. It is suitable for rehabilitation, improving circulation, and maintaining fitness, particularly for seniors. This manual provides essential information for safe and effective use.

Figure 1: User operating the SPORTNOW pedal exerciser.

2. Безбедносне информације

Please read all instructions carefully before using the exerciser. Keep this manual for future reference.

• Consult a physician before starting any exercise program, especially if you have pre-existing medical conditions.
• Ensure the exerciser is placed on a stable, flat surface.
• Држите децу и кућне љубимце подаље од опреме током употребе.
• Check all parts for wear or damage before each use. Do not use if any part is damaged.
• Do not stand on the exerciser. It is designed for seated use only.
• Wear appropriate footwear to ensure a secure grip on the pedals.
• Adjust resistance gradually to avoid strain.

Figure 2: Secure pedal straps and non-slip feet for enhanced safety.

3. Садржај пакета

Verify that all components are present before assembly. If any parts are missing or damaged, contact customer service.

• Скупштина главног оквира
• Pedals with Straps (2)
• Хандлебар Ассембли
• ЛЦД дисплеј
• Дугмад/иглице за подешавање
• Алати за склапање (ако је потребно)
• Упутство за употребу

4. Упутство за монтажу

Follow these steps to assemble your pedal exerciser. It is recommended to have a clear, flat workspace.

1. Unpack all components and lay them out.
2. Attach the pedals to the main frame, ensuring they are securely tightened. Note that some pedals may be marked 'L' for left and 'R' for right.
3. Insert the handlebar assembly into the main frame's vertical post. Secure it using the provided adjustment knob/pin.
4. Mount the LCD display unit onto the designated slot on the handlebar or main frame, connecting any necessary cables.
5. Ensure all connections are tight and the unit is stable before use.

5. Подешавање и подешавања

Proper setup ensures comfort and effectiveness during your workout.

5.1. Подешавање висине

The exerciser's height can be adjusted from 86 cm to 91 cm to suit your preference and the height of your chair or sofa.

• Loosen the height adjustment knob/pin on the vertical post.
• Raise or lower the handlebar to the desired height.
• Securely tighten the adjustment knob/pin to lock the height in place.

Figure 3: Adjusting the exerciser's height for optimal comfort.

5.2. Подешавање отпора

The progressive resistance control allows you to vary the intensity of your workout.

• Locate the resistance knob, typically found near the pedals or handlebars.
• Turn the knob clockwise to increase resistance for a more challenging workout.
• Turn the knob counter-clockwise to decrease resistance for lighter exercise.
• Start with low resistance and gradually increase as your strength improves.

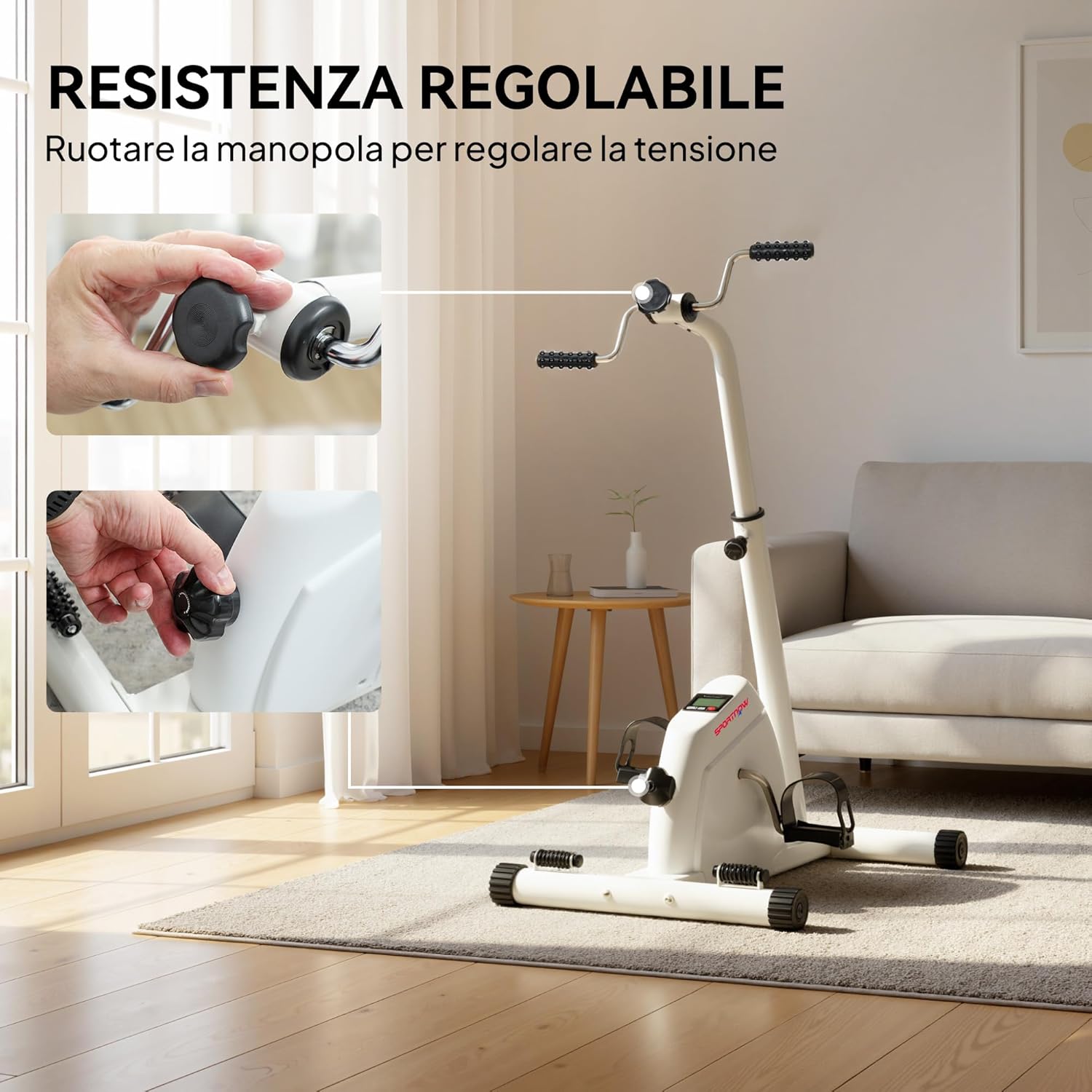

Figure 4: Resistance adjustment knobs for customized workout intensity.

6. Упутство за употребу

This section details how to use your SPORTNOW pedal exerciser for effective arm and leg workouts.

6.1. Коришћење ЛЦД екрана

The integrated LCD display helps you track your progress and stay motivated.

• The display automatically turns on when you start pedaling.
• Press the button to cycle through different metrics: Time, Distance, Count (revolutions), and Calories burned.
• To reset the values, press and hold the button for a few seconds.
• The display is powered by 1 AAA battery (not included). Replace when the display becomes dim.

Figure 5: LCD display showing workout metrics.

6.2. Arm Exercise

To exercise your arms, place the exerciser on a stable surface in front of you, such as a table. Grip the handlebars and rotate them in a circular motion.

• Ensure the exerciser is stable and does not move during use.
• Adjust the height of the handlebars to a comfortable position.
• Begin rotating the handlebars slowly, gradually increasing speed and resistance as desired.

6.3. Leg Exercise

For leg exercise, place the exerciser on the floor in front of your chair or sofa. Place your feet into the pedal straps.

• Sit comfortably with your back supported.
• Adjust the pedal straps to secure your feet.
• Почните да педалирате глатким, контролисаним покретом.
• Adjust resistance as needed.

6.4. Dual Massage Feature

The exerciser features integrated massaging particles on both the handlebars and pedals.

• These particles provide a gentle massage during your workout, which can help stimulate circulation.
• For foot massage, simply place your bare feet on the massaging pedals and gently move them back and forth.

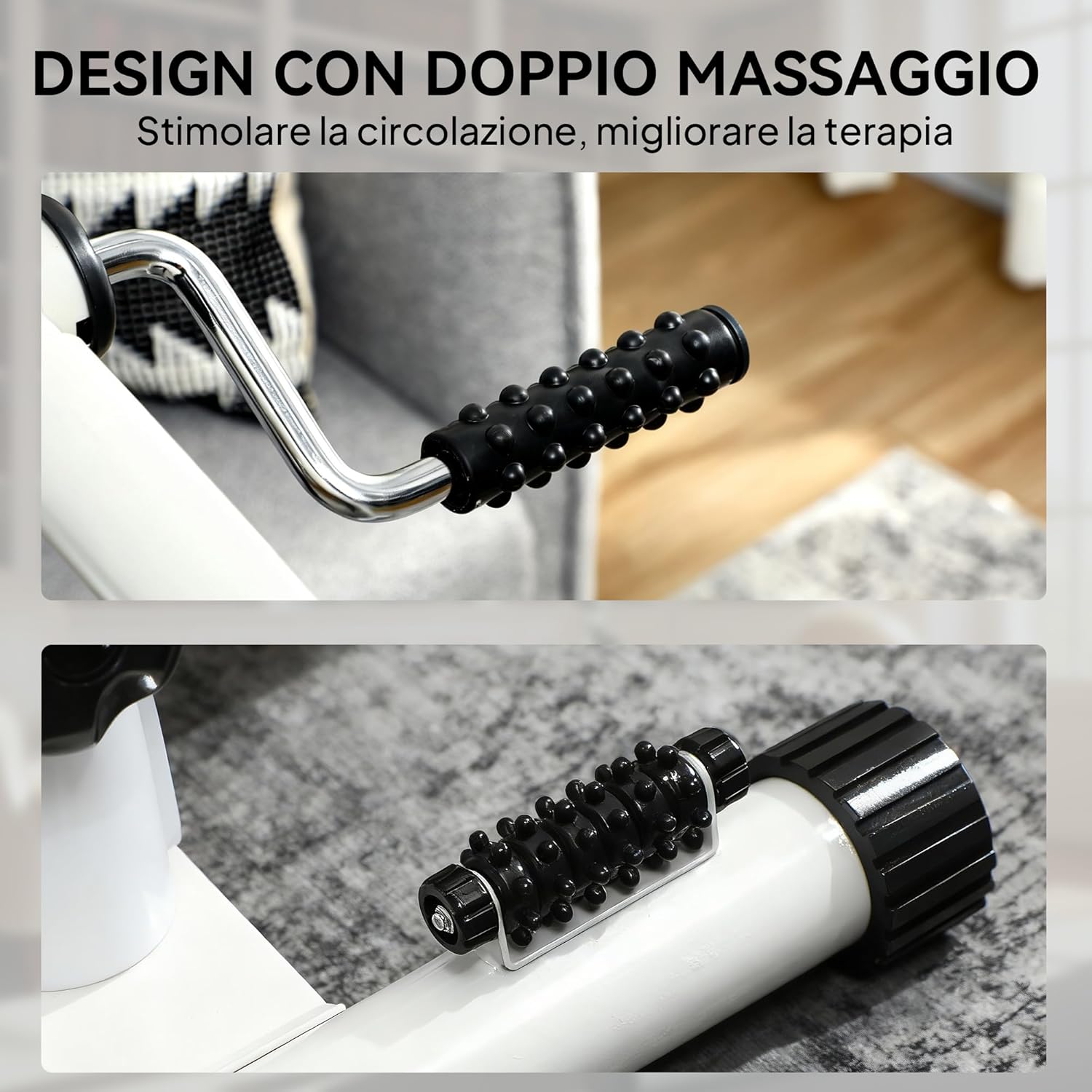

Figure 6: Integrated massaging grips on handlebars and pedals.

7. Одржавање

Regular maintenance will prolong the life of your exerciser.

• Чишћење: Обришите вежбач огласомamp крпом након сваке употребе да бисте уклонили зној и прашину. Не користите абразивна средства за чишћење.
• инспекција: Periodically check all nuts, bolts, and moving parts to ensure they are secure and functioning correctly. Tighten any loose fasteners.
• Складиштење: Чувајте тренирач на хладном и сувом месту, даље од директне сунчеве светлости и екстремних температура.

КСНУМКС. Решавање проблема

Ако наиђете на било какве проблеме, погледајте следеће уобичајене проблеме и решења.

• Шкрипави звук: Check for loose parts and tighten them. Apply a small amount of silicone-based lubricant to moving joints if necessary.
• Дисплеј не ради: Ensure the AAA battery is correctly installed and has sufficient charge. Replace the battery if needed.
• Отпор се не мења: Verify that the resistance knob is properly engaged and turning freely. Check for any obstructions.
• Јединица се осећа нестабилно: Ensure the exerciser is on a flat, level surface and all feet are making full contact. Check that all assembly bolts are tightened.

Ако проблеми и даље постоје, контактирајте корисничку подршку.

9. Спецификације

Слика 7: Димензије производа.

10. Видео снимци производа

The following videos demonstrate the use and features of similar pedal exercisers. Please note that the exact product model may vary from the one shown in the videos, but the functionality is comparable.

11. Гаранција и подршка

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official SPORTNOW webсајт. Сачувајте доказ о куповини за евентуалне рекламације по гаранцији.
