toocki 80W GaN 6-Port Charging Station User Manual

1. Увод

Thank you for choosing the toocki 80W GaN 6-Port Charging Station. This device is designed to provide a versatile and efficient charging solution for multiple electronic devices simultaneously. Featuring GaN technology, a retractable cable, and multiple charging ports, it offers a compact and powerful charging experience. Please read this manual carefully before use to ensure proper operation and safety.

2. Производ је готовview

The toocki 80W GaN 6-Port Charging Station combines multiple charging functionalities into a single, compact unit. It features both wired and wireless charging options, making it suitable for a wide range of devices.

Кључне карактеристике:

• Укупна снага 80В: Пружа до 80W снаге за ефикасно пуњење.
• ГаН технологија: Utilizes Gallium Nitride (GaN) for improved charging efficiency, compact size, and optimized heat dissipation.
• 6-in-1 Charging Solution: Includes 3 wireless charging points (Mag-Safe compatible for iPhone, Apple Watch, AirPods), 1 USB-C port (65W max), 1 USB-A port (18W max), and 1 retractable USB-C cable (60W max).
• Увлачиви USB-C кабл: A built-in 65cm retractable cable provides convenience and reduces clutter.
• Magnetic Phone Stand: The magnetic charging plate can be tilted up to 65° and rotates 360°, serving as a phone stand during charging.
• Свеобухватна безбедносна заштита: Equipped with Thermal Guard system and multiple protections against over-current, over-voltage, short-circuit, over-power, over-charge, temperature, flame retardant, and foreign object detection.
• Portable and Foldable Design: Compact and easy to carry, ideal for travel and desktop use.

Figure 2.1: The toocki 80W GaN 6-Port Charging Station, showcasing its compact design and multiple charging interfaces.

Figure 2.2: Diagram illustrating the 6-in-1 charging capabilities, including wireless pads, USB-C, USB-A, and retractable cable.

3. Упутства за подешавање

1. Распакујте уређај: Carefully remove the charging station and any included accessories from the packaging.
2. Повежите се са напајањем: Plug the charging station's power cable into a standard wall outlet (120V input).
3. Индикатор напајања: A power indicator light will illuminate, confirming the device is ready for use.
4. Позиционирање: Place the charging station on a stable, flat surface. Ensure adequate ventilation around the device.

Слика 3.1: Крупни план view of the charging station's details, including the power indicator light and non-slip base.

4. Упутство за употребу

4.1 Бежично пуњење

• For Smartphones (Mag-Safe compatible): Place your Mag-Safe compatible iPhone onto the magnetic charging plate. The phone will snap into place and begin charging at up to 15W. The plate can be adjusted for viewing angles (up to 65° tilt, 360° rotation).
• За Аппле Ватцх: Extend the dedicated Apple Watch charging module by gently pushing it out from the side of the station. Place your Apple Watch onto the module. It will charge at up to 2.5W.
• За АирПодс: Open the top cover of the charging station and place your AirPods (with wireless charging case) into the designated slot. It will charge at up to 5W.

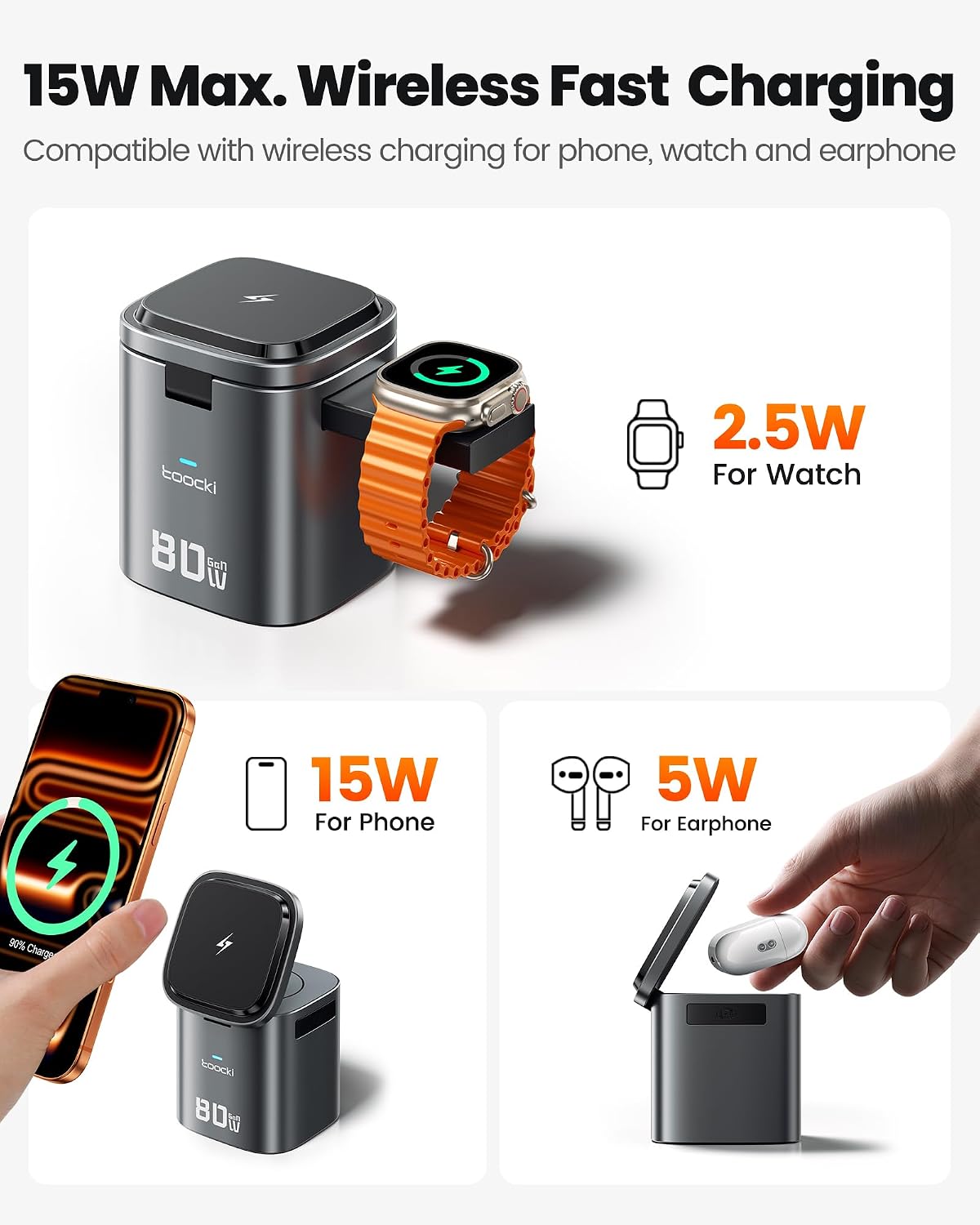

Figure 4.1: Demonstrates wireless charging for a smartphone (15W), Apple Watch (2.5W), and AirPods (5W).

Figure 4.2: The magnetic charging plate offers adjustable angles and 360-degree rotation for optimal viewинг.

4.2 Жично пуњење

• USB-C Port (65W Max): Connect your USB-C compatible device (e.g., laptop, tablet, smartphone) to the USB-C output port using a suitable cable. This port supports Power Delivery (PD) for fast charging.
• USB-A Port (18W Max): Connect your USB-A compatible device to the USB-A output port. This port supports Quick Charge (QC) for fast charging.
• Retractable USB-C Cable (60W Max): Pull out the integrated USB-C cable to the desired length (up to 65cm). Connect it to your USB-C device. The cable retracts automatically when not in use, keeping your desk tidy.

Figure 4.3: The charging station powering a laptop, smartphone, and AirPods simultaneously.

Figure 4.4: The retractable USB-C cable extended, showing its maximum length of 65cm.

4.3 Истовремено пуњење

The charging station is designed to charge multiple devices concurrently. For optimal fast charging of two devices, use the combination of the retractable USB-C cable and the dedicated USB-C port. The total power output is dynamically distributed among connected devices.

Figure 4.5: A user utilizing the charging station to power a laptop, tablet, and smartphone simultaneously in an office environment.

5. Одржавање

• Чишћење: Disconnect the power before cleaning. Use a soft, dry cloth to wipe the surface of the charging station. Do not use liquid cleaners or aerosols.
• Складиштење: When not in use, store the charging station in a cool, dry place away from direct sunlight and extreme temperatures. Ensure the retractable cable is fully retracted.
• Избегавајте препреке: Не блокирајте вентилационе отворе уређаја.

6. Безбедносне информације

To ensure safe operation and prevent damage to the device or connected electronics, please observe the following safety guidelines:

• Не излажите уређај води, влази или екстремним температурама.
• Избегавајте испуштање или излагање уређаја јаким ударима.
• Do not attempt to disassemble, repair, or modify the charging station. This will void the warranty and may cause safety hazards.
• Користите само приложени кабл за напајање.
• Држите уређај ван домашаја деце.
• Обезбедите одговарајућу вентилацију како бисте спречили прегревање.
• The device incorporates multiple safety features, including over-current, over-voltage, short-circuit, over-power, over-charge, temperature, flame retardant, and foreign object detection.

Figure 6.1: Visual representation of the various safety protections integrated into the GaN technology of the charging station.

КСНУМКС. Решавање проблема

8. Спецификације

9. Гаранција и подршка

For warranty information, technical support, or customer service inquiries, please refer to the official toocki webсајт или контактирајте продавца. Сачувајте рачун за куповину за потребе гаранције.

Note: Information regarding spare parts availability and software updates is not provided by the manufacturer at this time.
