ETEK RCBO Type A 1P+N Residual Automatic Circuit Breaker EKL13-63 User Manual

1. Увод

This manual provides essential information for the safe and effective installation, operation, and maintenance of the ETEK RCBO Type A 1P+N Residual Automatic Circuit Breaker, model EKL13-63. This device combines residual current protection with overcurrent protection, offering comprehensive electrical safety. Please read this manual thoroughly before installation and use.

2. Безбедносне информације

УПОЗОРЕЊЕ: Electrical work should only be performed by qualified and authorized personnel. Failure to follow these instructions can result in serious injury or death.

• Always disconnect power at the main supply before installing, servicing, or removing the device.
• Уверите се да су сви прикључци ожичења безбедни и да су у складу са локалним и националним електричним прописима.
• Немојте користити уређај ако се чини да је оштећен.
• The RCBO must be installed in an appropriate enclosure to prevent access to live parts.
• Regularly test the device as instructed in the maintenance section.

3. Производ је готовview

The ETEK RCBO Type A EKL13-63 is a compact 1P+N residual current circuit breaker with overcurrent protection (RCBO). It is designed for DIN rail mounting in electrical distribution systems. This device provides protection against earth leakage faults (Type A, 30mA sensitivity) and overloads or short circuits (6kA breaking capacity).

Слика 3.1: Опште view of the ETEK RCBO Type A 1P+N Residual Automatic Circuit Breaker EKL13-63.

Кључне карактеристике:

• Combined Protection: Integrates residual current protection (earth leakage) and overcurrent protection (overload and short circuit) in a single device.
• Висока осетљивост: Features 30mA leakage protection to quickly disconnect circuits upon detecting dangerous residual currents, minimizing electric shock risks.
• Прекидни капацитет: Rated with a 6kA breaking capacity to safely interrupt fault currents.
• Type A Protection: Suitable for circuits that may produce Type A residual currents, which include sinusoidal AC currents and pulsating DC currents.
• Компактан дизајн: 19mm width RCBO module for space-efficient panel installation.
• Монтирање на DIN шину: Designed for easy installation in standard electrical distribution systems.

Figure 3.2: Labeled components of the ETEK RCBO EKL13-63, showing the product handle, test button, product wiring diagram, and CE certification mark.

4. Спецификације

The following table outlines the technical specifications for the ETEK RCBO Type A EKL13-63:

Figure 4.1: Detailed technical specifications and dimensions for the ETEK RCBO EKL13-63.

5. Подешавање и инсталација

ВАЖНО: Installation must be carried out by a qualified electrician in accordance with all applicable national and local wiring regulations.

1. Искључивање струје: Before commencing any work, ensure the main power supply to the electrical panel is completely disconnected and locked out to prevent accidental re-energization. Verify with a voltagе тестер.
2. Монтажа: The EKL13-63 RCBO is designed for DIN rail mounting. Snap the device onto the standard 35mm DIN rail within the electrical distribution board.
3. Ожичење:
   • Connect the incoming live (L) and neutral (N) conductors to the top terminals of the RCBO.
   • Connect the outgoing live (L') and neutral (N') conductors to the bottom terminals of the RCBO, leading to the protected circuit.
   • Ensure all connections are tight and secure to prevent loose contacts, which can cause overheating or arcing.
4. Верификација: Double-check all wiring for correctness and security. Ensure no bare wires are exposed.
5. Прилог: Close the electrical distribution board cover securely.
6. Обнова напајања: Вратите напајање на главно напајање.

6. Упутство за употребу

The EKL13-63 RCBO operates automatically to protect against electrical faults. Manual operation is primarily for switching the circuit on or off and for testing.

• Укључивање: Померите ручицу за управљање нагоре у положај „УКЉУЧЕНО“.
• Искључивање: Потисните ручицу за управљање надоле у ​​положај „ИСКЉУЧЕНО“.
• Спотицање: In the event of an overload, short circuit, or earth leakage fault, the RCBO will automatically trip, moving the handle to the 'OFF' or intermediate position. To reset, first identify and rectify the fault, then push the handle fully down to 'OFF' (if it's in an intermediate position) and then upwards to 'ON'.

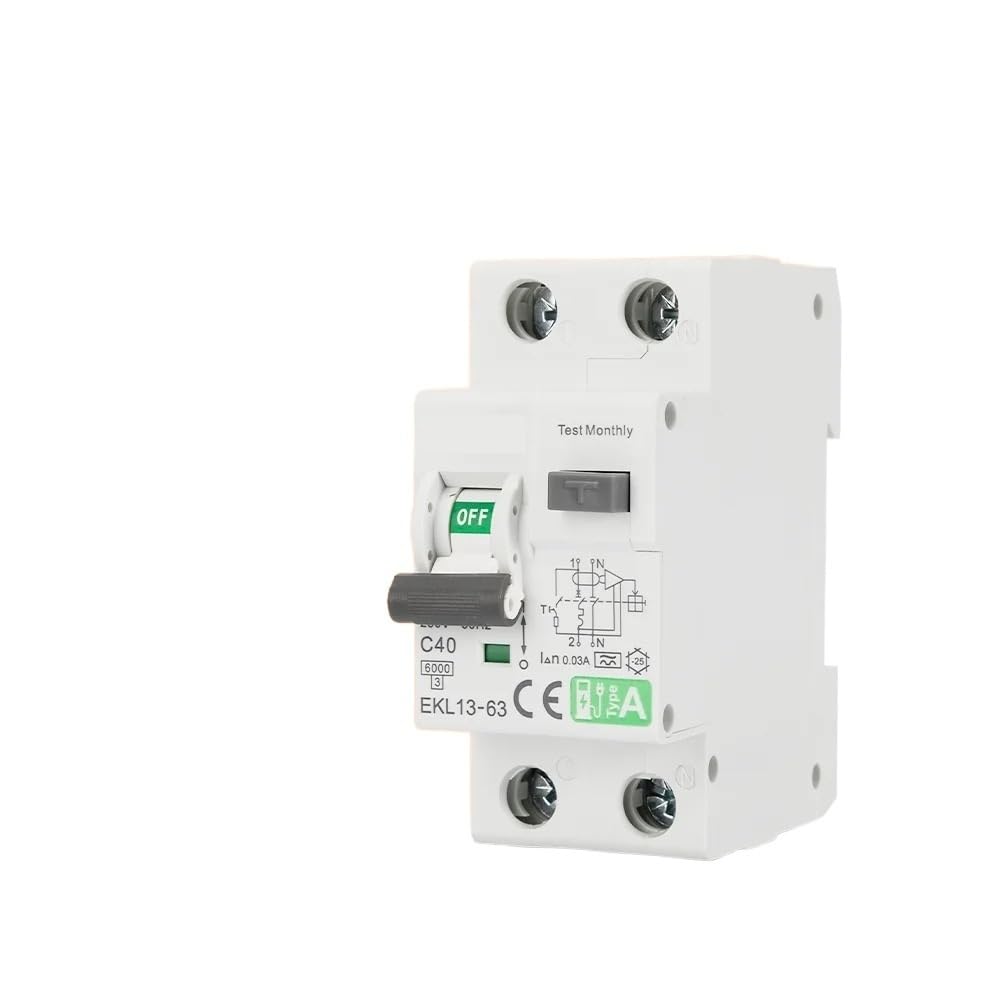

Figure 6.1: The ETEK RCBO EKL13-63 showing the 'Test Monthly' button. Pressing this button simulates an earth leakage fault to verify proper operation.

7. Одржавање

Regular testing is crucial to ensure the continued proper functioning of the RCBO's residual current protection mechanism.

• Месечни тест: Press the 'Test Monthly' button (marked 'T' or 'Test') on the front of the RCBO. The device should trip immediately, moving the handle to the 'OFF' position.
• Reset After Test: After the test, reset the RCBO by pushing the handle fully down to 'OFF' and then upwards to 'ON'.
• If Test Fails: If the RCBO does not trip when the test button is pressed, it indicates a malfunction. The device must be replaced immediately by a qualified electrician. Do not rely on a faulty RCBO for protection.
• Чишћење: Keep the device clean and free from dust. Use a dry, soft cloth for cleaning. Do not use liquids or abrasive cleaners.

КСНУМКС. Решавање проблема

If the RCBO trips frequently or fails to operate correctly, consider the following:

• Frequent Tripping (Overload/Short Circuit):
  • Check for overloaded circuits. Reduce the number of appliances or devices connected to the circuit.
  • Inspect wiring for short circuits (e.g., damaged insulation, loose connections).
  • Ensure the RCBO's current rating is appropriate for the circuit's load.
• Frequent Tripping (Earth Leakage):
  • Disconnect all appliances from the protected circuit. Reset the RCBO. If it holds, reconnect appliances one by one to identify the faulty appliance.
  • Inspect wiring for insulation damage or moisture ingress.
  • If the problem persists, consult a qualified electrician.
• RCBO Does Not Reset:
  • Ensure the fault has been cleared. The RCBO will not reset if the fault is still present.
  • If the fault is cleared and it still won't reset, the RCBO may be damaged and requires replacement.
• RCBO Does Not Trip During Monthly Test:
  • This indicates a malfunction of the residual current protection. The device must be replaced immediately.

For any issues not resolved by these steps, contact a qualified electrician or the manufacturer's support.

9. Гаранција и подршка

For warranty information, technical support, or service inquiries, please refer to the documentation provided at the point of purchase or contact the seller/manufacturer directly. Keep your purchase receipt as proof of purchase.
