1. Важна безбедносна упутства
Before operating the HUTT R10 Robot Window Cleaner, please read and understand all safety instructions. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Always attach the safety rope securely to a fixed object before placing the robot on any surface. The safety rope is rated for 220 kg.
- Ensure the power adapter is correctly connected and the cable is not tangled or obstructed during operation.
- The robot is equipped with a 30-minute emergency backup battery. In case of power loss, the robot will remain attached for this duration, allowing time for retrieval.
- Do not use the robot on broken glass or surfaces with significant cracks.
- Keep hands, hair, and loose clothing away from moving parts of the robot.
- Do not allow children or pets near the robot during operation.
- Use only the cleaning solution recommended by HUTT or plain water. Do not use corrosive or flammable liquids.
- Do not operate the robot in rainy or extremely humid conditions.
- Always remove the robot from the surface and disconnect power after use.
Image: The HUTT R10 features multi-layer safety protection, including a 30-minute emergency backup battery and a 6-meter safety rope rated for 220 kg, ensuring secure operation on elevated windows.
2. Производ је готовview
The HUTT R10 is an intelligent robot window cleaner designed for efficient and automated cleaning of various smooth surfaces. It features a hybrid wet/dry cleaning system, powerful suction, and smart navigation for comprehensive coverage.
Кључне карактеристике:
- Hybrid Wet/Dry Cleaning System: Utilizes both rotating wet scrub pads and dry wipe pads for thorough cleaning and streak-free results in a single pass.
- 7000 Pa Max Suction: Provides strong adhesion to surfaces, ensuring stability and effective cleaning.
- HydroJet Dual Spray: An 80ml visible water tank with a 120° wide-angle dual spray system ensures even moisture distribution for wet cleaning.
- NAVI 7.0 Navigation: Intelligent path planning for systematic and complete coverage, including automatic return.
- 3D Floating Chassis: Adapts to uneven surfaces and maintains stable adherence.
- Multi-Layer Safety: Includes a 30-minute emergency backup battery, 6m safety rope (220 kg rated), and 9 precision sensors for real-time protection.
Садржај пакета:
- HUTT R10 Robot Window Cleaner
- Ремоте Цонтрол
- Cleaning Pads (6 pcs: 3 Square + 3 Round)
- Повер Адаптер
- Флаша за воду
- Сафети Ропе
- Торбица за складиштење
- Кориснички приручник (овај документ)
Image: The complete HUTT R10 package, including the robot, remote control, cleaning pads, power adapter, water bottle, safety rope, and a convenient storage case.
Image: An exploded diagram illustrating the HUTT Hybrid Cleaning Chassis, featuring a 3D floating disc for deep scrubbing and a tread drive for effective dry wiping.
Image: The HydroJet 120° Wide-Angle Dual Spray system, with an 80ml visible tank, ensures even wet scrubbing by delivering a fine mist.
3. Подешавање
Follow these steps for the initial setup of your HUTT R10 Robot Window Cleaner.
- Причврстите јастучиће за чишћење: Secure the dry square pad to the front cleaning area and the round wet pad to the rotating disc at the rear of the robot. Ensure they are firmly attached.
- Напуните резервоар за воду: Open the water tank cap and fill the 80ml reservoir with clean water or a recommended window cleaning solution using the provided bottle. Close the cap securely.
- Повежите сигурносно уже: Attach one end of the safety rope to the designated carabiner point on the robot and the other end to a sturdy, fixed object (e.g., a window frame, railing) that can support the robot's weight.
- Прикључите напајање: Plug the power adapter into an electrical outlet and then connect the power cable to the robot's power input port. Ensure a secure connection.
- Place Robot: Place the robot firmly on the desired cleaning surface, ensuring it has full contact.
- Започните чишћење: Press the power button on the robot or the Start/Pause button on the remote control to begin the cleaning cycle.
Image: Visual guide for the setup process, showing how to attach cleaning pads, fill the water tank, connect the safety rope and power, and initiate cleaning.
4. Упутство за употребу
The HUTT R10 offers various cleaning modes and controls for optimal performance.
Функције даљинског управљача:
Image: The remote control for the HUTT R10, detailing buttons for manual movement, start/pause, water spray control, deep cleaning, spot cleaning, and mode selection.
- Manual Control (Arrows): Move the robot up, down, left, or right.
- Старт / Пауза: Begin or temporarily stop the cleaning cycle.
- Water Spray On/Off: Activate or deactivate the HydroJet dual spray.
- Дубинско прање: Initiates a more intensive cleaning cycle.
- Чишћење места: Targets a specific area for concentrated cleaning.
- Mode Switch (Standard/Deep): Toggles between standard and deep cleaning modes.
Начини чишћења:
- Z Shape Auto Cleaning: Standard automatic cleaning pattern.
- Дубинско прање: Performs two passes for enhanced cleaning.
- Чишћење места: Focuses on a targeted dirty area.
- Хемијско чишћење: За дamp or pre-sprayed glass, primarily for polishing and streak removal.
Површинска компатибилност:
The HUTT R10 is designed for vertical and inclined glass surfaces (35°-145°). It is suitable for windows, mirrors, wall tiles, shower walls, and other smooth glass surfaces. It is not suitable for horizontal surfaces.
Image: The HUTT R10 cleaning an inclined glass roof, highlighting its design for vertical and inclined glass surfaces (35°-145°).
Image: The robot demonstrating adaptive cleaning on various surfaces such as windows, wall tiles, and shower glass.
The robot can clean windows as narrow as 30 cm.
Image: The HUTT R10 cleaning a window pane, illustrating its ability to clean surfaces as narrow as 30 cm.
Adaptive Suction and Pressing Force:
The R10 features adaptive suction up to 7000 Pa and a 55 N pressing force, ensuring stable adherence and effective cleaning across different angles and surface conditions.
Image: An illustration of the HUTT R10's adaptive suction, demonstrating its ability to maintain stable adherence and apply 55 N pressing force for effective cleaning of various stains.
5. Одржавање
Regular maintenance ensures optimal performance and longevity of your HUTT R10.
- Јастучићи за чишћење: After each use, remove the cleaning pads. They can be hand-washed or machine-washed with mild detergent. Ensure they are completely dry before reattaching. Replace pads when they show signs of wear or reduced cleaning effectiveness.
- Water Tank and Nozzles: Periodically clean the water tank to prevent residue buildup. If the spray nozzles become clogged, gently clean them with a soft brush or cloth.
- Тело робота: Wipe the exterior of the robot with a soft, dry cloth. Do not use abrasive cleaners or immerse the robot in water.
- Сензори: Keep the sensors clean and free from dust or debris to ensure accurate navigation and edge detection.
- Складиштење: When not in use, store the robot and its accessories in the provided storage case in a cool, dry place.

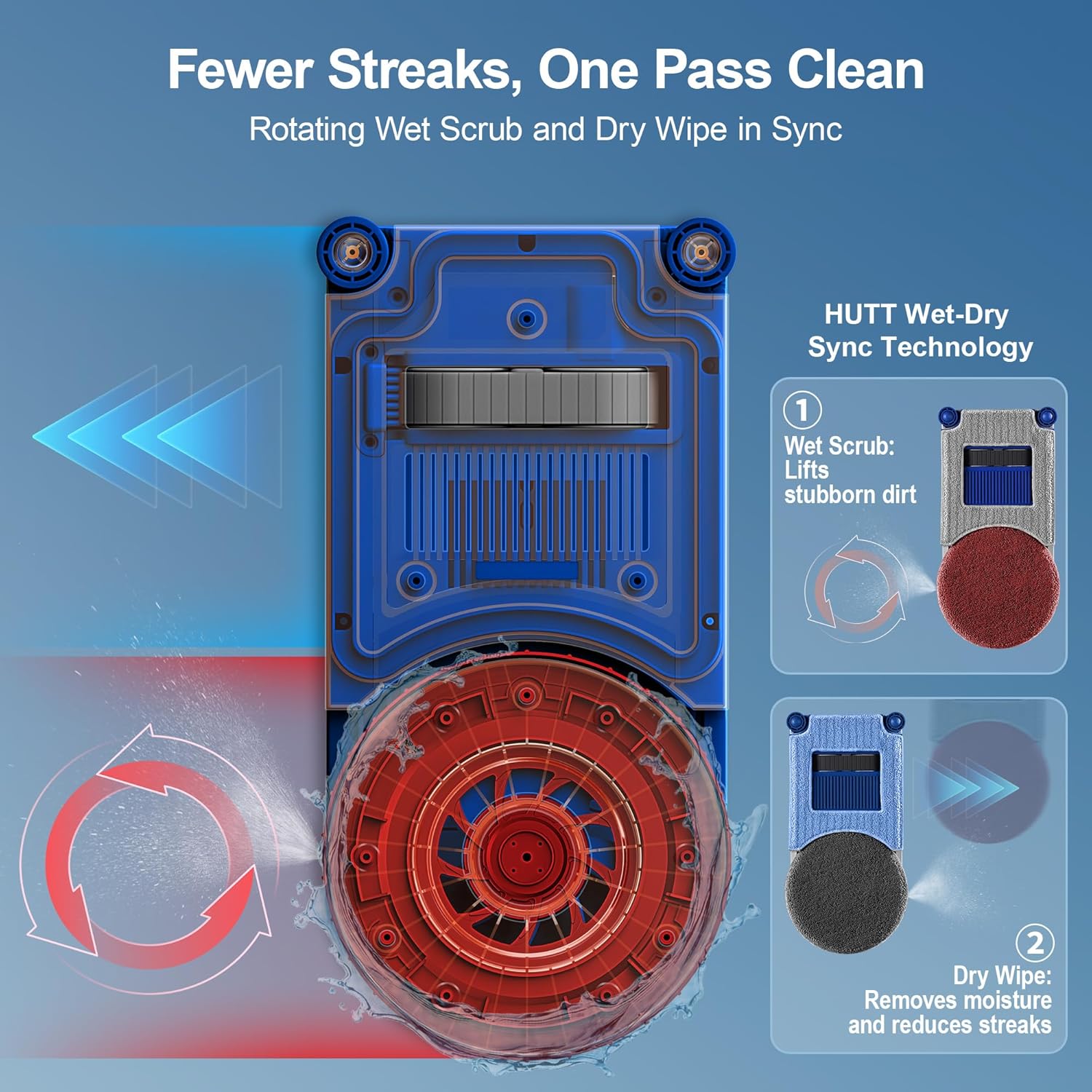

Image: The HUTT Wet-Dry Sync Technology, illustrating the function of the wet scrub pad for lifting stubborn dirt and the dry wipe pad for removing moisture and reducing streaks.
КСНУМКС. Решавање проблема
If you encounter issues with your HUTT R10, refer to the following common problems and solutions.
| Проблем | Могући узрок | Решење |
|---|---|---|
| Robot does not adhere to the surface. | Insufficient suction; surface too dirty or wet; power issue. | Ensure the surface is relatively clean and dry before starting. Check power connection. If the surface is extremely dirty, pre-clean manually. |
| Leaves streaks or marks. | Dirty or worn cleaning pads; insufficient water/solution; very dirty surface. | Clean or replace cleaning pads. Ensure water tank is filled. For very dirty windows, perform a pre-clean or use Deep Cleaning mode. |
| Robot stops or gets stuck. | Obstruction; sensor dirty; power interruption. | Clear any obstructions. Clean sensors. Check power connection. If on battery backup, retrieve the robot. |
| Водени спреј не ради. | Empty water tank; clogged nozzles; spray function off. | Refill water tank. Clean spray nozzles. Ensure water spray is activated via remote control. |
| Даљински управљач не реагује. | Dead batteries; out of range. | Replace AAA batteries in the remote control. Ensure you are within operating range. |
7. Спецификације
Detailed technical specifications for the HUTT R10 Robot Window Cleaner.
| Феатуре | Спецификација |
|---|---|
| Назив модела | Р10 |
| Број модела | C7 |
| Бранд | ХУТТ |
| Димензије (Д к Ш к В) | 33.4 к 28.4 к 12.4 цм |
| Тежина | 1.18 кг (2.6 лбс) |
| Називна снага | 90В |
| Ратед Волtage | 24В |
| Максимална снага усисавања | 7000 Па |
| Pressing Force | 55 Н |
| Капацитет резервоара за воду | 80 мл |
| Тип батерије | Литијум-јонски |
| Резервна батерија за хитне случајеве | КСНУМКС минута |
| Safety Rope Length/Rating | 6 meters / 220 kg |
| Ниво буке | Around 65 dB |
| Тип контроле | Ремоте Цонтрол |
| Компатибилне површине | Windows, Mirrors, Wall Tiles, Shower Walls, Smooth Glass Surfaces |
| Минимална ширина прозора | 30 цм |
Image: The HUTT R10 operating quietly at approximately 65 dB, allowing for undisturbed activities nearby.
8. Гаранција и подршка
The HUTT R10 Robot Window Cleaner is designed for durability and performance.
- Доступност резервних делова: Spare parts for the HUTT R10 are available for up to 20 years from the date of manufacture.
- Корисничка подршка: For any questions, technical assistance, or warranty claims, please contact HUTT customer support through the official webсајту или вашем продавцу.
- Информације о гаранцији: Refer to the warranty card included in your package for specific terms and conditions regarding your product's warranty.
