1. Увод
Thank you for choosing the POOLEX JETPOWER 120 Full Inverter Pool Heat Pump. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your heat pump. Please read this manual thoroughly before installation and use, and keep it for future reference.
The JETPOWER 120 utilizes advanced Full Inverter technology to provide efficient and quiet heating and cooling for your pool, ensuring optimal water temperature from spring to autumn. Its integrated Wi-Fi connectivity allows for convenient control via a smartphone application.
Слика 1.1: Предња страна view of the POOLEX JETPOWER 120 Full Inverter Pool Heat Pump, showcasinњегов дизајн и брендирање.
2. Безбедносне информације
Важна безбедносна упутства:
- Прочитајте сва упутства пре употребе овог уређаја.
- Installation must be performed by a qualified professional in accordance with local and national electrical and plumbing codes.
- Ensure the power supply matches the specifications of the heat pump.
- Do not operate the heat pump if any part is damaged or malfunctioning.
- Држите децу и кућне љубимце даље од уређаја током рада.
- Не блокирајте отворе за усис или издув ваздуха.
- Увек искључите напајање пре него што извршите било какво одржавање или поправку.
3. Садржај пакета
Проверите да ли су све ставке присутне у пакету:
- POOLEX JETPOWER 120 Heat Pump Unit
- Anti-vibration support kit
- PVC connectors Ø 50mm 1'' ½
- Црево за одвод кондензата
- Комплет за одржавање
- Multi-language user manual (this document)
- Wired control extension (10m)
Image 3.1: Included accessories. From left to right: Heat pump on wooden pallet (for delivery), anti-vibration supports, PVC connectors, winter cover, condensate drain hose, and maintenance kit with manual.
4. Подешавање и инсталација
Proper installation is crucial for the performance and longevity of your heat pump. Consult a qualified professional for installation.
4.1. Избор локације
- Choose a well-ventilated outdoor location, away from direct sunlight and heat sources.
- Ensure sufficient clearance around the unit for proper airflow (refer to the diagram in the full manual for specific distances).
- Place the unit on a stable, level surface, using the provided anti-vibration supports.
4.2. Водоводне везе
The heat pump should be installed in the pool's filtration circuit, after the filter and before any chemical treatment systems.
- Connect the pool water inlet to the "IN" port and the outlet to the "OUT" port using the supplied PVC connectors (Ø 50mm 1'' ½).
- Уверите се да су сви спојеви водонепропусни.
- Install the condensate drain hose to direct condensed water away from the unit's base.

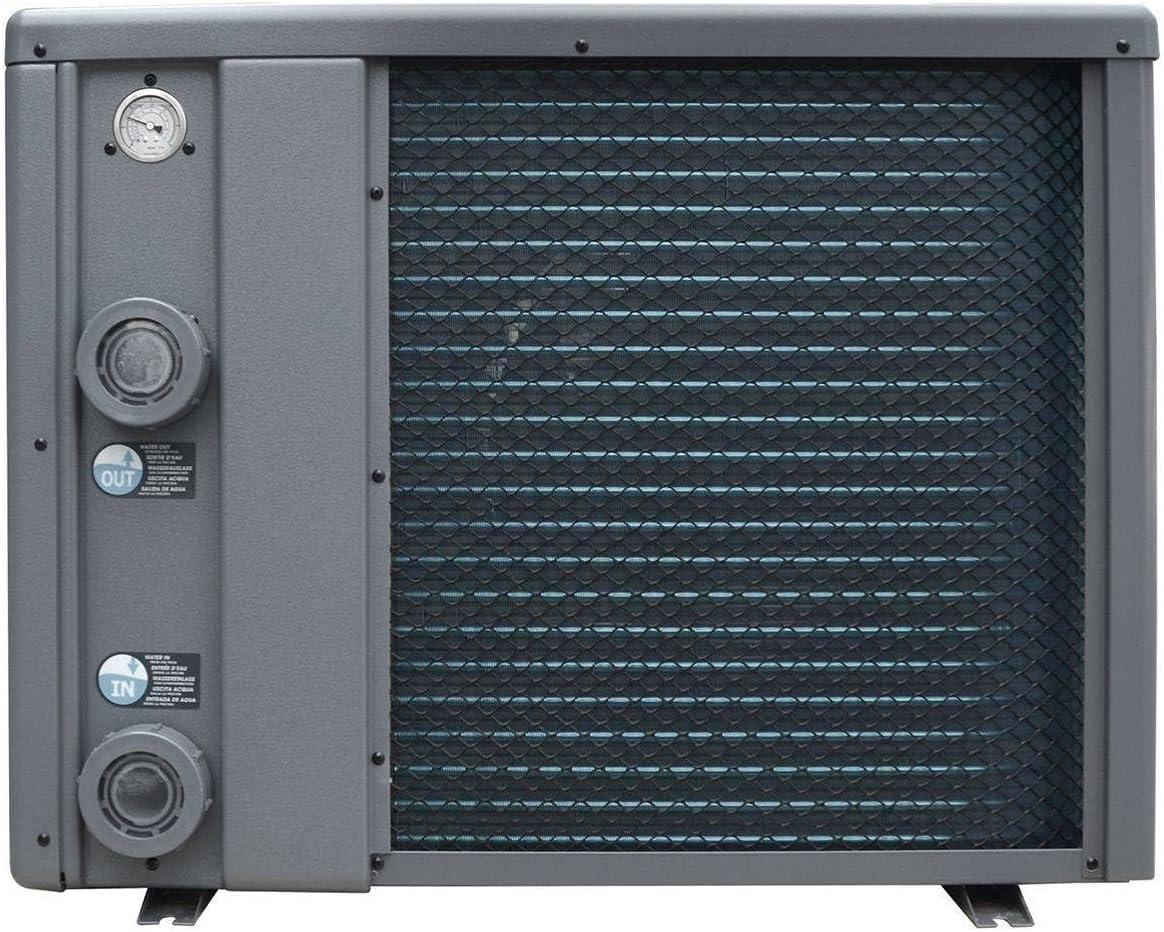

Слика 4.1: Бочна страна view of the heat pump, illustrating the "IN" (inlet) and "OUT" (outlet) water connections. A pressure gauge is visible at the top left.
4.3. Електричне везе
- Connect the heat pump to a dedicated electrical circuit with appropriate protection (circuit breaker).
- Refer to the specifications section for power requirements.
- Use the wired control extension (10m) to position the LED control panel conveniently.
5. Упутство за употребу
The POOLEX JETPOWER 120 is designed for user-friendly operation with its LED control panel and Wi-Fi connectivity.
5.1. Прво покретање
- Ensure the pool's filtration system is running and water is circulating through the heat pump.
- Turn on the electrical power to the heat pump.
- The LED control panel will illuminate. Follow the on-screen prompts to set the desired water temperature.
5.2. Full Inverter Technology
The Full Inverter technology allows the heat pump to continuously vary the speed of its compressor and fan. This results in:
- Енергетска ефикасност: Up to 35% energy savings compared to ON/OFF heat pumps by avoiding consumption peaks.
- Тих рад: Reduced noise levels, especially when maintaining the set temperature.
- Брзо загревање: The system can boost capacity for faster temperature increases when needed.
5.3. Reversible Heating/Cooling
The JETPOWER 120 can both heat and cool your pool water. This feature is particularly useful for smaller above-ground pools prone to overheating, which can encourage algae growth.
- Select the desired mode (heating or cooling) via the control panel or smartphone app.
5.4. Ви-Фи повезивање
Control your heat pump remotely using the dedicated smartphone application. Refer to the separate Wi-Fi setup guide for detailed instructions on connecting your device.
- Download the POOLEX app from your device's app store.
- Follow the in-app instructions to pair your heat pump.
- Monitor and adjust settings from anywhere.
6. Одржавање
Regular maintenance ensures optimal performance and extends the lifespan of your heat pump.
6.1. Рутинске провере
- Очистите јединицу: Periodically clean the exterior of the unit to remove dust and debris. Ensure air intake and exhaust vents are clear.
- Проверите проток воде: Ensure adequate water flow through the heat pump. A reduced flow can impact efficiency.
- Одвод кондензата: Verify that the condensate drain hose is clear and draining properly.
6.2. Припрема за зиму
Before winter or when temperatures drop below freezing, it is essential to properly winterize your heat pump:
- Искључите напајање јединице.
- Drain all water from the heat pump's plumbing.
- Disconnect the water inlet and outlet pipes.
- Cover the unit with the provided winter cover (or a suitable protective cover) to protect it from harsh weather.
КСНУМКС. Решавање проблема
Овај одељак се бави уобичајеним проблемима на које можете наићи. За сложеније проблеме, контактирајте корисничку подршку.
| Проблем | Могући узрок | Решење |
|---|---|---|
| Heat pump does not start | No power supply; Circuit breaker tripped; Control panel error | Check power connection; Reset circuit breaker; Consult control panel manual for error codes. |
| Недовољно грејање/хлађење | Low water flow; Dirty evaporator coils; Incorrect temperature setting; Ambient temperature too low/high | Check pool pump and filter; Clean coils; Verify settings; Operate within recommended temperature range. |
| Необична бука | Лабаве компоненте; Зачепљење вентилатора; Проблем са компресором | Inspect for loose parts; Clear any obstructions from fan; If compressor issue, contact support. |
| Цурење воде | Condensation (normal); Loose plumbing connections; Internal leak | Verify if it's condensation (normal during operation); Tighten connections; For internal leaks, contact support. |
8. Спецификације
Technical specifications for the POOLEX JETPOWER 120 heat pump:
| Феатуре | Спецификација |
|---|---|
| Број модела | PC-SLP120N/BO |
| Извор напајања | AC |
| Димензије (Д к Ш к В) | 86.5 к 37.5 к 65.6 цм |
| Тежина | 26 кг |
| Препоручена запремина базена | 45 to 65 m³ |
| COP (26°C Air / 26°C Water) | До 16 |
| Расхладно средство | Р32 |
| Функционалност | Heating / Cooling / Auto |
9. Гаранција и подршка
POOLEX is committed to customer satisfaction. For warranty information, please refer to the warranty card included with your product or visit the official POOLEX webсајту.
- Корисничка подршка: If you have any questions, require technical assistance, or need to report an issue, please visit the POOLEX webсајту или контактирајте свог локалног продавца.
- резервни делови: Information regarding spare parts availability is currently unavailable. Please contact customer support for specific part inquiries.
- враћа: This product is eligible for 30-day returns.
Note: The seller "eRobot Piscine" provides 30-day returns and legal guarantees.
