LEHMANN LGASM-4042 Helical Lawn Mower Instruction Manual

Увод

Thank you for choosing the LEHMANN LGASM-4042 Helical Lawn Mower. This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your new lawn mower. Please read these instructions carefully before use and keep them for future reference. Proper use and maintenance will ensure the longevity and optimal performance of your product.

Безбедносне информације

• Always wear appropriate footwear and protective gloves when operating the lawn mower.
• Ensure the area to be mowed is clear of stones, sticks, wires, and other debris that could be thrown by the blades.
• Do not operate the mower on steep slopes where you might lose your footing.
• Држите децу и кућне љубимце даље од подручја кошења.
• Never attempt to clear blockages or adjust blades while the mower is in motion.
• Чувајте косилицу на сувом, сигурном месту, ван домашаја деце.

Компоненте производа

Familiarize yourself with the main parts of your LEHMANN LGASM-4042 Helical Lawn Mower.

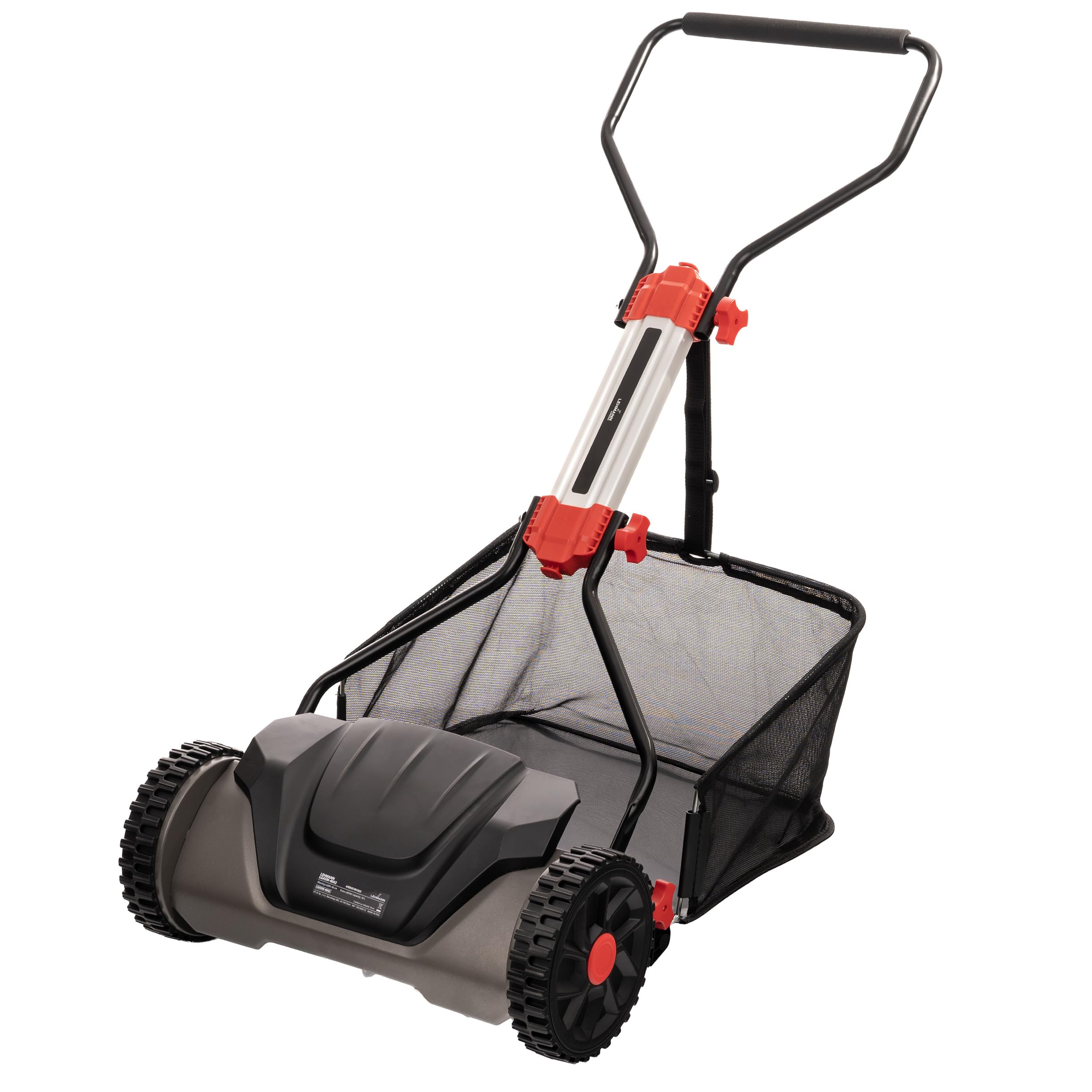

Слика 1: Готовоview of the LEHMANN LGASM-4042 Helical Lawn Mower, showing the main body, handle, and grass collector.

• Helical Blade System: Five sharp blades for a clean, scissor-like cut.
• Cutting Height Adjustment Lever: Allows selection of 6 cutting heights (15-42 mm).
• Точкови: Large 22 cm wheels with profile for easy maneuverability.
• ручка: Ergonomic, height-adjustable, and foldable for compact storage.
• Grass Collector: 30 L capacity, robust steel frame with plastic base and mesh fabric.
• оквир: Robust metal and plastic construction.

Слика 2: Product dimensions: 54 cm (depth) x 33 cm (width) x 126 cm (height).

Подешавање и монтажа

The LEHMANN LGASM-4042 requires minimal assembly. Follow these steps to prepare your mower for use.

1. Распакивање: Пажљиво извадите све компоненте из паковања. Проверите да ли има оштећења или да ли недостају неки делови.
2. Склоп ручке:
   • Attach the lower handle sections to the main mower body using the provided bolts and knobs. Ensure they are securely fastened.
   • Connect the upper handle section to the lower sections. The handle is designed to be height-adjustable and foldable.
   • Tighten all connections to ensure stability during operation.


   Слика 3: The ergonomic handle can be adjusted for height and folded for compact storage.
3. Grass Collector Attachment:
   • Assemble the grass collector by attaching the mesh bag to the steel frame.
   • Hook the assembled grass collector onto the designated points at the rear of the mower. Ensure it is securely attached to prevent it from detaching during operation.


   Слика 4: The 30-liter grass collector efficiently gathers clippings, keeping your lawn tidy.

Упутство за употребу

Пре кошења

• Inspect the lawn for any obstacles.
• Ensure all bolts and fasteners are tight.
• Adjust the handle height for comfortable operation.

Подешавање висине сечења

The mower offers 6 cutting height positions, ranging from 15 mm to 42 mm. Adjust the height according to your lawn type and desired finish.

1. Пронађите ручицу за подешавање висине кошења са стране косилице.
2. Move the lever to select the desired cutting height. Ensure it locks into place.
3. For best results, avoid cutting more than one-third of the grass blade length at a time.

Слика 5: The cutting height can be easily adjusted between 15 mm and 42 mm for various lawn conditions.

Кошење травњака

• Push the mower at a steady, comfortable pace. Overlapping each pass slightly will ensure an even cut.
• The helical blades provide a clean, scissor-like cut, promoting a healthier, denser lawn.
• The 40 cm cutting width allows for efficient mowing of small to medium-sized lawns.
• When the grass collector is full, empty it into a compost bin or suitable receptacle.

Слика 6: Visual comparison showing the lawn before and after mowing, highlighting the clean cut achieved by the helical mower.

Одржавање

Regular maintenance ensures your lawn mower remains in optimal condition.

Чишћење

• After each use, remove grass clippings from the blades, wheels, and grass collector.
• Use a stiff brush or cloth to clean the mower. Avoid using water jets directly on the blades or moving parts.
• Ensure the blades are free of sap and debris to maintain sharpness.

Брига о сечивима

• The helical blades are factory-sharpened. If the cutting performance decreases, the blades may need sharpening. This should be done by a qualified service technician.
• Periodically check the blade alignment and adjust if necessary, following the instructions in a service manual or by a professional.

Складиштење

• Пре складиштења, темељно очистите косилицу.
• Apply a light coat of oil to the blades to prevent rust, especially during long periods of storage.
• Преклопите ручку за компактно складиштење.
• Чувајте косилицу на сувом, добро проветреном месту, заштићеном од директне сунчеве светлости и влаге.

Решавање проблема

Овај одељак се бави уобичајеним проблемима на које можете наићи са косилицом за траву.

If you encounter problems not listed here, please contact customer support.

Техничке спецификације

Информације о гаранцији

LEHMANN provides the following warranty for the LGASM-4042 Helical Lawn Mower:

• Professional Customer: 1 године гаранције.
• Private Customer: 2 године гаранције.

This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, neglect, accidents, alteration, or improper maintenance. Please retain your proof of purchase for warranty claims.

Корисничка подршка

For technical assistance, spare parts, or warranty claims, please contact LEHMANN customer service. You can find contact information on the official LEHMANN webсајту или преко вашег продавца.

When contacting support, please have your model number (LGASM-4042) and proof of purchase readily available.
