Moimhear Double Bed 180x200cm Instruction Manual

1. Безбедносне информације

Пажљиво прочитајте сва упутства пре склапања и употребе. Сачувајте ово упутство за будуће потребе.

• Максимални капацитет оптерећења: Do not load the bed with more than 200 kg (440 lbs). Exceeding this limit may cause instability or collapse.
• Скупштина: Follow the assembly instructions precisely to ensure stability and prevent structural failure. Incorrect assembly can lead to injury.
• Package Handling: This product is shipped in 4 packages. Due to logistical delays, these packages may not arrive simultaneously or on the same day. Please be patient.
• Локација: Уверите се да је кревет постављен на равну, стабилну површину.
• деца: Држите мале делове и материјал за паковање ван домашаја деце током склапања.

2. Производ је готовview

The Moimhear Double Bed (180x200cm) offers a modern and minimalist design with integrated features for enhanced convenience and space utilization. It includes a sturdy wooden frame, built-in nightstands, storage drawers, and a headboard with LED lighting and charging ports.

Кључне карактеристике:

• Modern and minimalist design.
• Integrated nightstands for optimal space utilization.
• Additional storage space with drawers on the side and foot of the bed.
• Headboard with app-controlled LED strip for ambient lighting.
• Dual-sided charging function: 2 USB ports + 1 Type-C port for multiple devices.
• Stable and durable construction with reinforced frame and high-quality MDF.

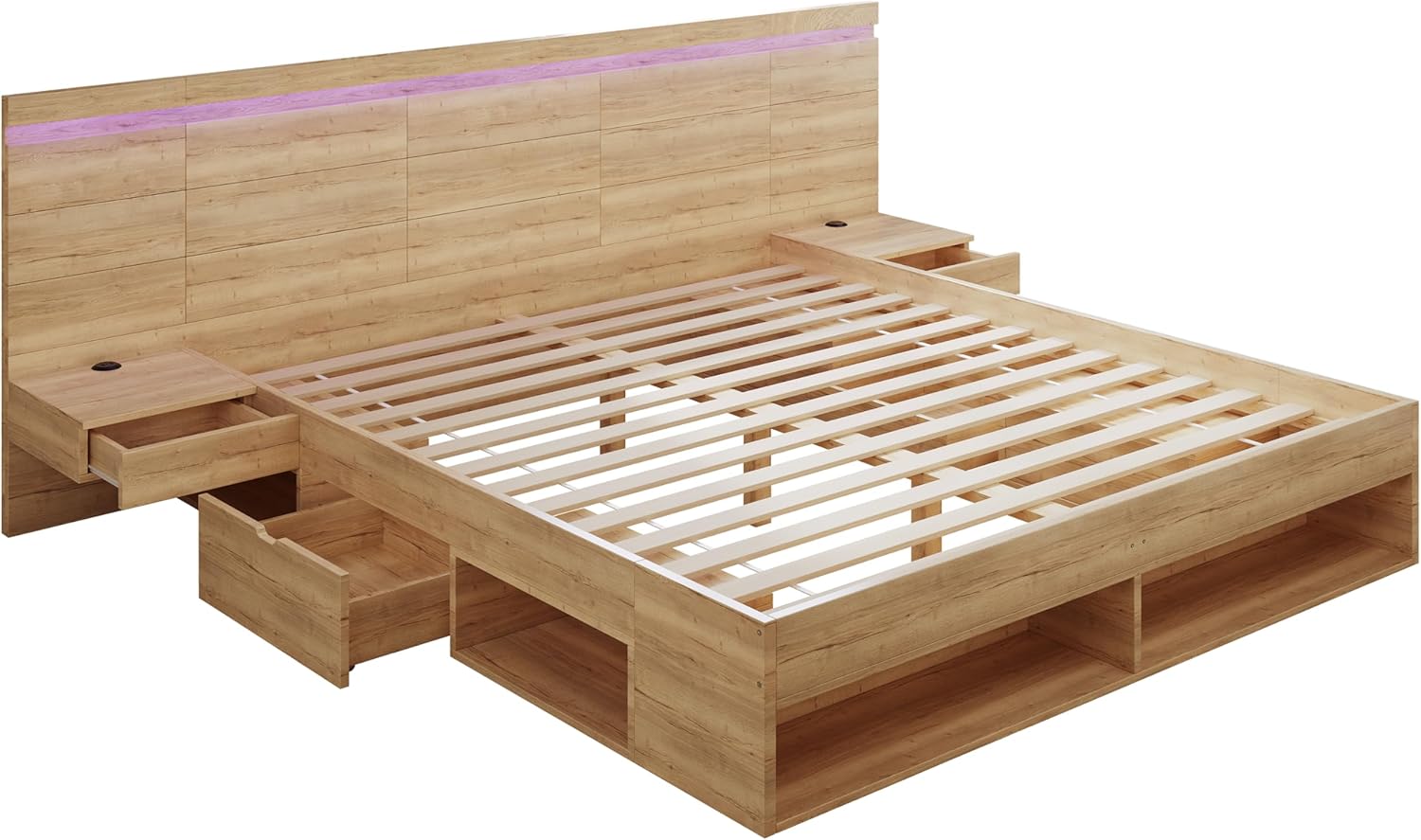

Image: Moimhear double bed frame without mattress, showing the slatted base and storage compartments.

3. Садржај пакета

Before beginning assembly, ensure all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer service.

• Компоненте оквира кревета
• Подлога од летвица
• Integrated Nightstands
• Ладице за складиштење
• LED Strip and Power Supply
• USB and Type-C Charging Module
• Приручник за монтажу
• Assembly Tools (Allen key, screws, etc.)

4. Подешавање и монтажа

Assembly is required for this product. It is recommended that two adults assemble the bed. Please follow the included detailed assembly manual for step-by-step instructions.

Кораци генералне скупштине:

1. Распакујте компоненте: Carefully unpack all 4 packages and lay out the components on a clean, soft surface to prevent scratches.
2. Склопите оквир кревета: Connect the main frame sections using the provided hardware and tools. Ensure all connections are secure.
3. Инсталирајте летвичасту подлогу: Place the slatted base onto the bed frame. Ensure it is properly seated and secured according to the manual.
4. Attach Nightstands and Drawers: Secure the integrated nightstands and assemble the storage drawers, then slide them into their designated compartments.
5. Install Headboard and Electronics: Attach the headboard. Install the LED strip and the USB/Type-C charging module into the designated slots. Connect the power supply for the LED and charging ports.
6. Коначна провера: Verify that all screws are tightened and the bed structure is stable before use.

Image: Detailed dimensions of the Moimhear double bed.

5. Упутство за употребу

5.1 USB и Type-C портови за пуњење

The bed is equipped with 2 USB ports and 1 Type-C port on each side of the headboard for convenient device charging.

• За употребу: Simply plug your device's charging cable into the appropriate USB or Type-C port. Ensure the bed's power supply is connected to a wall outlet.
• Излазна снага: The ports provide standard charging output suitable for smartphones, tablets, and other compatible devices.

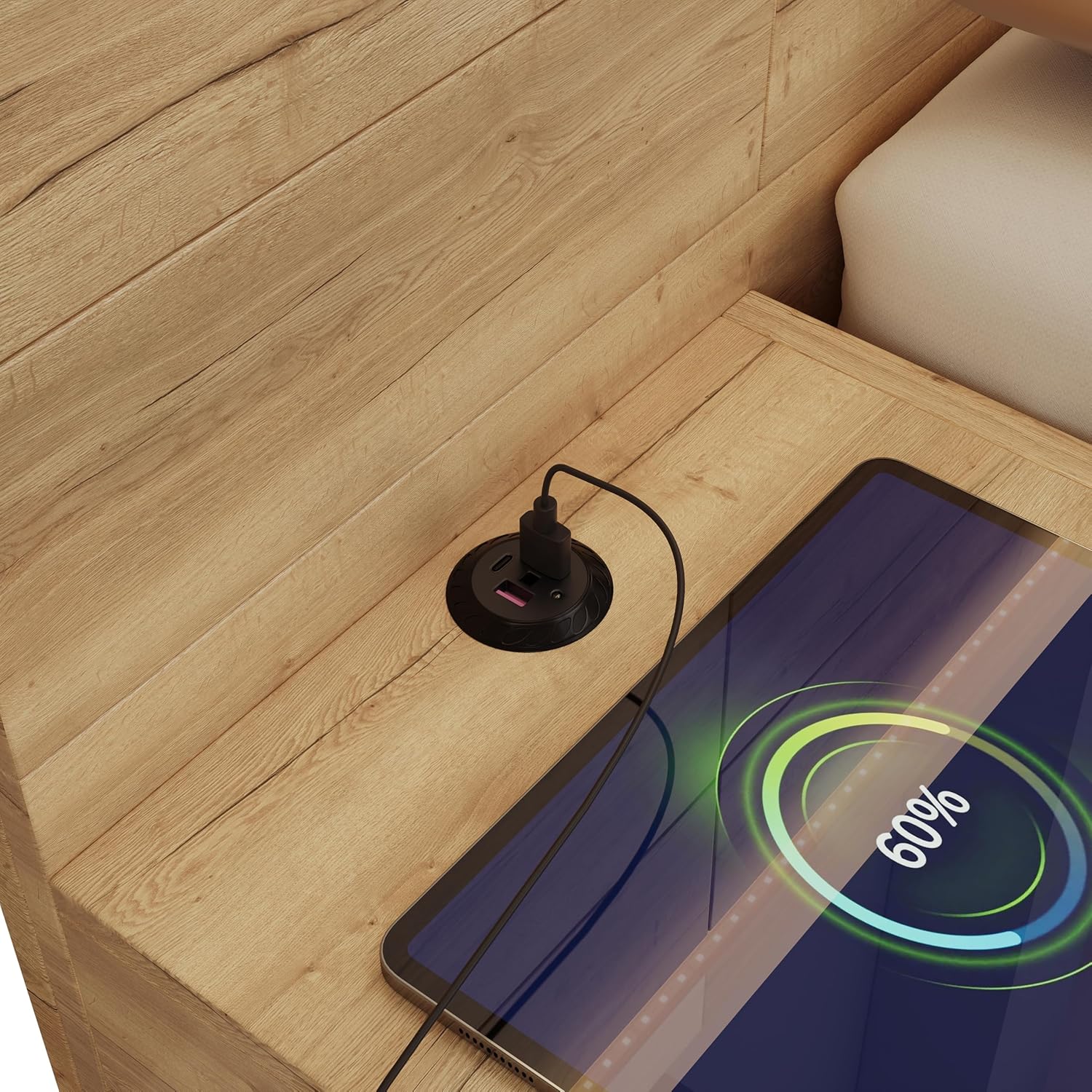

Image: Close-up of the integrated USB and Type-C charging port.

5.2 LED Headboard Lighting

The headboard features an integrated LED strip that can be controlled via a smartphone application.

• Контрола апликације: Download the dedicated app (refer to the assembly manual for app name/QR code) on your smartphone.
• Упаривање: Follow the app's instructions to pair your smartphone with the bed's LED lighting system.
• Функције: The app typically allows you to:
  • Change LED colors (multicolor conversion).
  • Подесите осветљеност.
  • Set timing functions (e.g., turn off after a set period).
  • Utilize microphone mode (lights react to sound).
  • Access rhythm functions.

Image: Headboard with LED lighting, charging ports, and app control features.

6. Одржавање

Proper maintenance will extend the life and appearance of your Moimhear bed.

• Чишћење: Обришите дрвене површине меком,amp крпом. Избегавајте јаке хемикалије или абразивна средства за чишћење која би могла оштетити завршну обраду.
• brisanje prašine: Regularly dust the bed frame, headboard, and nightstands.
• Провера хардвера: Периодично проверавајте све завртње и причвршћиваче како бисте били сигурни да су чврсто затегнути. По потреби поново затегните да бисте одржали стабилност.
• Избегавајте прекомерну влагу: Protect the bed from prolonged exposure to moisture or direct sunlight, which can cause warping or fading.

КСНУМКС. Решавање проблема

If you encounter any issues with your Moimhear bed, refer to the following common troubleshooting tips:

• Кревет је нестабилан/климав:
  • Уверите се да су сви завртњи за склапање потпуно затегнути.
  • Verify the bed is on a level surface.
  • Check that all frame components are correctly aligned according to the assembly manual.
• USB/Type-C Ports Not Working:
  • Confirm the bed's main power supply is plugged into a functional wall outlet.
  • Check the connection of the charging module within the headboard.
  • Испробајте други кабл или уређај за пуњење да бисте искључили проблеме са каблом/уређајем.
• ЛЕД светла не функционишу:
  • Ensure the LED strip's power supply is connected and receiving power.
  • Check the connection of the LED strip to its controller.
  • Verify that the smartphone app is correctly paired and functioning.
• Фиоке се заглављују или не клизе глатко:
  • Check for any obstructions in the drawer runners.
  • Ensure the drawers were assembled correctly and are aligned within their compartments.

8. Спецификације

9. Гаранција и подршка

For warranty information, please refer to the documentation provided with your purchase or contact your retailer. If you require assistance with assembly, missing parts, or have any questions regarding the product, please contact Moimhear customer support through the retailer's platform or the contact information provided in your purchase documentation.

Please have your model number (N634W0047N-ZXY) and purchase details ready when contacting support.
