Wiltec Portable CampМашина за прање веша

1. Увод

This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your Wiltec Portable Camping Washing Machine, Model 65817. Please read this manual thoroughly before first use and keep it for future reference.

The Wiltec Portable Washing Machine is designed for washing and spinning small loads of laundry in environments where a conventional washing machine is not available, such as camping, RVs, small apartments, or holiday homes. Its compact design and manual operation offer flexibility and convenience.

Image 1.1: The Wiltec portable washing machine in an outdoor camping setting, demonstrating its portability and suitability for travel.

Image 1.2: Various application scenarios for the portable washing machine, including use in homes, holiday residences, hostels, and during campинг путовања.

2. Безбедносна упутства

• Always ensure the washing machine is placed on a stable, level surface to prevent tipping during operation.
• Do not operate the machine with a damaged power cord or plug. If damaged, contact qualified personnel for repair.
• Држите децу и кућне љубимце даље од машине током рада.
• Do not immerse the machine in water or spray water directly onto electrical components.
• Искључите машину из утичнице пре чишћења, одржавања или када је не користите.
• Ensure proper drainage is available to prevent water accumulation around the machine.
• Do not overload the wash or spin compartments beyond their specified capacities.
• Avoid washing items with hard objects (e.g., coins, keys) that could damage the machine.

3. Подешавање

1. Распакивање: Carefully remove the washing machine from its packaging. Inspect for any signs of damage. Retain packaging for future transport or storage.
2. Пласман: Place the machine on a firm, flat, and stable surface. Ensure there is sufficient space around the machine for ventilation and access. The machine should be near a power outlet and a drainage point.
3. Прикључак за напајање: Connect the power cord to a standard 220V / 50Hz electrical outlet. Ensure the outlet is properly grounded.
4. Дренажно црево: Position the drainage hose to direct wastewater into a sink, bucket, or drain. Ensure the hose is not kinked or blocked.

Image 3.1: The washing machine positioned in an indoor setting, illustrating its compact footprint for various locations.

4. Упутство за употребу

4.1 Washing Cycle

1. Пуњење веша: Open the lid and place up to 6 kg of dry laundry into the wash tub. Do not overload.
2. Додајте воду: Manually fill the wash tub with water to the desired level, ensuring clothes are submerged. The machine does not have an automatic water inlet.
3. Додајте детерџент: Add the appropriate amount of laundry detergent directly into the wash tub with the water and clothes.
4. Подесите тајмер прања: Turn the "WASH TIMER" knob clockwise to select the desired wash time, up to 15 minutes. The machine will start washing.
5. Одвод воде: Once the wash cycle is complete, turn the "SELECTOR SWITCH" to the "DRAIN" position to empty the dirty water through the drainage hose.

Image 4.1: Laundry inside the wash compartment, ready for the washing cycle.

4.2 Rinsing Cycle

1. After draining the wash water, refill the wash tub with clean water.
2. Set the "WASH TIMER" for a short cycle (e.g., 3-5 minutes) to rinse the clothes.
3. Drain the rinse water by turning the "SELECTOR SWITCH" to "DRAIN". Repeat rinsing if necessary until clothes are free of soap residue.

4.3 Spin Drying Cycle

1. Трансфер вешераја: Carefully transfer up to 2 kg of rinsed laundry into the spin basket located in the spin compartment. Ensure clothes are evenly distributed to prevent imbalance.
2. Сигурни поклопац: Close the inner and outer lids of the spin compartment securely.
3. Подесите тајмер центрифуге: Turn the "SPIN TIMER" knob clockwise to select the desired spin time, up to 5 minutes. The machine will begin spinning.
4. Уклоните веш: Once the spin cycle is complete, open the lids and carefully remove the spun laundry.

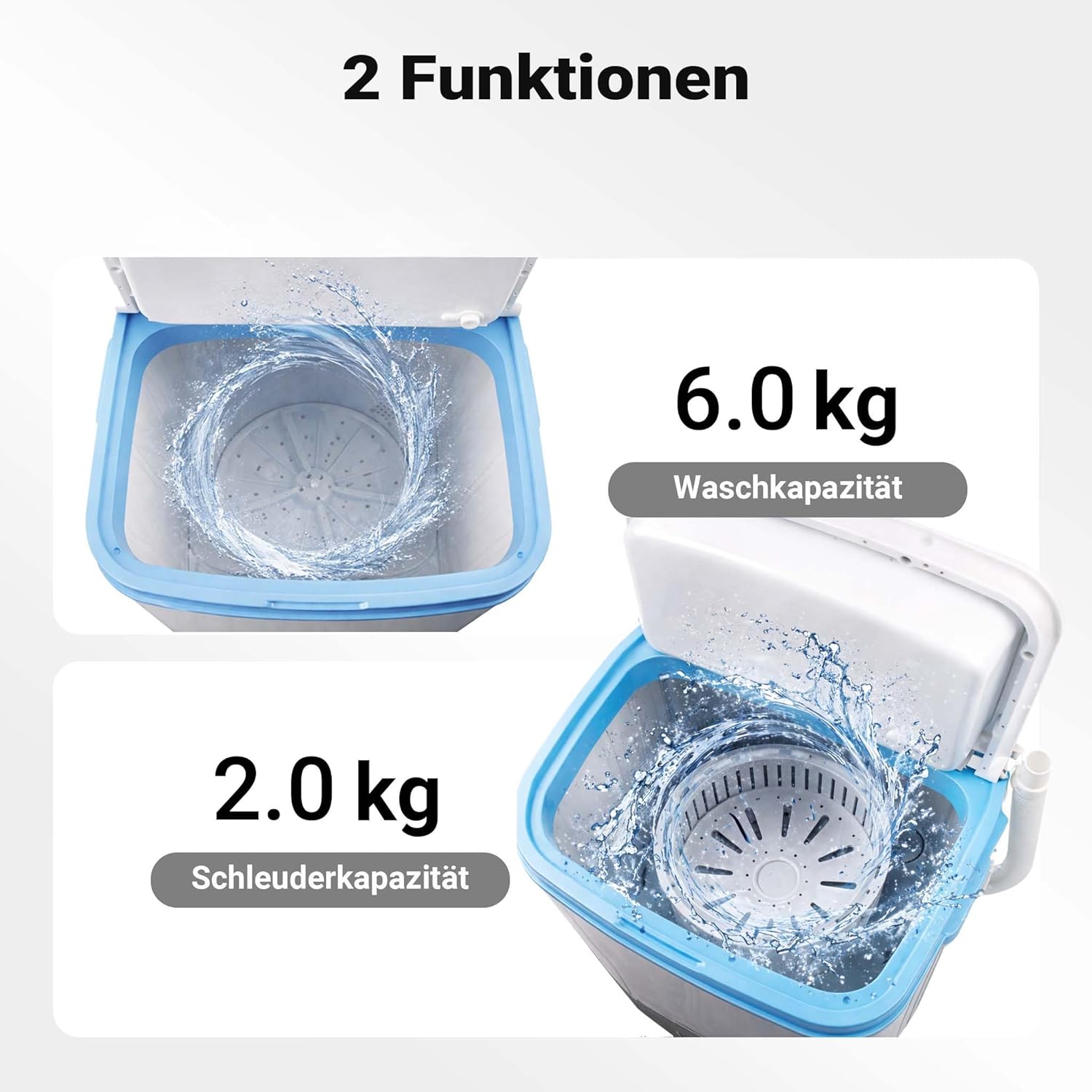

Image 4.2: Illustration of the machine's two functions: washing with a 6.0 kg capacity and spinning with a 2.0 kg capacity.

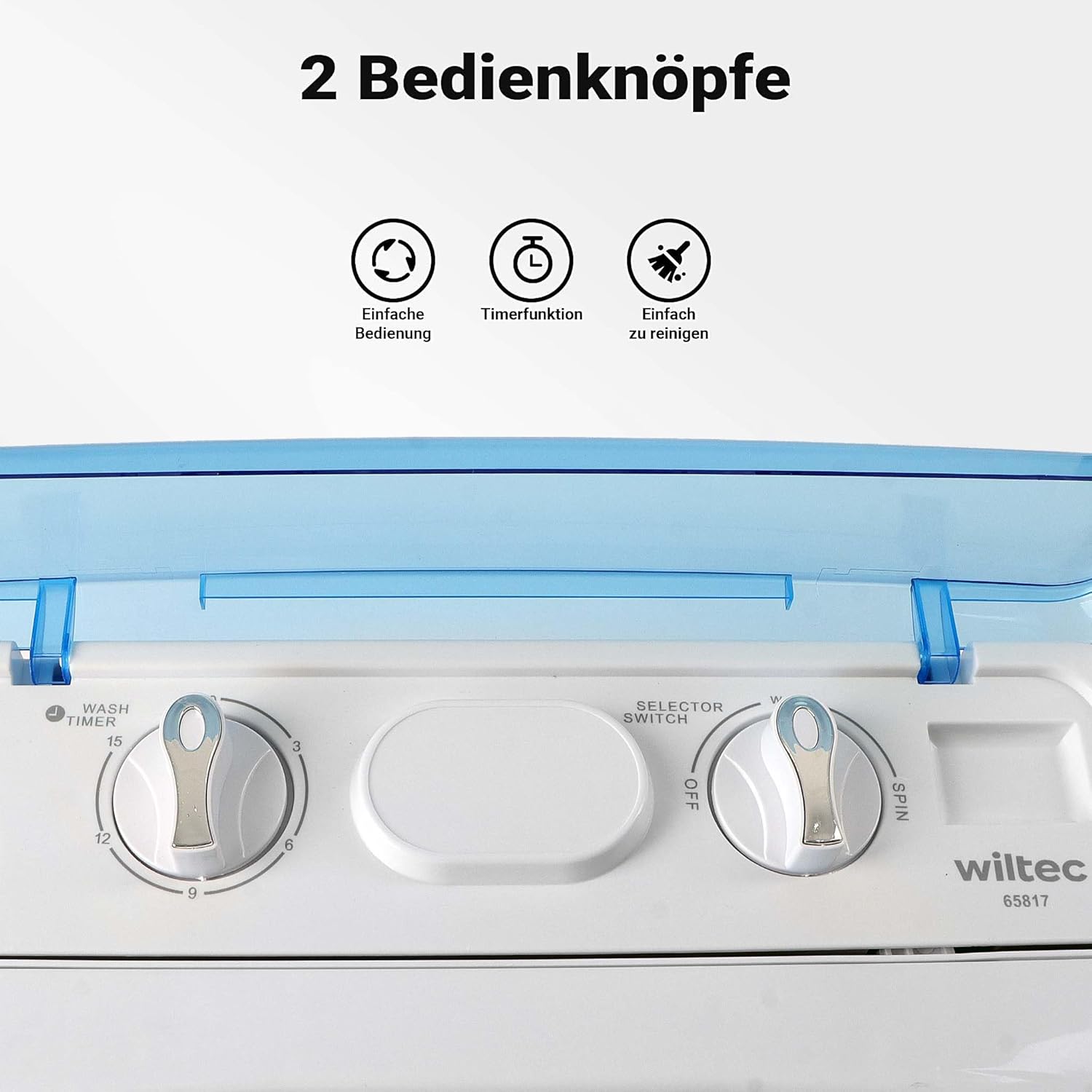

Слика 4.3: Детаљно view of the control panel, featuring the wash timer, selector switch (Off, Wash, Spin), and spin timer for easy operation.

5. Одржавање

• Чишћење: After each use, wipe the interior and exterior of the machine with a soft, damp тканина. Немојте користити абразивна средства за чишћење или раствараче.
• Пражњење: Ensure all water is drained from the machine after use to prevent mildew and odors.
• Складиштење: Store the machine in a dry, cool place, away from direct sunlight and extreme temperatures. Ensure the lid is slightly ajar to allow for air circulation.
• Кабл за напајање: Редовно проверавајте да ли кабл за напајање има оштећења.

КСНУМКС. Решавање проблема

If the problem persists after attempting these solutions, please contact Wiltec customer support or your retailer for assistance.

7. Спецификације

Image 7.1: Technical drawing illustrating the precise dimensions of the washing machine (370mm depth, 380mm width, 660mm height).

8. Гаранција и подршка

For specific warranty information regarding your Wiltec Portable Camping Washing Machine, Model 65817, please refer to the documentation provided at the time of purchase or contact your retailer. Warranty terms may vary based on region and purchase conditions.

For technical support, spare parts, or further assistance, please contact Wiltec customer service or the authorized dealer from whom you purchased the product. Contact details can typically be found on the manufacturer's official webсајт или вашу фактуру за куповину.

You can visit the WilTec store on Amazon for more information: WilTec Amazon Store.
