Osram Bayamo LED Ceiling Fan 590mm Instruction Manual

1. Производ је готовview

The Osram Bayamo LED Ceiling Fan 590mm is designed to provide both efficient air circulation and flexible lighting for small to medium-sized rooms. Its compact design integrates discreetly into various interior styles, resembling a modern ceiling light fixture. This unit features adjustable color temperature (CCT) from 3000K to 6500K, full RGB color control, and six fan speeds, all controllable via the included remote. It delivers a powerful airflow of up to 1,935 m³/h and a dimmable light output of 2,530 lumens.

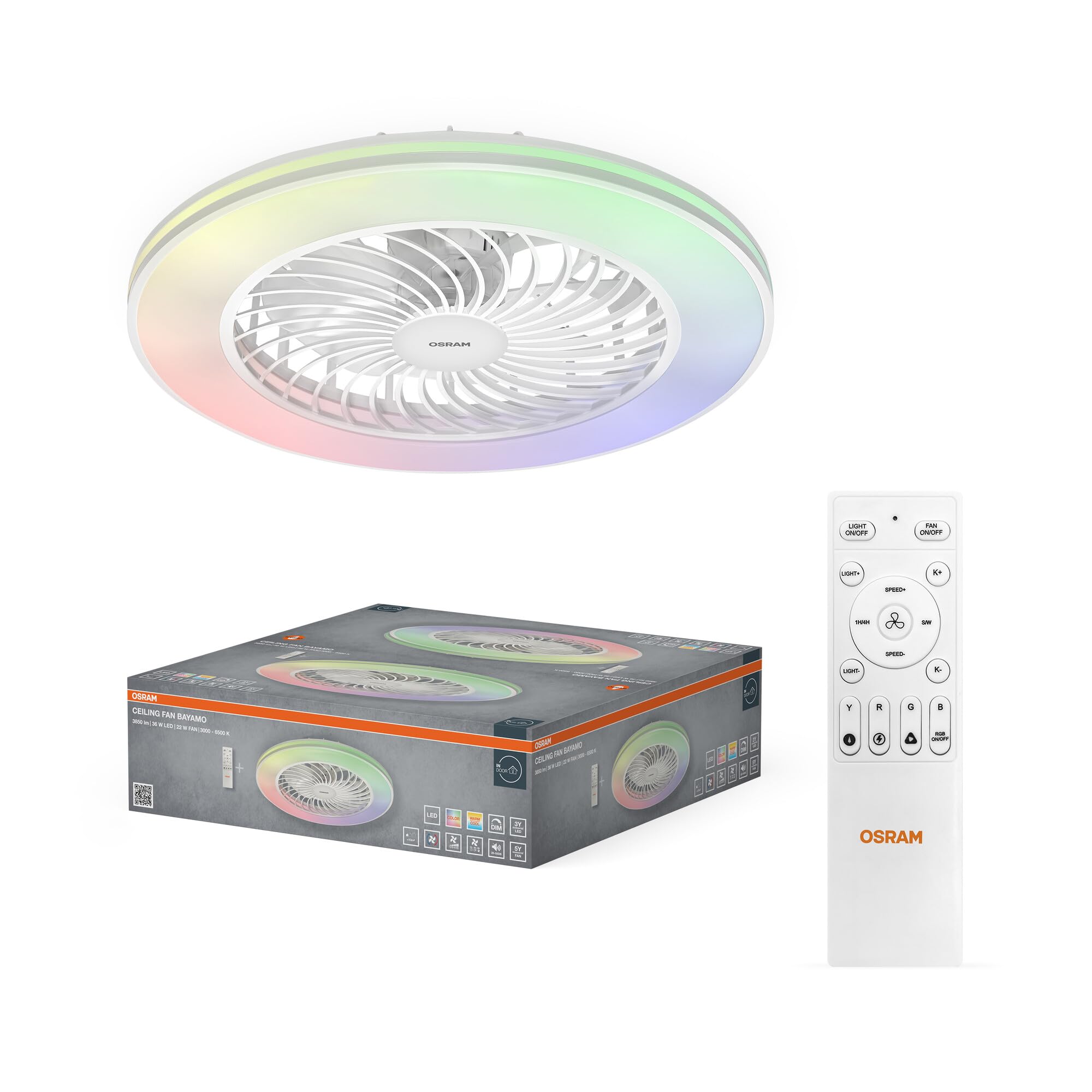

Image: Osram Bayamo LED Ceiling Fan, showcasing its sleek design with integrated light and fan blades, accompanied by its remote control.

2. Безбедносна упутства

Please read all safety instructions carefully before installation and use. Retain this manual for future reference.

• електрична безбедност: Installation must be performed by a qualified electrician or a person with electrical knowledge to avoid electric shock. Ensure the main power supply is switched off before installation or maintenance.
• Монтажа: Плафонски вентилатор мора бити безбедно монтиран на конструкциони део плафона који може да издржи његову тежину.
• Одобрење: Ensure there is adequate clearance between the fan blades and any obstacles (walls, furniture) to prevent injury or damage.
• вентилација: Do not operate the fan in areas with high humidity or direct water exposure.
• Извор светлости: This product contains a non-replaceable LED light source. Do not attempt to disassemble or replace the LED components.
• Деца и кућни љубимци: Држите децу и кућне љубимце даље од вентилатора током рада.

3. Водич за инсталацију

The installation process for the Osram Bayamo LED Ceiling Fan is similar to that of a standard ceiling light. However, careful attention to electrical connections is required.

3.1 Провера компоненти

Before beginning, ensure all components listed in the packaging are present: Ceiling fan unit, remote control, mounting hardware.

3.2 Монтажа вентилатора

1. Искључивање: Disconnect power at the main circuit breaker before starting installation.
2. Сигурна база: Attach the mounting bracket to the ceiling joist or a suitable electrical junction box using the provided screws. Ensure it is firmly secured.
3. Електрични прикључак: Connect the fan's electrical wires to your household wiring. The product uses screw terminals for connection. It is recommended to carefully manage the wiring within the plastic housing, as space can be limited.
4. Сигурносни кабл: If provided, attach the safety cable to a secure point on the ceiling structure as an additional safety measure.
5. Attach Fan Unit: Carefully lift the fan unit and align it with the mounting bracket. Twist or secure the fan unit to the base as per the design, ensuring it locks into place.

Note: If you are unsure about any step of the electrical installation, consult a qualified electrician.

4. Упутство за употребу

The Osram Bayamo LED Ceiling Fan is operated using the included remote control. Ensure batteries are inserted correctly into the remote control.

Image: Remote control functions diagram, illustrating the purpose of each button for comprehensive control over the fan and lighting features.

4.1 Упаривање даљинског управљача

При првој употреби или након нестанка струјеtage, the remote control may need to be paired with the fan unit. This is a critical step not always explicitly stated in generic instructions.

1. Ensure the main power to the fan is switched OFF.
2. Switch the main power to the fan ON.
3. Within the first 30 seconds of switching the power ON, press and hold the central fan button (often labeled with a fan icon or 'FAN ON/OFF') on the remote control for several seconds until the fan responds (e.g., a beep or a light flash).
4. The remote control should now be paired and ready for use.

4.2 Функције светла

• Укључено/искључено светло: Press the 'LIGHT ON/OFF' button to turn the light on or off.
• Затамњење: Use the 'LIGHT+' and 'LIGHT-' buttons to increase or decrease the brightness (0-100%).
• Температура боје (ЦЦТ): Use the 'K+' and 'K-' buttons to adjust the color temperature between 3000K (warm white) and 6500K (cool white).
• RGB боје: Press the 'RGB ON/OFF' button to activate or deactivate RGB lighting. Use the 'Y' (Yellow), 'R' (Red), 'G' (Green), 'B' (Blue) buttons to select specific colors or cycle through them.
• Lighting Scene Modes: Some remotes may include buttons for pre-set lighting scenes (e.g., 'Horse racing', 'Lighting', 'Phantom'). Press these to switch between different dynamic light effects.

4.3 Fan Functions

• Укључивање/искључивање вентилатора: Press the 'FAN ON/OFF' button to turn the fan on or off.
• Брзина вентилатора: Use the 'SPEED+' and 'SPEED-' buttons to adjust between 6 fan speeds. Speed 1 is the lowest, Speed 6 is the highest.
• Seasonal Mode (Blade Rotation Direction): Press the 'SUMMER/WINTER' button to reverse the fan blade rotation. In summer, blades rotate counter-clockwise to create a cooling breeze. In winter, blades rotate clockwise to circulate warm air downwards.
• Тајмер: Press the '1H', '4H', or '8H' buttons to set the fan (and/or light) to turn off automatically after 1, 4, or 8 hours, respectively.

Image: Seasonal comfort illustration, demonstrating how the fan's reversible rotation helps cool in summer and distribute heat in winter.

Image: Ultra-silent operation, showing a person sleeping undisturbed and a graph indicating low noise levels (25 dB for quiet room, 55 dB for office).

5. Одржавање

Редовно одржавање осигурава оптималне перформансе и дуготрајност вашег плафонског вентилатора.

• Чишћење: Ensure the power is off before cleaning. Wipe the fan and light fixture with a soft, damp тканина. Немојте користити абразивна средства за чишћење или раствараче.
• Уклањање прашине: Periodically clean dust from the fan blades and motor housing to prevent accumulation, which can affect performance and cause noise.
• Инспекције: Periodically check all mounting hardware for tightness. Loose connections can cause wobbling or noise.

КСНУМКС. Решавање проблема

If you encounter issues with your Osram Bayamo LED Ceiling Fan, refer to the following table for common problems and solutions.

7. Техничке спецификације

8. Гаранција и подршка

Osram products are manufactured to high-quality standards and are backed by a manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or visit the official Osram webсајту.

Корисничка подршка

If you have any questions, require technical assistance, or need to report a problem with your Osram Bayamo LED Ceiling Fan, please contact Osram customer support through their official website or the retailer from whom you purchased the product. Please have your model number (4058075858015) and proof of purchase ready when contacting support.
