Hayward HeatPro HP21404T In-Ground Pool Heat Pump User Manual

Производ је завршенview

The Hayward HeatPro HP21404T is an energy-efficient heat pump designed to maintain optimal water temperature for in-ground pools. It features a durable construction and a titanium heat exchanger for effective heat transfer, extending your swimming season.

Кључне карактеристике

• Acoustic compressor cover and profiled fan blade for quiet operation and efficient performance.
• Ultra-Gold corrosion-resistant evaporator fin for enhanced durability, especially in coastal environments.
• Titanium heat exchanger designed for maximum heat transfer, efficiency, and reliability, offering excellent salt water and chemical corrosion resistance.
• Durable injection-molded UV-resistant body panels that are impervious to rust and deterioration.
• 2-inch x 2 1/2-inch CPVC Union Plumbing Connections for common installation or service, adaptable to larger plumbing for improved efficiencies.

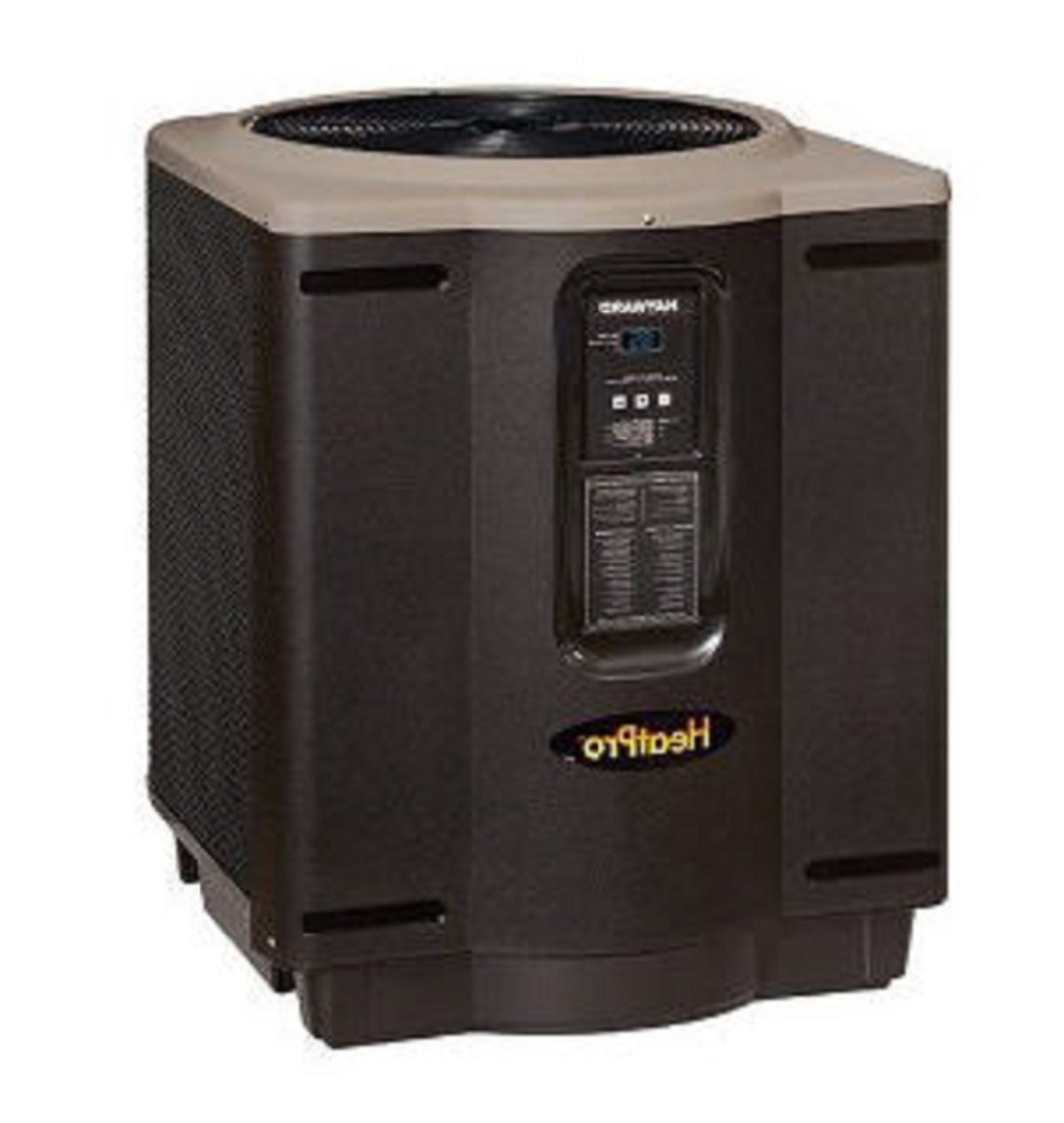

Figure 1: Hayward HeatPro HP21404T In-Ground Pool Heat Pump.

Подешавање и инсталација

Installation of the Hayward HeatPro HP21404T heat pump requires professional expertise to ensure proper function and safety. All local electrical and plumbing codes must be strictly followed. Proper airflow spacing around the unit is essential for optimal performance and efficiency.

Електрични захтеви

• The unit typically requires a dedicated 50 AMP breaker circuit.
• All electrical connections must be performed by a qualified electrician and comply with local regulations.

Водоводне везе

• The unit features 2-inch x 2 1/2-inch CPVC union plumbing connections.
• Ensure secure and leak-free connections to the pool's filtration system.

Пласман

• Install the heat pump on a stable, level surface, such as a concrete pad.
• Maintain adequate clearance around the unit (as specified in the full installation manual) for proper airflow and maintenance access.

Упутство за употребу

The HeatPro HP21404T features an intuitive control panel for easy temperature management. Ensure the pool pump is running to allow water flow through the heat pump before operating the unit.

Функције контролне табле

• Укључивање/искључивање: Use the designated button on the control panel to turn the unit on or off.
• Подешавање температуре: Adjust the desired pool or spa water temperature using the up (+) or down (-) arrow buttons.
• Избор режима: Select between Pool heating mode or Spa heating mode, if applicable to your model.
• Јединица мере: Toggle between Fahrenheit (°F) and Celsius (°C) for temperature display.

Подешавање жељене температуре

1. Ensure your pool's circulation pump is active, allowing water to flow through the heat pump.
2. Press the 'Mode' button to select the desired heating mode (Pool or Spa).
3. Use the '+' or '-' buttons to set your preferred water temperature. The unit will automatically work to achieve and maintain this temperature.

Одржавање

Regular maintenance is crucial for ensuring the longevity, efficiency, and optimal performance of your Hayward HeatPro heat pump.

Рутинске провере

• Очистите препреке: Keep the area around the heat pump clear of debris, leaves, and any other obstructions to ensure proper airflow to the evaporator coil.
• Evaporator Fin Cleaning: Periodically inspect the evaporator fins for cleanliness. If dirty, gently clean them with a soft brush or a garden hose. Avoid using high-pressure washers.
• Проверите да ли има цурења: Regularly inspect all plumbing connections for any signs of leaks. Note that a small amount of condensation draining from the unit is normal during operation; this should not be confused with a leak.

Zimovanje

In regions susceptible to freezing temperatures, proper winterization of your heat pump is essential to prevent damage. Consult a qualified pool professional for specific winterization procedures tailored to your climate and pool system.

Решавање проблема

This section addresses common issues you might encounter with your HeatPro heat pump. For complex problems or issues not listed here, it is recommended to contact qualified service personnel.

Уобичајени проблеми

• Јединица се не греје:
  • Verify that the desired temperature setting is higher than the current pool water temperature.
  • Ensure the pool pump is running and water is actively flowing through the heat pump.
  • Check the control panel for any displayed error codes. Refer to the complete product manual for specific code interpretations.
• Цурење воде:
  • Inspect all plumbing connections for loose fittings or damaged seals.
  • Differentiate between actual leaks and condensation. Condensation is a normal byproduct of heat pump operation and typically drains from the bottom of the unit.
• Необични звуци:
  • Ensure the fan blades are free from any obstructions.
  • If unusual noises persist, power off the unit and contact a certified service technician.

Спецификације

The following are technical specifications for the Hayward HeatPro HP21404T. Please note that some listed dimensions and electrical values may be approximate or refer to internal components; always consult the official product manual for precise and complete technical data.

Информације о гаранцији

The Hayward HeatPro HP21404T heat pump is covered by a manufacturer's warranty. For detailed information regarding warranty terms, coverage, and registration, please refer to the official warranty document included with your product or visit the Hayward official webсајту.

Note: The provided product data lists the manufacturer warranty description as the product title. Specific warranty details should be obtained from the official product documentation.

Подршка

For technical assistance, service inquiries, or additional product information, please contact Hayward Customer Support.
