1. Увод
This manual provides essential information for the proper installation, operation, and maintenance of your Lightobject 4CH RF Wireless Remote Control 1527 Tx/Rx Kit. Please read these instructions carefully before using the product to ensure safe and efficient operation. This kit is designed for various remote control applications, offering flexibility with multiple operating modes.
2. Кључне карактеристике
- 4-Channel RF Wireless Remote Control System
- Utilizes 1527 Chipset for reliable encoding/decoding
- Supports Quad Operating Modes: Toggle, Momentary, Latched, and Combo
- Auto decode/encode functionality with 1527 chipset
- Individual relay outputs for each channel
- Радна фреквенција: 433МХз
- Operating Range: Approximately 100 meters (300 feet) in open air
- Relay Rating: 10A/125VAC, 10A/14VDC
3. Производ је готовview
The Lightobject 4CH RF Wireless Remote Control Kit consists of a receiver board and a remote transmitter. The receiver board features four independent relays and jumper settings for mode selection. The remote transmitter allows for wireless control of these relays.

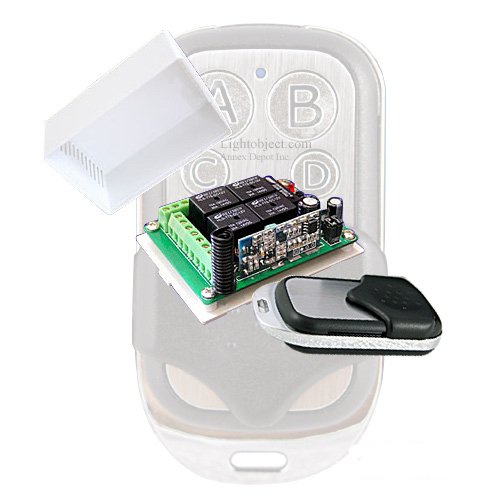

Figure 1: Lightobject 4CH RF Wireless Remote Control 1527 Tx/Rx Kit (Receiver Board and Remote)
4. Подешавање
4.1 Повезивање напајања
Connect a DC12V power supply to the receiver board's power input terminals. Ensure correct polarity to prevent damage to the device. The receiver board requires a stable 12V DC power source for optimal performance.
4.2 Излазне везе
Each of the four relays on the receiver board provides a set of normally open (NO) and common (COM) contacts. Connect your devices (e.g., lamps, motors) to these relay contacts according to your application's requirements. Ensure that the load current does not exceed the relay's maximum rating of 10A/125VAC or 10A/14VDC.
5. Радни режими
The 4CH RF Wireless Remote Control Kit supports three primary operating modes, configurable via jumpers J1 and J2 on the receiver board. These modes determine how the relays respond to button presses on the remote.
5.1 Momentary Mode
In Momentary mode, the relay activates only while the corresponding button on the remote is pressed. Releasing the button deactivates the relay.
- Подешавање краткоспојника: Leave both J1 and J2 open (no caps).
5.2 Преклопни режим
In Toggle mode, pressing a button on the remote activates the corresponding relay, and it remains active. Pressing the same button again deactivates the relay.
- Подешавање краткоспојника: Place a cap on J2 only.
5.3 Latched Mode
In Latched mode, pressing a button on the remote activates its corresponding relay, and it remains active. All other relays are simultaneously deactivated. This mode is suitable for applications where only one output should be active at a time.
- Подешавање краткоспојника: Place a cap on J1 only.
Note: Ensure the receiver board is powered off before changing jumper settings to prevent potential damage or unexpected behavior.
6. Спецификације
| Феатуре | Спецификација |
|---|---|
| Модел | ERF-4A4331527M |
| Канали | 4 |
| Чипсет | 1527 |
| Фреквенција | 433МХз |
| Домет | ~100M (300ft) |
| Напајање (пријемник) | ДЦ12В |
| Релаи Ратинг | 10А/125ВАЦ, 10А/14ВДЦ |
| Receiver Board Size | 8 цм к 10 цм к 3 цм |
| Ремоте Сизе | 5.5 цм к 7.5 цм к 3 цм |
| Тежина артикла | 0.01 унци |
КСНУМКС. Решавање проблема
- No Response from Receiver:
- Check if the DC12V power supply is correctly connected and providing power to the receiver board.
- Ensure the remote control has functional batteries.
- Verify that the remote and receiver are within the specified operating range and there are no significant RF obstructions.
- Incorrect Relay Behavior:
- Review the jumper settings (J1, J2) on the receiver board to ensure they match the desired operating mode (Momentary, Toggle, Latched). Power off the board before adjusting jumpers.
- Confirm that the load connected to the relay outputs is within the specified current and voltagе оцене.
- Смањени домет:
- Ensure the receiver's antenna (if external) is properly connected and positioned for optimal reception.
- Minimize interference from other 433MHz devices or large metal objects.
8. Одржавање
The Lightobject 4CH RF Wireless Remote Control Kit is designed for low maintenance. Follow these guidelines to ensure its longevity:
- Keep the receiver board and remote control clean and free from dust and moisture. Use a soft, dry cloth for cleaning.
- Избегавајте излагање уређаја екстремним температурама или директној сунчевој светлости.
- Regularly check the power supply connections for any signs of wear or corrosion.
- Replace remote control batteries as needed to ensure consistent performance.
9. Гаранција и подршка
For warranty information or technical support regarding your Lightobject 4CH RF Wireless Remote Control 1527 Tx/Rx Kit, please refer to the documentation provided at the time of purchase or contact Lightobject customer service directly. Please have your model number (ERF-4A4331527M) and purchase details ready when contacting support.
