1. Увод
This manual provides essential instructions for the safe and effective use of your Oregon 91P056E chainsaw chain. This 16-inch (40 cm) low-kickback chain features 56 drive links and is designed for various chainsaw models, including those from Husqvarna, McCulloch, and Black & Decker. The chain is engineered with special shaped low-vibration heels and ramp-shaped depth gauges to reduce kickback while maintaining cutting performance and durability.
2. Безбедносне информације
Always prioritize safety when working with chainsaws and chainsaw chains. Failure to follow safety guidelines can result in serious injury.
- Прочитајте упутство за употребу моторне тестере: Always consult your chainsaw's instruction manual for specific safety procedures, installation, and operation guidelines.
- Носите заштитну опрему: Always wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, gloves, and protective legwear.
- Understand Kickback: This Oregon chain is designed with low-kickback features. However, kickback can still occur. Be aware of potential kickback zones and maintain a firm grip on the chainsaw.
- Прегледајте пре употребе: Before each use, inspect the chain for damage, dullness, or loose components. Never operate a chainsaw with a damaged or improperly installed chain.
- Правилна напетост: Ensure the chain is correctly tensioned according to your chainsaw manufacturer's specifications. An improperly tensioned chain can derail or cause injury.
слика: This image displays a green square with the text "LOW KICKBACK" and "CERTIFIED TO MINIMIZE REACTIVE FORCE," along with a "CLASSIFIED C UL US" certification mark. It indicates that the Oregon chain is certified to reduce the risk of kickback.
3. Подешавање и инсталација
Installing your new Oregon chainsaw chain correctly is crucial for safety and performance. Refer to your chainsaw's owner's manual for detailed, model-specific instructions.
- Припремите моторну тестеру: Ensure the chainsaw is turned off, unplugged (electric), or the spark plug wire is disconnected (gasoline) to prevent accidental starting. Engage the chain brake.
- Уклоните стари ланац: Loosen the bar nuts and remove the clutch cover. Carefully remove the old chain and guide bar.
- Чисте компоненте: Clean any sawdust or debris from the guide bar groove, sprocket, and clutch area.
- Инсталирајте нови ланац: Place the new Oregon chain onto the sprocket, ensuring the cutting edges are facing the correct direction (usually forward on the top of the guide bar). Fit the chain into the guide bar groove.
- Reattach Guide Bar and Cover: Slide the guide bar back into position, ensuring the chain tensioner pin engages with the hole in the bar. Replace the clutch cover and hand-tighten the bar nuts.
- Подесите затегнутост ланца: Adjust the chain tension according to your chainsaw's manual. The chain should be snug against the guide bar but still able to be pulled freely by hand. It should not sag underneath the bar.
- Затегните навртке шипке: Када је затегнутост подешена, потпуно затегните навртке шипке.

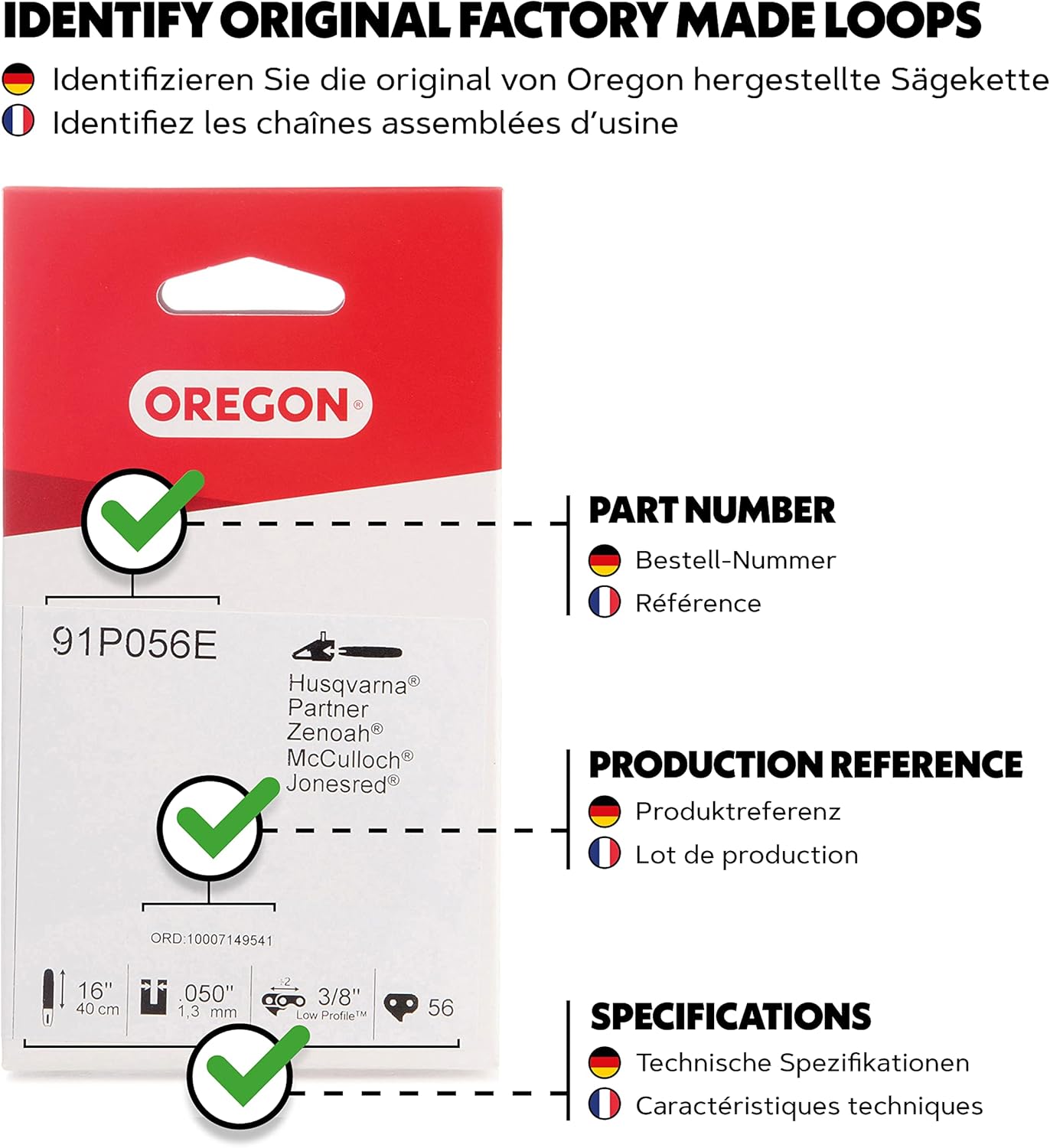

слика: This image shows the packaging of an Oregon chainsaw chain, highlighting the part number 91P056E, production reference, and specifications. This helps in verifying you have the correct chain for installation.
4. Упутство за употребу
While this manual focuses on the chain, proper chainsaw operation is essential for chain longevity and user safety. Always refer to your chainsaw's manual for complete operating instructions.
- подмазивање: Ensure your chainsaw's oil reservoir is filled with appropriate bar and chain oil. Proper lubrication is vital to reduce friction, heat, and wear on the chain and guide bar.
- Техника сечења: Use proper cutting techniques to avoid binding, pinching, or kickback. Let the chain do the work; do not force it.
- Избегавајте контакт са земљом: Do not allow the chain to contact the ground, rocks, or other hard objects, as this will dull the chain quickly and can cause damage.
- Monitor Chain Condition: Periodically check the chain during operation for dullness or damage. A dull chain requires more force, increases wear, and can be dangerous.
5. Одржавање
Regular maintenance extends the life of your Oregon chainsaw chain and ensures safe, efficient cutting.
- Оштрење: Sharpen the chain regularly. The Oregon 91P056E chain typically requires a 5/32" (4.0 mm) round file and a sharpening angle of 30 degrees. Maintain consistent angles and depth gauge settings for optimal performance.
- Чишћење: After each use, clean the chain to remove sap, sawdust, and debris. A clean chain operates more smoothly and reduces wear.
- подмазивање: Ensure continuous and adequate lubrication during operation. Check the oiler function regularly.
- инспекција: Inspect the chain for stretched links, cracks, broken rivets, or other damage. Replace the chain if any significant damage is found.
- Одржавање водилице: Периодично окрећите вођицу како бисте осигурали равномерно хабање. Очистите жлеб вођице и отворе за уље.
слика: This image shows the back of the Oregon chainsaw chain packaging, detailing sharpening specifications including the recommended file size (5/32" or 4.0 mm) and sharpening angle (30 degrees).
КСНУМКС. Решавање проблема
Here are some common issues and their potential solutions related to your chainsaw chain:
| Проблем | Могући узрок | Решење |
|---|---|---|
| Ланац не сече ефикасно | Dull cutters, incorrect sharpening angle, improper depth gauge setting | Sharpen chain, ensure correct file size and angle, adjust depth gauges |
| Ланчано пушење или прегревање | Insufficient lubrication, dull chain, incorrect chain tension | Check bar oil level and oiler function, sharpen chain, adjust chain tension |
| Ланац исклизне са водилице | Loose chain tension, worn guide bar, damaged drive links | Adjust chain tension, inspect and replace guide bar if worn, replace damaged chain |
| Прекомерне вибрације | Damaged chain, unevenly sharpened cutters, worn sprocket | Inspect and replace chain if damaged, ensure even sharpening, check and replace sprocket if worn |
7. Спецификације
Key specifications for the Oregon 91P056E Chainsaw Chain:
- Број модела: 91P056E
- Bar Length Compatibility: 16 инча (40 цм)
- Везе за диск: 56
- Цхаин Питцх: 3/8 inch Low Profile
- мерач: 050 инча (1.3 мм)
- Тип ланца: Xtraguard Chamfer Chisel, Low-kickback
- Материјал: Метал
- Тежина артикла: 6.7 унци
- Произвођач: Oregon Tool
слика: This graphic clearly outlines the key specifications of the Oregon chainsaw chain, including Bar Length (16" / 40 cm), Chain Pitch (3/8" Low Profile), Drive Links (56), and Gauge (.050" / 1.3 mm).
8. Гаранција и подршка
For information regarding product warranty or technical support, please contact Oregon customer service directly. You can typically find contact details on the Oregon webсајт или паковање производа.
For further assistance, visit the official Oregon webсајт: www.oregonproducts.com
