Увод
This manual provides essential information for the proper installation, function, and care of your Kohler K-1097741 Diaphragm Assembly. This component is a critical replacement part designed to restore the efficient flushing operation of compatible Kohler toilets. Please read these instructions thoroughly before beginning any installation or maintenance.

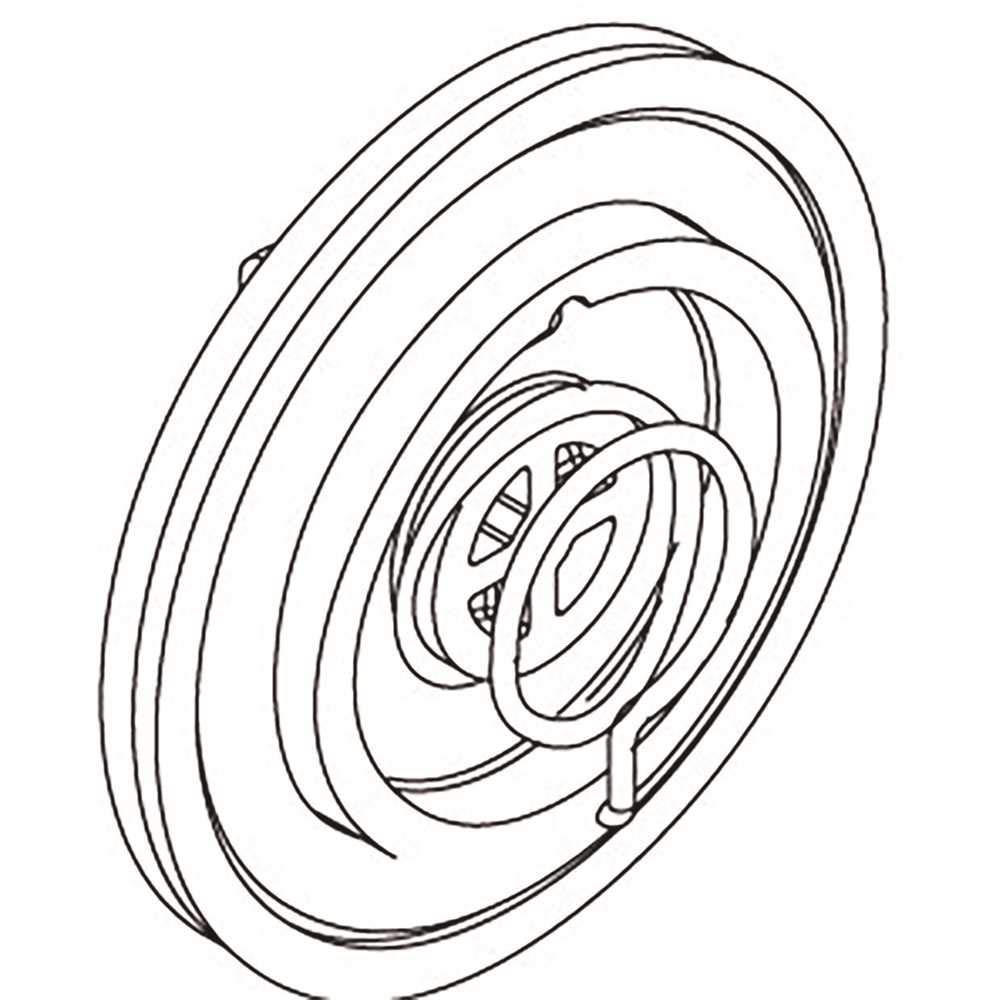

Image: The Kohler K-1097741 Diaphragm Assembly, a small, circular rubber component essential for toilet flush valve function.
Безбедносне информације
Приликом рада са водоводним инсталацијама увек се придржавајте следећих безбедносних мера предострожности:
- Turn off the main water supply to the toilet before starting any work.
- Wear appropriate personal protective equipment, such as safety glasses, to prevent injury.
- Уверите се да је радно место добро осветљено и без препрека.
- Ако нисте сигурни у вези са било којим кораком, консултујте квалификованог водоинсталатера.
Садржај пакета
Проверите да ли ваш пакет садржи следећу ставку:
- 1 x Kohler K-1097741 Diaphragm Assembly
Подешавање и инсталација
Follow these steps to replace the diaphragm assembly in your Kohler toilet:
- Искључите довод воде: Locate the shut-off valve on the wall or floor near the base of the toilet and turn it clockwise until the water flow stops completely.
- Empty Toilet Tank: Flush the toilet to drain most of the water from the tank. Hold the flush lever down until the tank is as empty as possible. You may need to use a sponge or towel to remove any remaining water.
- Remove Tank Lid: Carefully lift the toilet tank lid and set it aside on a soft, stable surface to prevent damage.
- Locate Flush Valve: Identify the flush valve mechanism inside the tank. The diaphragm assembly is typically located at the base of this mechanism.
- Remove Old Diaphragm: Depending on your specific Kohler flush valve model, the diaphragm may be held in place by clips or a twist-lock mechanism. Carefully detach the old diaphragm assembly. Note its orientation for correct installation of the new part.
- Install New Diaphragm: Position the new Kohler K-1097741 Diaphragm Assembly into the flush valve. Ensure it is seated correctly and securely, matching the orientation of the old part. It should fit snugly without being forced.
- Обнова снабдевања водом: Slowly turn the water shut-off valve counter-clockwise to restore the water supply to the toilet tank. Allow the tank to refill.
- Check for Leaks and Functionality: Inspect all connections for any signs of leaks. Flush the toilet several times to ensure the new diaphragm assembly is functioning correctly and the toilet flushes powerfully and refills properly.
- Replace Tank Lid: Once you have confirmed proper operation and no leaks, carefully place the tank lid back onto the toilet tank.
Упутство за употребу
The K-1097741 Diaphragm Assembly is an internal component of your toilet's flush valve. Its primary function is to create a seal that holds water in the tank until the flush lever is activated. When the lever is pressed, the diaphragm lifts, allowing water to flow into the bowl. Proper installation ensures efficient and reliable flushing. No direct user operation is required for the diaphragm itself beyond the normal use of the toilet flush lever.
Одржавање
The Kohler K-1097741 Diaphragm Assembly is designed for durability. Regular maintenance is generally not required for this component. However, if you notice issues such as a continuously running toilet, a weak flush, or a toilet that fails to flush, the diaphragm assembly may be worn or damaged and require replacement. Inspect the diaphragm for cracks, tears, or deformation during troubleshooting.
Решавање проблема
| Проблем | Могући узрок | Решење |
|---|---|---|
| Тоалет ради непрекидно или се циклично укључује и искључује. | Diaphragm is not sealing properly, is worn, or is misaligned. | Turn off water, inspect the diaphragm for debris, damage, or improper seating. Re-seat or replace if necessary. |
| Слабо или непотпуно испирање. | Diaphragm is partially obstructed or damaged, preventing full water flow. | Inspect the diaphragm for wear or obstruction. Ensure it lifts fully when the flush lever is pressed. Replace if damaged. |
| Toilet does not flush at all. | Diaphragm is completely failed, dislodged, or the flush valve mechanism is broken. | Check if the diaphragm is properly installed and intact. If the diaphragm is fine, inspect other parts of the flush valve. Replace the diaphragm if it is the cause. |
Спецификације
- Број дела: К-1097741
- Произвођач: Кохлер
- Тежина артикла: 0.176 унци
- Димензије производа: 0.01 к 0.95 к 1.55 инча
- Материјал: Rubber/Plastic Composite (typical for diaphragm assemblies)
Гаранција и подршка
For information regarding the warranty of your Kohler K-1097741 Diaphragm Assembly, please refer to the official Kohler website or contact Kohler customer service directly. Keep your proof of purchase for warranty claims. For further assistance or technical support, visit ввв.кохлер.цом or consult a professional plumber.
