1. Увод и безбедносне информације
This manual provides essential information for the safe and efficient operation of your CEVIK PRO CA-PRO25VX V-head air compressor. Please read all instructions carefully before use to ensure proper function and prevent injury or damage.
The CEVIK PRO CA-PRO25VX is a powerful 3HP, 24-liter air compressor designed for demanding tasks. Featuring a V-head cylinder configuration for improved cooling and efficiency, it delivers up to 8 Bar pressure and a flow rate of 340 l/min. Its oil-lubricated system ensures durability and smooth operation, making it suitable for pneumatic tools, painting, and other applications requiring a reliable air supply. The compact and portable design, including an ergonomic handle and transport wheels, enhances its versatility.
Општа безбедносна упозорења
- Always wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, and gloves.
- Ensure the compressor is placed on a stable, level surface in a well-ventilated area.
- Не користите компресор у влажним условима или у близини запаљивих материјала.
- Before performing any maintenance, disconnect the compressor from the power supply and ensure the tank is fully depressurized.
- Никада не усмеравајте компримовани ваздух ка људима или животињама.
- Regularly inspect the compressor for any signs of damage or wear.
2. Производ је готовview
The CEVIK PRO CA-PRO25VX air compressor is engineered for performance and portability. Key features include:
- Мотор од 3 КС: Provides high power for various pneumatic applications.
- 24-Liter Tank: Offers a good air reserve for continuous operation.
- V-Head Cylinder: Designed for enhanced cooling and extended lifespan under intensive use.
- Oil-Lubricated: Ensures smooth operation and increased motor durability.
- Dual Air Outlets: Allows simultaneous connection of two pneumatic tools.
- Преносиви дизајн: Equipped with an ergonomic handle and wheels for easy transport.

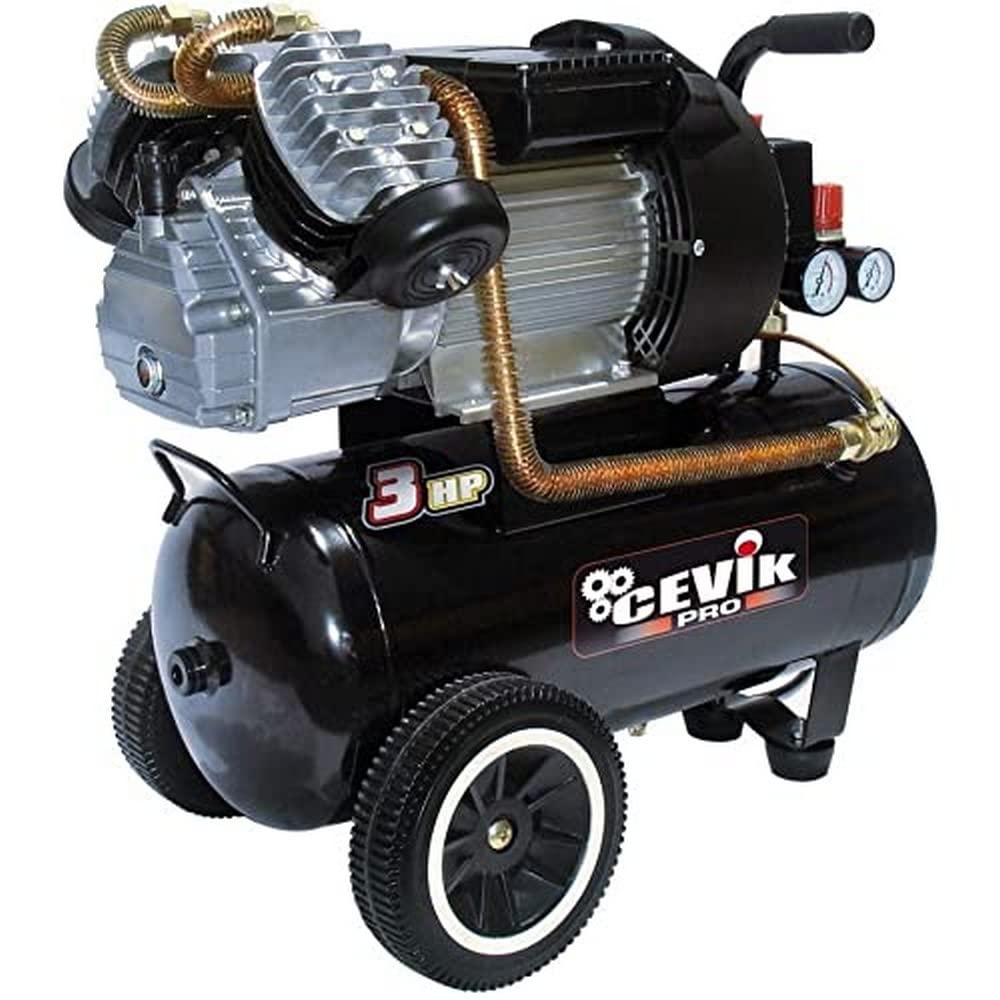

Figure 1: CEVIK PRO CA-PRO25VX V-Head Air Compressor.
Figure 2: Close-up of the V-head cylinder design, optimizing cooling and performance.
3. Упутства за подешавање
- Распакивање: Carefully remove the compressor and all accessories from the packaging. Retain the packaging for future transport or storage.
- Attach Wheels and Feet:
Locate the transport wheels and rubber feet included in the package. Attach the wheels to the designated axle points on one side of the tank and secure them. Install the rubber feet on the opposite side to provide stability.
Note: No specific setup video for the CEVIK PRO CA-PRO25VX was available from the seller. Always refer to the included paper manual for detailed, model-specific assembly instructions.
- Проверите ниво уља: Before first use, ensure the oil level is correct. Refer to the oil sight glass or dipstick (if present) and top up with appropriate compressor oil if necessary.
- Позиционирање: Place the compressor on a firm, level surface in a clean, dry, and well-ventilated area. Ensure there is adequate space around the unit for air circulation.
- Електрични прикључак: Connect the power cable to a suitable grounded electrical outlet (230 Volts). Ensure the power supply matches the compressor's requirements.
- Повежите црево за ваздух: Attach your air hose to one of the quick-connect air outlets.
4. Упутство за употребу
- Укључено: Press the ON/OFF switch to start the compressor. The motor will run until the tank reaches its maximum pressure (8 Bar), then it will automatically shut off.
- Подесите излазни притисак: Use the pressure regulator knob (usually red) to set the desired output pressure for your pneumatic tool. The output pressure gauge will display the adjusted pressure.
- Алат за повезивање: Connect your pneumatic tool to the air hose.
- Операција: Begin using your pneumatic tool. The compressor will automatically restart when the tank pressure drops below a preset minimum, maintaining a consistent air supply.
- Искључивање: When finished, turn off the compressor by pressing the OFF switch.
- Depressurize Tank: Before disconnecting any tools or storing the compressor, always drain the air from the tank. This is typically done by opening the drain valve located at the bottom of the tank.
5. Одржавање
Regular maintenance is crucial for the longevity and optimal performance of your compressor.
- Дневно:
- Испустите кондензат из резервоара за ваздух. Ово спречава рђу и одржава капацитет резервоара.
- Проверите ниво уља и допуните ако је потребно.
- Weekly/After 10-20 Hours of Use:
- Clean the air filter. A clogged filter reduces efficiency and can damage the motor.
- Проверите да ли сва црева и прикључке не пропуштају или имају оштећења.
- Monthly/After 50 Hours of Use:
- Change the compressor oil. Use only recommended compressor oil.
- Inspect the safety valve to ensure it operates freely.
- Годишње:
- Have the pressure relief valve and pressure switch checked by a qualified technician.
Warning: Always disconnect the power supply and depressurize the tank before performing any maintenance.
КСНУМКС. Решавање проблема
| Проблем | Могући узрок | Решење |
|---|---|---|
| Компресор се не покреће. | Нема струје, неисправан прекидач, преоптерећење мотора. | Check power connection, reset circuit breaker, allow motor to cool. |
| Low air pressure or slow recovery. | Air leaks, clogged air filter, worn piston rings. | Check connections for leaks, clean/replace air filter, contact service for repair. |
| Прекомерна бука или вибрација. | Loose components, worn bearings, insufficient oil. | Tighten loose parts, check oil level, contact service for inspection. |
| Цурење уља. | Loose fittings, damaged seals. | Tighten fittings, contact service for seal replacement. |
7. Спецификације
| Феатуре | Детаљ |
|---|---|
| Бранд | ЦЕВИК ПРО |
| Број модела | CA-PRO25VX |
| Волtage | 230 Волтс |
| Снага мотора | 3 HP (2237.1 Watts) |
| Капацитет резервоара | 25 литара |
| Мак Прессуре | 8 Бар |
| Капацитет протока ваздуха | 340 l/min (357 Liters per minute) |
| Ниво буке | 72 децибела |
| Посебна карактеристика | Portable, V-Head Cylinder |
| Тип подмазивања | Oil-lubricated |
| Препоручена употреба | Screwing, drilling, sanding, nailing, cutting (with appropriate pneumatic tools) |
| Укључене компоненте | Ergonomic handle, User manual, Transport wheels |
| Тежина производа | 32 килограма |
| Материјал | Metallic casing, Electromechanical components, Electronic components |
8. Гаранција и подршка
For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact CEVIK PRO customer service directly. Keep your purchase receipt as proof of purchase.
Контакт информације: Please refer to the official CEVIK PRO website or your retailer for the most up-to-date contact details.
