OKTO by surula WiFi Audio Receiver User Manual

Увод

The OKTO by surula WiFi Audio Receiver is designed to upgrade your existing audio systems, enabling wireless music streaming from your smartphone, tablet, or computer. This device supports AirPlay for Apple devices and DLNA for broader compatibility, delivering high-fidelity audio. Its compact and elegant design integrates seamlessly into any home environment. This manual provides essential information for setup, operation, and maintenance to ensure optimal performance.

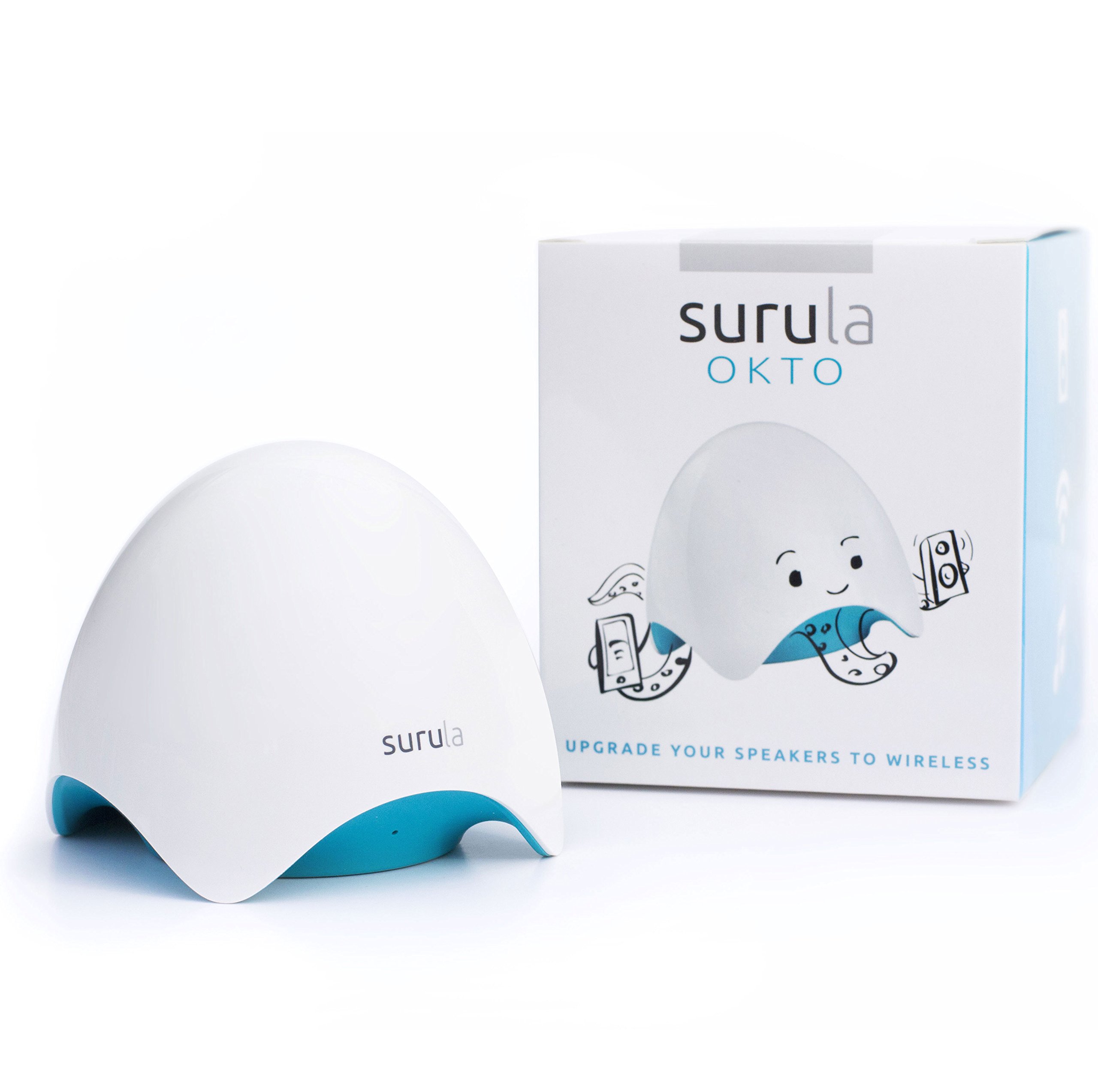

Слика: Фронт view of the OKTO by surula WiFi Audio Receiver, showcasing its sleek, white, and blue design.

Шта је у кутији

Молимо вас да проверите садржај пакета како бисте били сигурни да су сви предмети присутни:

• OKTO by surula WiFi Audio Receiver
• 3.5mm Male to Male Jack Cable
• УСБ на микро УСБ кабл
• European USB Power Adapter
• Водич за брзи почетак (енглески)

Сетуп

Follow these steps to set up your OKTO by surula receiver:

1. Повежите се са напајањем: Connect the provided USB to Micro USB cable to the 'DC' port on the OKTO receiver and the other end to the European USB Power Adapter. Plug the adapter into a power outlet.
2. Повежите се са аудио системом: Use the 3.5mm Male to Male Jack Cable to connect the 'OUT' port of the OKTO receiver to the AUX-in or Line-in port of your audio system (e.g., HiFi chain, amplified speaker, car audio system). If your audio system requires RCA inputs, you will need a separate 3.5mm to RCA cable (not included).
3. Почетна Wi-Fi веза:
   • On your smartphone, tablet, or computer, go to your Wi-Fi settings.
   • Look for a Wi-Fi network named "surula_xxxx" (where xxxx are unique characters). Connect to this network.
   • Отвори а web browser and navigate to the IP address provided in the Quick Start Guide (usually 192.168.203.1). This will open the OKTO configuration interface.
   • In the interface, select your home Wi-Fi network (SSID) and enter its password. Confirm the settings.
   • The OKTO receiver will then connect to your home Wi-Fi network. Your device will automatically disconnect from "surula_xxxx" and reconnect to your home network.
4. Security Recommendation: For enhanced security, it is highly recommended to change the default SSID and password of the "surula_xxxx" network if it remains visible after setup. Access the advanced settings in the web interface to update the Wi-Fi SSID and password for the OKTO's direct access point. Ensure your home network uses WPA2 or WPA3 encryption for optimal security.

Слика: Позади view of the OKTO receiver, showing the 'OUT' (audio output), 'DC' (power input), and 'IN' (audio input) ports.

Упутство за употребу

Once the OKTO receiver is connected to your home Wi-Fi network, you can start streaming music:

1. For Apple Devices (AirPlay):
   • Ensure your iPhone, iPad, iPod Touch, or MacBook is connected to the same Wi-Fi network as the OKTO receiver.
   • Open any music application (e.g., Apple Music, Spotify, Deezer, YouTube).
   • Look for the AirPlay icon (a rectangle with an upward-pointing triangle).
   • Tap or click the AirPlay icon and select the OKTO receiver from the list of available devices.
   • Your music will now play through your connected audio system.
2. For Android/Windows Devices (DLNA/Third-Party Software):
   • For Android and Windows devices, you will need to use a third-party DLNA-compatible application to stream music to the OKTO receiver.
   • Install a DLNA client app on your device (e.g., BubbleUPnP for Android, Foobar2000 with UPnP plugin for Windows).
   • Open the application and select the OKTO receiver as the playback device.
   • Start playing your music.
3. Multi-Room Functionality: The OKTO receiver supports multi-room audio when used with compatible third-party software. Refer to the documentation of your chosen multi-room application for specific setup instructions.

Image: The OKTO receiver positioned next to a smartphone and a speaker, illustrating a typical usage scenario for wireless music streaming.

Одржавање

To ensure the longevity and optimal performance of your OKTO by surula WiFi Audio Receiver, follow these simple maintenance guidelines:

• Чишћење: Use a soft, dry cloth to clean the exterior of the device. Do not use liquid cleaners or aerosols, as they may damage the finish or internal components.
• Пласман: Place the receiver on a stable, flat surface away from direct sunlight, heat sources, and excessive moisture. Ensure adequate ventilation around the device.
• Снага: Always use the provided power adapter. Disconnect the power adapter during electrical storms or when the device is not in use for extended periods.
• Руковање: Пажљиво рукујте уређајем. Избегавајте испуштање или излагање јаким ударцима.

Решавање проблема

If you encounter issues with your OKTO by surula receiver, refer to the following common problems and solutions:

Спецификације

Гаранција и подршка

Specific warranty information and detailed support contact details are not available in the provided product data. Please refer to the manufacturer's official website or the documentation included with your purchase for warranty terms and customer support contacts.
