Haier AC-0600-20 Room Air Conditioner Blower Wheel Instruction Manual

1. Увод

This instruction manual provides essential information for the safe and correct installation, maintenance, and troubleshooting of your Haier AC-0600-20 Room Air Conditioner Blower Wheel. This component is a critical part of your air conditioner's air circulation system. Please read this manual thoroughly before proceeding with installation to ensure proper function and to prevent damage or injury.

2. Безбедносне информације

Always adhere to the following safety precautions:

• Искључите напајање: Before attempting any installation or maintenance, ensure the air conditioner unit is completely disconnected from its power source. Failure to do so can result in electric shock or serious injury.
• Носите заштитну опрему: Use appropriate personal protective equipment, such as gloves and eye protection, to prevent injury from sharp edges or debris.
• Професионална инсталација: If you are unsure about any step, consult a qualified technician. Improper installation can lead to damage to the unit or personal injury.
• Пажљиво рукујте: The blower wheel may have sharp edges. Handle it carefully to avoid cuts.
• Држите даље од деце: Store all parts and tools out of reach of children.

3. Садржај пакета

Проверите да ли су сви предмети присутни и неоштећени приликом отварања пакета:

• Haier AC-0600-20 Room Air Conditioner Blower Wheel (1 unit)

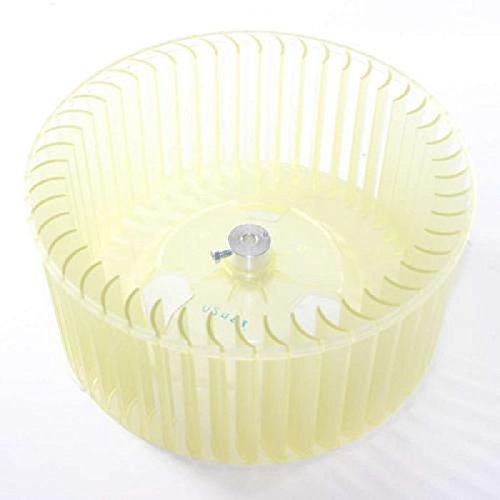

Слика 1: The Haier AC-0600-20 Room Air Conditioner Blower Wheel. This image shows the cylindrical fan blade component, typically made of plastic, designed to circulate air within the air conditioning unit.

4. Инсталација

Follow these steps to replace the blower wheel in your Haier room air conditioner:

1. Припремите јединицу:
   • Ensure the air conditioner is unplugged from the wall outlet.
   • Carefully remove the front grille and air filter of the air conditioner.
   • Locate and remove any screws or clips securing the outer casing or control panel to access the internal components.
2. Access the Blower Assembly:
   • Depending on your specific Haier model, you may need to remove additional panels or components to gain full access to the blower wheel assembly.
   • Identify the motor shaft to which the blower wheel is attached.
3. Remove the Old Blower Wheel:
   • Locate the set screw or retaining clip that secures the blower wheel to the motor shaft.
   • Loosen or remove the set screw/clip.
   • Carefully slide the old blower wheel off the motor shaft. If it is stuck, gentle persuasion or a penetrating lubricant may be needed, but avoid damaging the motor shaft.
4. Install the New Blower Wheel:
   • Align the new Haier AC-0600-20 blower wheel with the motor shaft.
   • Slide the new blower wheel onto the shaft, ensuring it is seated correctly and aligned with any grooves or flat spots on the shaft.
   • Secure the blower wheel to the motor shaft using the set screw or retaining clip. Ensure it is tightened firmly but do not overtighten, which could strip the screw or damage the wheel.
   • Verify that the blower wheel spins freely without obstruction and is centered.
5. Reassemble the Unit:
   • Reattach any panels, control boards, or casings that were removed.
   • Replace the air filter and front grille.
   • Ensure all screws and clips are securely fastened.

5. Провера након инсталације

Након инсталације, извршите следеће провере:

• Укључено: Plug the air conditioner back into the power outlet.
• Почетни тест: Turn on the air conditioner and select a fan-only mode or a low cooling setting.
• Посматрајте рад:
  • Listen for any unusual noises, such as grinding, rattling, or scraping, which could indicate improper installation or contact with other components.
  • Verify that air is flowing smoothly and consistently from the unit's vents.
  • Ensure the blower wheel is spinning without wobble or excessive vibration.
• If any issues are observed, immediately turn off and unplug the unit and refer to the Troubleshooting section.

6. Одржавање

Regular maintenance helps ensure the longevity and efficient operation of your blower wheel:

• Периодично чишћење: At least once a year, or more frequently if the unit is used heavily or in dusty environments, inspect the blower wheel for dust and debris buildup.
• Процедура чишћења:
  • Disconnect power to the air conditioner.
  • Access the blower wheel as described in the installation section.
  • Use a soft brush, vacuum cleaner with a brush attachment, or compressed air to gently remove dust and dirt from the blades. Avoid using harsh chemicals or excessive moisture.
  • Ensure the wheel is completely dry before reassembling the unit and restoring power.
• инспекција: Periodically check the blower wheel for any signs of damage, cracks, or excessive wear. Replace if necessary.

КСНУМКС. Решавање проблема

If you encounter issues after installing the new blower wheel, refer to the table below:

If troubleshooting steps do not resolve the issue, contact Haier customer support or a qualified service technician.

8. Спецификације

9. Гаранција и подршка

This Haier AC-0600-20 Blower Wheel is covered by the manufacturer's standard warranty. For specific warranty terms and conditions, please refer to the documentation provided with your original Haier air conditioner unit or visit the official Haier webсајту.

For technical assistance, replacement parts, or warranty claims, please contact Haier Customer Support:

• Webсајт: ввв.хаиер.цом (Check for regional support contact information)
• Телефон: Refer to your original product manual or the Haier website for the appropriate customer service number in your region.

When contacting support, please have your air conditioner model number and the part number (AC-0600-20) readily available.
