Увод

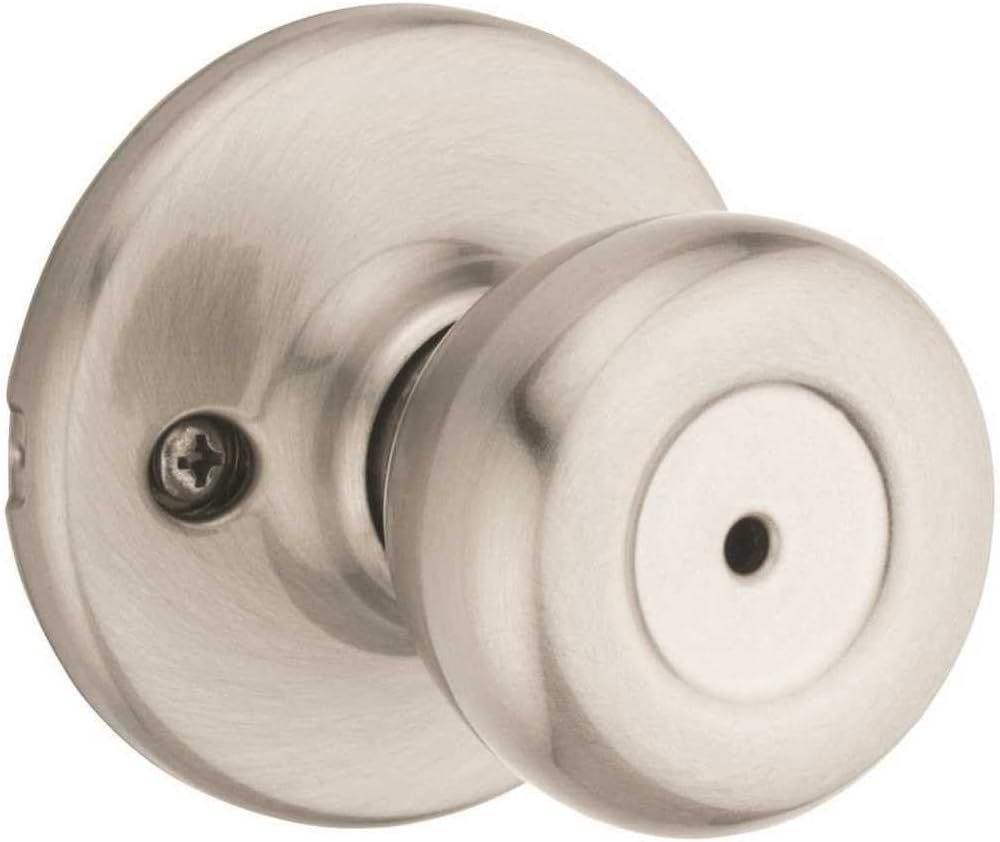

The Kwikset Tylo Privacy Door Knob is designed for interior doors requiring privacy, such as bedrooms and bathrooms. It features a classic, well-balanced style and a satin nickel finish. This manual provides essential information for the proper installation, operation, and maintenance of your door knob.
Шта је укључено
The product package includes all necessary components for installation:
- Ектериор Кноб
- Унутрашње дугме
- Сцревс
- Подесива брава
- Стрике Плате
- Emergency Unlock Tool
- Хардвер за инсталацију
- Упутство за инсталацију
Спецификације
| Феатуре | Детаљ |
|---|---|
| Материјал | метал (месинг) |
| Бранд | Квиксет |
| Боја | Сатин Ницкел |
| Стиле | Приватност |

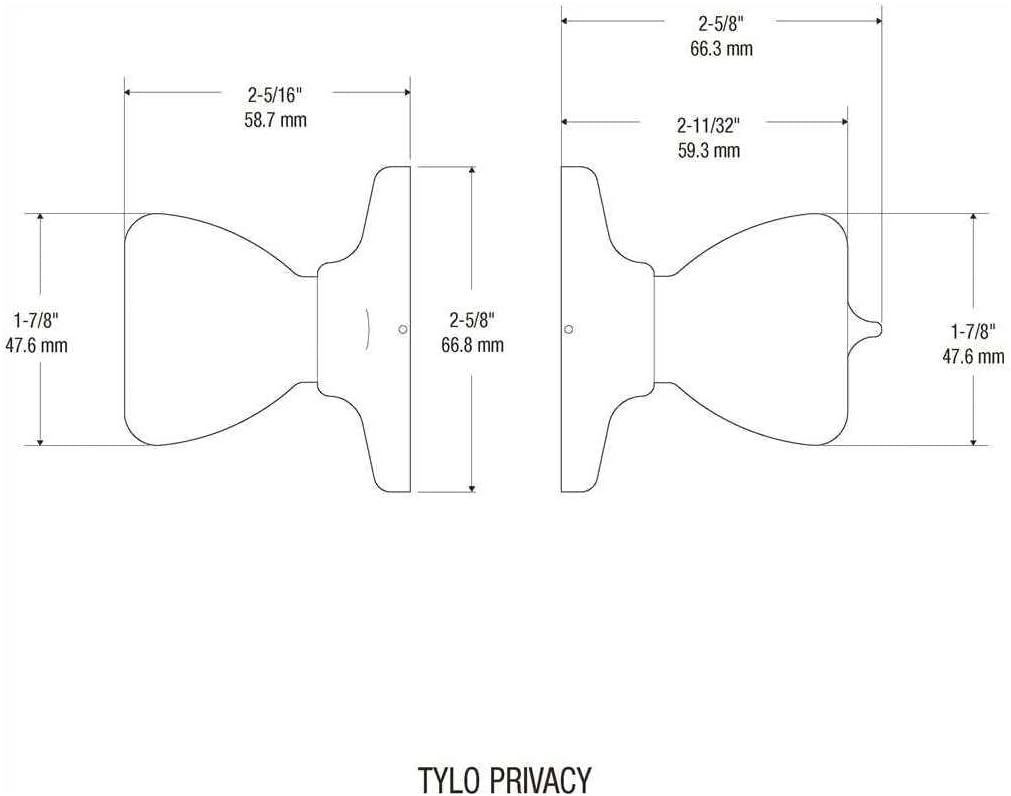

| Димензије производа | 7.3 cm D x 3.6 cm Š |
| Ектериор Финисх | Никл |
| Облик | Роунд |
| Тип закључавања | Закључавање приватности |
| Оријентација руке | Амбидектроус |
| Механизам за причвршћивање ручке | Turn Piece (Inside), Tool (Outside) |
| Број модела | 93001-924 |
| Компатибилност дебљине врата | 1-3/8" to 1-3/4" |
| Подесиви задњи део са резом | 2-3/8" to 2-3/4" |
| Цертификати | Grade 3 BHMA certified (Security, Durability, Finish) |
Подешавање и инсталација
The Kwikset Tylo Privacy Door Knob is designed for easy, do-it-yourself installation. It fits standard doors with a thickness of 1-3/8" to 1-3/4" and features an adjustable latch backset from 2-3/8" to 2-3/4".
Кораци инсталације:
- Припремите врата: Ensure your door has the correct bore holes and backset. The latch is adjustable by twisting it during installation.
- Инсталирајте браву: Insert the adjustable latch into the door edge. Ensure the curved part of the latch is facing the door frame to allow proper closing. Secure with screws.
- Саставите дугмад: Place the exterior and interior knobs through the door, aligning them with the latch mechanism.
- Причврстите дугмад: Fasten the knobs together using the provided screws. A screwdriver is the only tool typically required.
- Инсталирајте заштитну плочу: Причврстите заштитну плочу на оквир врата, поравнавајући је са резом.
- Пробни рад: Verify that the knob turns smoothly, the latch retracts, and the privacy lock functions correctly.
Визуелна помагала:
Упутство за употребу
The Tylo Privacy Door Knob is designed for simple operation, providing privacy for bedrooms and bathrooms.

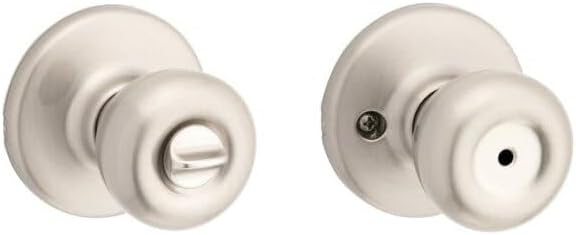

- Locking from Inside: To lock the door from the inside, simply turn the button located on the interior knob.
- Unlocking from Inside: To unlock the door from the inside, turn the button back to its original position.
- Unlocking from Outside (Emergency): In case of an emergency or accidental lockout, the door can be unlocked from the outside using the provided emergency release tool. Insert the tool into the small hole on the exterior knob and push to disengage the lock.
Одржавање
To ensure the longevity and optimal performance of your Kwikset Tylo Privacy Door Knob, follow these maintenance guidelines:
- Чишћење: Clean the door knob regularly with a soft, damp крпом. Избегавајте абразивна средства за чишћење или јаке хемикалије, јер могу оштетити завршну обраду.
- Заштита од микробана: Kwikset door hardware is treated with Microban, an antimicrobial technology that offers powerful product protection by keeping surfaces 99.9% cleaner than unprotected surfaces. This protection is built-in and does not require special maintenance.
- подмазивање: If the mechanism feels stiff over time, apply a small amount of graphite lubricant to the latch bolt and internal moving parts. Do not use oil-based lubricants.
- Вијци за притезање: Periodically check and tighten any loose mounting screws to ensure the knob remains securely attached to the door.
Решавање проблема
If you encounter any issues with your Kwikset Tylo Privacy Door Knob, consider the following common solutions:
- Knob is Loose: Check the mounting screws on the interior side of the door knob. Tighten them with a screwdriver.
- Latch Does Not Retract Smoothly: Ensure the latch is properly aligned with the strike plate on the door frame. Check for any obstructions. Lubricate the latch mechanism if necessary (refer to Maintenance section).
- Privacy Lock Not Engaging/Disengaging: Verify that the interior turn-button is fully rotated. If using the emergency unlock tool, ensure it is inserted correctly and pushed firmly.
- Врата се не затварају правилно: Confirm that the strike plate on the door frame is correctly aligned with the latch. Adjust if needed.
Информације о гаранцији
Kwikset products are backed by a lifetime mechanical and finish warranty. This warranty ensures reliable protection and peace of mind. For detailed information regarding warranty coverage and claims, please refer to the official Kwikset warranty documentation or contact customer support.
Подршка
For further assistance, technical support, or to inquire about replacement parts, please visit the official Kwikset website or contact their customer service department. Contact information can typically be found on the Kwikset webсајту или у материјалима за паковање.
