1. Увод
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Bosch B20CS30SNS 300 Series Side-by-Side Refrigerator. Please read all instructions carefully before using the appliance and retain this manual for future reference.
2. Безбедносне информације
Always follow basic safety precautions when using this appliance to reduce the risk of fire, electric shock, or injury. This refrigerator is designed for household use only.
- Уверите се да је уређај правилно уземљен.
- Не складиштите експлозивне материје као што су аеросолне лименке са запаљивим горивом у овом уређају.
- Држите вентилационе отворе даље од препрека.
- Немојте користити механичке уређаје или друга средства за убрзавање процеса одмрзавања, осим оних које препоручује произвођач.
- Немојте оштетити круг расхладног средства.
- Само квалификовано особље треба да обавља поправке.
3. Подешавање и инсталација
3.1 Распакивање
Carefully remove all packaging materials, including tape and protective films. Inspect the refrigerator for any shipping damage. Report any damage immediately to your dealer.
3.2 Постављање
Position the refrigerator on a level, stable surface. Ensure adequate clearance around the appliance for proper ventilation. Refer to the specifications for exact dimensions and required clearances.
Препоручена размака:
- Sides: 0.125 inches (3 mm)
- Top: 0.125 inches (3 mm)
- Rear: 0.125 inches (3 mm)
3.3 Електрични прикључак
Прикључите фрижидер на наменску, уземљену утичницу наизменичне струје од 115 волти и 60 Hz. Не користите продужне каблове или адаптере за утикаче.
3.4 Water Connection (for Ice Maker and Dispenser)
A cold water supply line is required for the ice maker and water dispenser. Ensure the water supply is connected by a qualified plumber and that there are no leaks. Flush the water system for several minutes before initial use to remove any impurities.
3.5 Прво покретање
After connecting power and water, allow the refrigerator to cool for at least 4 hours before loading food. The ice maker will begin producing ice within 24 hours.
Слика 1: Ентеријер view of the Bosch B20CS30SNS side-by-side refrigerator with both doors open, revealing the spacious freezer on the left and refrigerator compartment on the right, equipped with adjustable shelves, multiple drawers, and door bins for organized storage.
4. Упутство за употребу
4.1 Контролна табла
The electronic control panel allows you to adjust temperatures, activate special functions, and monitor the refrigerator's status.

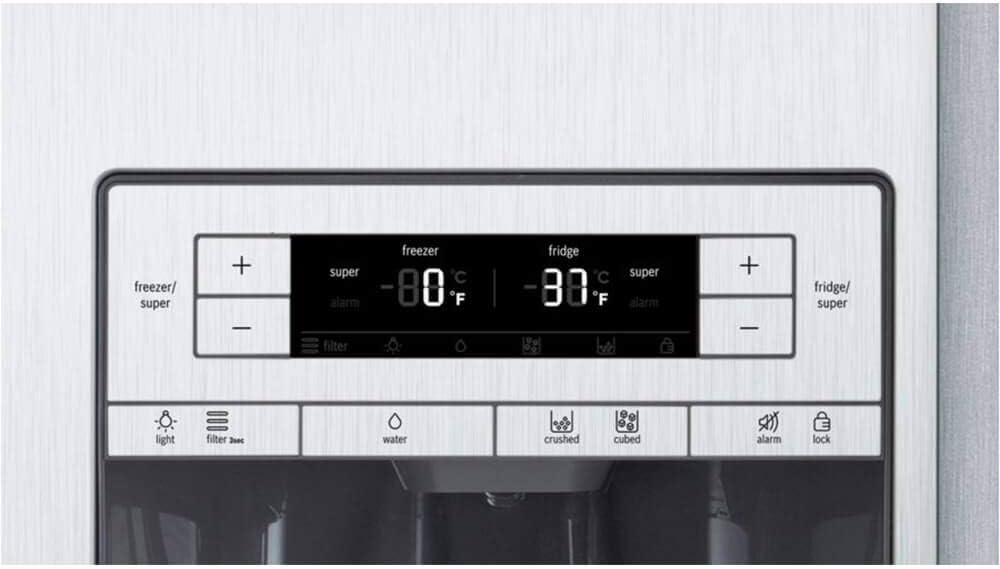

Слика 2: Close-up of the refrigerator's control panel, showing digital temperature displays for both freezer and fridge compartments, along with touch controls for various functions including 'super' cooling/freezing, filter reset, and dispenser options.
Подешавање температуре
Use the '+' and '-' buttons next to 'freezer' and 'fridge' to set desired temperatures. Recommended settings are 0°F (-18°C) for the freezer and 37°F (3°C) for the refrigerator.
Super Freeze/Cool Functions
Press the 'super' button for either the freezer or fridge to rapidly cool newly added items. This function automatically deactivates after a set period.
Функција аларма
The 'alarm' indicator illuminates if a door is left open or if the internal temperature rises above safe levels. Press the 'alarm' button to silence the alarm.
Ресетовање филтера
After replacing the water filter, press and hold the 'filter' button to reset the filter indicator.
4.2 Ice and Water Dispenser
The dispenser provides filtered water, cubed ice, and crushed ice.
Слика 3: Сиде view of the integrated ice and water dispenser on the refrigerator door, with a glass positioned to receive water. The dispenser features a paddle mechanism for activation and a drip tray below.
Дозирање воде
Press a glass against the water paddle. Release to stop the flow.
Dispensing Ice
Select 'cubed' or 'crushed' on the control panel, then press a glass against the ice paddle. Ensure the glass is held close to the dispenser opening to minimize ice scattering.
Операција ледомата
The ice maker automatically produces ice as needed. Ensure the ice maker arm is in the down position for operation. If the ice maker is not producing ice, verify the water supply is connected and the ice maker is turned on.
5. Одржавање
5.1 Чишћење
Regular cleaning helps maintain the appearance and efficiency of your refrigerator.
- Ентеријер: Clean with a mild soap and water solution. Rinse and dry thoroughly.
- Екстеријер: Wipe stainless steel surfaces with a soft cloth and a stainless steel cleaner. Avoid abrasive cleaners.
- Заптивке за врата: Clean regularly with warm soapy water to ensure a tight seal.
5.2 Замена филтера за воду
The water filter should be replaced approximately every six months, or when the filter indicator light illuminates. Refer to the filter replacement instructions provided with your replacement filter.
5.3 Frost Free System
This refrigerator features a frost-free system, eliminating the need for manual defrosting of the freezer compartment.
КСНУМКС. Решавање проблема
Пре него што контактирате корисничку подршку, реview следећи уобичајени проблеми и решења:
| Проблем | Могући узрок | Решење |
|---|---|---|
| Фрижидер се не хлади | Повер оуtage; thermostat set too high; door left open; condenser coils dirty. | Check power supply; adjust thermostat; ensure doors are closed; clean condenser coils. |
| Ледогенератор не производи лед | Water supply off; ice maker switch off; clogged water filter; low water pressure. | Ensure water supply is on; check ice maker switch; replace water filter; check water pressure. |
| Ice dispenser scatters ice | Ice chute design; type of ice (crushed vs. cubed). | Hold glass closer to the dispenser opening; use a wider glass; try dispensing cubed ice instead of crushed. |
| Ice maker jams or shuts off randomly | Ice cubes sticking together; sensor issue. | Break up ice in the bin; ensure proper freezer temperature; if issue persists, contact service. |
| Water drips after dispensing | Residual water in the dispenser line. | This is normal for a short period. Ensure the drip tray is regularly emptied and cleaned. |
| Loud noise from ice maker | Normal operation sounds; ice breaking or dropping. | Some noise during ice production and dispensing is normal. If noise is excessive or unusual, contact service. |
7. Спецификације
| Феатуре | Детаљ |
|---|---|
| Број модела | B20CS30SNS |
| Димензије производа (Д x Ш x В) | 27.38"Д к 35.88"Ш к 69.75"В |
| Капацитет | 20.2 кубних стопа |
| Конфигурација | Full-Sized Side-by-Side |
| Боја | Silver (Stainless Steel finish) |
| Врста инсталације | Built-In, Counter Depth |
| Број врата | 2 |
| Систем за одмрзавање | Фрост Фрее |
| Волtage | 115 Волтс |
| Тип полице | Жица |
| Подесива контрола температуре | Да |
| Тежина артикла | 250 фунти |
| Сертификат Енерги Стар | Да |
8. Информације о гаранцији
This Bosch appliance comes with a manufacturer's warranty. Please refer to the separate warranty document included with your purchase for specific terms, conditions, and registration details. Keep your proof of purchase for warranty claims.
9. Корисничка подршка
For technical assistance, service, or to order replacement parts, please contact Bosch Customer Service. Have your model number (B20CS30SNS) and serial number ready when you call.
You can find contact information on the Bosch webсајту или у вашој гарантној документацији.
