Ford 6610 Tractor Operators Manual (1983-1985) (Diesel)

1. Увод

This operator's manual provides essential information for the safe and efficient operation, maintenance, and care of your Ford 6610 Diesel Tractor, manufactured between 1983 and 1985. Familiarize yourself with all instructions before operating the tractor to ensure optimal performance and longevity.

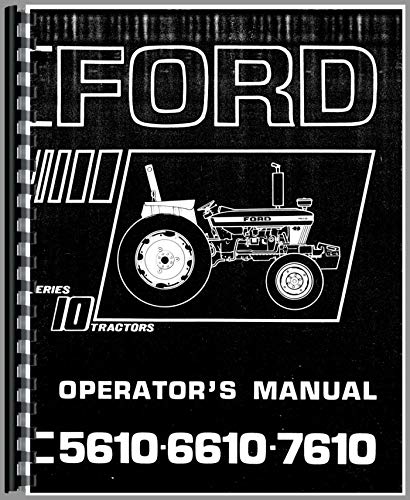

Figure 1: Front cover of the Ford Series 10 Tractors Operator's Manual, featuring models 5610, 6610, and 7610.

2. Мере предострожности

Always prioritize safety when operating agricultural machinery. Failure to follow safety instructions can result in serious injury or death. This section outlines critical safety guidelines.

• Read and understand all safety decals on the tractor.
• Ensure all guards and shields are in place before operation.
• Wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, and sturdy footwear.
• Never allow unauthorized personnel to operate the tractor.
• Држите децу и пролазнике даље од оперативног простора.
• Operate the tractor only from the operator's seat.
• Будите свесни своје околине и потенцијалних опасности.
• Always engage the parking brake when the tractor is stationary.
• Perform regular maintenance checks as specified in this manual.

3. Controls and Instruments

This section details the location and function of the various controls, instruments, and indicators on your Ford 6610 tractor. Proper understanding of these components is crucial for safe and effective operation.

3.1 Seat, Light, and Engine Controls

Your Ford tractor is equipped with a deluxe seat or a super comfort seat. Adjust the seat to your weight by turning the knob (1). Raise or lower the seat by loosening the height adjustment nuts (3). Slide the seat ahead or back by depressing the seat track latch (4). If more fore-aft adjustment is required than that provided in the seat track, the two seat assembly mounting bolts may be loosened and the seat slid ahead or back in the seat frame mounting slots (5).

3.2 Roll Over Protective Structure (ROPS)

Roll Over Protective Structures (ROPS) and safety cabs are effective in reducing injuries during tractor overturn accidents. Overturning a tractor without a ROPS or safety cab can result in serious injury or death.

All tractors equipped with a ROPS or cab are also equipped with a seat belt which, when used by the operator, maximizes the protection offered by the ROPS. ALWAYS use your seat belt when the ROPS is installed—seat belts save lives when they are used. Do not use your seat belt when the ROPS is not installed on the tractor.

Figure 2: Illustration showing seat adjustment controls (Figure 1) and a two-post Roll Over Protective Structure (ROPS) (Figure 2) on a Ford tractor. Key components are numbered for identification.

• Figure 1: Super Comfort Seat
• 1. Weight Adjustment Knob
• 2. Weight Adjustment Indicator
• 3. Seat Height Adjustment Nuts
• 4. Seat Track Latch
• 5. Seat Frame Mounting Bolts (not visible)
• Figure 2: Two-Post Roll Over Protective Structure (ROPS)
• 1. Two-Post ROPS
• 2. Flashing Warning Light

4. Операција

This section covers the fundamental procedures for operating your Ford 6610 tractor, from initial startup to specific tasks. Adhering to these guidelines will ensure efficient and safe use of the machinery.

4.1 Покретање мотора

1. Уверите се да је мењач у неутралном положају и да је ручна кочница активирана.
2. Turn the ignition key to the "ON" position and check indicator lights.
3. If equipped, engage the cold start aid (e.g., glow plugs) as per temperature requirements.
4. Turn the ignition key to the "START" position. Release the key once the engine starts.
5. Allow the engine to warm up at a low idle speed before applying load.

4.2 Заустављање мотора

1. Смањите брзину мотора на празан ход.
2. Активирајте паркирну кочницу.
3. Окрените кључ за паљење у положај „OFF“.
4. Уклоните кључ да бисте спречили неовлашћену употребу.

4.3 Transmission and PTO Controls

Detailed instructions for engaging and disengaging the transmission gears and Power Take-Off (PTO) are provided to ensure smooth operation and prevent damage to the drivetrain. Always refer to the specific shift patterns and PTO engagement procedures for your tractor model.

4.4 Hydraulic Lift System

The hydraulic lift system controls the raising and lowering of implements. Understand the control levers and their functions for precise implement positioning and safe operation. Ensure correct hydraulic fluid levels are maintained.

5. Lubrication and Maintenance

Regular lubrication and maintenance are vital for the longevity and reliable performance of your Ford 6610 tractor. Follow the recommended service intervals and procedures outlined below.

5.1 Распоред одржавања

Refer to the detailed maintenance chart in the original manual for specific service intervals (e.g., daily, 50 hours, 250 hours, 500 hours). Key tasks include:

• Checking engine oil level.
• Inspecting coolant level.
• Checking tire pressure.
• Lubricating grease points.
• Cleaning air filter elements.
• Checking hydraulic fluid level.
• Inspecting brake and clutch pedal free play.

5.2 Fuels and Lubricants

Use only recommended fuels, oils, and lubricants as specified by Ford for the 6610 Diesel Tractor. Using incorrect fluids can lead to engine damage and reduced performance. Consult the original manual for a comprehensive list of approved products.

5.3 General Maintenance and Storage

This section provides guidance on general cleaning, inspection, and proper storage procedures for your tractor, especially during off-season periods, to prevent corrosion and maintain readiness.

6. Спецификације

Key technical specifications for the Ford 6610 Diesel Tractor (1983-1985 models) are provided here. These details are crucial for understanding the tractor's capabilities and for ordering correct replacement parts.

For precise measurements and detailed technical data, always consult the complete original operator's manual.

КСНУМКС. Решавање проблема

This section provides guidance for identifying and resolving common operational issues you might encounter with your Ford 6610 tractor. For complex problems, consult a qualified service technician.

7.1 Мотор се не пали

• Проверите ниво горива: Ensure there is sufficient diesel fuel in the tank.
• батерија: Verify battery terminals are clean and tight, and the battery is charged.
• Safety Switches: Confirm all safety interlocks (e.g., neutral safety switch, PTO disengaged) are correctly positioned.
• Систем горива: Check for air in the fuel system or a clogged fuel filter.

7.2 Loss of Hydraulic Power

• Ниво течности: Check the hydraulic fluid reservoir level.
• Филтер: Inspect the hydraulic filter for clogging.
• Вентил: A stuck or faulty relief valve can cause pressure loss.

8. Гаранција и подршка

This manual is a reproduction of the original operator's guide for the Ford 6610 Tractor. As such, it does not include specific warranty information for the tractor itself, which would have been provided at the time of original purchase (1983-1985).

For support regarding this manual or for general inquiries about vintage Ford tractor parts and service, please refer to specialized agricultural machinery forums, vintage tractor clubs, or authorized Ford tractor service centers that specialize in older models.

For parts and service, consider contacting reputable suppliers of vintage tractor components. Always provide your tractor's serial number and model year when seeking assistance.
