Fender Vintera '70s Jazz Bass Instruction Manual

1. Увод

This manual provides essential information for the proper setup, operation, and maintenance of your Fender Vintera '70s Jazz Bass. Please read these instructions carefully to ensure optimal performance and longevity of your instrument.

The Fender Vintera '70s Jazz Bass combines classic aesthetics with modern playability, featuring a 3-Color Sunburst finish and a Pau Ferro fingerboard. It is equipped with two '70s Jazz Bass single-coil pickups for authentic tone.

Слика 1.1: Фронт view of the Fender Vintera '70s Jazz Bass in 3-Color Sunburst.

2. Подешавање

2.1 Распакивање и почетни преглед

Carefully remove the bass from its packaging and included deluxe gig bag. Inspect the instrument for any signs of damage that may have occurred during shipping. Ensure all components, such as the bridge, tuners, and electronics, are securely in place.

2.2 Повезивање са Ampлифиер

1. Осигурајте своје amplifier is turned off and its volume is set to minimum.
2. Connect one end of a standard instrument cable (not included) to the output jack located on the front edge of the bass body.
3. Connect the other end of the instrument cable to the input jack of your bass ampлифиер.
4. Укључите свој amplifier and slowly increase the volume to a desired level.

2.3 Тунинг

The Fender Vintera '70s Jazz Bass is typically tuned to standard E-A-D-G (from thickest to thinnest string). Use an electronic tuner for accurate tuning. Turn the tuning machines located on the headstock to adjust the pitch of each string.

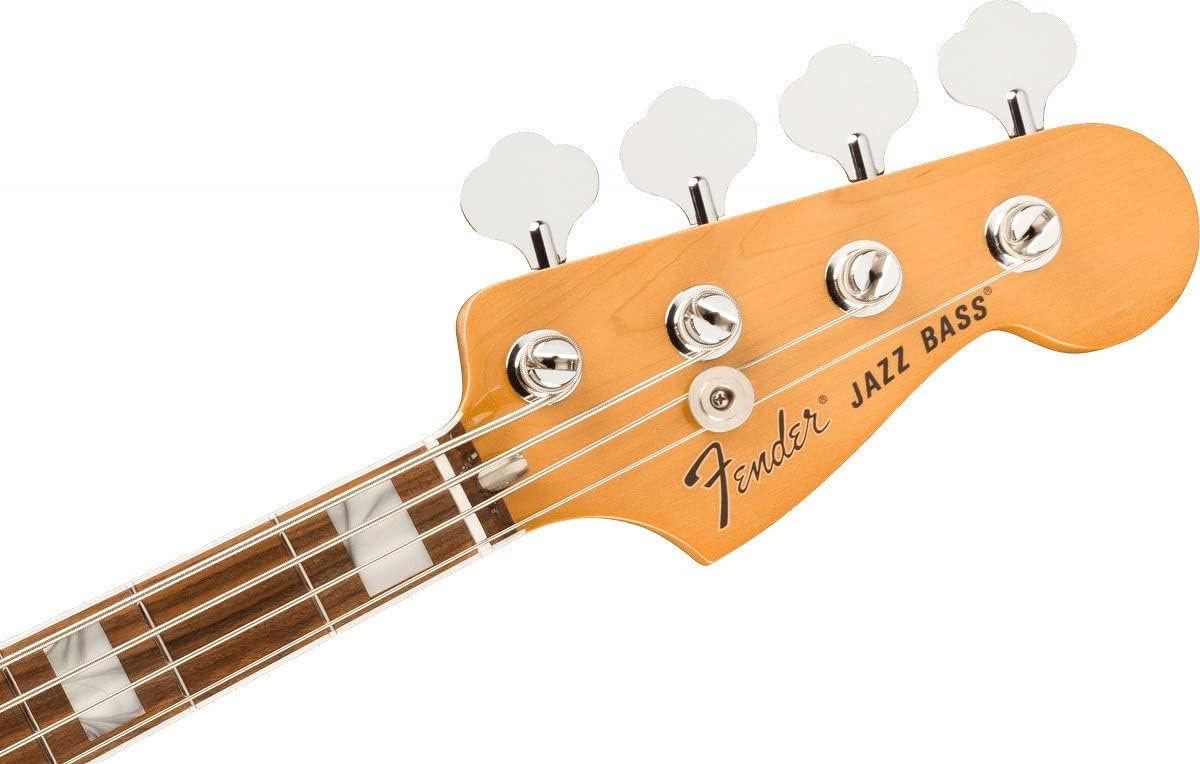

Слика 2.1: Фронт view of the headstock, showing the tuning machines.

3. Руковање инструментом

3.1 Контроле прекоview

Your Jazz Bass features a straightforward control layout for shaping your sound:

• Volume 1 (Neck Pickup): Controls the output volume of the neck pickup.
• Volume 2 (Bridge Pickup): Controls the output volume of the bridge pickup.
• Master Tone: Adjusts the overall treble response of the instrument. Turning it clockwise increases treble, while turning it counter-clockwise reduces treble for a warmer sound.

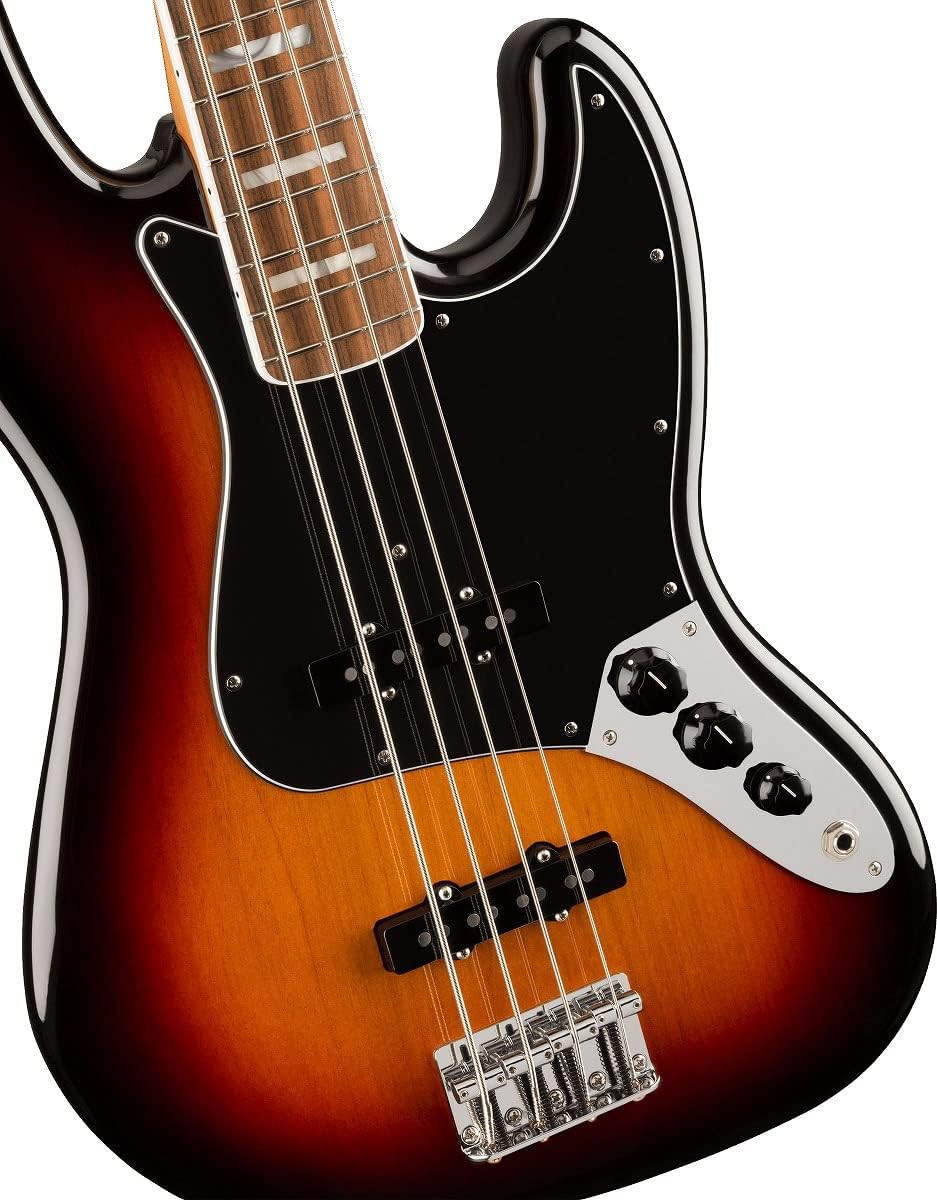

Слика 3.1: Close-up of the control knobs and '70s Jazz Bass single-coil pickups.

3.2 Adjusting Your Sound

Experiment with the individual volume controls for the neck and bridge pickups to blend their sounds. For example, using only the neck pickup provides a warmer, rounder tone, while the bridge pickup offers a brighter, more articulate sound. Blending both pickups can create a full, balanced tone. The Master Tone control allows for further fine-tuning of your overall sound.

4. Одржавање

Regular maintenance will help preserve the playability and appearance of your Fender Vintera '70s Jazz Bass.

4.1 Чишћење

• Body and Neck: Wipe down the body and back of the neck with a soft, clean, lint-free cloth after each use to remove sweat and fingerprints. For deeper cleaning, use a guitar-specific polish or cleaner sparingly.
• Фингербоард: The Pau Ferro fingerboard should be cleaned periodically. Use a soft brush to remove any grime between the frets. For conditioning, apply a small amount of lemon oil or a specialized fretboard conditioner to a cloth and wipe the fingerboard, then wipe off any excess. Avoid over-saturating the wood.
• хардвер: Use a dry, soft cloth to clean the bridge, tuners, and other metal parts. Avoid abrasive cleaners.

4.2 Замена жица

Strings should be replaced regularly, depending on how often you play and your personal preference. Old strings can lose their tone and intonation. When replacing strings, do so one at a time to maintain neck tension. Use nickel steel bass strings for optimal performance.

4.3 Складиштење

When not in use, store your bass in its deluxe gig bag or a hard case to protect it from dust, humidity changes, and physical damage. Avoid exposing the instrument to extreme temperatures or direct sunlight.

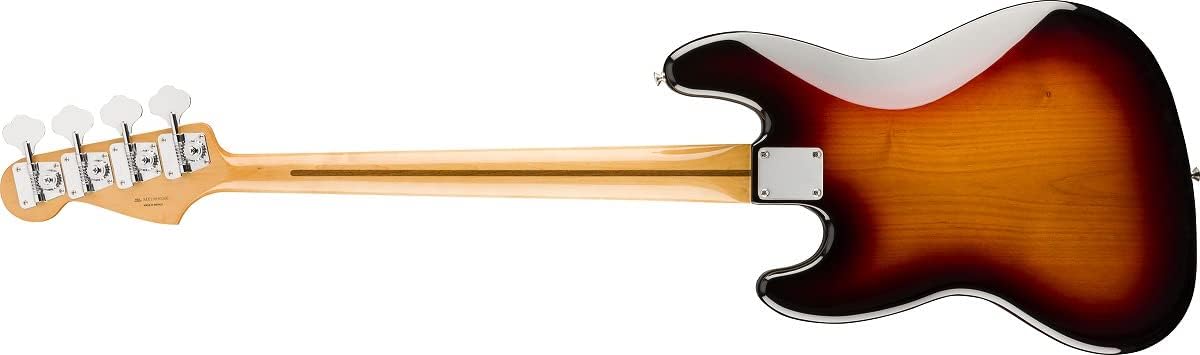

Слика 4.1: Назад view of the bass, showing the neck and body construction.

КСНУМКС. Решавање проблема

Here are some common issues and basic troubleshooting steps:

• Нема звука:
  • Check that your instrument cable is securely connected at both the bass and the ampлифиер.
  • Осигурајте ampУређај за убризгавање је укључен и његова јачина звука није на нули.
  • Verify that the volume controls on the bass are turned up.
  • Test with a different instrument cable or amplifier if possible to isolate the problem.
• Buzzing or Unwanted Noise:
  • Обезбедите правилно уземљење вашег ampпуњач и утичнице.
  • Check for loose connections in your signal chain.
  • If the buzzing is mechanical (e.g., from frets), the instrument may require a professional setup.
• Нестабилност подешавања:
  • Уверите се да су жице правилно затегнуте након инсталације.
  • Check that strings are correctly wound around the tuning posts.
  • Inspect the tuning machines for any looseness or damage.

For issues beyond basic troubleshooting, it is recommended to consult a qualified guitar technician.

6. Спецификације

7. Гаранција и подршка

Fender instruments are known for their quality and craftsmanship. For detailed information regarding your product's warranty, please refer to the official Fender website or the warranty card included with your purchase. For technical support, service, or additional resources, please visit the official Fender support page online.

Важно: Any unauthorized modifications or repairs may void your warranty.
