FLEXISPOT E9 Electric Standing Desk User Manual

1. Увод

Thank you for choosing the FLEXISPOT E9 Electric Standing Desk. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new desk. Please read it thoroughly before use and keep it for future reference.

The FLEXISPOT E9 is designed for easy assembly with minimal parts, ensuring a smooth setup experience. It offers a wide height adjustment range from 73 cm to 123 cm, with a swift adjustment speed of 25mm/s for a stress-free transition between sitting and standing positions. Its robust design supports up to 50 kg, allowing you to safely adjust the desk height with your equipment in place.

The desk features a smart touch panel for intuitive one-touch operation, enabling you to effortlessly switch between sitting and standing postures to optimize your workspace for health and activity. The compact 60 cm x 120 cm tabletop provides ample workspace while harmonizing with various room aesthetics. Its minimalist design makes it suitable for home offices, studies, or even as a versatile dining or hobby table in your living room.

Image: The FLEXISPOT E9 Electric Standing Desk, highlighting its adjustable height from 73-123cm and 120cm width.

2. Подешавање и монтажа

The FLEXISPOT E9 desk is designed for straightforward assembly. Follow these steps to set up your desk:

1. Распакујте компоненте: Carefully remove all parts from the packaging and verify against the parts list in your included manual.
2. Attach the Beam: The desk's beam is pre-attached to the tabletop. Simply rotate the support columns into place.
3. Инсталирајте стопала: Securely attach the desk feet to the support columns using the provided screws and tools.
4. Повежите даљински управљач: Connect the remote control cable to the control box under the desk.
5. Прикључак за напајање: Plug the power cable into the control box and then into a wall outlet.

All necessary assembly tools are included in the package. Assembly typically requires one person and can be completed in approximately 15 minutes.

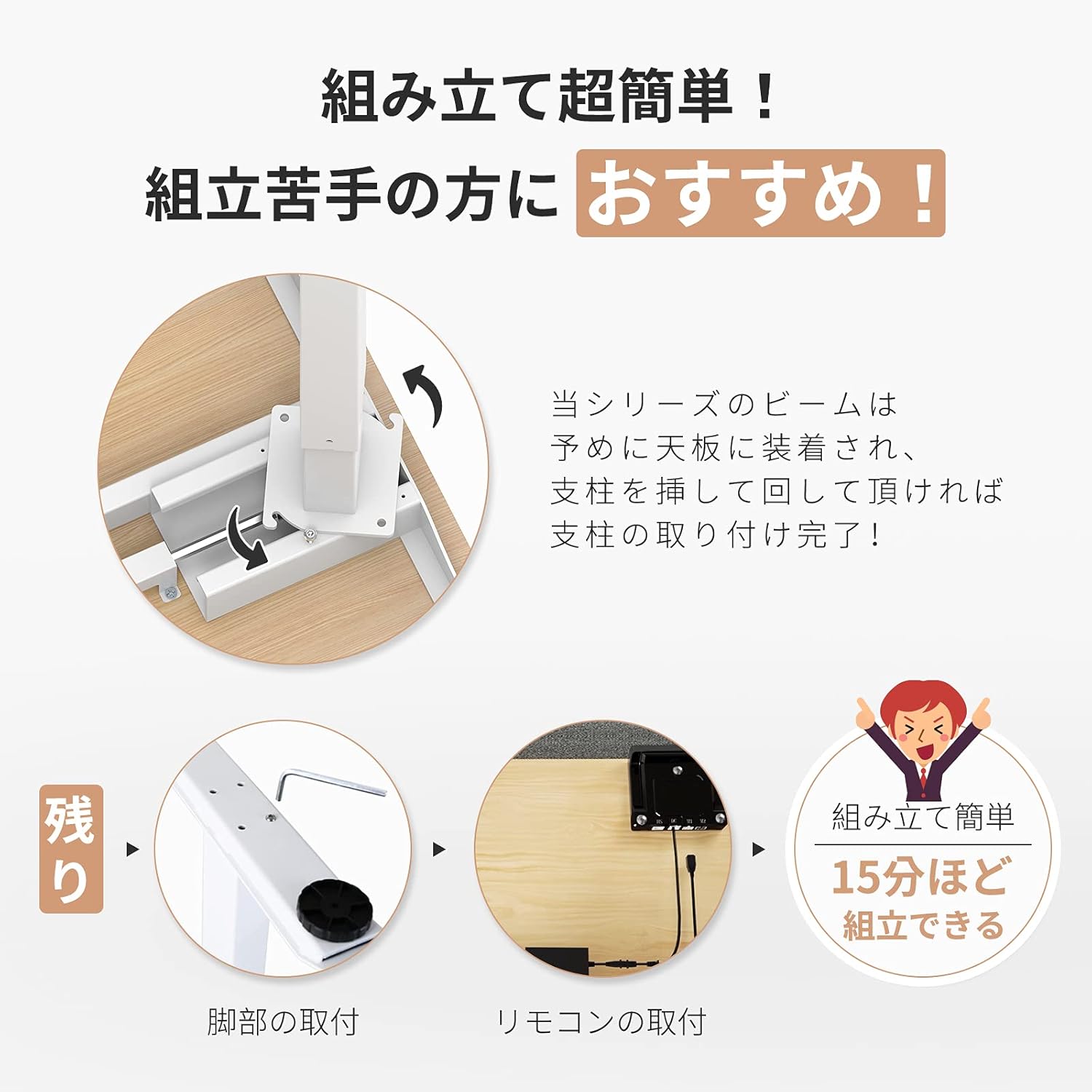

Image: Visual guide demonstrating the simple assembly process, including beam rotation, foot attachment, and remote control connection.

3. Упутство за употребу

The FLEXISPOT E9 features an intuitive control panel for easy height adjustment and memory functions.

3.1 Контролна табла прекоview

Image: The control panel, indicating the LED panel, up button, down button, and four height memory preset buttons.

• ЛЕД панел: Приказује тренутну висину стола.
• Дугмад горе/доле (▲ / ▼): Press and hold to adjust the desk height upwards or downwards. Release to stop at the desired height.
• Memory Preset Buttons (1, 2, 3, 4): Store and recall preferred height settings.

3.2 Подешавање пресета меморије

1. Подесите сто на жељену висину помоћу дугмади горе/доле.
2. Press and hold one of the memory preset buttons (1, 2, 3, or 4) until the LED panel flashes or beeps, indicating the height has been saved.

3.3 Recalling Memory Presets

Simply press the desired memory preset button (1, 2, 3, or 4). The desk will automatically move to the saved height.

3.4 Safety Features (Anti-Collision)

The desk is equipped with a built-in sensor to detect obstacles during height adjustment. If an obstruction is encountered, the desk will automatically stop and reverse slightly to prevent damage or injury.

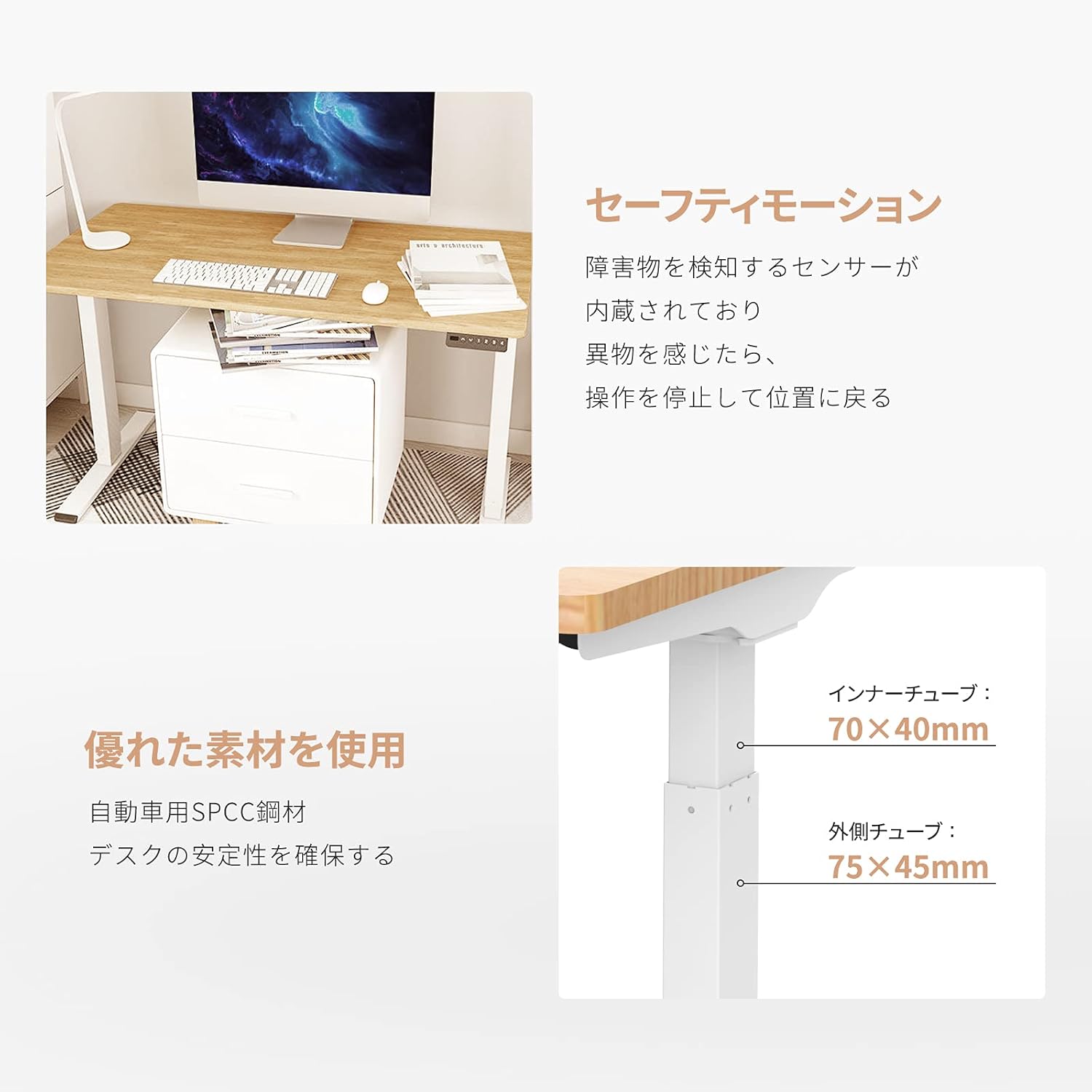

Image: Explanation of the safety motion feature, where the desk stops and reverses upon detecting an obstacle. Also shows inner tube (70x40mm) and outer tube (75x45mm) dimensions.

4. Одржавање

To ensure the longevity and optimal performance of your FLEXISPOT E9 Electric Standing Desk, follow these maintenance guidelines:

• Редовно чишћење: Обришите површину и ноге стола меком крпомamp крпом. Избегавајте абразивна средства за чишћење или јаке хемикалије које би могле оштетити завршну обраду.
• Управљање кабловима: Ensure all cables are neatly organized and not tangled or pinched, especially during height adjustments. Use cable ties or management trays if necessary.
• Проверите везе: Periodically check that all screws and connections are secure. Tighten if any looseness is detected.
• Избегавајте преоптерећење: Не прекорачите максималну тежину од 50 кг.
• Услови животне средине: Keep the desk in a dry environment and avoid extreme temperatures or direct sunlight.

КСНУМКС. Решавање проблема

If you encounter any issues with your FLEXISPOT E9 Electric Standing Desk, please refer to the following common troubleshooting steps:

• Сто се не помера:
  • Проверите да ли је кабл за напајање безбедно прикључен и на сто и у зидну утичницу.
  • Ensure there are no obstructions preventing movement.
  • Try resetting the desk by unplugging it for 30 seconds and then plugging it back in.
• Неравномерно кретање:
  • Уверите се да је сто постављен на равну површину.
  • Verify that the weight on the desk is evenly distributed.
• Кодови грешака на ЛЕД дисплеју:
  • Refer to the full product manual (if provided separately) for specific error code meanings and solutions.
  • Often, an error can be cleared by resetting the desk (unplugging and replugging).

If these steps do not resolve the issue, please contact FLEXISPOT customer support for further assistance.

6. Спецификације

Detailed technical specifications for the FLEXISPOT E9 Electric Standing Desk:

Image: Technical drawing with key dimensions: 1200mm width, 600mm depth, 730-1230mm height range, 1000mm base width, 580mm base depth, 74mm foot height.

7. Гаранција и подршка

FLEXISPOT provides a free long-term manufacturer's warranty for the E9 Electric Standing Desk. This warranty includes unlimited support responses during the warranty period, offering complete peace of mind.

FLEXISPOT has established a dedicated support system in Japan, including a call center, to ensure excellent after-sales service for our customers. In the event that you require support, our team will assist you in Japanese, eliminating any language concerns.

For warranty claims, technical assistance, or any other inquiries, please contact FLEXISPOT customer service through the official webсајт или контакт информације које сте добили уз куповину.
