1. Важна безбедносна упутства
Please read all instructions carefully before using this exercise bike. Keep this manual for future reference.
- Консултујте се са својим лекаром пре него што започнете било који програм вежбања.
- Држите децу и кућне љубимце даље од опреме.
- Поставите бицикл за вежбање на равну, стабилну површину.
- Inspect the equipment before each use for loose parts or signs of wear.
- Не прекорачујте максималну тежину корисника од 120 кг (264 лбс).
- Носите одговарајућу одећу и обућу за вежбање.
- Одмах престаните са вежбањем ако осетите слабост, вртоглавицу или бол.
- Ensure all adjustment knobs are securely tightened before use.
2. Садржај пакета
Verify that all components are present before assembly. If any parts are missing or damaged, contact customer service.
Image: The HOMCOM Folding Exercise Bike is delivered in a single package, ready for assembly.
The package typically includes the main frame, seat, pedals, handlebars, LCD console, and an assembly hardware kit.
3. Упутство за монтажу
The HOMCOM Folding Exercise Bike is approximately 80% pre-assembled. Full assembly typically takes about 20 minutes.
- Распакујте компоненте: Пажљиво извадите све делове из паковања и распоредите их.
- Стабилизујте базу: Ensure the main frame is stable on a flat surface.
- Причврстите педале: Securely attach the left and right pedals. Note that the right pedal screws in clockwise, and the left pedal screws in counter-clockwise. Ensure they are fully tightened to prevent issues during use.
- Инсталирајте седиште и наслон: Attach the seat and backrest to the main frame.
- Mount Handlebars and Console: Secure the handlebars and attach the LCD console, connecting any necessary sensor wires.
- Подесите висину седишта: Adjust the seat to your preferred height using the adjustment knob.
- Коначна провера: Before first use, double-check all bolts, nuts, and connections to ensure they are tight and secure.
Image: The HOMCOM Folding Exercise Bike after complete assembly, ready for use.
4. Производ је готовview и карактеристике
The HOMCOM Folding Exercise Bike is designed for home cardio training, offering a compact and versatile workout solution.
Кључне карактеристике:
- Дизајн преклопа: X-frame design for easy storage and space-saving.
- Магнетна отпорност од 8 нивоа: Adjustable resistance for varied workout intensity.
- Adjustable Padded Seat: Ergonomic seat with backrest, adjustable to 4 levels.
- Multifunction LCD Display: Tracks speed, time, distance, calories, and pulse.
- Траке отпора: Integrated bands for upper body workouts.
- Tablet/Phone Holder: Convenient holder for entertainment or fitness apps.
- Транспортни точкови: For easy relocation.
Слика: Детаљна view highlighting the tablet holder, comfortable backrest, phone holder, TPR pedals with adjustable cages, and adjustable anti-slip foot covers for stability.
5. Операција
5.1 Adjusting the Seat
The seat can be adjusted to 4 different height levels to accommodate various user heights. Locate the adjustment knob below the seat. Pull the knob out, slide the seat to the desired height, and release the knob to lock it into place. Ensure the seat is securely locked before use.
Image: Visual guide demonstrating the four adjustable seat positions for optimal comfort and posture.
5.2 Подешавање магнетног отпора
The exercise bike features 8 levels of magnetic resistance. Turn the tension control knob located on the main frame to increase or decrease the resistance. Turn clockwise for higher resistance (levels 5-8 for muscle stabilization) and counter-clockwise for lower resistance (levels 1-4 for warm-up or aerobic exercise).
Image: Close-up of the tension control knob, illustrating the 8 levels of magnetic resistance from low to high.
5.3 Коришћење ЛЦД монитора
The large LCD monitor displays key workout data. Insert 2 AAA batteries (not included) into the console. The monitor will automatically turn on when you start pedaling or press any button.
- СКЕНИРАЈ: Аутоматски се циклично креће кроз све функције.
- ВРЕМЕ: Displays your workout duration.
- БРЗИНА: Приказује вашу тренутну брзину.
- ДИСТ (Удаљеност): Приказује пређену удаљеност током тренинга.
- ЦАЛ (калорије): Процењује потрошене калорије.
- ПУЛС: Displays your heart rate when holding the pulse sensors on the handlebars.
- Дугме МОДЕ: Press to select a specific display function or to activate SCAN mode.
- Ресет: Press and hold to clear all workout data.

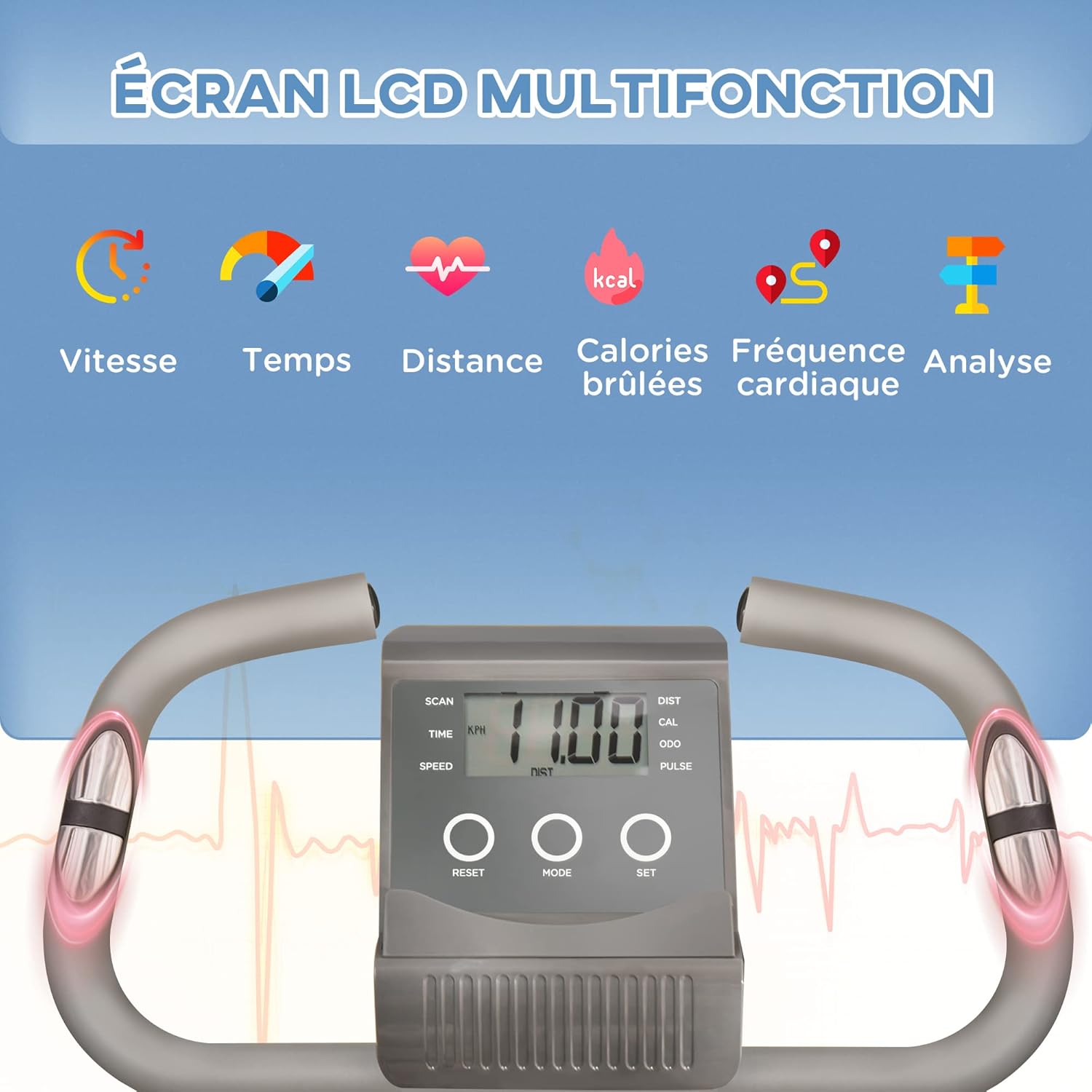

Image: The multifunction LCD display, showing various metrics like speed, time, distance, calories burned, and heart rate.
5.4 Коришћење трака за отпор
The exercise bike includes two resistance bands for upper body exercises. While seated and pedaling, you can use these bands to engage your arms and back muscles, providing a more comprehensive workout.

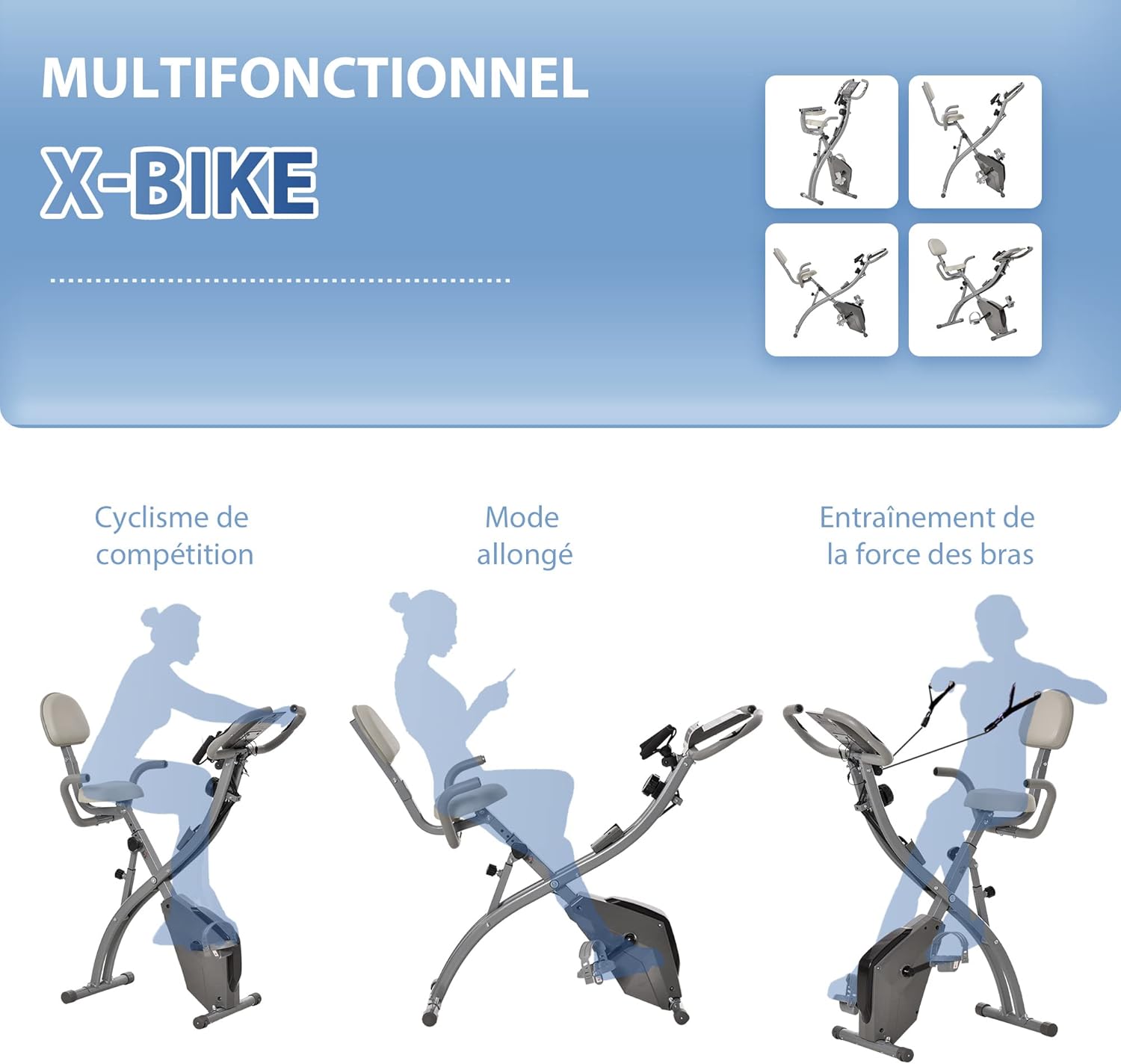

Image: Diagram illustrating various modes of use, including standard cycling, a reclined position, and arm strength training using the integrated resistance bands.
5.5 Склапање и складиштење
To fold the bike for storage, loosen the main folding knob (usually located near the center joint of the X-frame). Carefully fold the bike inwards until it is compact. Tighten the knob to secure it in the folded position. Use the integrated transport wheels to move the folded bike easily.
Image: A person demonstrating the ease of moving the folded exercise bike using its front transport wheels, highlighting its space-saving design.
6. Одржавање
- Чишћење: Обришите бицикл огласомamp крпом након сваке употребе да бисте уклонили зној и прашину. Избегавајте абразивна средства за чишћење.
- инспекција: Редовно проверавајте све вијке, навртке и покретне делове да ли су затегнути и истрошени. Затегните све лабаве причвршћиваче.
- подмазивање: No specific lubrication is typically required for magnetic resistance bikes, but refer to any specific instructions if provided with the product.
- Складиштење: Чувајте бицикл на сувом и хладном месту, даље од директне сунчеве светлости и екстремних температура.
КСНУМКС. Решавање проблема
| Проблем | Могући узрок | Решење |
|---|---|---|
| Pedals feel loose or detach. | Pedals not tightened correctly during assembly. | Ensure pedals are screwed in correctly (right pedal clockwise, left pedal counter-clockwise) and fully tightened. |
| LCD monitor not displaying. | Batteries are dead or incorrectly installed; sensor wire is disconnected. | Replace batteries (2 AAA). Check battery orientation. Ensure sensor wires are securely connected to the console. |
| Необична бука током рада. | Loose parts; friction from moving components. | Inspect all bolts and nuts and tighten if loose. Ensure the bike is on a level surface. |
| Отпор се не мења. | Отпорни кабл је искључен или оштећен. | Check the connection of the resistance cable to the tension control knob and the magnetic mechanism. |
8. Спецификације
- Број модела: А90-196ГИ
- Димензије (расклопљено): 48P x 105d x 118V cm (48 x 105 x 118 cm)
- Тежина: 19 кг
- Максимална тежина корисника: 120 кг
- Механизам отпора: Магнетиц
- Нивои отпора: 8
- Power Source (Console): 2 к ААА батерије (нису укључене)
- Материјал: Alloy Steel, Foam (handle grip)
- Боја: Сива, црна
- Minimum Seat Height: 73 цм
- Maximum Seat Height: 90 цм
- Потребна монтажа: Да (приближно 20 минута)
Image: Diagram showing the dimensions of the exercise bike in both its unfolded and folded configurations.
9. Видео о производу
Погледајте овај видео за брзи прегледview of the HOMCOM Folding Exercise Bike's features, assembly, and usage.
Video: A short demonstration of the HOMCOM Folding Exercise Bike, showcasing its setup, operation, and folding mechanism.
10. Гаранција и подршка
This product comes with a standard manufacturer's warranty. For detailed warranty information, product support, or to order replacement parts, please contact HOMCOM customer service or visit their official webсајт. Сачувајте рачун као доказ о куповини.
For further assistance, please refer to the contact information provided with your purchase or on the HOMCOM brand webсајту.
